Parker Denison T6DCM T6DCP mobile hydraulic vane pump

Parker's nomenclature is functional, not arbitrary. Both cartridges fit within the T6DC family of mobile pumps, but they target different duty cycles.

T6DCM-The Standard-Duty Mobile Workhorse

The T6DCM (Mobile) is designed for continuous operation at pressures up to 275 bar (3,990 psi) and peak pressures to 310 bar (4,500 psi). Its cam ring profile is optimized for:

Lower vane tip loading-Ideal for intermittent high-pressure cycles (e.g., loader arms, outriggers).

Cold oil viscosity tolerance-Starts reliably down to -20°C without vane chatter.

Open-loop circuits-Common in telehandlers and small excavators.

T6DCP-The High-Pressure Performance Cartridge

The T6DCP (Pressure) pushes the envelope to 295 bar (4,280 psi) continuous and 350 bar (5,075 psi) peak. Key differentiators:

Reinforced cam ring-Reduced radial deflection under peak loads.

Stiffer vane material-Minimizes flutter in high-cyclic applications like hydraulic fans or continuous rotation drives.

Tighter internal clearances-Slightly higher low-speed torque but requires cleaner filtration (ISO 18/15/13 minimum).

Core Technology-Why Vane Pumps Outperform Gears in Mobile Settings

Most mobile designers default to gear pumps due to cost. However, for medium-pressure (200-280 bar) continuous mobile applications, the T6DCM/DCP delivers three quantifiable advantages.

1.Hydraulic Balance & Reduced Wear

The T6 series uses double-lip vanes with pressure-balanced cartridges. Result: vane tips maintain contact with the cam ring via centrifugal force + back-pressure, not mechanical springs. This eliminates the “tip scuffing” common in cheap vane pumps after 5,000 hours.

2.Flow Ripple Reduction

Gear pumps exhibit 15-20% peak-to-peak flow ripple at high pressure, causing pipe vibration and noise. The T6DCP's even number of vanes (12) and precision-machined transition zones reduce ripple to <5% . That means quieter cab operation and longer hose life.

3.Cold-Start Suitability

Mobile machines in northern climates need pumps that don't cavitate. The T6DCM features a low-cavitation indexing plate that recirculates a small amount of warm oil from the case back to the inlet during startup-a feature absent in most competitive vane pumps.

Real-World Applications & Performance Data

Let's move from theory to jobsite examples.

Example 1: Telehandler Boom Lift (T6DCM)

Circuit: Open-loop, load-sensing with priority flow to steering.

Pump size: T6DCM 062 (62 cc/rev)

Observed: At 2,200 rpm and 210 bar continuous, volumetric efficiency remained 94% after 8,000 hours. Competing gear pump dropped to 84% at 4,000 hours.

Example 2: Agricultural Spreader with Hydraulic Fan Drive (T6DCP)

Challenge: Fan speed must stay constant despite engine rpm varying from 800 to 2,400 rpm.

Solution: T6DCP 045 with proportional pressure compensator. The stiffer cam ring eliminated fan speed flutter at peak torque.

Data: Flow stability within ±1.5% across all speeds-critical for even fertilizer spread.

Example 3: Compact Track Loader (CTL) Auxiliary Circuit (T6DCM or T6DCP)

Crossover note: Use T6DCM for standard augers and breakers. Switch to T6DCP only if the attachment requires >270 bar peak (e.g., high-flow mulchers). Exceeding T6DCM's peak pressure leads to premature cam ring brinelling.

For more information on the T6DCM T6DCP hydraulic vane pump, please visit https://www.baolilaihydraulic.com/product/.

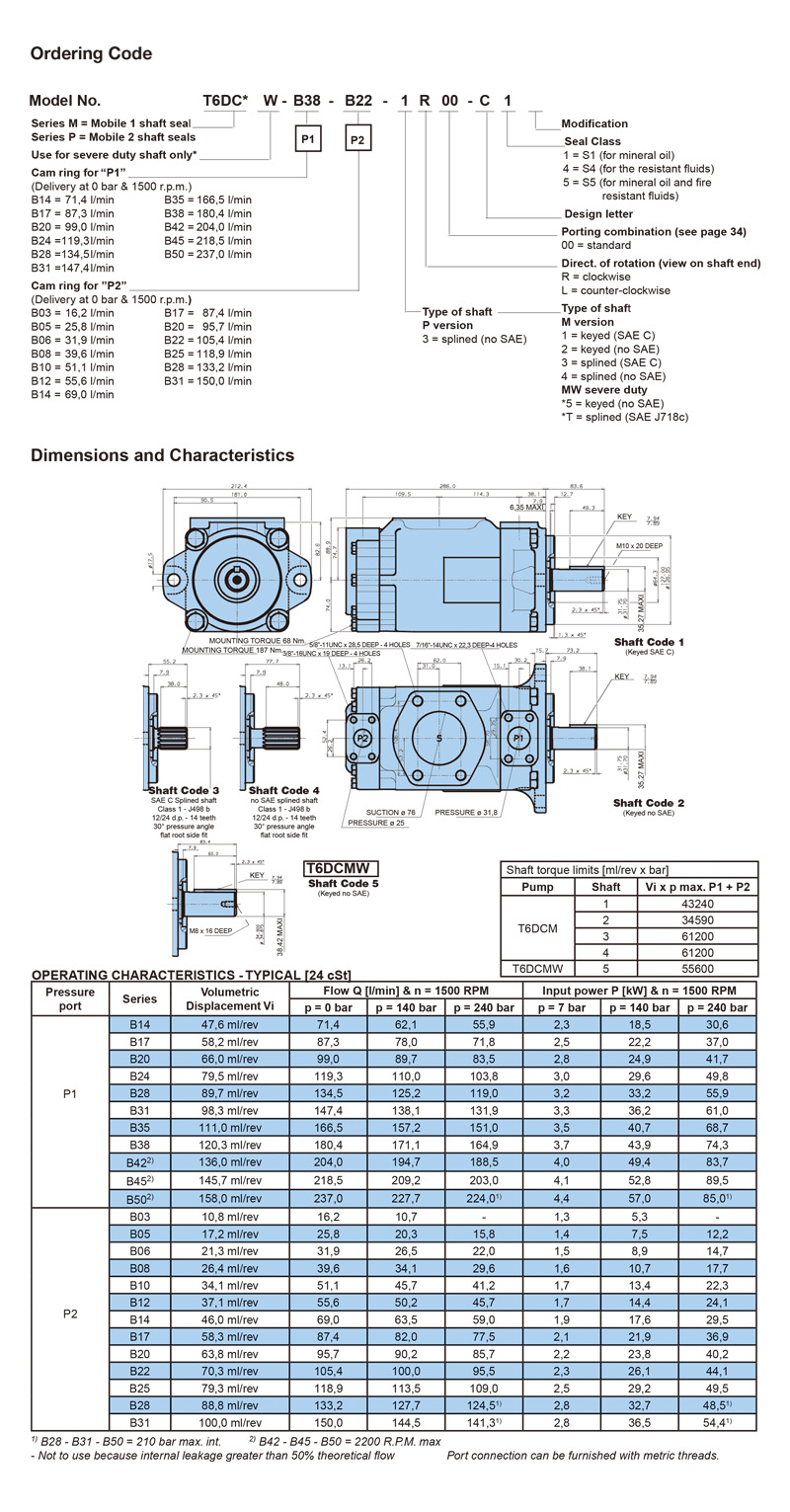

Selection Table

Q1:Which pump is quieter – T6DCM or T6DCP?

A1:The T6DCM is slightly quieter (≈2 dBA less) due to its lower peak pressure ripple. But both are significantly quieter than any equivalent gear pump.

Q2:What destroys these pumps in the field?

A2: 1 cause: Contamination (silicon dust from poor breathers). 2 cause: Starvation – inlet line restrictions causing aeration. #3: Overpressure – using a T6DCM in a T6DCP-rated circuit.
