Parker Denison T6DM T6DP mobile hydraulic vane pump

Both the T6DM and T6DP share the same core cartridge assembly and performance envelope as the T6D. Still, they differ in their shaft and seal configurations-and that difference matters enormously depending on your drive arrangement.

T6DM: Double Shaft Seal for Mobile Duty

The T6DM features a double shaft seal configuration with a drain hole between the seals. This is a critical design detail. In mobile applications, particularly those involving PTO (power take-off) drives or gearbox-mounted installations, the shaft is exposed to more angular loading and potential external contamination than a clean industrial installation typically encounters.

The drain hole between the two shaft seals provides a path for any fluid that bypasses the inner seal to safely escape rather than building pressure between the seals, which would accelerate inner seal failure and potentially push contamination into the gearbox or transmission. The T6DM's shaft torque limit for code W configurations is rated at 28,937 in³/rev × PSI, providing a clear engineering boundary for application designers.

T6DP: Alternative Shaft for Specific Mobile Drive Configurations

The T6DP uses an alternative shaft geometry suited for mobile configurations where the drive interface geometry differs from the standard T6DM arrangement. The T6DP shaft torque limit reaches 54,207 in³/rev × PSI for code R configurations, significantly higher than the T6DM, making it appropriate for higher-torque input scenarios.

Both models share the same displacement cartridge options (the B-series cartridges), meaning spare parts cross-compatibility is high and stocking a single cartridge kit can cover both variants in a mixed fleet.

Real-World Application Examples

Agricultural Machinery

A mid-size tractor running a front-mounted loader and a rear remote hydraulic circuit is a textbook T6DM application. The T6DM B20 cartridge, driven at 540 RPM via the tractor's rear PTO through a dedicated pump drive gearbox, delivers sufficient flow to power both circuits simultaneously, with the smooth vane pump output helping prevent the jerky loader movement that poorly controlled gear pump installations sometimes exhibit.

Operators running spreader drives, planter hydraulics, or high-flow front implements with demanding simultaneous demands will often step up to the B24 cartridge configuration for the additional flow margin.

Construction and Utility Vehicles

Compact utility loaders, aerial work platforms (AWPs), and rough-terrain forklifts commonly use T6D series pumps to drive their main lift and tilt circuits. In these applications, the pump is typically engine-coupled through a gearbox, and the T6DP's higher torque shaft options accommodate the heavier drive loads from diesel-powered prime movers.

A skid-steer loader, for example, might run a T6DP B17 configuration to simultaneously power a loader circuit and a pair of high-flow auxiliary connections for attachments like hydraulic augers or brush cutters-all from a compact, relatively lightweight pump package.

Forestry and Specialty Vehicles

Log splitters, wood chippers, and stump grinders-whether self-propelled or PTO-driven-frequently use T6DM pumps because the low-speed capability (1,000 RPM or below in some configurations) aligns well with tractor engine speeds at working throttle settings. The pressure capability to 250 bar continuous is more than adequate for the high-force, lower-speed cylinders used in log splitting applications.

Installation Best Practices

Getting the installation right the first time determines whether your T6DM or T6DP runs for years or fails in months. Here are the critical factors:

Shaft Alignment and Loading

The T6DM and T6DP are designed primarily for coaxial drives, meaning the pump and its driver should share a common axis with no significant angular misalignment. These pumps are not designed to handle sustained radial (side) loading on the shaft. Coupling selection matters: use a flexible coupling wherever possible to absorb minor misalignment, and verify that the coupling's torque rating exceeds the pump's maximum input torque.

Mounting torque for the T6DM/T6DP series is specified at 187 Nm (138 ft-lbs)-tighten the mounting bolts to specification using a calibrated torque wrench. Under-torqued mounts vibrate and wear; over-torqued mounts can distort the housing and affect internal clearances.

Inlet Conditions

Vane pumps are more sensitive to inlet conditions than gear pumps. The inlet line must be sized to keep fluid velocity below 1 m/s (3.3 ft/s) to avoid cavitation. The reservoir should be positioned so the fluid reaches the pump inlet without excessive restriction, and the inlet filter (strainer) should never be sized too finely-100–150 micron inlet strainers are typically appropriate, with finer filtration handled on the return or pressure side.

Cold-start conditions deserve particular attention: fluid viscosity at low temperatures can exceed the pump's upper viscosity limit, causing cavitation or vane loading problems. In cold climates, allow the machine to idle and warm the hydraulic fluid before applying a load.

Case Drain (T6DM)

The T6DM's double shaft seal arrangement includes a drain port between seals. Confirm that this drain is properly connected to the reservoir and that it returns to a low-pressure point (tank line) rather than being plugged. A plugged drain between double seals is a guaranteed seal failure-and it typically happens quickly.

Maintenance and Troubleshooting

Recommended Service Intervals

Parker Denison recommends following the equipment manufacturer's hydraulic fluid change intervals and filter change schedules. In the absence of OEM guidance, a practical baseline for mobile applications is a fluid analysis at 1,000 hours and a full fluid and filter change at 2,000 hours under normal operating conditions. Harsh environments-high dust, extreme temperatures, high contamination exposure-warrant halving those intervals.

The cartridge assembly itself should be inspected during major service events. Signs of vane wear include increasing internal leakage (volumetric efficiency loss), which shows up as reduced actuator speed under load at unchanged prime mover RPM.

Common Failure Modes and Their Causes

Cavitation damage is the most frequent cause of premature failure in T6D series pumps. It typically presents as pitting on the cam ring and vane tips, and is caused by undersized inlet lines, clogged inlet strainers, cold-start abuse, or fluid viscosity outside specifications. Prevention is straightforward: proper inlet sizing, clean strainers, and appropriate cold-start warm-up procedures.

Shaft seal failure in T6DM applications is often traced to excessive case drain back-pressure (a plugged or undersized drain line) or shaft misalignment-induced side loading. In T6DP configurations, verify that the coupling geometry doesn't introduce angular misalignment at operating temperatures.

Vane sticking, where vanes fail to extend fully against the cam ring, can occur with high-viscosity fluid at cold temperatures or with fluid contaminated with particles in the 10–50 micron range that lodge in the vane slots. This reinforces the importance of proper filtration and cold-start procedures.

For more information on the T6DM/T6DP hydraulic vane pump, please visit https://www.baolilaihydraulic.com/pro3-2/.

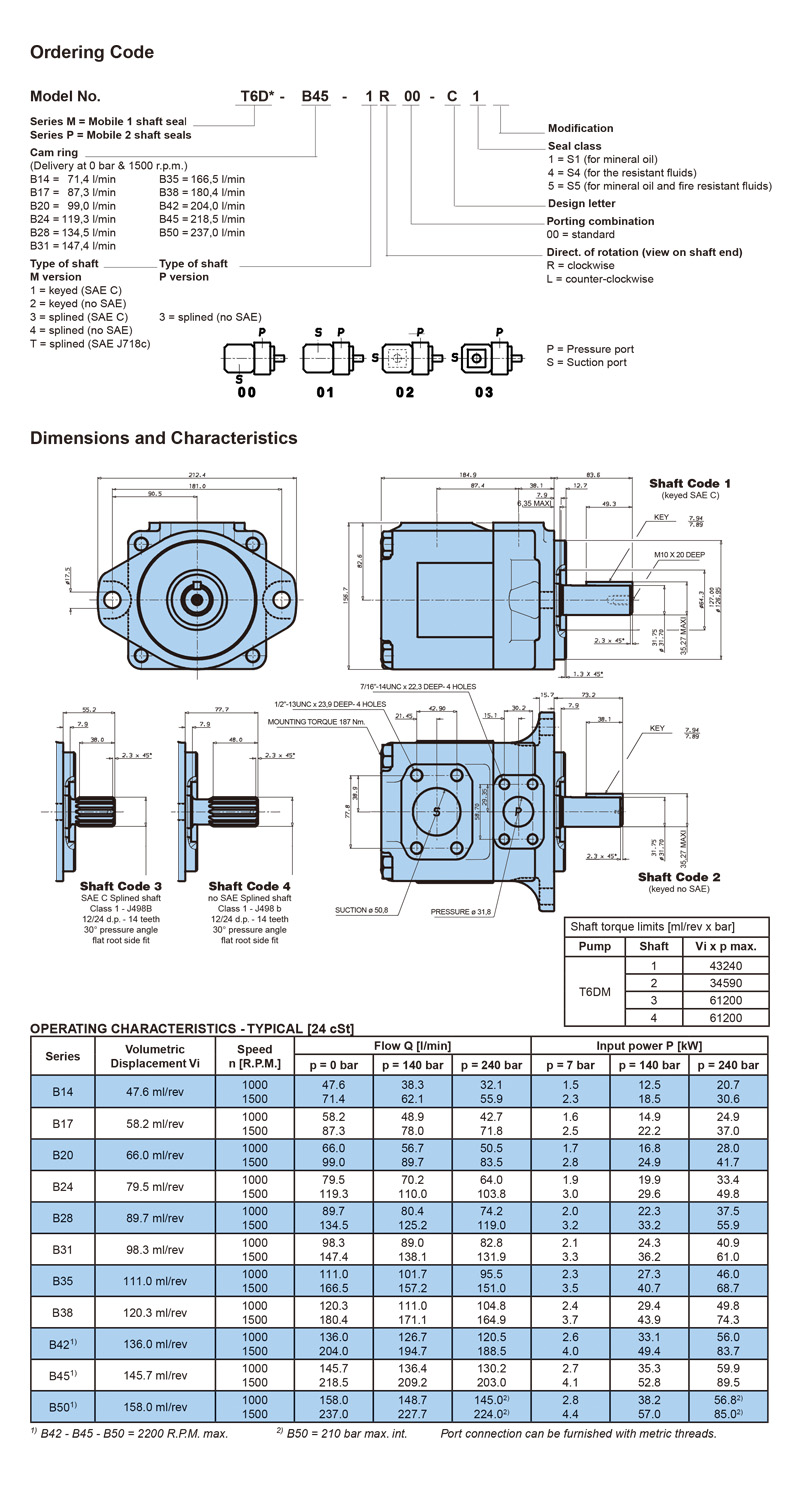

Selection Table

Q1:What is the difference between the T6DM and the T6D?

A1:The T6D is the base industrial version; the T6DM is the mobile-specific variant featuring a double shaft seal with a drain hole between seals, making it suitable for applications involving PTO drives, gearbox mounting, or any environment where the shaft seal may experience elevated back-pressure or angular loading.

Q2:Are T6DM and T6DP cartridges interchangeable?

A2:Yes. Both models use the same B-series cartridge assemblies (B14, B17, B20, B24, etc.), which means a single set of cartridge spare parts can service both variants in a mixed fleet — simplifying inventory management considerably.
