Parker Denison T6DR fixed displacement industrial hydraulic pump

The T6DR is a fixed displacement vane pump in Parker Hannifin's T6 Series, originally developed under the Denison Hydraulics brand (acquired by Parker in 2011). "Fixed displacement" means the pump delivers a consistent volume of fluid per shaft revolution, regardless of system pressure-a characteristic that makes it predictable, easy to size, and straightforward to maintain.

Vane Pump Operating Principle

Inside the T6DR, a slotted rotor sits eccentrically within an elliptical cam ring. As the rotor spins, centrifugal force and hydraulic pressure push springloaded vanes outward against the cam ring surface. The varying distance between the rotor and cam ring creates alternating expanding and contracting chambers-fluid is drawn in during expansion and discharged under pressure during contraction.

Because the cam ring geometry is fixed (not adjustable like a variable displacement pump), the displacement per revolution is constant. At a given shaft speed, the T6DR delivers the same flow rate regardless of downstream pressure-until pressure limits are reached.

Why Fixed Displacement Matters in Industrial Applications

Fixed displacement pumps like the T6DR are preferred in applications where:

Flow demand is predictable and relatively constant-injection molding clamp circuits, press cycles with defined dwell times

System simplicity is a priority-no variable displacement controls, servovalves, or feedback loops required

Cost of ownership is closely managed-fixed displacement vane pumps have fewer wear points than axial piston variable displacement designs

The tradeoff is efficiency during lowdemand periods. When the actuator is idle, a fixed displacement pump recirculates flow over a relief valve, generating heat. Engineers typically address this with unloading valves or by pairing the T6DR with an accumulator circuit.

Primary Industrial Applications

The T6DR's combination of dualsection output, pressure capability, and compact design makes it wellsuited for a specific range of industrial machinery.

Injection Molding Machines

This is arguably the T6DR's strongest application domain. In a typical twoplaten injection molding machine, one pump section supplies the highflow, lowpressure clamping circuit while the second section feeds the highpressure injection circuit. The T6DR's dual output allows hydraulic designers to keep these circuits hydraulically isolated while sharing a single prime mover.

Metal Stamping and Forming Presses

Press builders value the T6DR for its consistent pressure delivery during the forming stroke. Fixed displacement pumps eliminate the variable response times associated with servocontrolled variable pumps during highcycle applications. Combined with a hydraulic accumulator, a T6DR can deliver shortduration highflow demands that exceed the pump's continuous rating-useful in blanking and punching operations.

Industrial Machine Tools

CNC machining centers with hydraulic clamping, tool clamping, and coolant systems benefit from the T6DR's ability to supply two independent circuits. Spindle brake circuits and workholding can operate independently without pressure interaction.

Material Handling and Pallet Changers

Automated pallet changers in flexible manufacturing systems require reliable, repeatable hydraulic actuation. The T6DR's predictable flow output simplifies valve sizing and cycle time calculation in these systems.

For more information on the T6DR hydraulic vane pump, please visit https://www.baolilaihydraulic.com/product/.

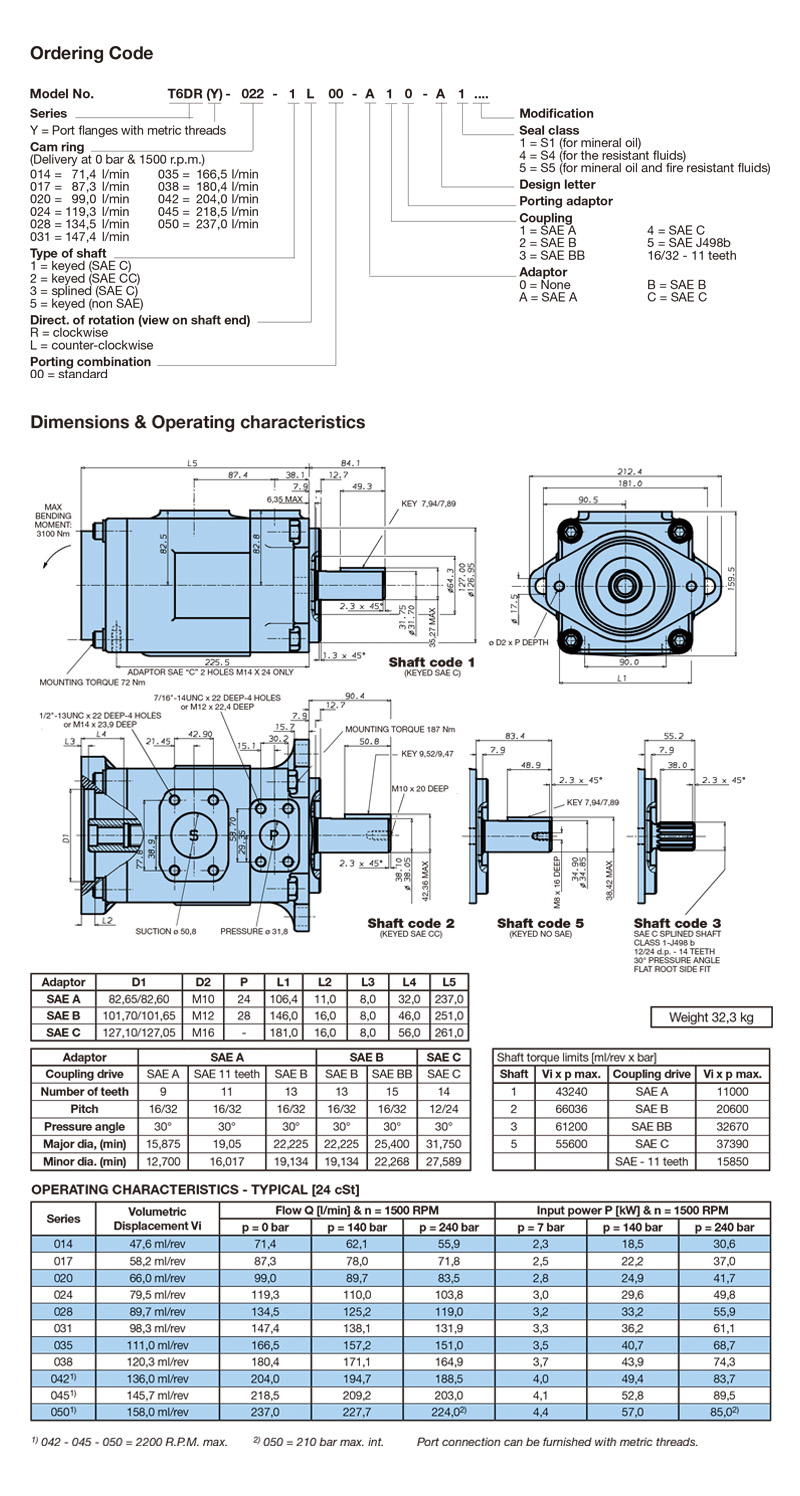

Selection Table

Q1:What causes vane pump noise?

A1:The two most common causes are cavitation (restricted inlet, excessive fluid viscosity, or air ingestion at the inlet) and mechanical resonance in the coupling or mounting structure. A T6DR that was quiet at commissioning and has become progressively louder usually indicates inlet restriction or fluid quality degradation.

Q2:How does the T6DR compare to axial piston pumps in efficiency?

A2:At full load, the T6DR's volumetric efficiency (typically 93–96% at rated conditions) is competitive with comparable axial piston pumps. The efficiency advantage of variable displacement axial piston designs appears primarily at part load, where they can reduce displacement to match demand. The T6DR's lower acquisition cost and simpler maintenance often outweigh the efficiency advantage for many fixed-cycle industrial applications.

Q3:How to purchase a T6DR hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the T6DR hydraulic pump?

A4:The specific price and delivery time will be provided based on the specific model you provide.
