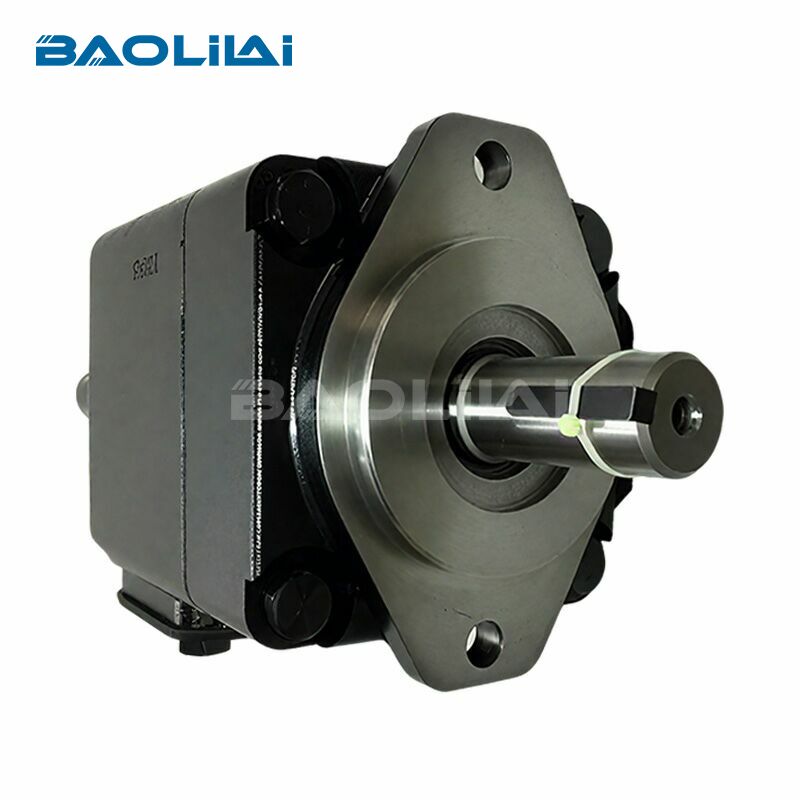

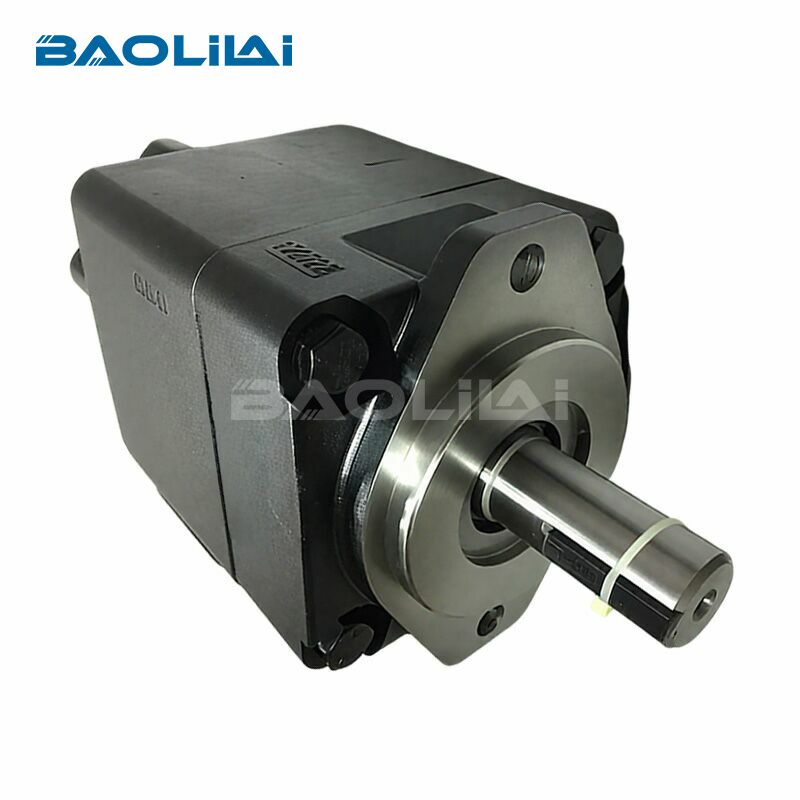

Parker Denison T6EC industrial hydraulic vane pump

The T6EC is a fixed-displacement double vane pump manufactured under Parker Hannifin's Denison Vane Pump Division, based in Vierzon, France. The Denison name carries serious weight in hydraulics — the brand has been synonymous with precision vane pump technology for decades, and Parker's acquisition brought global distribution and engineering support to an already proven product line.

How the T6EC Works: Vane Pump Fundamentals

Understanding why the T6EC behaves the way it does starts with the vane pump operating principle.

The Vane Pumping Mechanism

Inside each cartridge, a slotted rotor spins within an elliptical cam ring. Spring-loaded vanes ride in the rotor slots and maintain contact with the cam ring surface as the rotor turns. As each vane sweeps through the expanding volume between rotor and cam, it draws fluid in through the suction port. As the chamber volume decreases on the pressure side, fluid is pushed out under pressure.

The elliptical cam ring is what makes vane pumps inherently balanced. Because the geometry creates two pressure zones diametrically opposite each other, the radial forces on the shaft cancel out — meaning minimal bearing load, low vibration, and quiet operation. This is a fundamental advantage over gear pumps in noise-sensitive environments.

Fixed Displacement Behavior

The T6EC is a fixed displacement design. Unlike variable displacement piston pumps, it delivers the same volume of fluid per revolution regardless of system pressure. This simplifies circuit design and control, but means that power dissipation at low-load conditions must be managed through unloading valves or pressure-compensated systems if efficiency is a priority.

Double Cartridge Architecture

With two cartridges on a common shaft, the T6EC can serve two independent hydraulic circuits simultaneously. A typical application might use the high-displacement cartridge to drive a main press circuit while the low-displacement cartridge supplies a pilot or clamping circuit — all from one pump station. This eliminates the cost, complexity, and footprint of two separate pumps.

Industrial Applications

Plastic Injection Molding Machines

Injection molding is one of the T6EC's natural homes. The molding cycle has distinct phases — injection, pack and hold, cooling, mold open/close, ejection — each with different flow and pressure demands. The double cartridge configuration supports dual-circuit operation, allowing simultaneous control of the injection barrel and clamping unit. The pump's low noise output matters here too; injection molding facilities run continuously, and operator environments benefit from quieter machinery.

Hydraulic Press Systems

Industrial presses — whether metalforming, stamping, or rubber molding — need high flows on the approach stroke and high pressure at the clamp. The T6EC's 300 bar continuous rating and wide displacement range make it a strong match. A system engineer might pair a larger cartridge for rapid traverse with a smaller one for sustained pressing force, both fed from the same T6EC.

Mining and Heavy Mobile Equipment

The T6EC sees deployment in mining machinery where rugged durability is non-negotiable. The cast iron housing and hardened internal components hold up in dirty, high-vibration environments. Its SAE mounting flanges ease integration with standard power take-off arrangements common in mobile equipment.

Machine Tools and Hydraulic Power Units

CNC machining centers and centralized hydraulic power units use the T6EC where dual-circuit supply simplifies hydraulic panel design. The pump's consistent volumetric efficiency supports the precise actuator positioning that machine tool applications require.

For more information on the T6EC hydraulic vane pump, please visit https://www.baolilaihydraulic.com/product/.

Selection Table

Q1:How often should I replace the cartridge?

A1:Service interval depends heavily on fluid cleanliness, operating pressure, and duty cycle. Well-maintained systems with clean fluid can see cartridge life exceeding 10,000 hours. High-contamination environments with frequent pressure spikes may require cartridge replacement considerably sooner.

Q2:What is the maximum allowable case drain back pressure?

A2:Parker's documentation specifies this as an absolute inlet (case) pressure limit. Refer to the specific T6EC datasheet for your configuration; excessive back pressure is a common cause of seal failures and should be controlled through proper drain line sizing and routing.
