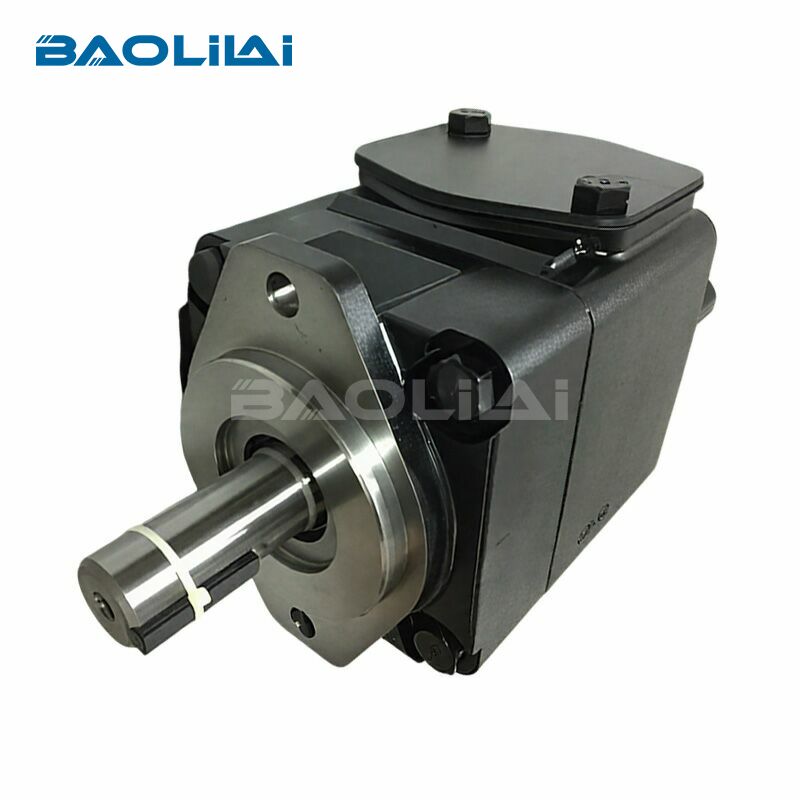

Parker Denison T6ECM T6ECP vane hydraulic pump

The T6E designation generally points to a larger displacement pump core within the modular T6 family, capable of handling massive flow requirements. The "M" and "P" suffixes denote specialized configurations tailored for mobile and severe-duty environments.

High-Pressure Density and Efficiency

T6ECM and T6ECP pumps are engineered to operate at continuous pressures up to 275 bar, with peak capabilities reaching even higher in intermittent cycles. By operating at higher pressures, system designers can utilize smaller actuators, valves, and piping, significantly reducing overall machine weight and installation costs. Despite this brute strength, they maintain a typical volumetric and mechanical efficiency of around 94%. This high efficiency translates directly to reduced heat generation and lower fuel consumption in mobile engines.

Unmatched Anti-Pollution Resilience

Mobile hydraulics operate in dirty, unforgiving environments. Contamination is the number one killer of hydraulic components. Parker Denison addressed this with the double-lip vane technology. Unlike traditional single-lip vanes, the dual-lip design creates multiple sealing zones, making the pump incredibly tolerant to particulate contamination. Furthermore, the hydraulic balance design eliminates radial loads on the shaft and bearings, ensuring a remarkably long service life even under shock loads.

Applications: Where Do These Pumps Shine?

Because of their robust construction and mobile-specific adaptations, the T6ECM and T6ECP are the go-to solutions for several heavy-duty sectors:

Refuse and Waste Management: Garbage trucks require immense power for compactors and lifters, often driven by PTOs (Power Take-Offs). The T6ECP’s optional double shaft seal with external drain allows direct mounting to truck gearboxes without fear of gearbox oil contaminating the hydraulic system.

Agricultural Machinery: Tractors and harvesters face extreme temperature swings. These pumps can handle high-viscosity fluids (up to 860 cSt, or 2000 cSt for vehicular types) and cold starts at low RPMs (down to 400 RPM) without cavitation or stalling.

Marine and Deck Equipment: Winches and cranes demand smooth, precise control. The low pulsation and wide speed range (600–2800 RPM) ensure fluid motion control, preventing dangerous load swinging.

Expert Maintenance Guidelines for Longevity

Even the most resilient pump requires proper care. To maximize the lifecycle of your T6ECM or T6ECP, adhere to these operational parameters:

Respect Fluid Viscosity Limits: Always maintain oil viscosity between 17 and 37 mm²/s during standard operation. While the pump handles high viscosity at startup, running too thin will cause internal leakage, while running too thick will cause cavitation.

Monitor Operating Temperatures: Keep fluid temperatures ideally below 55°C. Excessive heat degrades seals and accelerates oil oxidation.

Verify Rotation Direction: These pumps have designated rotational directions due to the angled vane slots and porting. Running the pump in reverse will cause immediate mechanical failure.

Filtration is Non-Negotiable: Despite their anti-pollution reputation, always use high-quality return-line or offline filtration. Clean oil is the cheapest insurance policy for hydraulic systems.

For more information on the T6ECM/T6ECP hydraulic vane pump, please visit https://www.baolilaihydraulic.com/product/.

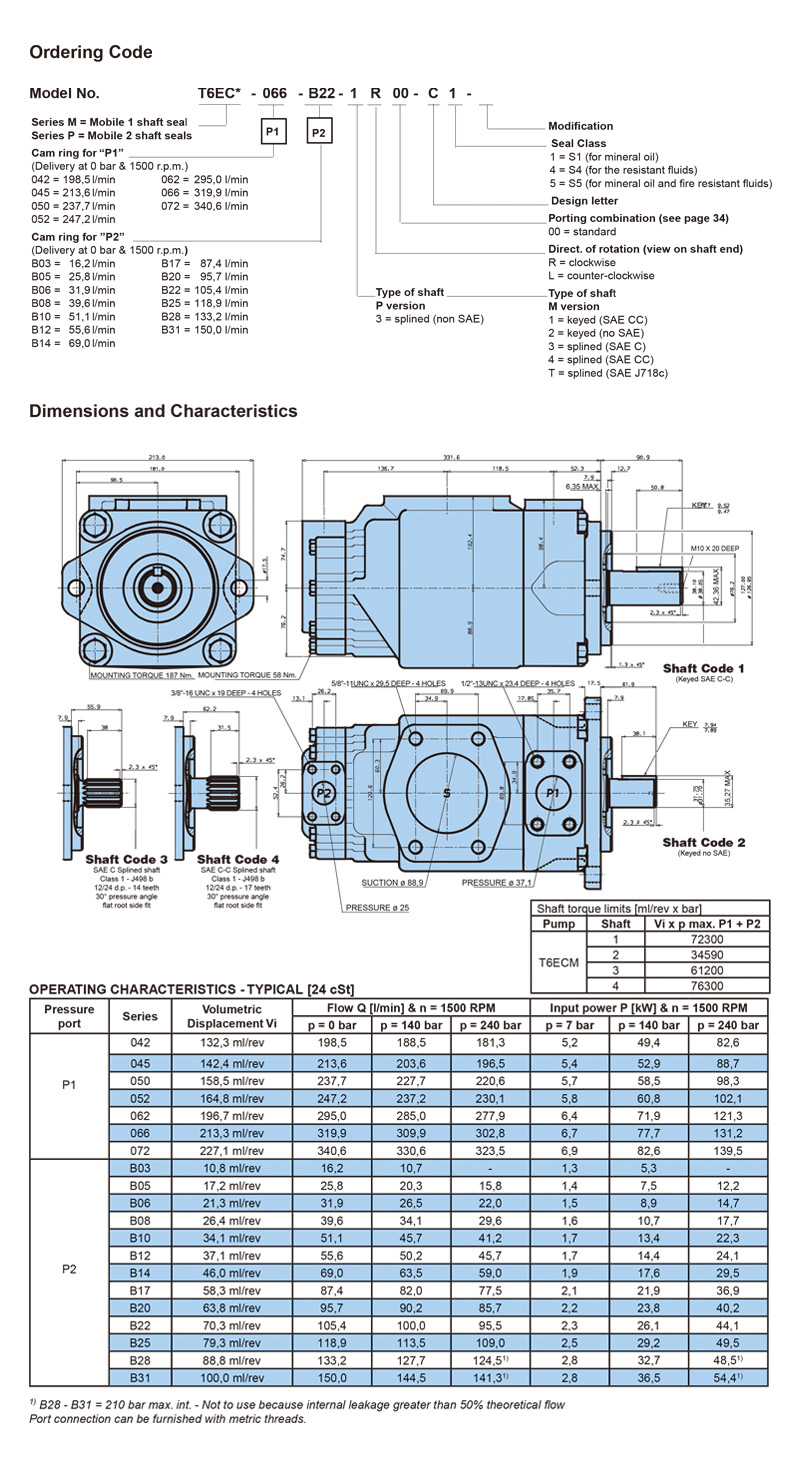

Selection Table

Q1:What is the difference between the T6ECM and the T6ECP?

A1:Both share the same high-performance E-series pump core. The "M" typically denotes a mobile-specific configuration optimized for vibration resistance and ruggedness. The "P" specifically highlights the inclusion of a double shaft seal with an external drain port, designed explicitly for direct gearbox mounting to prevent cross-contamination between the hydraulic fluid and the transmission oil.

Q2:Can I run the T6ECP at very low speeds?

A2:Yes. One of the standout features of the T6 mobile series is its ability to operate at full pressure at extremely low speeds. Standard models can handle 600 RPM, while specialized vehicular versions can safely operate at full pressure down to 400 RPM, making them perfect for PTO-driven applications.

Q3:How to purchase a T6ECM/T6ECP hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the T6ECM/T6ECP hydraulic pump?

A4:The specific price and delivery time will be provided based on the specific model you provide.
