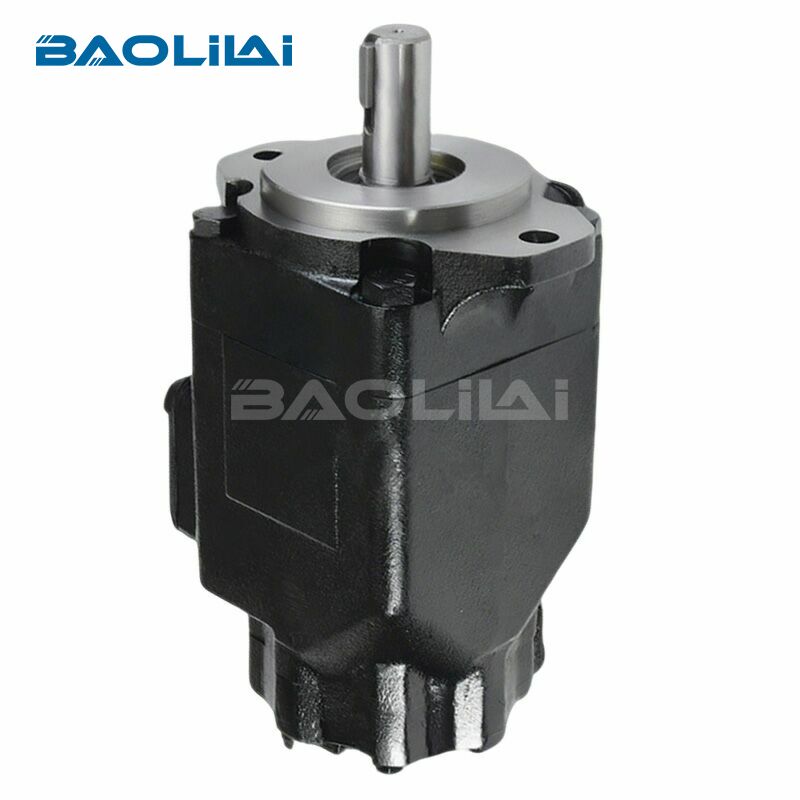

Parker Denison T6ED fixed displacement industrial hydraulic pump

The T6ED utilizes a balanced vane pump design, a key differentiator that underpins its performance and longevity. Unlike simple unbalanced vane designs, the T6ED’s cartridge employs a double-lobed cam ring.

Core Operating Principle: Hydraulic Balance

Within the cam ring, a rotor with sliding vanes is driven by the shaft. Centrifugal and hydraulic pressure forces extend the vanes, creating sealing chambers. As the rotor turns, the chamber volume increases (creating suction) and decreases (creating discharge) twice per revolution due to the dual lobes of the cam ring. This "balanced" design means the pressure forces on the rotor and bearings are radially opposed and essentially cancel each other out. This results in:

Lower bearing loads, enabling higher pressure capability and longer life.

Higher volumetric efficiency at sustained pressures.

Suitability for continuous duty at its rated pressure.

Key Engineering Features and Benefits

The T6ED is not a commodity vane pump; it incorporates refined engineering for industrial-grade service.

Balanced Design for High-Pressure Endurance

As noted, the balanced vane cartridge is the cornerstone. It allows the T6ED to operate comfortably at pressures up to 250 bar (3,625 psi) in its standard series, with certain configurations capable of 315 bar (4,570 psi). This bridges a significant performance gap between gear pumps and more expensive piston pumps.

Low Noise and Vibration Operation

Vane pumps inherently generate less fluid pulsation and are quieter than gear pumps of comparable size. The T6ED’s precise manufacturing and optimized porting further minimize noise, making it an excellent choice for noise-sensitive environments like factory floors or mobile equipment with operator cabins.

Contamination Tolerance and System Cleanliness

Compared to high-precision piston pumps, vane pumps like the T6ED are generally more forgiving of minor fluid contamination. More importantly, they tend to generate fewer internal wear particles (i.e., are "easy on the oil"), contributing to better overall system fluid cleanliness and protecting sensitive valves and actuators downstream.

Prime Applications: Where the T6ED Vane Pump is the Ideal Choice

The T6ED finds its sweet spot in medium-to-high pressure industrial applications that demand quiet, reliable, and cost-effective continuous operation.

Machine Tools (CNC Lathes, Mills, Grinders): Provides smooth, quiet power for clamping, tool changers, and feed circuits. For example, a bank of CNC machining centers using T6ED pumps for hydraulic workholding ensures consistent clamping force with minimal audible disturbance on the shop floor.

Industrial Presses (Up to ~500 Ton): Serves as the primary power unit for smaller stamping, molding, and assembly presses where 250-bar pressure is sufficient.

Mobile Equipment (Non-Drivetrain): Powers hydraulic systems for attachments, stabilizers, and actuators on stationary or slow-moving industrial equipment like forklifts, dock levelers, and specialized material handlers.

Hydraulic Power Units (HPUs): A quintessential choice for general factory HPUs that supply power to valves, cylinders, and hydraulic motors across a plant for automation, fixturing, and lifting tasks.

For more information on the T6ED hydraulic vane pump, please visit https://www.baolilaihydraulic.com/product/.

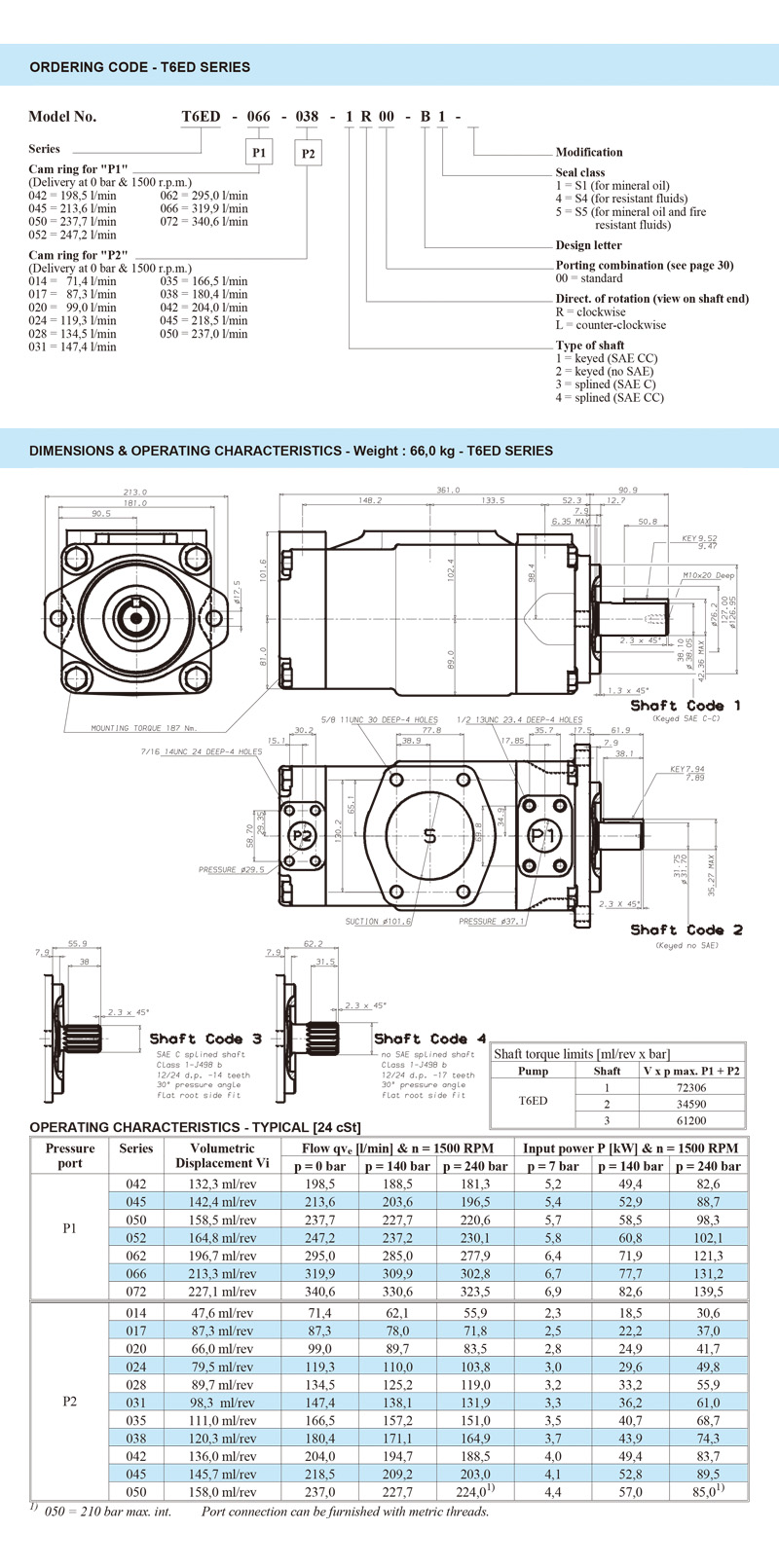

Selection Table

Q1:What are the main trade-offs between a T6ED vane pump and a fixed piston pump?

A1:The T6ED vane pump typically offers a lower initial cost, significantly quieter operation, and better contamination tolerance. A comparable fixed piston pump generally achieves much higher maximum pressures (>400 bar), offers slightly higher peak efficiency, and can be more compact for a given displacement. The choice hinges on the required pressure, noise constraints, and budget.

Q2:What is the typical service life and what are the key maintenance factors?

A2:With proper fluid condition (viscosity, temperature, and ISO cleanliness code of 19/17/14 or better), T6ED pumps can achieve exceptionally long service life—often tens of thousands of hours. Key maintenance is primarily preventative: regular fluid and filter changes, monitoring fluid temperature, and ensuring the inlet (suction) condition is designed to prevent cavitation.

Q3:How to purchase a T6ED hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the T6ED hydraulic pump?

A4:The specific price and delivery time will be provided based on the specific model you provide.
