Parker Denison T6EDCM T6EDCS triple vane hydraulic pump

The T6E platform from Parker's Denison division is famous for its balanced vane cartridge. But the “triple” designation (T6EDCM / T6EDCS) refers to a three-pump, tandem configuration—three independent pumping cartridges inside one compact housing, sharing a common input shaft.

T6EDCM: Typically refers to a triple pump with metric (ISO or SAE) mounting flanges and porting.

T6EDCS: Usually denotes SAE (inch) mounting and port configurations, common in North American mobile equipment.

Both models use the same high-performance internals: hardened dual-lobed cam rings, balanced vane tips, and bidirectional rotation capability (though the cartridge must be oriented correctly).

Real-World Applications (With Examples)

Mobile Equipment

Knuckle boom loader cranes – The T6EDCS runs three functions: slew, inner boom, outer boom/extend. One PTO drives all three.

Agricultural spreaders – Two sections for conveyor and spinner, third for steering/fold.

Industrial Machinery

Presses and briquetters – Triple pumps provide high-flow low-pressure for fast approach, then low-flow high-pressure for pressing.

Installation and Maintenance Best Practices

Critical Case Drain Line

Each section has its own case drain port. Never common these drains without checking pressure -backpressure over 1.5 bar (20 psi) will wipe the shaft seals. Route each drain independently to the tank, below oil level.

Inlet Conditioning

Use a 10-µm absolute return filter.

Keep inlet vacuum below 0.8 bar absolute.

Oil viscosity: 15–65 cSt at operating temp (ISO VG 32 to 68).

Cartridge Replacement

Unlike gear pumps, the T6E allows cartridge-only replacement without removing piping. Steps:

1. Remove cover plate.

2. Extract old cartridge kit (cam ring, rotor, vanes, side plates).

3. Install new kit (ensure rotation arrow matches shaft rotation).

This saves 60% repair time versus a full pump swap.

For more information on the T6EDCM/T6EDCS hydraulic vane pump, please visit https://www.baolilaihydraulic.com/pro3-2/.

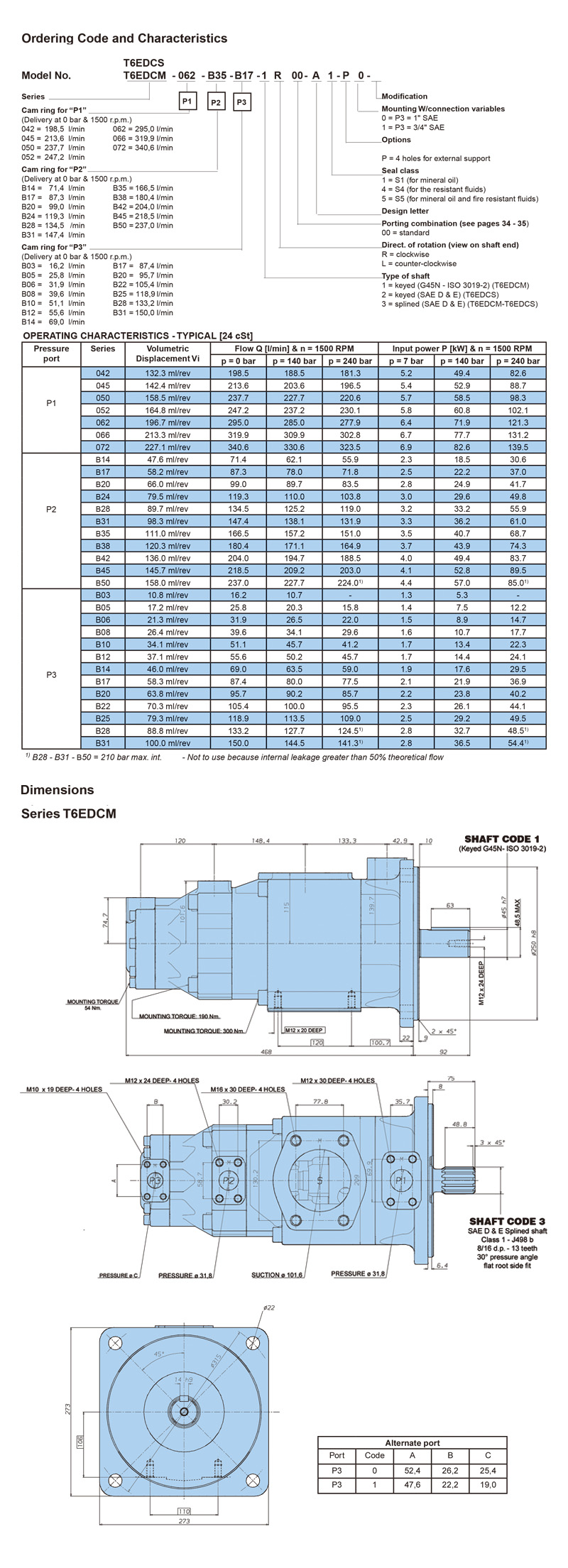

Selection Table

Q1: Can the two sections of the T6EDC operate at different pressures simultaneously?

A1: Yes. Each section has its own outlet port and is hydraulically isolated from the other. Each circuit should have its own independently set relief valve. One section can be deadheaded (unloaded) while the other operates at full pressure with no adverse interaction.

Q2: What causes the vanes to wear prematurely?

A2: The three most common causes are: (1) fluid contamination above ISO 4406 17/15/12, (2) operating below the minimum speed threshold where centrifugal force is insufficient to keep vane tips in contact with the cam ring, and (3) cavitation damage from inadequate inlet conditions. All three are preventable through proper system design and maintenance discipline.

Q3:How to purchase a T6EDCM/T6EDCS hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the T6EDCM/T6EDCS hydraulic pump?

A4: The specific price and delivery time will be provided based on the model you specify.
