Parker Denison T6EDP T6EDM industrial hydraulic vane pump

If you've spent any time specifying hydraulic systems for industrial machinery, you've almost certainly encountered the Parker Denison T6 series. The T6EDP and T6EDM are double and medium-pressure variants within that family-workhorses that show up in injection molding machines, industrial presses, machine tools, and a surprising number of mobile hydraulic applications where reliability simply isn't negotiable.

What Are the Parker Denison T6EDP and T6EDM Vane Pumps?

Parker Hannifin's Denison Hydraulics division has manufactured balanced vane pumps for decades, and the T6 series represents one of its most mature and field-proven product families. The T6EDP (Double Pump configuration) and T6EDM (Medium-pressure single pump) are engineered for continuous-duty industrial service, designed to deliver consistent flow and pressure across wide operating envelopes.

At their core, both models use a balanced vane pumping mechanism-a cartridge-based design where spring-loaded and pressure-loaded vanes sweep against a profiled cam ring, trapping and displacing fluid in a highly controlled manner. The "balanced" designation means inlet and outlet ports are diametrically opposed, canceling radial loads on the shaft and dramatically extending bearing life compared to unbalanced gear pumps.

How the Balanced Vane Mechanism Works

The pumping element-called a cartridge kit in Parker Denison's parts nomenclature-consists of a rotor, a set of vanes (typically 12), two side plates (pressure plates), and a cam ring. The rotor is splined to the drive shaft and rotates within the cam ring. Vanes slide radially in slots machined into the rotor; as the assembly rotates, the vanes follow the elliptical contour of the cam ring, expanding and contracting the volume between adjacent vanes.

The balance feature means the cam ring has two inlet lobes and two outlet lobes, 180 degrees apart. Pressure forces on the rotor cancel each other out, eliminating the net radial load that shortens bearing life in unbalanced designs. This is why a well-maintained T6 pump in a clean system can routinely deliver 10,000 to 20,000 hours of service-figures that surprise engineers accustomed to gear pump replacement intervals.

Pressure Loading on the Side Plates

One detail that sets the T6 design apart from simpler vane pumps is pressure-loaded side plates. System pressure is directed behind the pressure plates, which urge them against the rotor face in direct proportion to operating pressure. This self-compensating feature maintains the critical axial clearance needed to minimize internal slip (leakage back from outlet to inlet), which keeps volumetric efficiency high even as components wear.

Application Examples

Injection Molding Machines

The T6EDP's tandem architecture is particularly well-suited to injection molding. A typical 500-ton machine might use the front section to supply the injection circuit (high pressure, variable flow) and the rear section to supply clamp and ejector circuits. Because both sections share a drive shaft, the hydraulic power unit stays compact, reducing footprint on a production floor where square footage is expensive.

In one documented installation at a European plastics manufacturer, switching from two separate gear pumps to a T6EDP tandem reduced pump drive cabinet width by 35% and cut noise levels by approximately 8 dB-a meaningful improvement on a floor with noise regulations.

Industrial Press Applications

Hydraulic press circuits frequently demand precise pressure control with minimal flow ripple. The balanced vane design of the T6EDM produces inherently low pulsation-an advantage over gear pumps, which exhibit pronounced pressure ripple that can induce fatigue in manifold blocks and valve bodies over time.

A stamping press running a T6EDM at 200 bar continuous with 250-bar peak blanking forces is a typical scenario. The intermittent pressure capability, combined with through-hardened cartridge components, handles these spike loads without accelerated wear.

Machine Tools

CNC machining centers and horizontal boring mills often use T6 series pumps to supply clamping, tool change, and axis-balance circuits. The relatively quiet operation of vane pumps (compared to gear or radial piston alternatives) is valued in precision machining environments where acoustic emission affects operator comfort and can interfere with CNC feedback systems in severe cases.

For more information on the T6EDP/T6EDM hydraulic vane pump, please visit https://www.baolilaihydraulic.com/product/.

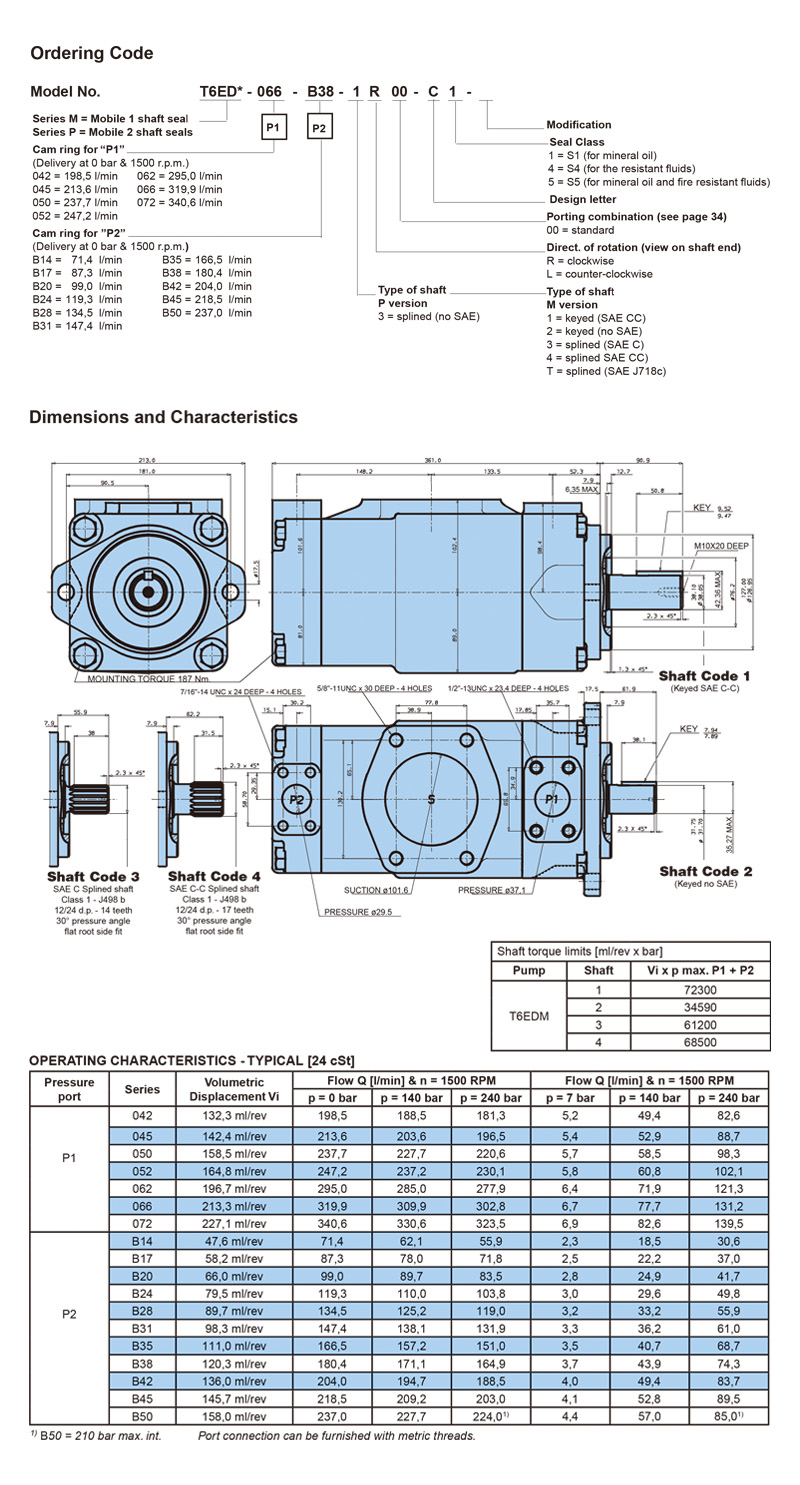

Selection Table

Q1:How do I identify the displacement of an installed T6 pump?

A1:The displacement code is embedded in the pump's model number, stamped on the nameplate. Parker Denison's model number decoder, available through their technical documentation, maps these codes to cc/rev values. If the nameplate is missing or illegible, a flow test at known RPM is the most reliable field method.

Q2:What causes a T6 vane pump to whine?

A2:High-pitched whine is almost always aeration or cavitation — air entrained in the fluid is imploding as it passes through the pressure transition in the cam ring. Check inlet vacuum, fluid level, and all inlet-side connections for air ingestion. A lower-pitched knock or rattle may indicate vane damage or a failing bearing.
