Parker Denison T6EM T6EP fixed displacement mobile hydraulic pump

Unlike variable displacement pumps that adjust their flow rate during operation, the T6EM and T6EP are fixed displacement pumps. Every rotation of the shaft delivers a precise, predetermined volume of fluid.

The heart of these pumps is the vane cartridge design. As the rotor turns, centrifugal force (often aided by hydraulic pin pressure) pushes the vanes outward against the cam ring. This creates sealed chambers that draw fluid from the inlet and force it through the outlet.

The "M" and "P" Mobile Designations

In Parker Denison nomenclature, the M and P modifiers typically denote adaptations for mobile equipment:

T6EM: Features mounting flanges, shafts, and porting optimized for mobile machinery compliance (such as SAE standards), often utilizing specialized double or triple pump configurations to power multiple hydraulic circuits simultaneously.

T6EP: Designed with specific rear-drive or thru-drive capabilities, allowing additional pumps to be mounted in series to the back of the unit. This is highly efficient for complex mobile systems requiring a compact footprint.

Key Features and Engineering Advantages

Why do fleet managers and mechanical engineers consistently specify the T6EM and T6EP series?

1. High Pressure and Volumetric Efficiency

The T6EM and T6EP series easily handle operating pressures up to 275 bar (4,000 psi). Thanks to the patented drop-in cartridge design, internal leakage is minimized. The pump maintains over 94% volumetric efficiency throughout its operational lifespan, ensuring that engine power is effectively converted into fluid power without excessive heat generation.

2. Bimetallic Vane Design

Standard pumps often suffer from rapid wear at high pressures. Parker Denison utilizes a proprietary bimetallic vane structure. The interaction between the vane tips and the cam ring is optimized to reduce friction, allowing the pump to tolerate low-viscosity fluids and rapid temperature spikes common in outdoor environments.

3. Low Noise Levels

Mobile equipment operators often work long hours in proximity to the machinery. The T6EM and T6EP pump envelopes are acoustically optimized. The internal timing of the port plates smoothly gradients the pressure rise, significantly reducing fluid ripple and structural airborne noise.

Real-World Mobile Applications

To truly appreciate these pumps, look at how they perform across various heavy industries:

Waste Management & Refuse Vehicles

A modern garbage truck requires simultaneous power for its packing mechanism, container lifters, and steering system. A double T6EM pump allows one section to dedicate high flow to the compactor blade while the second section handles low-flow auxiliary functions, all running off a single engine Power Take-Off (PTO).

Construction & Earthmoving Equipment

On a mobile crane or heavy-duty excavator, space is at a premium. The T6EP through-drive pump allows engineers to stack a piston pump (for high-pressure travel motors) directly onto the back of the T6EP vane pump (which handles cooling fans and pilot controls). This eliminates the need for complex splitter gearboxes.

Maintenance and Cartridge Replacement: The "Drop-In" Benefit

One of the greatest operational advantages of the Parker Denison design is the drop-in cartridge concept.

If a pump fails due to fluid contamination, you don’t need to decouple the entire pump housing from the machine's drive shaft and plumbing lines. Instead:

1. Remove the rear cover of the pump.

2. Pull out the damaged internal cartridge assembly.

3. Slide in a brand-new, factory-tested T6EM/T6EP cartridge kit.

4. Replace the seal and bolt the cover back on.

This architecture reduces machine downtime from a full day to under an hour, making it a favorite among field service mechanics.

For more information on the T6EM/T6EP hydraulic vane pump, please visit https://www.baolilaihydraulic.com/pro3-2/.

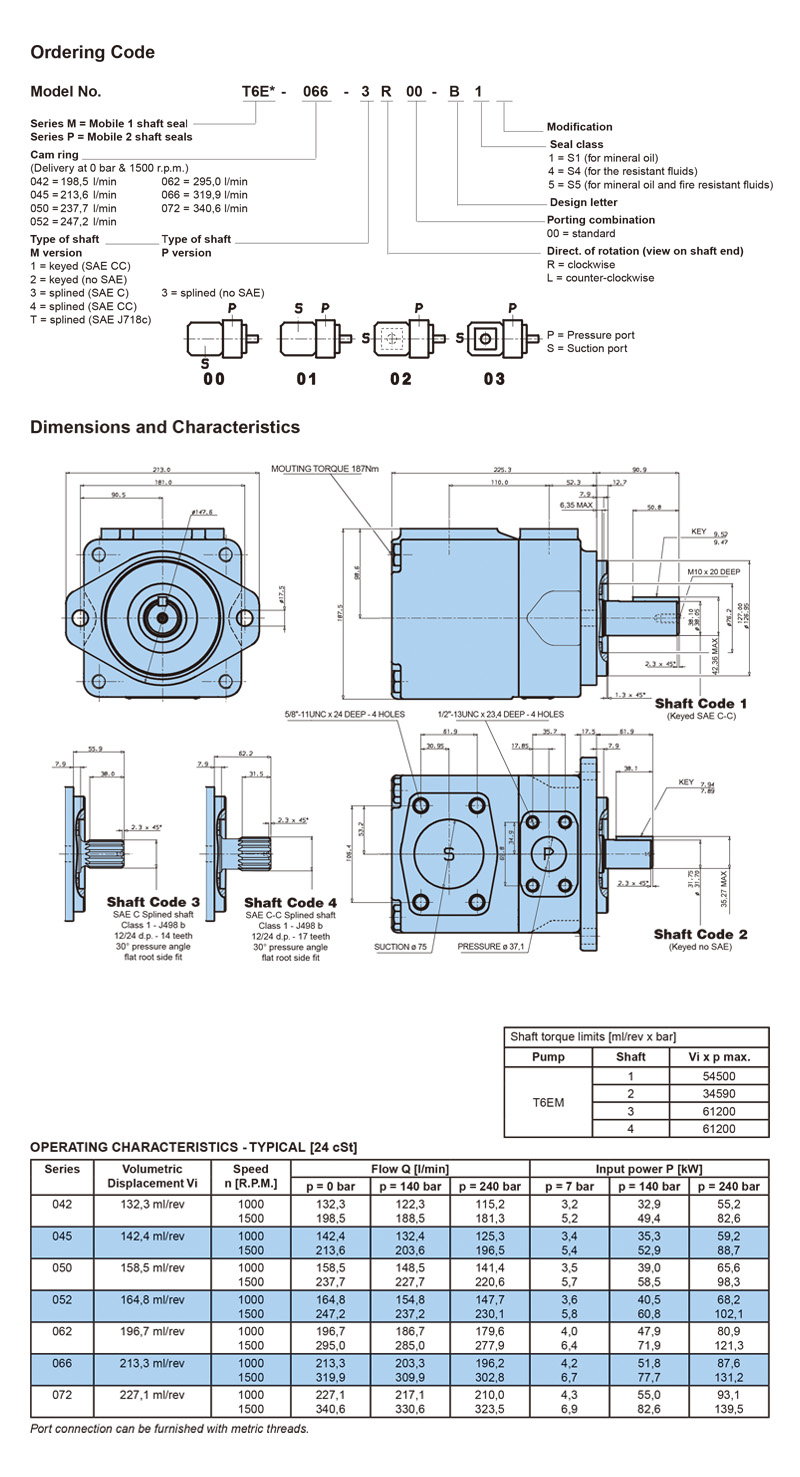

Selection Table

Q1:What is the primary difference between a fixed displacement and a variable displacement pump?

A1:A fixed displacement pump (like the T6EM) moves the same amount of fluid per revolution regardless of system pressure. A variable displacement pump can alter the volume of fluid it pumps per stroke to maintain a specific pressure or save fuel.

Q2:Why is my T6EP pump making a high-pitched whining sound?

A2:Excessive whining is usually a symptom of cavitation. This happens if the suction line is restricted, the inlet filter is clogged, or air is leaking into the intake plumbing. Address this immediately, as cavitation will quickly destroy the internal cam ring.

Q3:How to purchase a T6EM/T6EP hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the T6EM/T6EP hydraulic pump?

A4:The specific price and delivery time will be provided based on the specific model you provide.
