Parker Denison T6ERM fixed displacement vane hydraulic pump

The Parker Denison T6ERM is a fixed displacement vane pump designed to deliver a constant volumetric output per shaft revolution. It belongs to Parker Hannifin's Denison Hydraulics product line-a legacy brand acquired by Parker in 2011 that has long been associated with high-quality vane pump technology for industrial and mobile hydraulic applications.

How Vane Pump Technology Works

Before diving deeper into the T6ERM's specifications, it's worth grounding the discussion in how sliding-vane hydraulic pumps function-because the design directly explains both the pump's strengths and its operating limits.

The Sliding Vane Mechanism

Inside a vane pump, a rotor sits eccentrically within a cam ring (also called the pressure ring or stator). The rotor has radial slots machined into it, each housing a rectangular blade-the vane. As the rotor spins, centrifugal force and hydraulic pressure push the vanes outward against the cam ring's inner surface.

Because the rotor is offset from the cam ring center, the volume of each chamber between adjacent vanes changes continuously as the rotor turns. On the intake side, the chamber volume expands, drawing in fluid. On the discharge side, the volume decreases, pushing fluid out under pressure. The result is a relatively smooth, pulsation-low output compared to gear pumps.

Fixed Displacement in Vane Pumps

The T6ERM is a fixed displacement design, meaning the volumetric output per revolution is set by the geometry of the cam ring and cannot be changed during operation. This contrasts with variable displacement vane pumps (like Parker Denison's T6D or T6E series), where the cam ring position can shift to vary displacement.

Fixed displacement is the right choice when:

System flow demand is relatively constant.

Cost and simplicity are priorities over energy optimization.

The pump drives a dedicated circuit with predictable load cycles.

Key Applications for the T6ERM

Understanding where the T6ERM is routinely deployed helps engineers evaluate whether it's the right pump for a new application or a reliable upgrade path for an aging circuit.

Industrial Machine Tools

CNC machining centers, grinding machines, and transfer lines use the T6ERM extensively for clamping, table positioning, and tool change hydraulics. The pump's low noise output-typically in the 65–72 dB(A) range at 1,500 RPM-is a meaningful advantage in shop floor environments where operator comfort and communication matter.

Injection Molding and Plastics Processing

Injection molding machines place high cycle demands on hydraulic systems-the pump may execute thousands of pressure-and-hold cycles per shift. The T6ERM's cartridge-style wear components and pressure capability up to 210 bar continuous make it well-suited for plasticizing, injection, and ejector circuits.

Industrial Test Rigs and Hydraulic Power Units (HPUs)

Custom HPUs for component testing, fatigue testing, and functional validation use the T6ERM where stable, repeatable flow is more important than variable output. The pump's volumetric consistency across operating conditions makes it easier to characterize test results accurately.

Mobile Hydraulics and Off-Highway Equipment

While the T6ERM is primarily positioned as an industrial pump, its robust construction and wide temperature tolerance make it viable for mobile applications-particularly on utility vehicles, aerial work platforms, and agricultural equipment where the operating environment is predictable and the pump can be properly protected from contamination.

For more information on the T6ERM hydraulic vane pump, please visit https://www.baolilaihydraulic.com/product/.

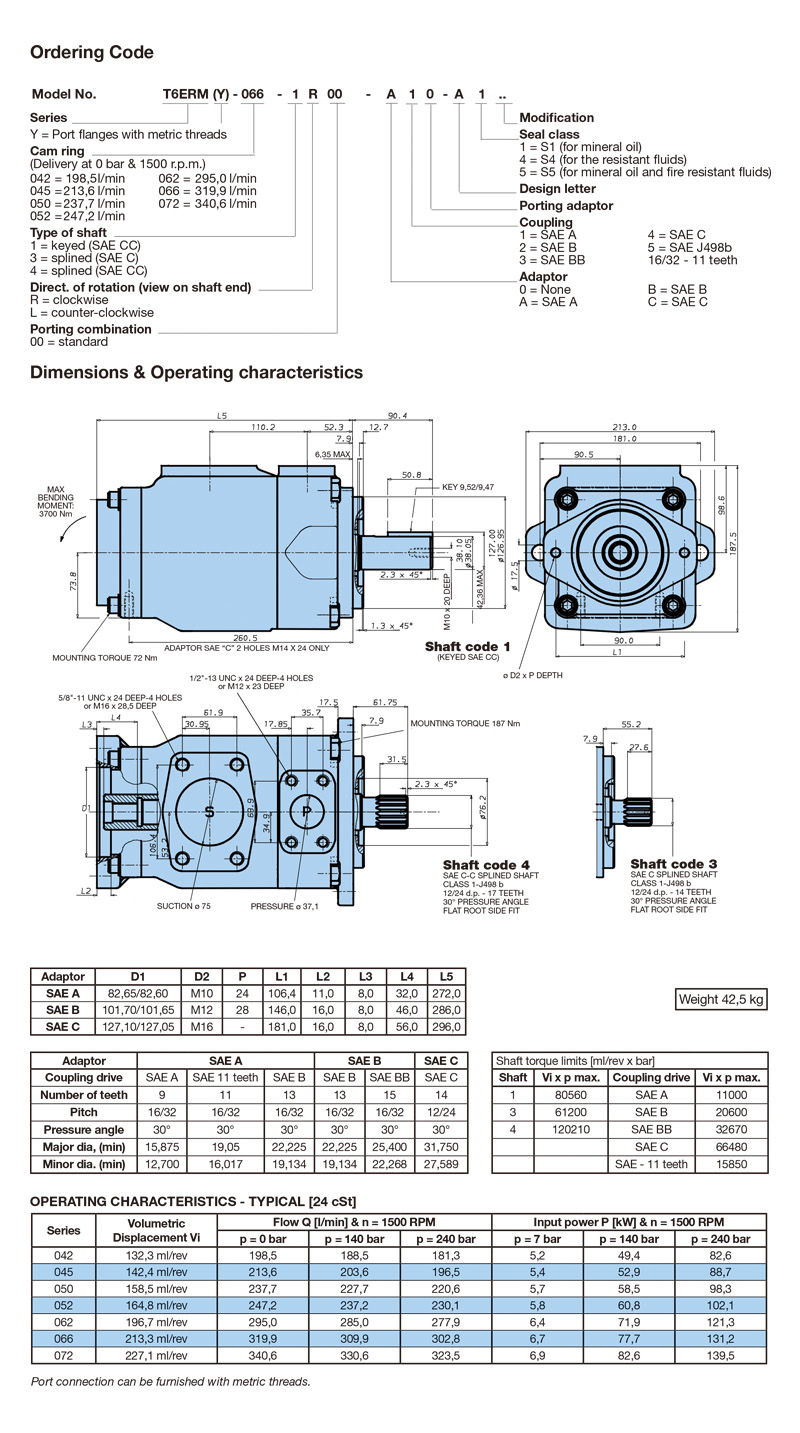

Selection Table

Q1:Can the T6ERM run dry during startup?

A1: No. Like all vane pumps, the T6ERM requires fluid in the pump housing for lubrication and vane seating from the first moment of rotation. Always prime the pump and ensure the inlet line is full before starting. Dry running — even briefly — can score the cam ring and permanently damage the vanes.

Q2:Is the T6ERM suitable for use as a hydraulic motor?

A2:The T6 series vane designs are pump-optimized and are not rated or intended for motor service. For vane-motor applications, Parker Denison offers separate motor-specific product families. Using a T6ERM as a motor will result in poor performance and accelerated wear.

Q3:How to purchase a T6ERM hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the T6ERM hydraulic pump?

A4:The specific price and delivery time will be provided based on the specific model you provide.
