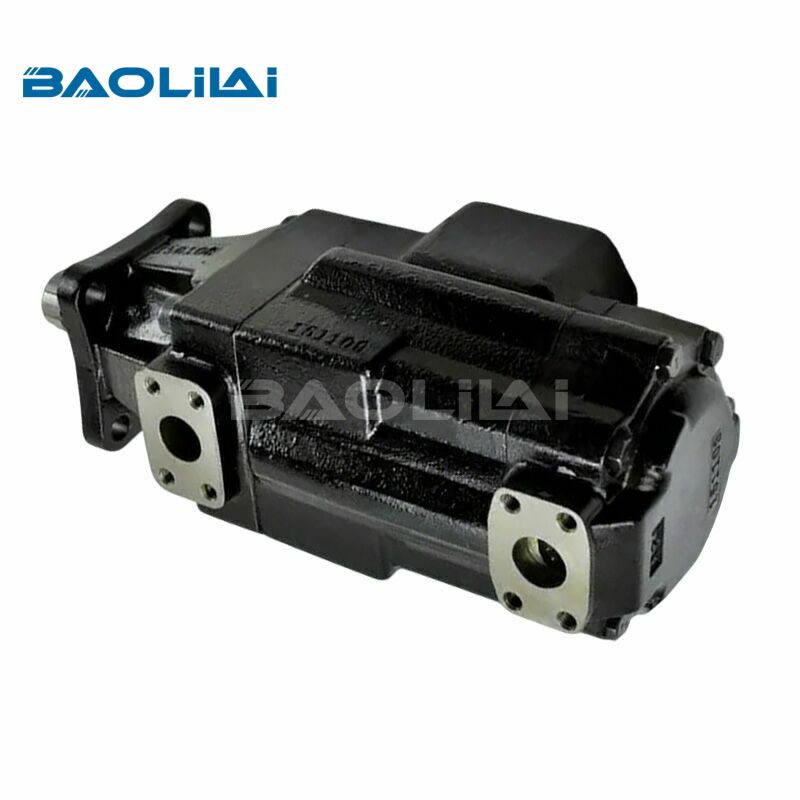

Parker Denison T6GCC fixed displacement mobile hydraulic pump

The Parker Denison T6GCC is a high-performance fixed displacement double vane pump specifically engineered for mobile applications. Unlike variable displacement pumps that alter flow on the fly, a fixed displacement vane pump delivers a constant volume of fluid per revolution based on its internal cam ring geometry.

Core Technical Specifications

To understand its capabilities, we must look at the baseline engineering parameters that define the T6GCC family:

Design Type: Bivane (Double Vane) design for balanced internal loading.

Pressure Rating: Capable of continuous operating pressures up to 240 bar (3,500 PSI), with peak pressures pushing higher depending on the specific cartridge size.

Speed Range: Optimized for mobile diesel engines, operating efficiently from low idle up to 2,800 RPM.

Displacement Options: Highly customizable, offering a wide range of geometric displacements across both pump sections to match precise flow requirements.

Key Features and Engineering Advantages

What makes the T6GCC a preferred choice over standard gear or piston pumps in specific mobile applications? It comes down to Denison's proprietary vane technology.

1. High Volumetric Efficiency

The T6GCC utilizes a unique bivane concept where the vanes feature pin-in-vane technology. This design uses system pressure to gently force the vanes against the cam ring. This creates an incredibly tight seal that minimizes internal leakage (slip), ensuring that volumetric efficiency often exceeds 94%, even under high-pressure loads.

2. Double-Pump Versatility (The "GCC" Advantage)

By housing two independent pumping cartridges (often a "C" size and another "C" size cartridge, hence the dual C nomenclature) on a single shaft, the T6GCC can:

Run two separate hydraulic circuits at different pressures.

Combine the flows of both sections to provide rapid movement to a single actuator, then dump one stage to save power during high-pressure clamping or lifting.

Reduce space, weight, and the number of required drive shafts or PTO (Power Take-Off) connections.

3. Exceptionally Low Noise Levels

Mobile operators often work long hours in close proximity to hydraulic systems. Gear pumps are notoriously loud at high pressures. The T6GCC's progressive cam ring profile and balanced vane design significantly dampen pressure ripples, resulting in ultra-quiet operation that helps OEMs comply with strict environmental noise regulations.

4. Drop-In Cartridge Design

Maintenance downtime is a critical metric in mobile operations. The T6GCC features a modular design where the internal rotating components are housed in an easily replaceable cartridge. If a pump fails or a different flow rate is required, the cartridge can be swapped out in minutes without removing the entire pump housing from the machine.

Real-World Mobile Applications

The T6GCC series excels in harsh environments where duty cycles are demanding and space is limited.

Material Handling and Refuse Trucks

In a modern garbage truck, one section of the T6GCC pump can power the high-pressure packing mechanism, while the secondary section handles the low-pressure bin lifter. This split-circuit design ensures that lifting a bin doesn't interrupt the compacting cycle, optimizing route times.

Construction and Forestry Equipment

From the auxiliary functions on mini-excavators to the feed-rollers on forestry harvesters, the T6GCC provides smooth, predictable fluid power. Its ability to handle rapid pressure spikes makes it highly resilient against the shock loads common in logging and earthmoving.

For more information on the T6GCC hydraulic vane pump, please visit https://www.baolilaihydraulic.com/product/.

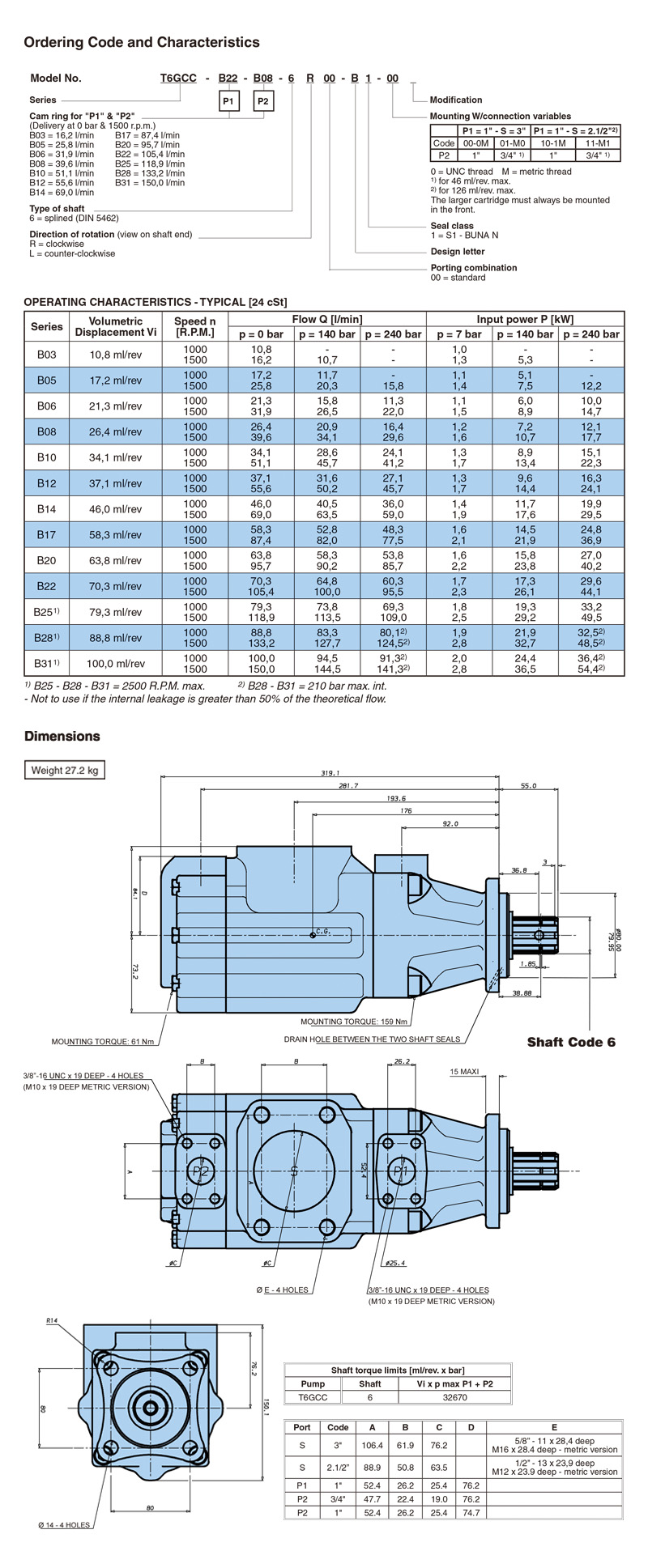

Selection Table

Q1:What is the difference between a fixed displacement pump like the T6GCC and a variable displacement pump?

A1: A fixed displacement pump moves a set, unchangeable volume of fluid with every rotation of the shaft; to change the flow, you must change the engine speed. A variable displacement pump can alter the volume of fluid it pumps per stroke even if the engine speed remains constant, though it is generally more complex and expensive.

Q2:Why is my T6GCC pump whining or making excessive noise?

A2:While naturally quiet, excessive noise usually points to cavitation (fluid starvation caused by a clogged inlet filter or restricted suction line) or aeration (air entering the system through a loose inlet fitting or damaged shaft seal).

Q3:How to purchase a T6GCC hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the T6GCC hydraulic pump?

A4:The specific price and delivery time will be provided based on the specific model you provide.
