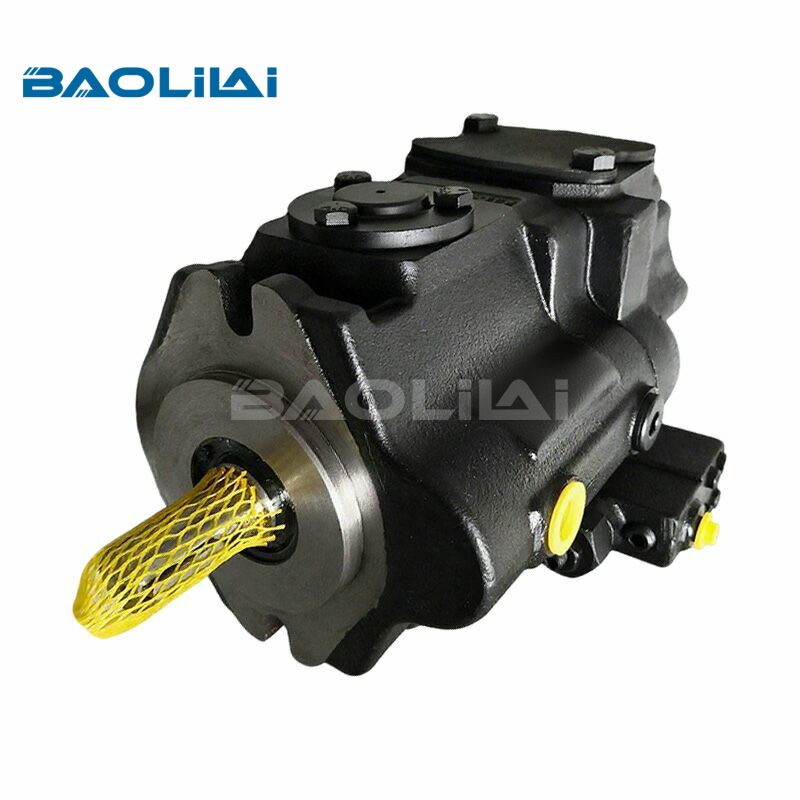

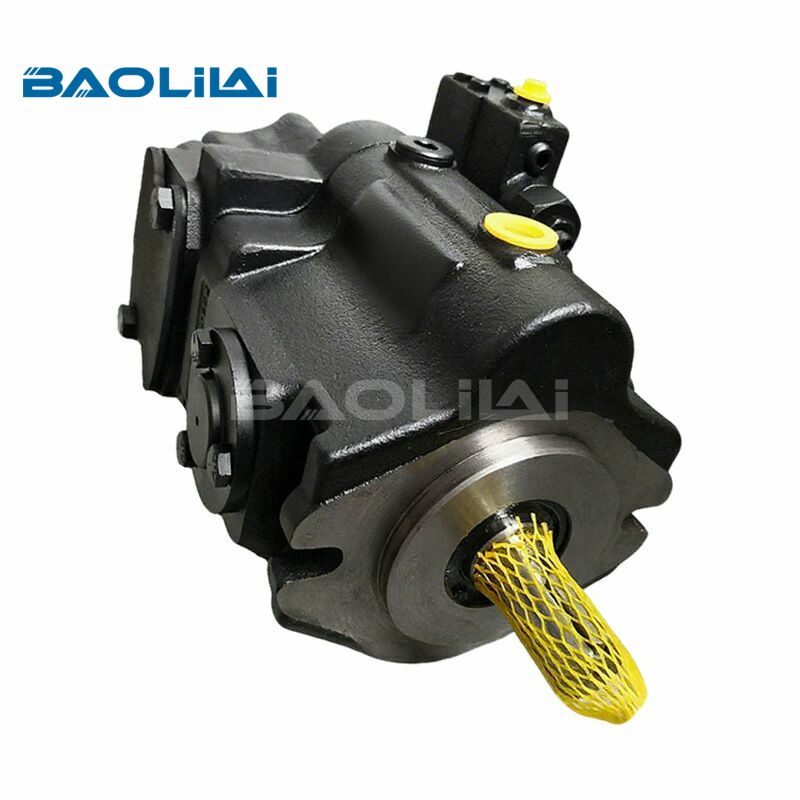

Parker Denison T6H fixed displacement vane pump

The "T6H" designation sits within Parker Hannifin's broader Denison Vane Technology portfolio. While the T6, T67, and T7 series cover single, double, and triple fixed-displacement configurations, the T6H is purpose-built for applications that need the smooth, high-flow characteristics of a vane pump paired with the high-pressure, variable-output capability of a piston pump.

How the T6H Works: Design Principles

The Fixed Displacement Vane Cartridge

At the core of the T6H's vane section is a cartridge-based design — the same architecture that defines the entire Denison T6 family. A rotor with radially sliding vanes rotates inside an elliptical cam ring. As each vane sweeps through the cam profile, the chambers it forms alternately expand (drawing in fluid) and contract (displacing fluid under pressure). Because the cam ring geometry is fixed, the displacement per revolution is constant — hence "fixed displacement."

What sets Denison's implementation apart is the **double lip vane concept**. Each vane has two contact lips rather than one, which distributes contact stress more evenly across the cam ring surface. This translates directly into greater resistance to particle contamination — a factor that dramatically affects pump longevity in real-world operating environments where fluid cleanliness is never quite as perfect as the datasheet assumes.

Common Shaft, Separate Outlets

One of the T6H's defining engineering choices is the common suction port shared by both pump elements, combined with **independent outlet ports** — one for the piston section and one (or two, in DB configurations) for the vane section. This architecture allows simultaneous, independent hydraulic circuits to operate from a single pump installation, which is particularly valuable in complex machine cycles where different functions run concurrently.

Key Performance Advantages

Low-Pressure Ripple and Noise

Vane pumps inherently generate lower pressure ripple than gear pumps, and the T6H's multi-vane design minimizes this further. In practical terms, low ripple means less piping noise, reduced fatigue loading on system components, and a quieter machine overall. For press applications, injection molding machines, and test stands — where background noise affects the operator's environment, and accelerometers are in use — this matters.

High Pressure in a Compact Envelope

The broader T6 series achieves continuous pressure ratings up to **275 bar (4,000 PSI)** within a relatively small physical footprint. This high-pressure capability allows system designers to use smaller actuators, smaller valves, and smaller tubing — a cascading benefit that reduces both system cost and overall machine weight.

Particle Contamination Resistance

Contamination is the leading cause of hydraulic pump failure in service. The double lip vane design provides an additional layer of protection by maintaining better vane-to-cam ring contact even when fine particles are present. This doesn't replace the need for proper filtration (100 mesh / 149 micron maximum on suction strainers), but it does extend mean time between failures in environments where fluid cleanliness is difficult to control perfectly.

Energy Efficiency

With a mechanical efficiency of 94%, the T6H wastes less energy as heat compared to lower-efficiency alternatives. In continuous-duty industrial applications running thousands of hours per year, this translates to measurable savings in energy costs and reduced thermal load on the hydraulic system — which in turn reduces cooler sizing and oil change intervals.

Typical Applications

Industrial Hydraulic Power Units

The T6H is commonly specified in stationary industrial power units where two separate hydraulic circuits need to be served simultaneously. A plastic injection molding machine is a classic example: the high-pressure variable piston section powers the clamp and injection cylinders, while the fixed-displacement vane section provides lower-pressure flow for cooling, ejection, and auxiliary functions — all from one pump, one motor, one mounting flange.

Machine Tool and Press Applications

Hydraulic presses, stamping equipment, and machining centers frequently demand simultaneous high-force actuation and precision positioning. The T6H's ability to serve independent circuits with different pressure and flow characteristics from a single shaft makes it well-suited to these applications. The low noise profile is an additional benefit in machine shop environments.

Mobile Hydraulic Equipment

The T6 Mobile series variants (T6*M) address the specific demands of mobile applications — tighter cold-start viscosity tolerances, higher intermittent pressure ratings, and compatibility with demanding duty cycles. A typical mobile example might be a crane with a main boom circuit (variable flow, high pressure) and an auxiliary circuit for cab rotation or leveling (fixed flow, lower pressure), both served from a single T6H installation.

Test Stands and Simulation Equipment

Hydraulic test stands require accurate, stable flow at defined pressures with minimal noise and ripple. The T6H's efficiency and low ripple characteristics make it a natural fit for this segment, where measurement accuracy depends on a clean, stable fluid power source.

For more information on the T6H hydraulic vane pump, please visit https://www.baolilaihydraulic.com/product/.

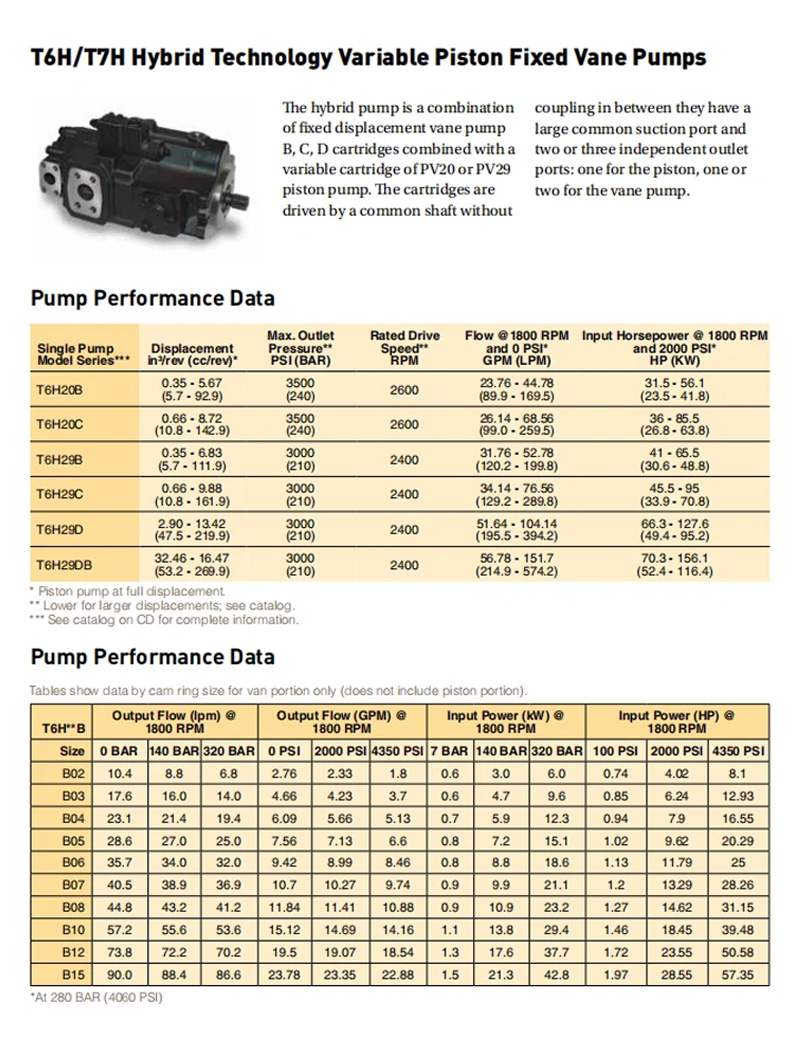

Selection Table

Q1: How do I know when the cartridge needs replacing?

A1: A volumetric efficiency drop below approximately 88% at rated speed and pressure is a practical service threshold. Field measurement involves comparing actual flow output (measured with a flow meter) against theoretical displacement × speed. A reduction in system performance — slower actuators, inability to maintain pressure — is typically the first field symptom.

Q2:Is the T6H suitable for high-vibration mobile environments?

A2:Standard T6H units are designed primarily for coaxial, low-vibration installations. For mobile applications with significant vibration, shock loading, or external shaft loads, consult Parker directly — the T6*M mobile variants and severe-duty shaft options address these specific conditions.

Q3:How to purchase a T6H hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the T6H hydraulic pump?

A4:The specific price and delivery time will be provided based on the specific model you provide.
