Parker Denison T7B T7BS industrial hydraulic vane pump

The T7B and T7BS are fixed-displacement, balanced vane pumps designed for continuous-duty industrial service. They belong to Denison's T7 series-a family of medium-pressure hydraulic pumps widely regarded as workhorses in factory automation and fluid power systems.

The core distinction between the two variants comes down to mounting and porting configuration:

T7B-Standard inline (tandem-capable) single-section pump with SAE-standard flange mounting and shaft options. It is the more common of the two and is frequently used as the primary pump in a tandem stack.

T7BS-The "S" designation indicates a through-drive (series) configuration, meaning the rear of the pump includes a splined through-shaft and matching pilot diameter to accept a second pump section or auxiliary drive. This makes the T7BS the preferred choice when dual-circuit hydraulic systems need to be driven off a single prime mover.

Both variants share the same internal cartridge design, the same pressure ratings, and the same interchangeable service parts-which significantly simplifies spare-parts stocking for facilities running mixed configurations.

Core Operating Principles: How Balanced Vane Technology Works

Understanding why these pumps perform the way they do requires a brief look at the balanced vane mechanism itself.

The Balanced Vane Cartridge

Inside the T7B/T7BS, a slotted rotor is mounted eccentrically within an elliptical cam ring. Spring-loaded and pressure-loaded vanes slide radially in the rotor slots, maintaining contact with the cam ring surface as the rotor turns. As each vane sweeps from the minor to the major radius of the ellipse, the increasing chamber volume draws fluid in. As it sweeps back toward the minor radius, the decreasing volume displaces fluid through the outlet.

The "balanced" aspect is critical: the elliptical cam ring creates two inlet zones and two outlet zones positioned diametrically opposite each other. This symmetry means the pressure forces on the rotor cancel out-the shaft sees no net side load. Compare this to an unbalanced vane pump or a gear pump, where significant radial bearing loads are generated. The balanced design dramatically extends bearing life and is a primary reason the T7 series tolerates continuous-duty cycles so well.

Pressure-Loaded Vanes

One refinement in the Denison design is the use of hydraulic pressure (taken from the outlet circuit) to supplement the mechanical spring force holding vanes against the cam ring. At startup, springs maintain contact. Once the system is pressurized, outlet pressure acts on the vane base, ensuring consistent sealing across the full operating range. This approach reduces wear at the vane tip compared to purely spring-loaded designs and maintains volumetric efficiency more stably across the pressure range.

Key Application Areas

Machine Tool Hydraulics

This is the home territory of the T7 series. Lathes, machining centers, grinding machines, and broaching equipment demand low-noise operation (cutting fluid and pump noise can mask tool condition signals), consistent flow regardless of back-pressure fluctuations, and very long service intervals to avoid production interruptions. The balanced vane design keeps noise signatures typically in the 60–68 dB(A) range at rated speed-meaningfully quieter than many gear pump alternatives at equivalent displacement and pressure.

A practical example: a horizontal machining center running a 22 kW spindle motor will typically use a T7B with a 28 cm³/rev cartridge driven off the same motor at 1,450 RPM, supplying the clamping circuit and axis counterbalance at 100–140 bar continuously. The pump in this application may run 6,000–8,000 hours between cartridge services.

Hydraulic Press Systems

Presses-whether stamping, forming, or molding-impose demanding duty cycles on hydraulic pumps. The approach stroke is typically at low pressure and high flow; the pressing stroke reverses this to high pressure and reduced flow. The T7B handles this transition smoothly because flow is displacement-fixed, and the balanced cartridge design tolerates the pressure spikes inherent in forming operations better than unbalanced designs.

For tonnage-critical applications, T7BS units are frequently specified in tandem with a high-pressure piston pump: the vane pump supplies fast-traverse volume at low pressure while the piston pump handles the high-pressure work cycle. This combination reduces installed motor power compared to sizing a single pump for peak pressure and peak flow simultaneously.

Industrial Automation and Test Stands

Hydraulic test rigs, injection molding machines, and material handling systems all benefit from the T7 series' combination of good efficiency (typically 90–93% volumetric at rated conditions), low heat generation, and predictable wear patterns that make condition-monitoring strategies viable.

For more information on the T7B/T7BS hydraulic vane pump, please visit https://www.baolilaihydraulic.com/pro3-2/.

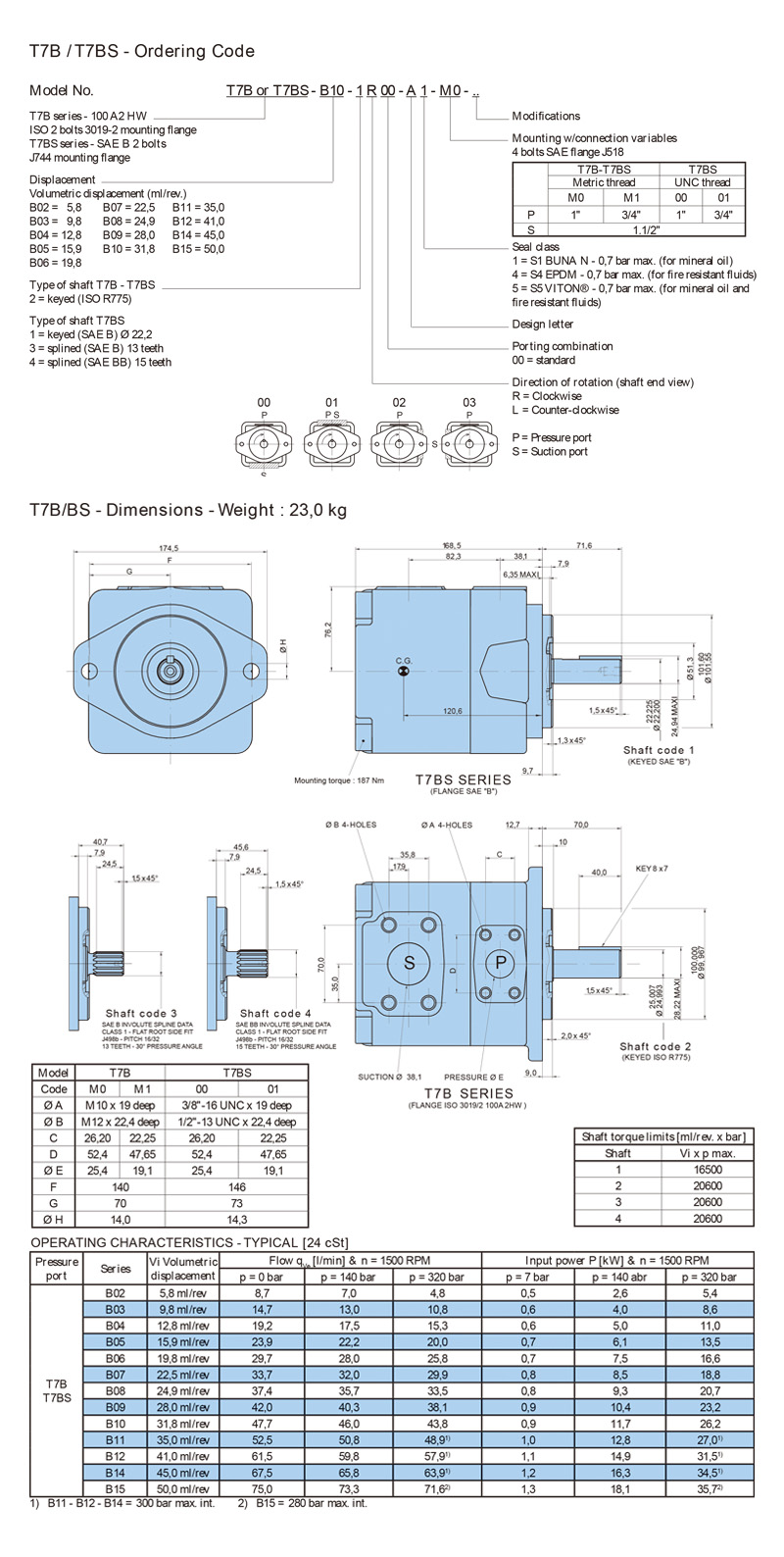

Selection Table

Q1:Can a T7B be converted to a T7BS in the field?

A1:No. The T7B and T7BS have different housings — the T7BS body includes the rear pilot bore and through-drive shaft. These are not field-conversion items. When a through-drive capability is required, specify the T7BS from the outset.

Q2:What is a reasonable case drain line sizing for these pumps?

A2:Parker Denison recommends a minimum ¾-inch (19 mm) nominal inside diameter case drain line for most T7 displacements, with the drain line terminating below fluid level in the reservoir (not above) to prevent the case from draining dry on shutdown. Case drain backpressure must not exceed the manufacturer's published limit — typically 3–5 bar — as excess backpressure loads the shaft seal.

Q3:How to purchase a T7B/T7BS hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the T7B/T7BS hydraulic pump?

A4:The specific price and delivery time will be provided based on the specific model you provide.
