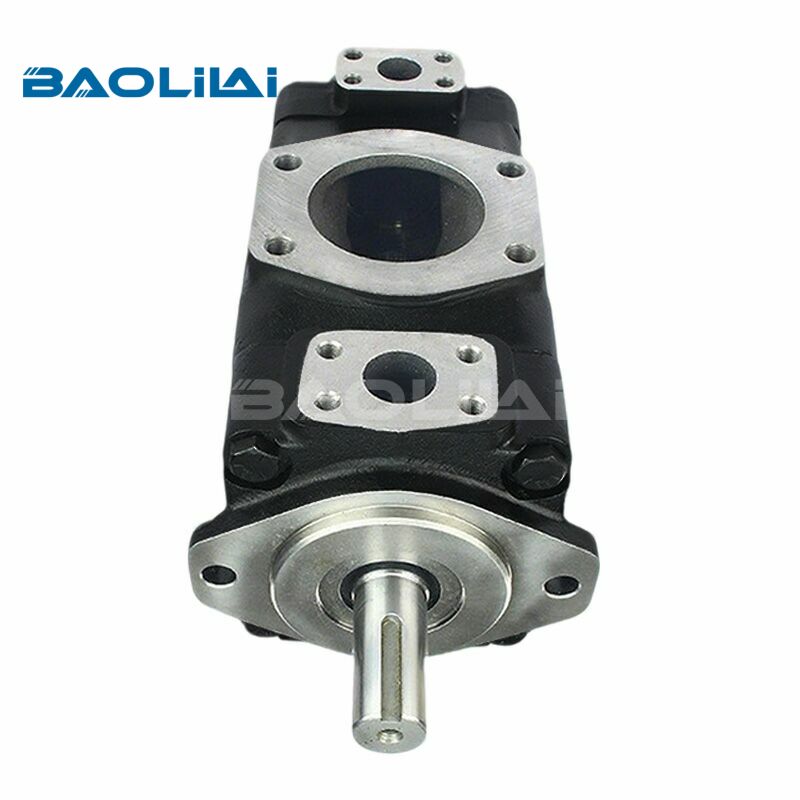

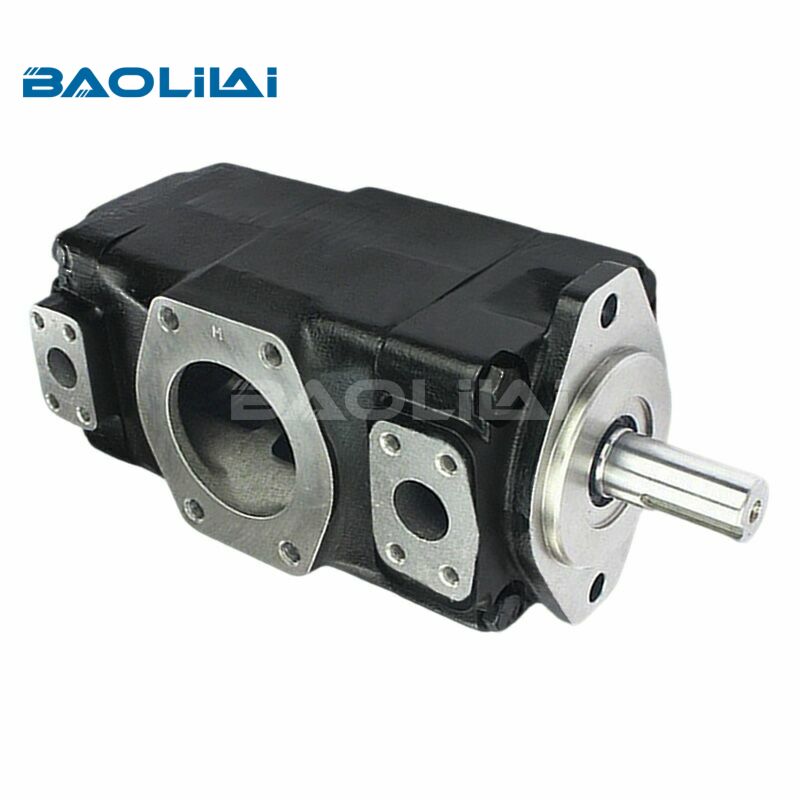

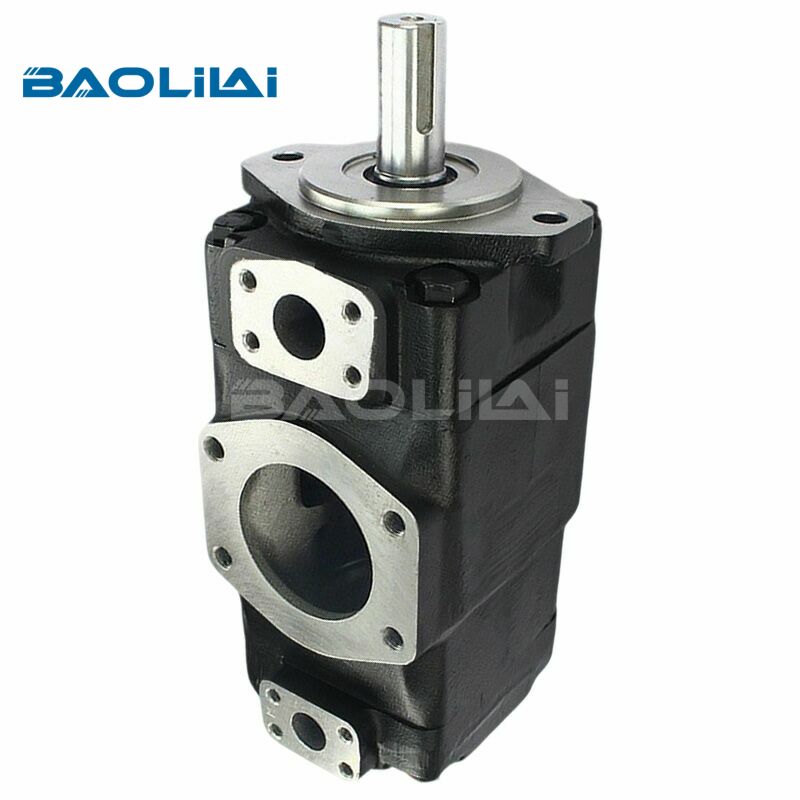

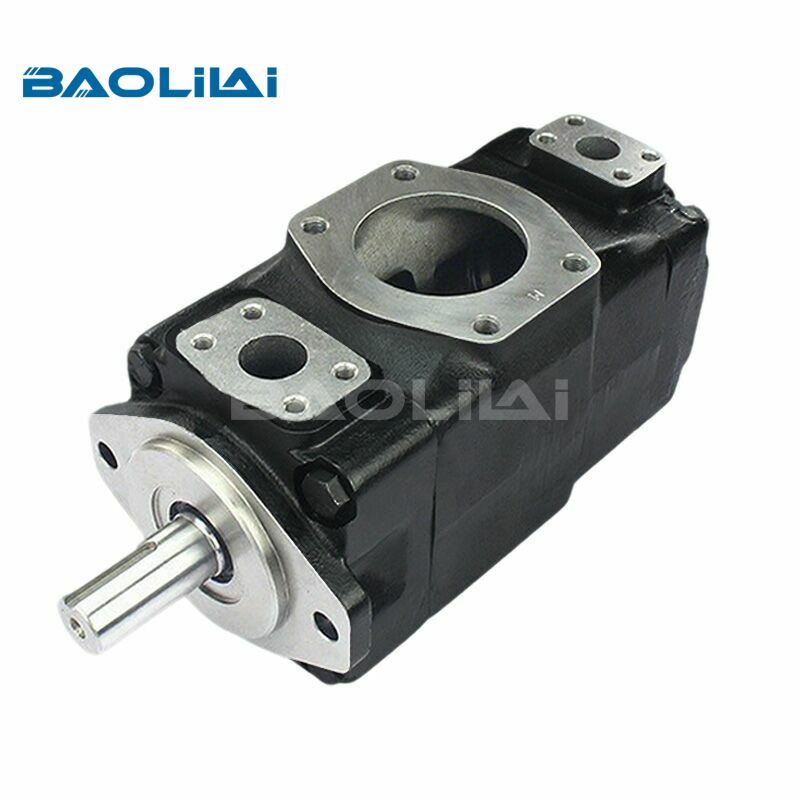

Parker Denison T7BB T7BBS double hydraulic vane pump

At first glance, the T7BB and T7BBS appear similar—both are double-vane, cartridge-style pumps. However, the key distinction lies in the bearing configuration and continuous pressure rating.

Parker Denison T7BB: Standard double pump with heavy-duty journal bearings. Optimized for continuous duty up to 3,000 PSI (210 bar). Ideal for general mobile and industrial circuits.

Parker Denison T7BBS: The “S” denotes severe-duty or super-duty bearings. It supports continuous pressures up to 3,600 PSI (250 bar) and handles higher side loads. This version is preferred for applications with frequent pressure spikes or when direct engine mounting without a driveline is required.

Key Engineering Advantages Over Single and Gear Pumps

Why spec a double vane pump instead of two separate pumps or a larger gear pump? Three reasons: efficiency, noise, and modularity.

1. Reduced Power Waste (T7’s Balanced Vane Design)

Unlike unbalanced vane pumps, the T7 series uses a cam ring and double-lobe design that hydraulically balances rotor side loads. Result: lower internal leakage and higher volumetric efficiency (typically 92–96% at rated pressure). Gear pumps, in comparison, often drop below 85% as clearances increase with wear.

2. Noise Reduction That Matters

Hydraulic whine is not just annoying—it’s a sign of cavitation or pressure ripple. The T7BB family operates with pressure ripple below 10 bar peak-to-peak at 2,000 PSI. This is significantly quieter than standard external gear pumps, making the T7BB a go-to choice for indoor machinery (e.g., presses, injection molding) and electric vehicles where NVH (Noise, Vibration, Harshness) is scrutinized.

3. True Dual-Flow Independence

Each section of the T7BB has its own inlet and outlet, allowing two completely separate circuits—e.g., one for steering (high flow, low pressure) and one for work functions (low flow, high pressure). You can also combine both sections externally via a priority valve for a high-flow mode.

For more information on the T7BB/T7BBS hydraulic vane pump, please visit https://www.baolilaihydraulic.com/pro3-2/.

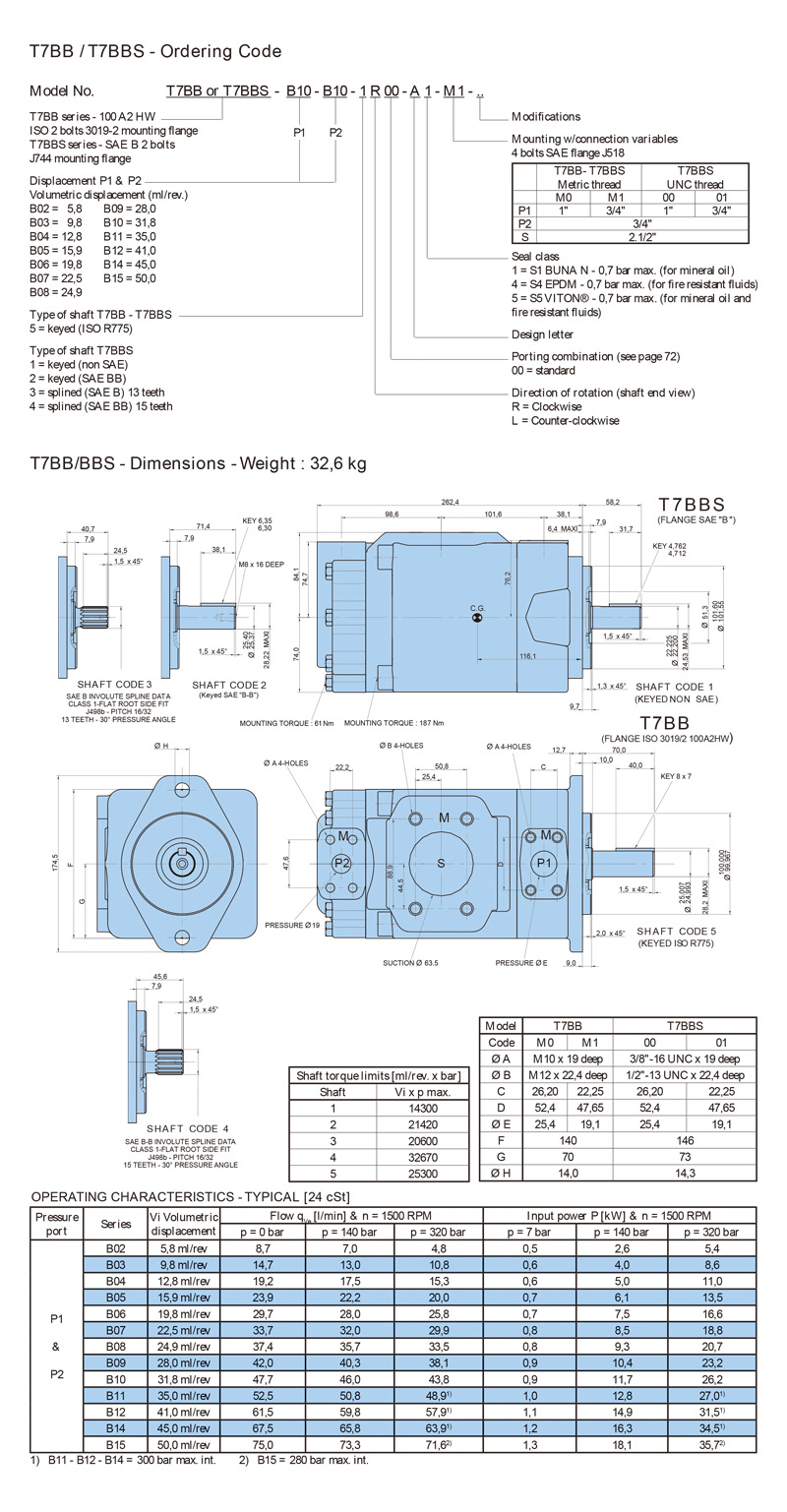

Selection Table

Q1:Why is my T7BBS running hot?

A1:Common causes: (a) case drain line too restrictive (should be at least ¾” and no more than 5 PSI backpressure), (b) mismatched cartridge sections causing over-speeding of one rotor, or (c) inlet vacuum below 4” Hg absolute—the T7BB requires flooded suction or a lift of no more than 16” of mercury.

Q2:What is the typical service interval for vanes?

A2: In clean oil (ISO 18/16/13 or better) at rated pressure, expect 8,000–10,000 hours. Abrasive conditions (e.g., mining) reduce this to 3,000 hours. Use Parker’s green high-strength vanes for extended life in contaminated oil.

Q3:How to purchase a T7BB/T7BBS hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the T7BB/T7BBS hydraulic pump?

A4:The specific price and delivery time will be provided based on the specific model you provide.
