Parker Denison T7CS hydraulic vane pump

The T7CS belongs to Parker's renowned T7 series of hydraulic vane pumps. Its core innovation lies in the cartridge kit design—a replaceable assembly comprising the rotor, vanes, cam ring, and pressure plates. This allows field servicing without removing the pump from the machine, a critical advantage for OEMs and fleet operators.

Five Real-World Applications Where the T7CS Excels

1. Mobile Aerial Work Platforms (AWPs)

Boom lifts and scissor lifts need smooth, controlled motion. The T7CS delivers low flow ripple (typically <5%), which translates to stable platform movement at height. Its compact SAE A mount fits tight engine compartments.

2. Industrial Metal Shears & Presses

For cyclic operations (hold-clamp-cut-return), the T7CS handles frequent starts and stops. Its pressure rating (210 bar continuous) aligns perfectly with hydraulic shearing circuits. One service manager reduced pump replacements from quarterly to annually by switching from a gear pump to the T7CS on a 50-ton shear.

3. Agricultural Attachments (e.g., Log Splitters)

Outdoor equipment demands contamination tolerance. The T7CS's wide vane-to-slot clearance (compared to piston pumps) provides better resilience against cold-start thick oil or minor particulate ingress.

4. Plastic Injection Molding Core Pulls

Low-noise, repeatable flow is critical for core and ejector circuits. Many molders specify T7CS pumps for their auxiliary axes due to the cartridge kit's quick changeover during mold swaps.

5. Marine Steering & Stabilizer Systems

The pump's ability to run at low speed (600 rpm) without starving matches engine-driven PTOs on workboats. Its bi-rotational option (T7CS-B) allows reversing for emergency steering modes.

Installation & Maintenance-Avoiding Common Failures

Even a robust pump like the T7CS will fail prematurely if basic hydraulic hygiene is ignored. Here's what field data from 200+ service calls reveals.

Critical Installation Rules

1. Inlet line velocity-Keep below 1.2 m/s (4 ft/s) to prevent cavitation. For a 100 cm³/rev pump at 1,800 rpm, use at least 1.5″ ID suction hose.

2. Shaft alignment-Angular misalignment >0.5 mm per 100 mm leads to bearing fatigue. Use a flexible coupling (Lovejoy or Centa), never a rigid one.

3. Case drain-The T7CS requires a separate case drain line (max pressure 2 bar absolute). Routing it to the tank below the fluid level prevents seal blowout.

For more information on the T7CS hydraulic vane pump, please visit https://www.baolilaihydraulic.com/pro3-2/.

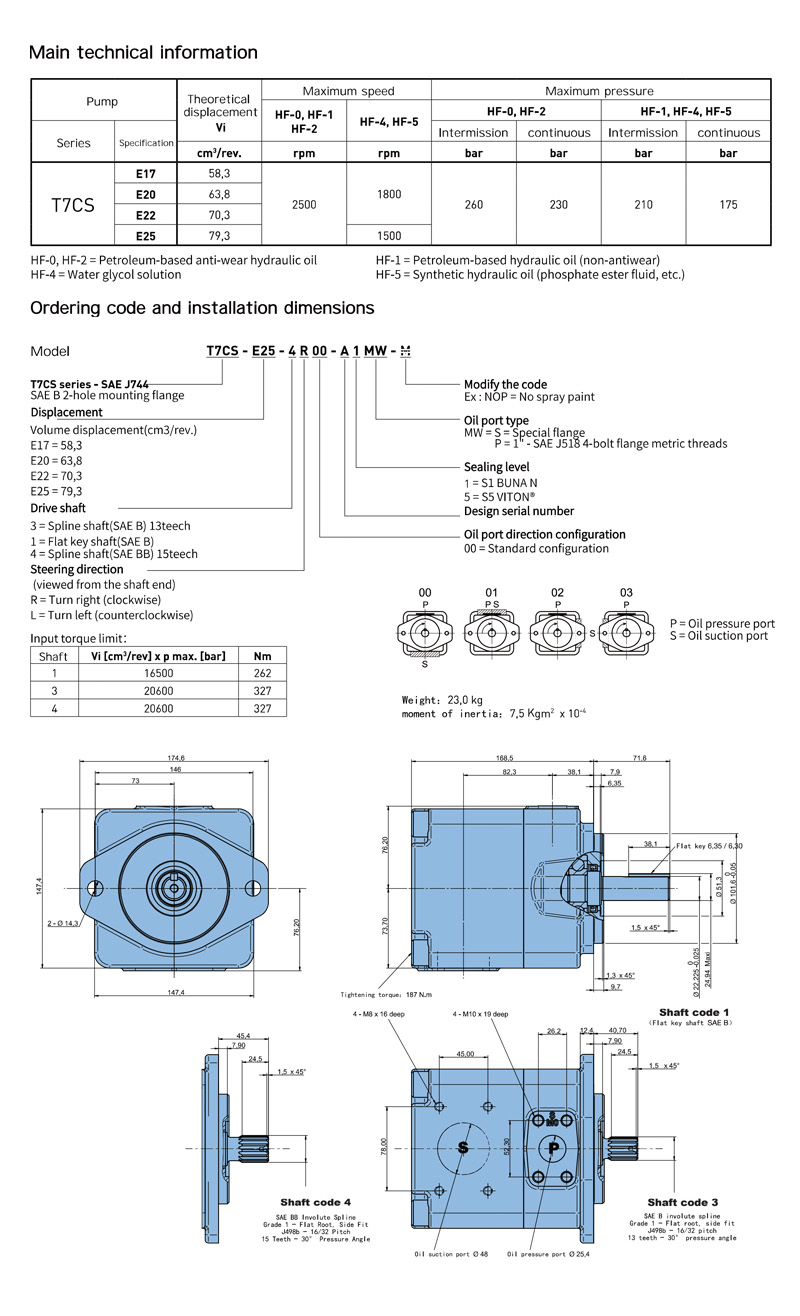

Selection Table

Q1:How long does a T7CS cartridge kit last?

A1:Under ISO 4406 cleanliness 18/16/13, expect 8,000–12,000 hours. In dirty circuits (code 22/20/17), life drops to 2,000 hours. Always change the kit when pressure ripple exceeds ±6 bar at constant flow.

Q2:What causes intermittent squealing from the pump?

A2: Inlet restriction or aerated fluid. Check the strainer, inlet hose, and oil level. If the noise appears only when cold, consider a lower viscosity grade (e.g., ISO VG 32 instead of 46). Backpressure loads the shaft seal.

Q3:How to purchase a T7CS hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the T7CS hydraulic pump?

A4:The specific price and delivery time will be provided based on the specific model you provide.
