Parker Denison T7D T7DS fixed displacement vane pump

The Parker Denison T7D and T7DS series are single fixed-displacement vane pumps engineered specifically for industrial and mobile applications. The fundamental difference between the two designations lies entirely in their physical installation housing:

T7D: Fabricated with an ISO 2-bolt (ISO 3019-2) mounting flange standard, commonly used in European industrial machinery.

T7DS: Fabricated with an SAE C 2-bolt (SAE J744) mounting flange standard, predominantly utilized in North American industrial and mobile configurations.

Pressure-Balanced Vane Cartridge Technology

At the core of both models is a pressure-balanced cartridge design. Unlike standard gear pumps or unbalanced vane variants, internal hydraulic forces act symmetrically on the internal rotor. This eliminates radial bearing loads, drastically reducing mechanical wear and optimizing pump longevity under continuous high pressure.

Furthermore, these units feature a double-lip vane configuration. This dual-contact point engineering increases resistance to particulate contamination and maintains strict volumetric efficiency—often exceeding 94%—by ensuring an airtight seal against the cam ring.

Real-World Industrial Applications

Because these fixed-displacement pumps operate smoothly across variable-speed setups (including modern electric motor frequency controllers), they fit seamlessly into heavy-duty automation loops.

Injection Molding & Die Casting

In plastic injection molding machines, clamp-actuation cylinders require sudden, highly stable flow parameters at high pressures. The rapid transient response of the T7DS ensures cycle-to-cycle precision while keeping hydraulic oil temperature rise to a minimum.

Metalworking Presses & Punching Machinery

Heavy industrial presses require sustained force profiles. The high mechanical-hydraulic efficiency of the T7D limits energy loss, allowing factories to shrink fluid reservoir size demands and downscale large auxiliary cooling loops.

Maintenance Protocols & Common Spares

One major operational advantage of the Denison design is its drop-in cartridge concept. If an internal component fails, technicians don't need to unbolt the entire housing from the prime mover. Instead, the rear cover is detached, and the internal pump cartridge assembly is wholly swapped out.

Crucial Spare Parts Inventory

Cartridge Kits: Complete internal rotating groups (includes rotor, cam ring, double-lip vanes, and side plates).

Seal Kits: Classified by fluid type. Class 1 (Buna N) is the benchmark for standard mineral oils; Class 4 (EPDM) and Class 5 (Viton®) are used for fire-resistant synthetic fluids.

Shaft & Bearing Assemblies: Available in standard keyed or splined configurations (such as the 14-tooth SAE C involute spline).

For more information on the T7D/T7DS hydraulic vane pump, please visit https://www.baolilaihydraulic.com/pro3-2/.

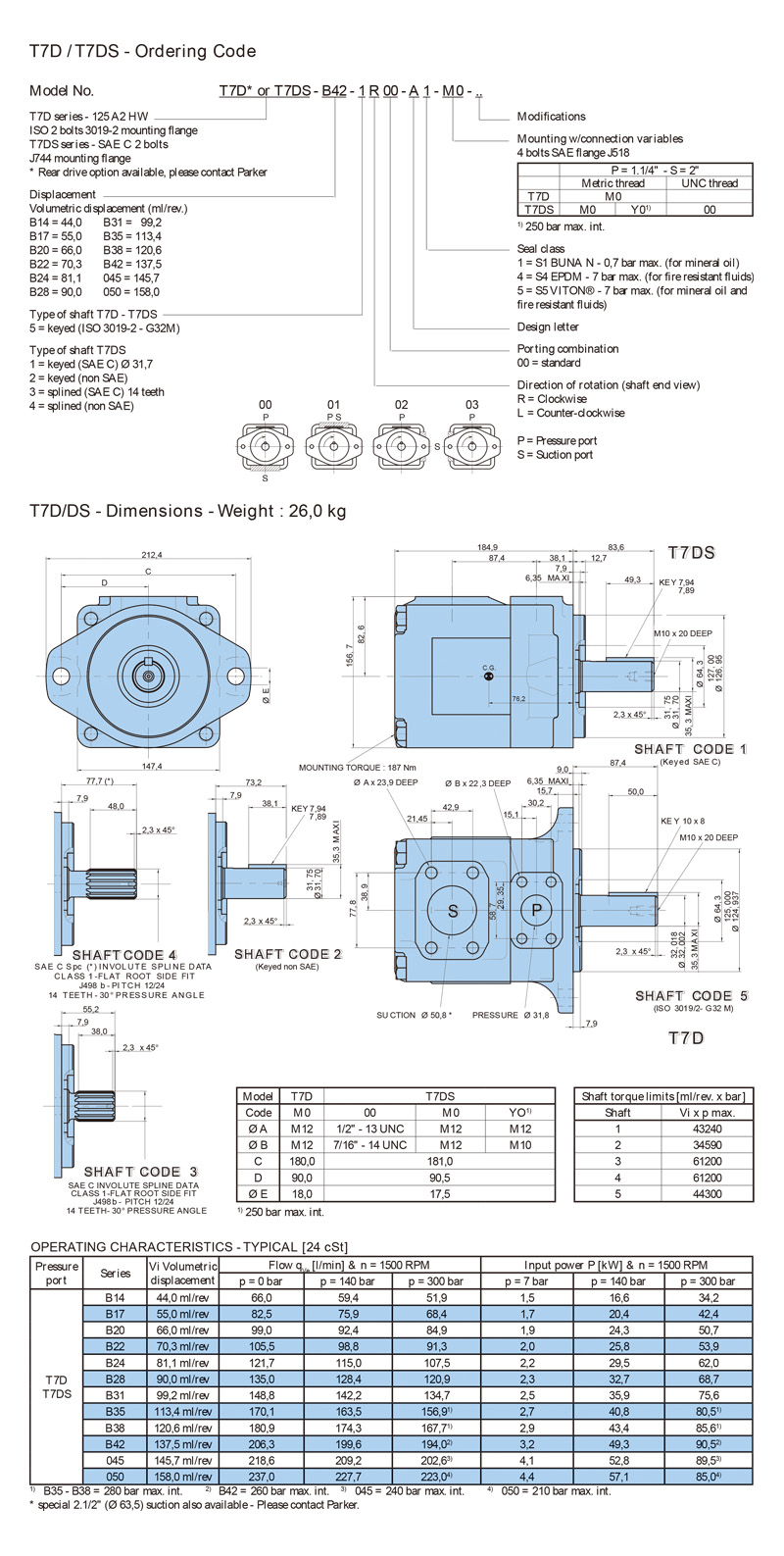

Selection Table

Q1:What is the core difference between a Parker Denison T7D and a T7DS pump?

A1:The only difference is the mounting interface. The T7D uses an ISO 2-bolt mounting flange standard, whereas the T7DS utilizes an SAE C 2-bolt flange standard. Their internal cartridge kits and performance potentials are identical.

Q2:Why is my pump producing an elevated whining sound?

A2: Excessive noise in a T7D/T7DS pump is typically triggered by cavitation or aeration. Check the suction port for air leaks, verify that the intake fluid viscosity matches the operating temperature envelope, and ensure the reservoir fluid level is well above the suction pipe intake line.

Q3:How to purchase a T7D/T7DS hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the T7D/T7DS hydraulic pump?

A4:The specific price and delivery time will be provided based on the specific model you provide.
