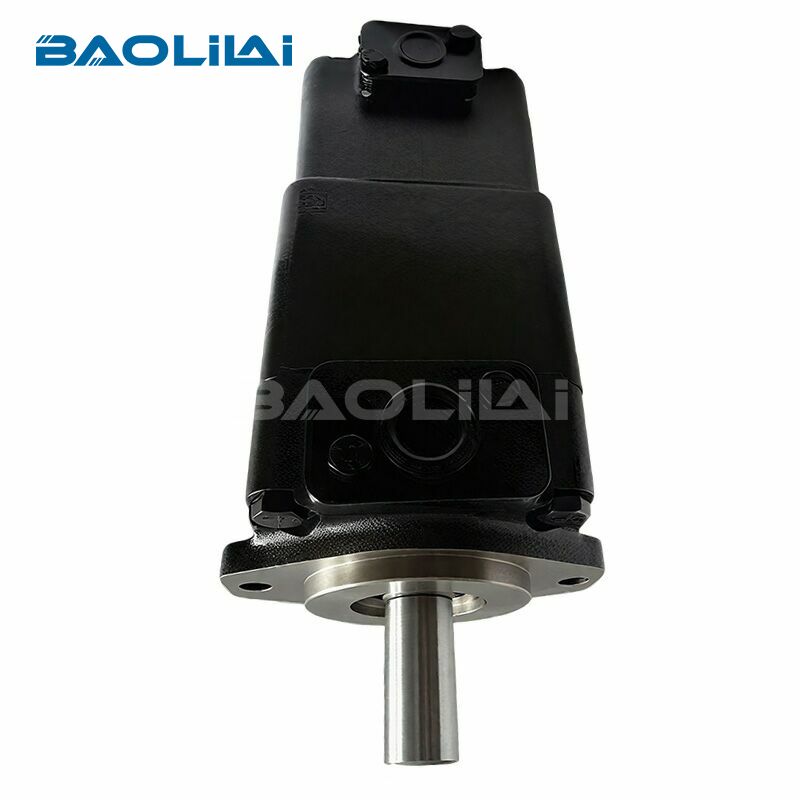

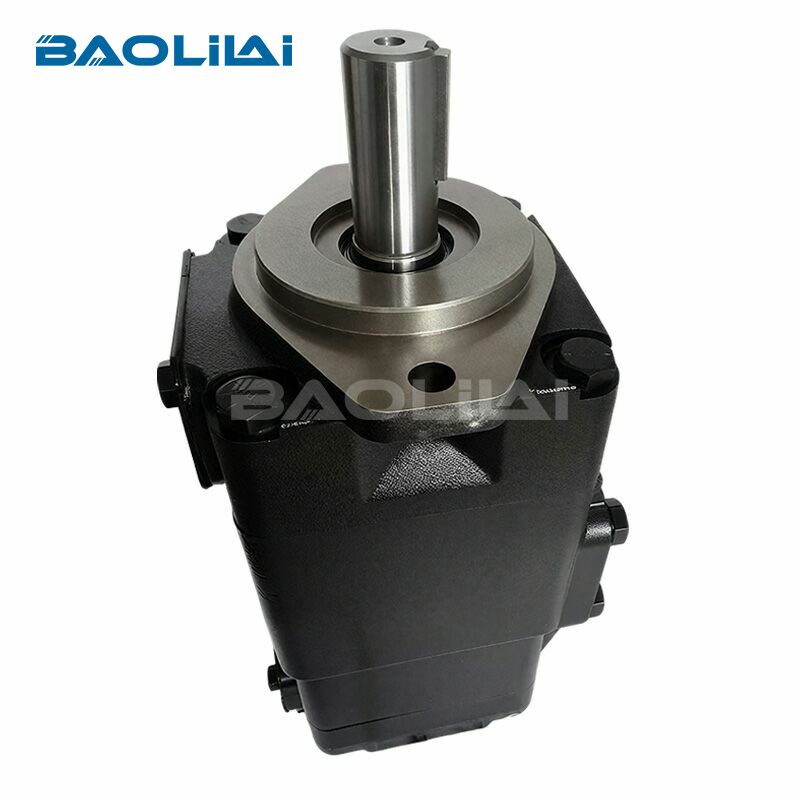

Parker Denison T7DB T7DBS fixed displacement hydraulic pump

The Parker Denison T7DB and T7DBS are fixed displacement double vane pumps. "Fixed displacement" means that the pump delivers a specific volume of fluid per revolution; the flow rate can only be altered by changing the drive speed of the pump.

While they share identical internal pumping mechanisms and performance characteristics, the primary difference lies in their mechanical mounting and housing standards:

T7DB: Features a standard SAE B 2-bolt mounting flange.

T7DBS: Features a severe-duty or modified housing specification (often featuring standard ISO mounts, alternative shafts, or specific porting configurations meant for highly demanding or space-constrained environments).

Key Features and Technical Advantages

The engineering behind the T7DB and T7DBS series focuses on overcoming the historical weaknesses of standard vane pumps, such as pressure limitations and mechanical wear.

1. High-Pressure Capability

Unlike traditional vane pumps that top out at lower pressures, the T7DB series utilizes an advanced pin-vane design. This allows the pump to operate continuously at pressures exceeding 240 to 300 bar (3,500 to 4,350 PSI), depending on the specific cartridge sizes and fluid types used.

2. Exceptional Volumetric Efficiency

The unique cam ring design and pressure-balanced construction reduce internal leakage (slippage). The volumetric efficiency often exceeds 94%, ensuring that power drop-off is minimal even as the system heats up or demands peak pressure.

3. Low Noise Levels

Industrial environments face strict acoustic regulations. The T7DB series incorporates a progressive change in the cam profile, which smooths out fluid compression and drastically reduces pressure ripples, resulting in remarkably quiet operation.

Real-World Application Examples

Because these pumps offer dual-flow capabilities from a single unit, they are highly favored across both mobile and industrial sectors.

Example 1: Die-Casting and Injection Molding Machinery

In plastic injection molding, a machine requires a large volume of oil at low pressure to rapidly close the mold. Once the mold is closed, it requires extremely high pressure at a low flow rate to hold the mold tight during material injection.

How the T7DB solves this: The high-flow "D" cartridge handles the rapid closing phase. The system then vents the "D" cartridge back to the reservoir, while the low-flow "B" cartridge steps in to maintain the high holding pressure efficiently, preventing energy waste and heat buildup.

System Integration & Maintenance Tips

To maximize the lifespan of your Parker Denison pump, adhere to these strict maintenance protocols:

Fluid Cleanliness: Vane pumps rely on hydrodynamic lubrication between the vane tips and the cam ring. Maintain an ISO cleanliness code of at least 17/15/12. Use high-quality anti-wear (AW) hydraulic oils.

Inlet Filtration: Never place a fine filter on the suction line, as this can cause cavitation. Use a suction strainer and place high-efficiency filters on the return or pressure line instead.

Cartridge Replacement: One of the finest design features of the T7 series is the drop-in cartridge design. If a pump section fails, you do not need to replace the entire pump body. You can simply remove the rear cover, slide out the damaged cartridge, and drop in a new one, reducing downtime to minutes.

For more information on the T7DB/T7DBS hydraulic vane pump, please visit https://www.baolilaihydraulic.com/pro3-2/.

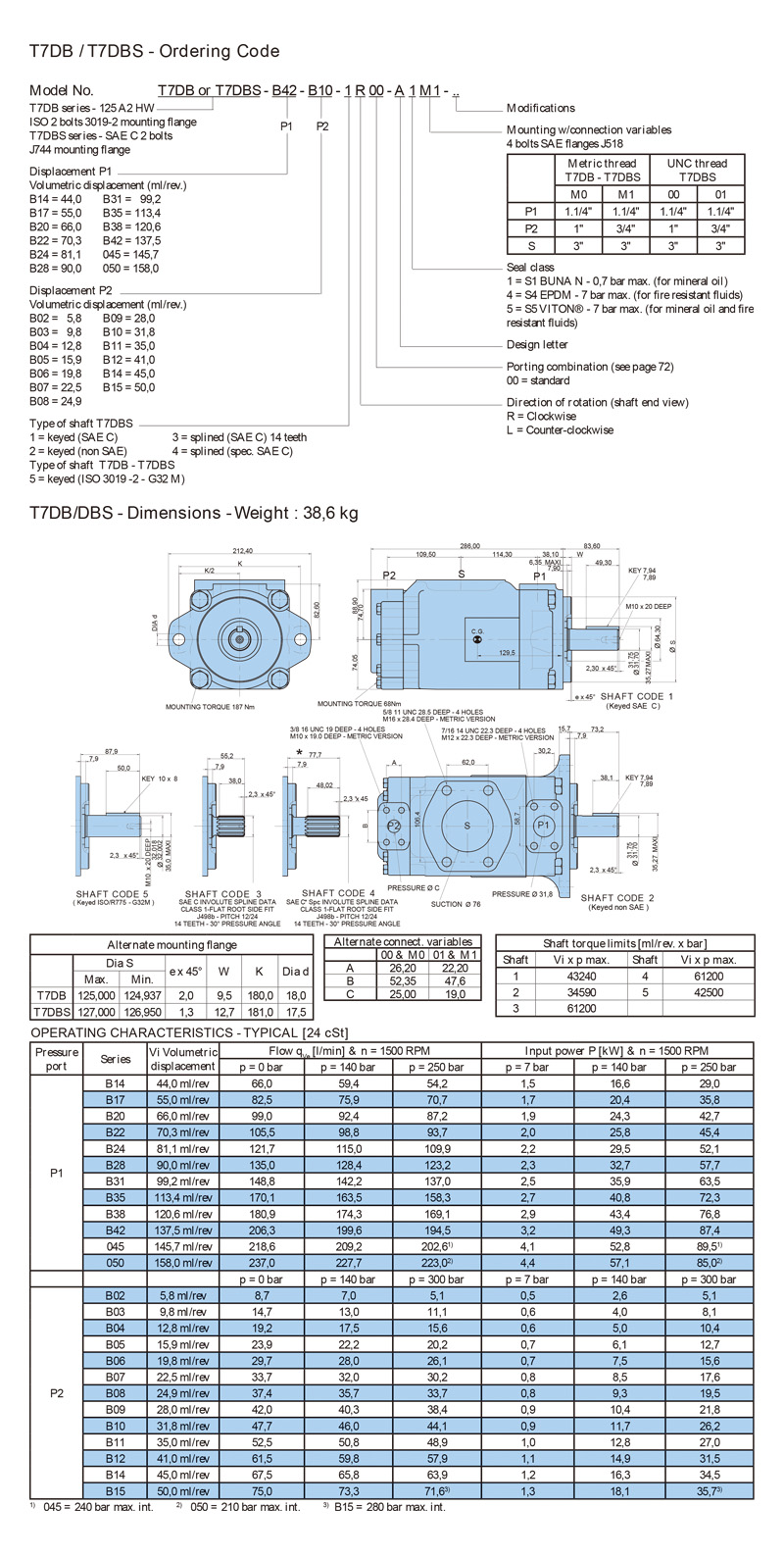

Selection Table

Q1:What causes a T7DB pump to become excessively noisy?

A1:Increased noise is almost always a symptom of **cavitation** (air bubbles forming in the fluid due to a restricted suction line) or **aeration** (air leaking into the suction side through loose fittings or a damaged shaft seal). Inspect the inlet plumbing immediately.

Q2:What is the typical service interval for vanes?

A2: In clean oil (ISO 18/16/13 or better) at rated pressure, expect 8,000–10,000 hours. Abrasive conditions (e.g., mining) reduce this to 3,000 hours. Use Parker’s green high-strength vanes for extended life in contaminated oil.

Q3:How to purchase a T7DB/T7DBS hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the T7DB/T7DBS hydraulic pump?

A4:The specific price and delivery time will be provided based on the specific model you provide.
