Parker Denison T7DD T7DDS hydraulic vane pump

The T7DD and T7DDS are tandem hydraulic vane pumps manufactured under the Parker Denison brand.

The Basic Operating Principle

At the heart of every T7-series pump is a balanced vane design. A slotted rotor sits eccentrically within a cam ring. As the rotor turns, centrifugal force and hydraulic pressure push the vanes outward against the cam ring's inner profile. The geometry of the cam ring creates expanding and contracting chambers that draw in fluid on the inlet side and pressurize it on the outlet side.

The "balanced" designation is important: the T7 uses an elliptical cam ring with two inlet and two outlet ports positioned 180° apart. This cancels out the radial load on the rotor shaft and bearings, which is why these pumps can sustain high operating pressures without accelerated bearing wear — a significant limitation of unbalanced designs.

Why Double-Pump Configuration Matters

In a tandem arrangement like the T7DD, two cartridge assemblies share a single shaft. This is fundamentally different from running two separate pumps driven by separate motors or separate belt drives.

Practical advantages:

Compact installation footprint — one drive connection, one bell housing, one coupling, serving two hydraulic circuits

Synchronized flow delivery — both sections respond identically to shaft speed changes, making flow balancing predictable

Reduced system cost — fewer fittings, less plumbing complexity, and one reservoir connection point in many configurations

A classic application is a machine tool that needs high-flow, low-pressure volume for rapid traverse movements and low-flow, high-pressure output for clamping or cutting force. The T7DD handles both from a single power unit.

Installation and Commissioning Best Practices

Mounting and Alignment

The T7DD/T7DDS mounts via SAE A, B, or C flange configurations, depending on the model. Coupling alignment is critical — angular or parallel misalignment above 0.1 mm (0.004 in) at the coupling face accelerates front bearing wear and shaft seal fatigue.

When using a bell housing and flexible coupling:

Verify the bell housing register diameter against the SAE tolerance

Check coupling spider or element hardness matches speed and torque requirements

Torque all flange bolts in a cross pattern to the specified value

Initial Start-Up Procedure

Cold-starting a vane pump without proper preparation is the fastest way to destroy it. Follow this sequence every time:

1. Fill the pump case with clean hydraulic fluid through the case drain port before the first start. This pre-lubricates bearings and vanes before pressure builds.

2. Jog the prime mover (motor or engine) in short bursts — 1 to 2 seconds on, 10 seconds off — three to five times. This primes the pump without full-load startup.

3. Run unloaded at low pressure (system relief valve backed off) for two to three minutes before bringing up to working pressure.

4. Cycle the system through a full stroke on all actuators before running production loads.

Skipping this procedure — particularly step 1 — is the root cause of a significant percentage of new-installation pump failures.

Case Drain Line Routing

Both the T7DD and T7DDS require a continuous, unrestricted case drain line returning to the reservoir above the fluid level. The case drain must:

Return to the reservoir, never to the return line or filter housing (backpressure in the drain line destroys shaft seals)

Have a maximum backpressure of 0.5 bar (7 psi) under all operating conditions

Be sized generously — minimum 3/4-inch inside diameter for most applications

Troubleshooting Common Issues

Excessive Noise and Cavitation

Symptom: High-pitched whine or rattling, often worse at startup or under heavy load.

Likely causes:

Suction line restriction (clogged strainer, undersized line, excessive length)

Fluid level too low

Air leak at the suction fitting or the shaft seal

Fluid viscosity is too high at the operating temperature

Diagnostic step: Connect a vacuum gauge to the pump inlet. Vacuum above 0.2 bar at rated speed indicates an inlet restriction problem. On a T7DD, this calls for either addressing the root cause or upgrading to the T7DDS configuration if the application cannot eliminate inlet losses.

Internal Leakage and Flow Loss

Symptom: Sluggish actuator response, inability to reach system pressure, excessive heat generation.

Likely cause: Worn cartridge components — particularly the cam ring and pressure plates. Vane pump performance degradation is typically gradual, not catastrophic, which makes it easy to miss until the machine is noticeably slow.

Action: Measure volumetric efficiency. For a pump in good condition, efficiency above 90–92% is expected. Efficiency dropping below 85% warrants cartridge replacement. A complete cartridge swap typically restores full-rated performance without any machining or housing replacement.

Shaft Seal Leakage

Symptom: Oil weeping at the pump front face, around the shaft.

Likely cause: Elevated case drain pressure, shaft surface damage, or incompatible seal material. Excessive case drain backpressure is the number one cause of seal failure on T7-series pumps installed on machines where maintenance teams route the case drain line incorrectly.

For more information on the T7DD/T7DDS hydraulic vane pump, please visit https://www.baolilaihydraulic.com/pro3-2/.

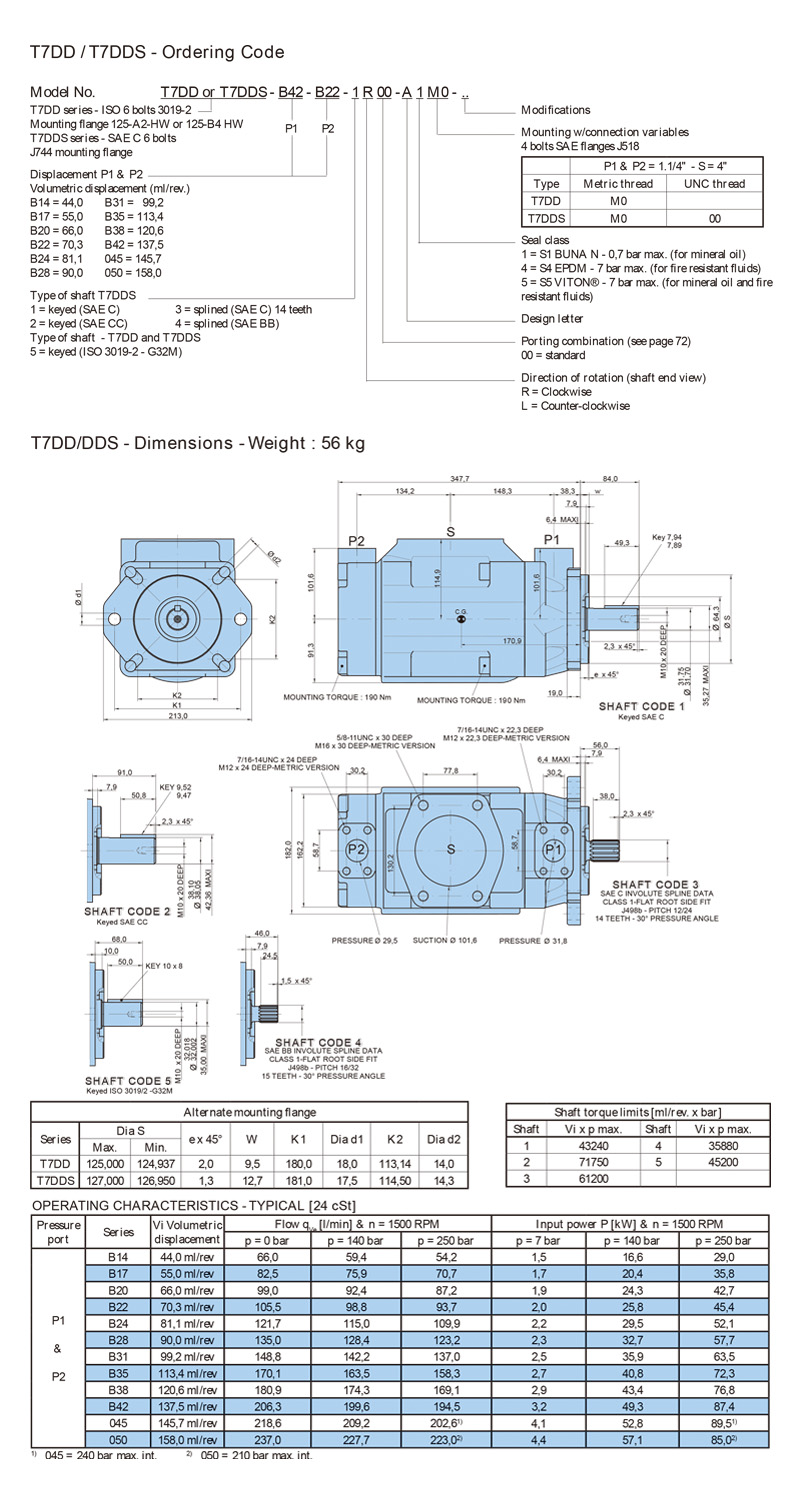

Selection Table

Q1:How do I identify which cartridge kit I need for an existing T7DD pump?**

A1:The pump model code is stamped on the nameplate, usually on the front or rear flange face. Parker's T7 series model code decoder is available through Parker's IHS or distributor network. For each section of the tandem pump, the displacement code appears separately in the model string, so a T7DD will have two displacement designators.

Q2:What happens if the case drain line becomes blocked during operation?

A2: The case pressure will rise rapidly, and the shaft seal will fail — typically within minutes. In systems where drain line blockage is a realistic failure mode (mobile equipment with external hoses that can be crimped), a case pressure relief valve installed at the pump drain port is a worthwhile precaution.
