Parker Denison T7E T7ES industrial vane hydraulic pump

Unlike piston or gear pumps, vane pumps use a rotor fitted with radially-sliding vanes that rotate within an elliptical cam ring. As the rotor spins, centrifugal force (aided by inter-vane pressure in the Denison design) pushes the vanes outward against the cam ring, creating sealed chambers that expand on the inlet side, drawing in fluid, and contract on the outlet side, displacing it under pressure.

The "balanced" design of the T7E and T7ES means the cam ring is elliptical with two inlet and two outlet ports opposed. This configuration cancels out radial hydraulic side loads on the rotor shaft and bearings, dramatically extending bearing life compared to an unbalanced design. In practical terms, a well-maintained T7E in a clean system can achieve bearing service lives measured in tens of thousands of hours.

Design Features That Distinguish the T7 Series

Not all vane pumps are created equal. Several specific design elements set the Denison T7 series apart from generic vane pump offerings.

Inter-Vane Pressure System

One of Denison's most significant contributions to vane pump engineering is the inter-vane pressure (IVP) system. In many conventional vane pumps, vanes are pushed outward by centrifugal force alone. At low speeds, this creates inadequate sealing between the vane tip and cam ring, leading to increased volumetric losses and accelerated wear.

Denison's IVP system routes a controlled pressure to the underside of each vane, supplementing centrifugal force. This ensures reliable vane-to-cam contact across a much wider speed range, particularly at low speeds, without over-pressurizing the vane tip contact at high speeds or pressures, which would cause excessive wear on the cam ring.

The result is a pump that maintains high volumetric efficiency from startup and sustains it throughout the operating speed range, while delivering cartridge life that frequently exceeds 8,000 to 12,000 hours in properly maintained systems.

Modular Cartridge Design

The T7 series uses a replaceable cartridge assembly containing the rotor, vanes, cam ring, and pressure plates as a single unit. When wear eventually occurs, the cartridge is replaced without disturbing the pump housing, shaft, or piping connections. This design approach:

Reduces maintenance downtime significantly (cartridge replacement can often be done in under an hour by a trained technician)

Allows different displacement cartridges to be installed in the same housing

Simplifies spare parts inventory management

Balanced Hydraulic Design

As noted earlier, the dual-lobe cam ring geometry balances radial hydraulic forces. This is not merely an academic distinction. In an unbalanced vane pump running at 250 bar, the net side load on the shaft and bearings can be substantial, on the order of several thousand Newtons for a mid-size pump. The T7's balanced design reduces this to near-zero, which is why the bearings in these pumps last as long as they do.

Through-Drive Capability

The T7E and T7ES are designed with an integral through-drive shaft that extends beyond the rear of the pump housing. This allows a second (or even third) pump to be bolted directly to the rear of the first, all driven by a single electric motor or PTO. Tandem configurations are common in applications requiring multiple independent flow circuits or high total flow at modest cost.

Common Applications

The T7E and T7ES series pumps appear across a wide range of industries where reliable, high-pressure hydraulic power is needed in an industrial environment.

Machine Tool and Metalworking

CNC machining centers, transfer lines, grinding machines, and broaching equipment routinely use T7-series pumps to power clamping, workholding, axis balancing, and tooling functions. The balanced design and consistent volumetric efficiency are especially valued here, since pressure ripple affects surface finish quality in fine-machining operations.

Plastics Processing

Injection molding machines, blow molding equipment, and extruders are major consumers of T7-series pumps. The demands here are severe: high cyclic loads, significant thermal cycling, and very long duty cycles. The inter-vane pressure system and cartridge longevity make the T7 a natural fit for this environment.

Industrial Presses

Hydraulic press applications-from stamping and forming to laminating and composite layup-benefit from the T7's ability to sustain continuous high-pressure operation. The T7ES variant is frequently specified on press circuits where proportional control of pressing force is required.

Mobile and Off-Highway Equipment

While the T7 series is fundamentally an industrial pump, it also sees use in certain heavier mobile applications, particularly where equipment is driven by an electric motor (such as port equipment, rail maintenance machinery, or large industrial vehicles operating indoors) rather than an engine-mounted PTO. The SAE mounting flanges and through-drive options make integration straightforward.

Marine and Offshore

With appropriate sealing specifications and fluid compatibility, T7-series pumps are used in marine deck machinery, anchor handling equipment, and offshore industrial process systems where environmental conditions and duty cycles are demanding.

For more information on the T7E/T7ES hydraulic vane pump, please visit https://www.baolilaihydraulic.com/pro3-2/.

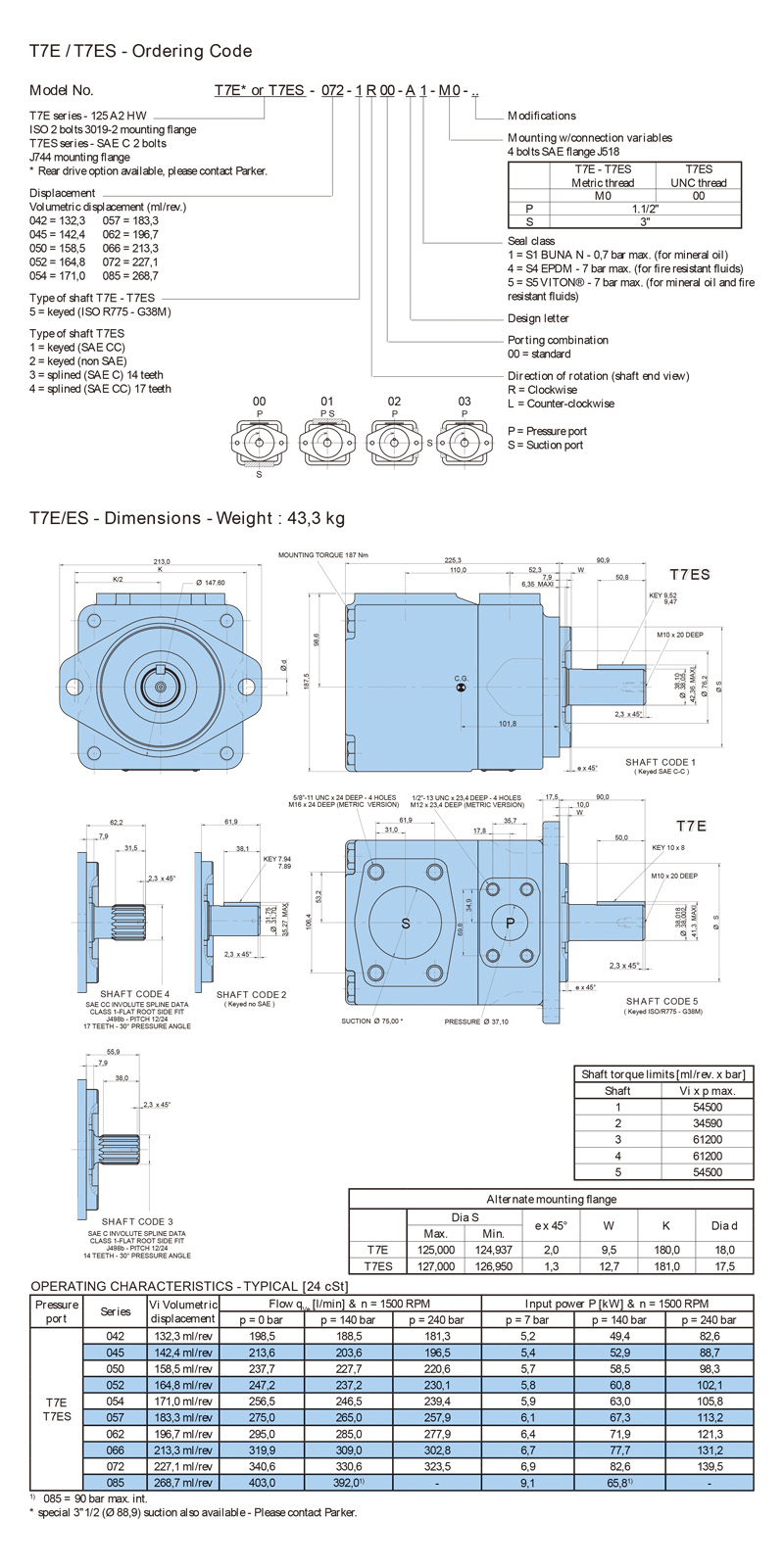

Selection Table

Q1:What causes premature cartridge wear?

A1:The most common causes are contaminated fluid (particles above 10 microns in high concentration), cavitation from a restricted or undersized inlet, operating below minimum speed, and running with fluid viscosity outside the recommended range. Addressing these four factors will resolve the majority of premature wear issues.

Q2:What is the expected service life of a T7-series cartridge?

A2: In a clean, well-maintained system operating within rated conditions, 8,000 to 12,000 hours is a realistic expectation. Some applications report cartridge life well beyond this. Conversely, poor fluid cleanliness or cavitation can reduce life to a fraction of that figure.

Q3:How to purchase a T7E/T7ES hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the T7E/T7ES hydraulic pump?

A4:The specific price and delivery time will be provided based on the specific model you provide.
