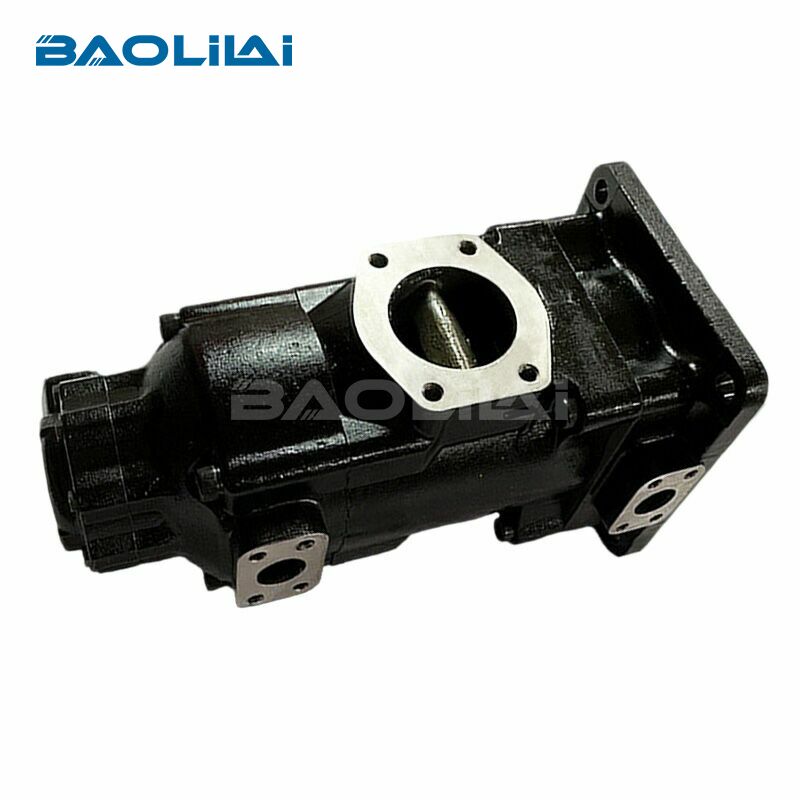

Parker Denison T7EDB T7EDBS triple hydraulic vane pump

The T7EDB and T7EDBS are triple-section, fixed-displacement vane pumps manufactured under Parker Hannifin's Denison Vane Technology platform.

How a Triple Vane Pump Works

The Vane Pump Principle

At its core, every Denison vane pump operates on positive displacement via sliding vanes. A rotor fitted with radial vane slots sits eccentrically inside a precision-machined cam ring. As the rotor spins, centrifugal force pushes the vanes outward, keeping their tips in continuous contact with the cam ring's inner surface.

During the intake phase, the geometry between rotor and cam ring creates expanding chambers that draw hydraulic fluid through the inlet port. As rotation continues through the transfer phase, those sealed chambers carry fluid to the outlet side. When the cam ring's contour compresses the chambers at the outlet, fluid is discharged at working pressure. Because the volume swept per revolution is fixed, output flow is directly proportional to shaft speed — a predictable, controllable characteristic that makes these pumps well-suited to precision hydraulic cycles.

The Double-Lip Vane Advantage

Parker Denison's T7 series uses a double-lip vane design rather than conventional single-lip vanes. This seemingly modest change has meaningful consequences. The double-lip geometry keeps the vane seated more reliably against the cam ring under varying pressure conditions, and it significantly improves tolerance to fluid contamination. In practical terms, that means longer cartridge life and fewer pressure ripple issues — particularly important in continuous-duty industrial settings.

Three Sections, One Shaft

The T7EDB stacks three independent cartridge assemblies within a single housing, all driven from a common shaft. Each section — front, middle, and rear — has its own inlet, outlet, cam ring, rotor, and vanes. The sections are hydraulically isolated from one another: each delivers its own flow stream at its own pressure, governed by whatever circuit controls are downstream.

This multi-section architecture is what enables the classic high-low circuit strategy: one or two smaller sections supply low-flow, high-pressure functions (clamping, pressing, holding), while the larger section delivers high flow at lower pressure for rapid traverse and positioning movements. All three sections operate simultaneously and independently, driven by a single motor.

Primary Applications

Plastics Processing and Injection Molding Machines

Injection molding is one of the most demanding hydraulic duty cycles in manufacturing. A typical injection molding machine needs fast, high-volume flow for mold opening and closing movements, then near-instantaneous switching to high pressure and low flow for the injection and holding phases. The T7EDB's triple-section design handles this elegantly: the E and D sections supply the high-flow traverse functions while the B section maintains clamp pressure. The pressure-balanced design also keeps operation smooth and quiet — a meaningful benefit on a factory floor running dozens of machines.

Die Casting Equipment

Die casting shares many hydraulic demands with injection molding — rapid traverse, high clamp tonnage, and precise cycle repeatability — but adds the complication of extreme temperature swings and contaminated environments. The T7EDB's robust cartridge design and contamination tolerance (aided by the double-lip vane) make it a consistent choice for die casting hydraulic power units in automotive and aerospace component manufacturing.

Industrial Hydraulic Presses

Blanking presses, forming presses, and assembly presses all benefit from the high-low circuit approach. During the rapid approach of the press ram, high flow at lower pressure is needed. At contact and through the pressing stroke, the circuit transitions to maximum pressure with minimal flow. A triple pump like the T7EDB does this in a single, compact package — no need for a separate pump-motor set or complex unloading valves that can add failure points.

Material Handling and Automated Assembly Systems

Larger automated assembly systems — particularly those involving multiple simultaneous hydraulic functions like clamping, pressing, and part ejection — can assign one or two sections of the T7EDB to each functional group, achieving clean circuit isolation and predictable performance across all functions without running multiple separate pumps.

Installation and Commissioning Guidelines

Mounting Orientation

The T7EDB is designed primarily for horizontal shaft mounting. Consult Parker documentation before specifying vertical or inverted mounting orientations, as drain port positioning and bearing lubrication may be affected.

Shaft Coupling and Alignment

Misalignment is a significant source of early bearing failure. Whether you're using the keyed T7EDB or splined T7EDBS, proper coupling alignment — both angular and parallel — is essential. Bell housing mounting to SAE standard flanges helps maintain shaft concentricity, particularly important on the larger T7 frame.

Pre-Startup Priming

Before initial startup, fill the pump housing with clean hydraulic fluid through the case drain port. Running a vane pump even briefly in an unprimed state can cause irreversible vane and cam ring damage. This step is non-negotiable.

Break-In Procedure

New T7EDB cartridges benefit from a structured break-in: start at low pressure (below 50 bar) and gradually increase to operating pressure over the first 30 minutes of operation. This allows vanes to seat properly against the cam ring and ensures uniform wear-in of all contact surfaces.

For more information on the T7EDB/T7EDBS hydraulic vane pump, please visit https://www.baolilaihydraulic.com/pro3-2/.

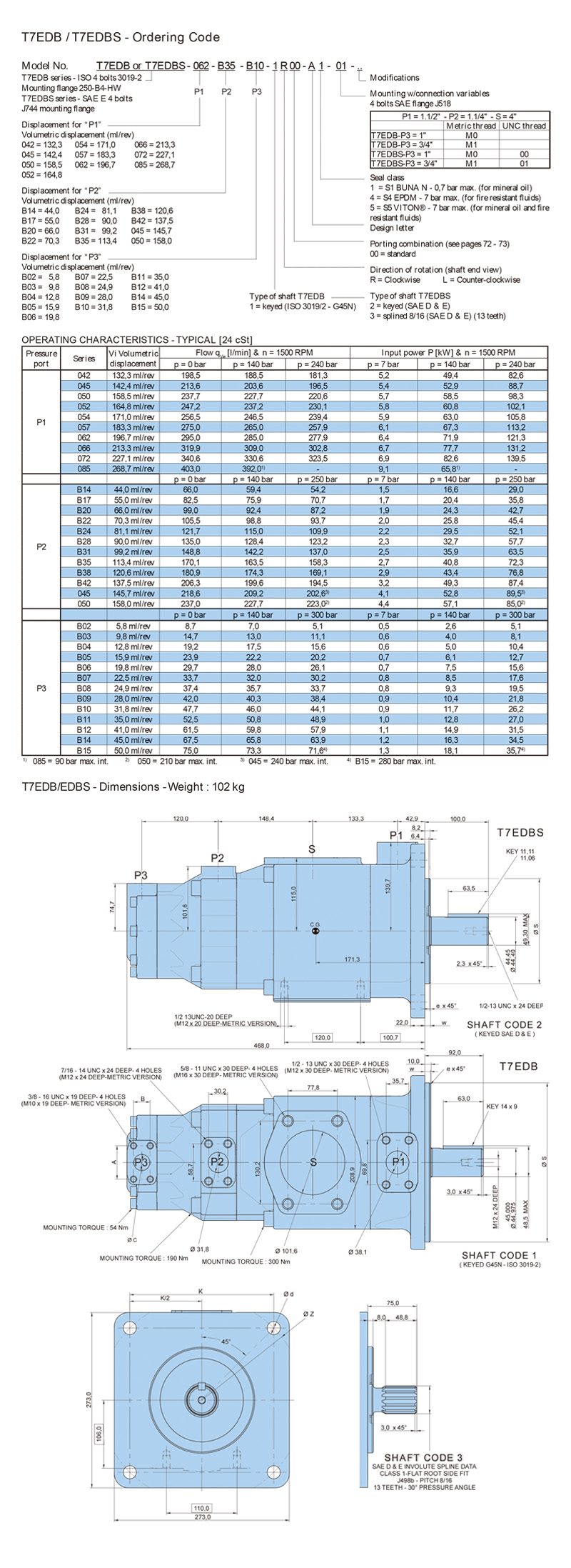

Selection Table

Q1: What hydraulic fluid cleanliness level does the T7EDB require?

A1: NAS 1638 class 8 or better, equivalent to ISO 18/14 or better. This is a firm requirement, not a guideline. Exceeding this contamination level is the primary cause of premature vane and cam ring wear.

Q2: Can the three sections of the T7EDB be plumbed to the same circuit?

A2: Yes. While the most common configuration uses each section to feed a different circuit function, multiple sections can be combined in a common manifold to sum their flows into a single circuit. This can be useful when a higher total flow is needed at a particular phase of the machine cycle.

Q3:How to purchase a T7EDB/T7EDBS hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the T7EDB/T7EDBS hydraulic pump?

A4: The specific price and delivery time will be provided based on the model you specify.
