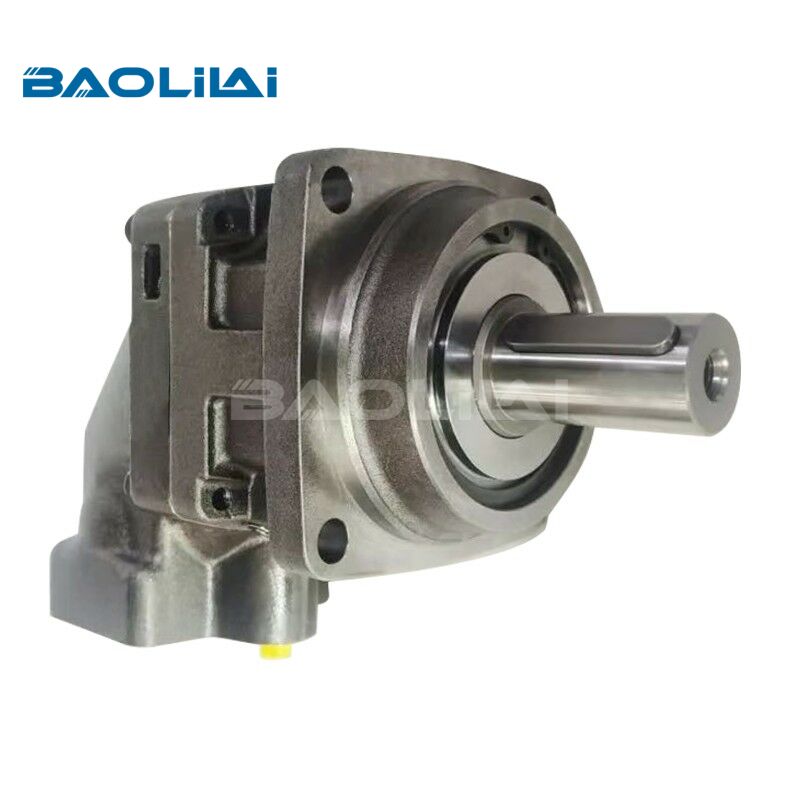

Parker F12-040 inclined axis quantitative hydraulic motor
SERIES : F12
BRAND : For Parker
Model Size :F12-040
Displacement : 40cm3/rev
Speed : 6100rpm
Maximum Pressure : 480bar
Nominal Pressure : 420bar
Download PDF
- Product Details
- Product Model
- FAQ
Unlike bent-axis or radial piston designs, the inclined axis principle used in the F12 series offers a unique compromise: the smooth torque output of a piston motor with the compactness of a gear motor. The “040” denotes a maximum displacement of 40 cc/rev.
Where You'll Find the F12-040
Forestry cranes and knuckleboom loaders – The rigid shaft and tapered roller bearings can absorb high impact loads.
Marine deck machinery (anchor windlasses, winches) – Corrosion-resistant options (zinc-nickel plating) are available.
Industrial presses and injection molding machines – Fixed displacement provides predictable speed for synchronized axes.
Fan drive systems on off-highway vehicles – The motor's smooth start-up prevents belt snatch.
Sizing and Control Considerations
Because it's a quantitative motor, you cannot adjust displacement. Instead, speed is controlled via:
Flow control valves (manual or proportional)
Variable pumps in closed-loop circuits (typical pairing: Parker F12 with a PVplus pump)
Pro tip: Always match the motor's maximum pressure rating to the relief valve setting. A 10% overpressure margin is recommended.
For more information on the F12-040 hydraulic motor, please visit https://www.baolilaihydraulic.com/product/.
Specifications
| Frame size F12 | -030 | -040 | -060 | -080 | -090 | -110 | -125 | -152 | -162 | -182 | -250 |
| Displacement (cm³/rev) | 30.0 | 40.0 | 59.8 | 80.4 | 93.0 | 110.1 | 125.0 | 149.8 | 163.1 | 179.8 | 242 |
| Operating pressure | |||||||||||
| max intermittent (bar) | 480 | 480 | 480 | 480 | 420 | 480 | 480 | 480 | 480 | 480 | 420 |
| max continuous (bar) | 420 | 420 | 420 | 420 | 350 | 420 | 420 | 420 | 420 | 420 | 350 |
| Motor operating speed [rpm] | |||||||||||
| max intermittent | 7300 | 6700 | 5800 | 5300 | 5000 | 4800 | 4600 | 4000 | 4000 | 4000 | 3000 |
| max continuous | 6700 | 6100 | 5300 | 4800 | 4600 | 4400 | 4200 | 3700 | 3700 | 3700 | 2700 |
| min continuous | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Max pump self-priming speed | |||||||||||
| L or R function: max (rpm) | 3150 | 2870 | 2500 | 2300 | 2250 | 2200 | 2100 | - | - | - | 1500 |
| Motor input flow | |||||||||||
| max intermittent (l/min) | 219 | 268 | 347 | 426 | 465 | 528 | 575 | 608 | 648 | 728 | 726 |
| max continuous (l/min) | 201 | 244 | 317 | 386 | 428 | 484 | 525 | 547 | 583 | 655 | 653 |
| Drain temperature, max (°C) | 115 | 115 | 115 | 115 | 115 | 115 | 115 | 115 | 115 | 115 | 115 |
| min (°C) | -40 | -40 | -40 | -40 | -40 | -40 | -40 | -40 | -40 | -40 | -40 |
| Theoretical torque at 100 bar (Nm) | 47.6 | 63.5 | 94.9 | 127.6 | 147.6 | 174.8 | 198.4 | 241 | 257 | 289 | 384.1 |
| Mass moment of inertia | |||||||||||
| (x10-3) (kg m²) | 1.7 | 2.9 | 5 | 8.4 | 8.4 | 11.2 | 11.2 | 21 | 21 | 21 | 46 |
| Weight (kg) | 12 | 16.5 | 21 | 26 | 26 | 36 | 36 | 40 | 40 | 40 | 77 |
Selection Table
| F12-040 hydraulic motor | |
| Model No. | Model Code |
| 3720025 | F12-040-SF-IV-K-000-P33L-PT |
| 3720030 | F12-040-SF-IV-K-000-P33R-PT |
| 3720067 | F12-040-MF-IV-V-000-0000-P0 |
| 3720083 | F12-040-MS-SV-T-397-0000-0X |
| 3720130 | F12-040-MS-SV-T-000-L130-PT |
| 3720137 | F12-040-MF-IV-A-000-0000-00 |
| 3720256 | F12-040-MF-IV-K-447-0000-P0 |
| 3720263 | F12-040-MF-IV-Z-447-0000-00 |
| 3720282 | F12-040-SF-XV-X-451-0000-PT |
| 3720296 | F12-040-MS-TV-S-000-L130-P0 |
| 3720421 | F12-040-MF-CV-V-454-P28L-PT |
| 3720528 | F12-040-MF-IV-Z-000-L130-PT |
| 3720535 | F12-040-MF-IV-A-000-0000-P0 |
| 3720605 | F12-040-MS-SV-S-000-0000-PT |
| 3720671 | F12-040-MS-SV-S-000-L200-PT |
| 3720795 | F12-040-MF-IV-Z-000-0000-P0 |
| 3720809 | F12-040-MF-CV-J-000-0000-P0 |
| 3721182 | F12-040-MF-IN-Z-000-0000-00 |
| 3721227 | F12-040-MF-IV-K-472-0000-PX |
| 3721229 | F12-040-MF-CV-X-248-0000-ST |
| 3721266 | F12-040-MF-IV-Z-447-0000-P0 |
| 3721384 | F12-040-MS-SV-S-000-L130-PT |
| 3721389 | F12-040-MF-CV-V-000-P42R-P0 |
| 3721391 | F12-040-MF-CV-V-000-P42R-00 |
| 3721410 | F12-040-MS-SV-V-000-0000-P0 |
| 3721423 | F12-040-MS-TV-T-000-0000-PT |
| 3721479 | F12-040-MS-TV-S-000-0000-PT |
| 3721496 | F12-040-MF-CV-J-000-0000-PT |
| 3721506 | F12-040-MS-SV-X-389-0000-P0 |
| 3721802 | F12-040-MF-IV-D-000-0000-PT |
| 3722012 | F12-040-MS-SV-S-289-E000-P0 |
| 3722045 | F12-040-MF-IV-K-000-P35R-ST |
| 3722090 | F12-040-MF-CV-J-000-L130-P0 |
| 3722096 | F12-040-MS-SV-T-000-0000-PT |
| 3722159 | F12-040-MF-CV-X-248-L130-P0 |
| 3722417 | F12-040-MS-TV-S-000-P21L-P0 |
| 3723598 | F12-040-MU-SV-S-000-0000-P0 |
| 3723617 | F12-040-MF-IV-Z-000-P28R-P0 |
| 3723638 | F12-040-MF-IV-Z-000-L130-PT |
| 3723778 | F12-040-MS-TV-S-000-0000-PT |
| 3724213 | F12-040-MS-SV-K-000-0000-P0 |
| 3724297 | F12-040-MF-CV-C-000-L130-P0 |
| 3724298 | F12-040-MF-CV-C-000-0000-P0 |
| 3724299 | F12-040-MF-CV-J-000-0000-PT |
| 3724300 | F12-040-MF-CV-J-000-0000-P0 |
| 3724302 | F12-040-MF-CV-X-248-0000-PT |
| 3724303 | F12-040-MF-CV-X-248-0000-P0 |
| 3724304 | F12-040-MF-IV-A-000-0000-P0 |
| 3724305 | F12-040-MF-IV-D-000-E000-P0 |
| 3724306 | F12-040-MF-IV-D-000-L130-P0 |
| 3724307 | F12-040-MF-IV-D-000-0000-P0 |
| 3724308 | F12-040-MF-IV-J-000-L200-P0 |
| 3724309 | F12-040-MF-IV-J-000-0000-PT |
| 3724310 | F12-040-MF-IV-J-000-0000-P0 |
| 3724311 | F12-040-MF-IV-J-277-0000-PX |
| 3724312 | F12-040-MF-IV-K-000-L130-P0 |
| 3724313 | F12-040-MF-IV-K-000-P35R-ST |
| 3724314 | F12-040-MF-IV-K-000-0000-PT |
| 3724315 | F12-040-MF-IV-K-000-0000-P0 |
| 3724317 | F12-040-MF-IV-Z-000-0000-P0 |
| 3724319 | F12-040-SF-WV-X-321-0000-P0 |
| 3724320 | F12-040-MS-SV-S-000-L130-PT |
| 3724321 | F12-040-MS-SV-S-000-L130-P0 |
| 3724322 | F12-040-MS-SV-S-000-P23L-PT |
| 3724323 | F12-040-MS-SV-S-000-0000-PT |
| 3724324 | F12-040-MS-SV-S-000-0000-P0 |
| 3724328 | F12-040-MS-SV-T-000-L130-P0 |
| 3724329 | F12-040-MS-SV-T-000-0000-PT |
| 3724330 | F12-040-MS-SV-T-000-0000-P0 |
| 3724333 | F12-040-MS-TV-S-000-0000-P0 |
| 3724334 | F12-040-MS-TV-T-000-L130-P0 |
| 3724335 | F12-040-MS-TV-T-000-0000-PT |
| 3724336 | F12-040-MS-TV-T-000-0000-P0 |
| 3724337 | F12-040-MU-SV-S-000-0000-P0 |
| 3724338 | F12-040-MU-SV-T-000-0000-P0 |
| 3724339 | F12-040-MU-TV-S-000-0000-P0 |
| 3724340 | F12-040-MU-TV-T-000-0000-P0 |
| 3724346 | F12-040-SF-IV-K-000-0000-P0 |
| 3724667 | F12-040-MU-SV-T-000-0000-PT |
| 3724835 | F12-040-MF-XV-X-321-0000-P0 |
| 3724932 | F12-040-MF-IV-K-000-L130-PT |
| 3780115 | F12-040-MS-TV-S-000-000-0 |
| 3780115 | F12-040-MS-TV-S-000-0000-P0 |
| 3780206 | F12-040-MF-CV-C-248-000-0 |
| 3780206 | F12-040-MF-CV-X-248-0000-P0 |
| 3780326 | F12-040-MF-IH-K-000-000-S |
| 3780434 | F12-040-MS-TV-T-000-000-0 |
| 3780485 | F12-040-MS-SV-S-000-L06-0 |
| 3780555 | F12-040-MS-SV-T-237-000-0 |
| 3781029 | F12-040-MF-CV-J-000-0000-00 |
| 3781029 | F12-040-MF-CV-X-264-000-0 |
| 3781137 | F12-040-MF-IN-J-000-0000-00 |
| 3781137 | F12-040-MF-IN-X-264-000-0 |
| 3781143 | F12-040-MF-IV-D-000-L02-0 |
| 3781290 | F12-040-MF-IH-K-000-L01-S |
| 3781403 | F12-040-MU-TV-T-000-000-0 |
| 3781403 | F12-040-MU-TV-T-000-0000-P0 |
| 3781606 | F12-040-MS-SV-T-000-L01-0 |
| 3781606 | F12-040-MS-SV-T-000-L130-00 |
| 3781613 | F12-040-MS-SV-S-289-000-0 |
| 3781613 | F12-040-MS-SV-S-289-E000-P0 |
| 3781759 | F12-040-MF-IN-X-277-000-0 |
| 3781759 | F12-040-MF-IV-J-277-0000-PX |
| 3781831 | F12-040-MS-SN-S-000-L01-0 |
| 3781831 | F12-040-MS-SN-S-000-L130-00 |
| 3781899 | F12-040-MU-TV-S-000-000-0 |
| 3781899 | F12-040-MU-TV-S-000-0000-P0 |
| 3781978 | F12-040-MF-CH-C-248-000-S |
| 3782088 | F12-040-MS-SN-S-000-L06-0 |
| 3782088 | F12-040-MS-SN-S-000-L170-00 |
| 3782265 | F12-040-MS-SV-S-000-L06-0 |
| 3782313 | F12-040-MF-CH-C-294-000-S |
| 3782319 | F12-040-MS-TV-T-000-L01-0 |
| 3782319 | F12-040-MS-TV-T-000-L130-00 |
| 3782387 | F12-040-MF-CV-C-294-000-0 |
| 3782387 | F12-040-MF-CV-C-294-0000-0X |
| 3782388 | F12-040-MF-IV-K-000-L01-0 |
| 3782440 | F12-040-MS-SV-K-000-000-0 |
| 3782446 | F12-040-MF-CV-C-000-L01-0 |
| 3782446 | F12-040-MF-CV-C-000-L130-00 |
| 3782573 | F12-040-MS-SV-T-000-L01-P |
| 3782573 | F12-040-MS-SV-T-000-L130-P0 |
| 3782576 | F12-040-MS-TH-Z-000-000-0 |
| 3782635 | F12-040-MS-SE-T-000-000-0 |
| 3782676 | F12-040-MS-SH-T-000-000-S |
| 3782679 | F12-040-MS-SH-S-000-000-S |
| 3782743 | F12-040-MF-CV-C-000-0000-P0 |
| 3782743 | F12-040-MF-CV-C-000-000-P |
| 3782767 | F12-040-MS-TV-S-000-000-S |
| 3782805 | F12-040-MS-SV-S-000-L01-0 |
| 3782805 | F12-040-MS-SV-S-000-L130-00 |
| 3782983 | F12-040-MF-IV-Z-000-L01-0 |
| 3782983 | F12-040-MF-IV-Z-000-L130-00 |
| 3783004 | F12-040-MF-IV-K-000-L01-P |
| 3783004 | F12-040-MF-IV-K-000-L130-P0 |
| 3783011 | F12-040-MF-IH-D-000-L01-S |
| 3783054 | F12-040-MF-CH-X-300-000-0 |
| 3783160 | F12-040-MS-SV-S-000-0000-P0 |
| 3783160 | F12-040-MS-SV-S-000-000-P |
| 3783192 | F12-040-MS-SV-S-000-L06-0 |
| 3783330 | F12-040-MF-IV-Z-000-L07-0 |
| 3783330 | F12-040-MF-IV-Z-000-L200-00 |
| 3783434 | F12-040-MF-CV-J-000-L130-P0 |
| 3783434 | F12-040-MF-CV-X-264-L01-0 |
| 3784608 | F12-040-MF-CV-C-000-L01-P |
| 3784608 | F12-040-MF-CV-C-000-L130-P0 |
| 3784729 | F12-040-MF-CV-K-000-0000-P0 |
| 3784729 | F12-040-MF-CV-K-000-000-P |
| 3784731 | F12-040-MF-IV-K-000-0000-0T |
| 3784731 | F12-040-MF-IV-K-209-000-0 |
| 3784737 | F12-040-MS-SV-S-000-0000-0T |
| 3784737 | F12-040-MS-SV-S-209-000-0 |
| 3784754 | F12-040-MS-SV-T-000-L200-0T |
| 3784754 | F12-040-MS-SV-T-209-L07-0 |
| 3784784 | F12-040-MF-IV-K-000-0000-PT |
| 3784784 | F12-040-MF-IV-K-209-000-P |
| 3784788 | F12-040-MS-SV-S-000-L130-P0 |
| 3784796 | F12-040-SF-IV-K-000-0000-P0 |
| 3784800 | F12-040-MS-SV-S-509-L10-0 |
| 3784838 | F12-040-MS-SV-T-420-000-0 |
| 3784860 | F12-040-MF-CV-K-000-P28L-P0 |
| 3784863 | F12-040-MF-IV-K-302-0000-PT |
| 3784896 | F12-040-MF-CV-V-395-P28L-PX |
| 3784974 | F12-040-MF-CV-X-248-0000-PT |
| 3784976 | F12-040-MF-IV-K-431-0000-0T |
| 3785048 | F12-040-MF-IV-K-000-0000-P0 |
| 3785048 | F12-040-MF-IV-K-000-000-P |
| 3785171 | F12-040-MS-TH-T-000-000-S |
| 3785193 | F12-040-MS-SV-T-000-000-S |
| 3785514 | F12-040-MU-SV-T-000-000-0 |
| 3785514 | F12-040-MU-SV-T-000-0000-00 |
| 3785533 | F12-040-MU-TV-T-000-000-0 |
| 3785583 | F12-040-MF-IE-K-000-L01-0 |
| 3785758 | F12-040-MF-IV-K-000-L01-P |
| 3785813 | F12-040-MU-SV-S-000-000-0 |
| 3785813 | F12-040-MU-SV-S-000-0000-00 |
| 3785872 | F12-040-MU-SN-T-000-000-0 |
| 3785872 | F12-040-MU-SN-T-000-0000-00 |
| 3785899 | F12-040-MF-IH-D-322-000-0 |
| 3785950 | F12-040-MS-SN-S-209-000-0 |
| 3785950 | F12-040-MS-SN-S-209-0000-0X |
| 3785985 | F12-040-MF-XV-X-321-0000-P0 |
| 3786223 | F12-040-XS-SV-S-325-L08-0 |
| 3786457 | F12-040-MS-TN-T-000-000-0 |
| 3786457 | F12-040-MS-TN-T-000-0000-00 |
| 3786485 | F12-040-MF-IV-D-000-L07-0 |
| 3786744 | F12-040-MF-CN-C-000-000-0 |
| 3786744 | F12-040-MF-CN-C-000-0000-00 |
| 3786812 | F12-040-MS-SV-T-000-0000-P0 |
| 3786812 | F12-040-MS-SV-T-000-000-P |
| 3786830 | F12-040-MF-IV-Z-000-000-0 |
| 3786864 | F12-040-MS-SV-T-000-000-P |
| 3786869 | F12-040-MF-IV-D-000-0000-P0 |
| 3786869 | F12-040-MF-IV-D-000-000-P |
| 3786895 | F12-040-MF-IV-D-000-L05-P |
| 3786899 | F12-040-MS-SV-S-000-000-P |
| 3787253 | F12-040-MS-SN-S-000-0000-0T |
| 3787253 | F12-040-MS-SN-S-209-000-0 |
| 3787291 | F12-040-XF-IV-K-291-000-0 |
| 3787291 | F12-040-XF-IV-K-291-0000-0T |
| 3787301 | F12-040-MF-IV-K-209-000-0 |
| 3787301 | F12-040-MF-IV-K-209-0000-0X |
| 3787302 | F12-040-MS-SV-S-209-000-0 |
| 3787302 | F12-040-MS-SV-S-209-0000-0X |
| 3787307 | F12-040-MF-IV-K-318-L01-P |
| 3787307 | F12-040-MF-IV-K-318-L130-P0 |
| 3787511 | F12-040-MS-SV-S-000-L130-0T |
| 3787511 | F12-040-MS-SV-S-209-L01-0 |
| 3787609 | F12-040-MF-IN-K-000-L08-0 |
| 3787609 | F12-040-MF-IN-K-000-L160-00 |
| 3787765 | F12-040-MS-TV-S-000-L01-0 |
| 3787765 | F12-040-MS-TV-S-000-L130-00 |
| 3788502 | F12-040-MF-IV-J-000-0000-P0 |
| 3788502 | F12-040-MF-IV-X-264-000-P |
| 3788527 | F12-040-MF-CV-J-000-L130-P0 |
| 3788527 | F12-040-MF-CV-X-264-L01-P |
| 3788550 | F12-040-MF-CV-C-000-L07-0 |
| 3788550 | F12-040-MF-CV-C-000-L200-00 |
| 3788554 | F12-040-MF-CN-J-000-0000-00 |
| 3788554 | F12-040-MF-CN-X-264-000-0 |
| 3788651 | F12-040-MS-TV-T-000-0000-P0 |
| 3788651 | F12-040-MS-TV-T-000-000-P |
| 3788656 | F12-040-MF-IV-D-000-L01-P |
| 3788656 | F12-040-MF-IV-D-000-L130-P0 |
| 3788677 | F12-040-MF-IV-D-000-L07-0 |
| 3788677 | F12-040-MF-IV-D-000-L200-00 |
| 3788732 | F12-040-MS-SV-S-209-0000-PX |
| 3788732 | F12-040-MS-SV-S-209-000-P |
| 3788816 | F12-040-MF-IN-X-379-000-0 |
| 3788816 | F12-040-MF-IV-J-000-0000-PT |
| 3788955 | F12-040-MU-SV-T-000-0000-P0 |
| 3788955 | F12-040-MU-SV-T-000-000-P |
| 3789013 | F12-040-MS-SV-S-384-000-0 |
| 3789025 | F12-040-MF-IV-J-000-0000-00 |
| 3789025 | F12-040-MF-IV-X-264-000-0 |
| 3789033 | F12-040-MS-TV-S-000-0000-P0 |
| 3789033 | F12-040-MS-TV-S-000-000-P |
| 3789058 | F12-040-MS-TV-T-000-L01-P |
| 3789058 | F12-040-MS-TV-T-000-L130-P0 |
| 3789224 | F12-040-MS-SV-X-389-000-0 |
| 3789281 | F12-040-MF-CV-V-395-S3L-P |
| 3789399 | F12-040-MS-SV-T-394-000-0 |
| 3789399 | F12-040-MS-SV-T-394-0000-P0 |
| 3789403 | F12-040-MS-SV-S-394-0000-00 |
| 3789444 | F12-040-MF-IV-K-000-L02-P |
| 3789444 | F12-040-MF-IV-K-000-L080-P0 |
| 3789487 | F12-040-MF-CV-X-277-000-0 |
| 3789694 | F12-040-MF-IV-K-401-000-0 |
| 3789762 | F12-040-MU-TV-S-000-0000-P0 |
| 3789762 | F12-040-MU-TV-S-000-000-P |
| 3792315 | F12-040-MF-CH-C-000 |
| 3792678 | F12-040-MF-IH-D-000 |
| 3792681 | F12-040-MF-IH-K-000 |
| 3793205 | F12-040-MS-SH-T-000 |
| 3794585 | F12-040-MS-SV-S-000 |
| 3794586 | F12-040-MS-SV-T-000 |
| 3794885 | F12-040-MF-IH-Z-000 |
| 3795332 | F12-040-MF-IV-K-000 |
| 3796219 | F12-040-MF-IV-D-000 |
| 3796321 | F12-040-MF-IN-K-000 |
| 3796773 | F12-040-MF-CV-C-000-0000-00 |
| 3796774 | F12-040-MF-IV-D-000-0000-00 |
| 3796775 | F12-040-MF-IV-K-000-0000-00 |
| 3796776 | F12-040-MS-SV-S |
| 3796908 | F12-040-MF-IH-C-000 |
| 3797137 | F12-040-MS-SN-S-000 |
| 3797138 | F12-040-MF-IE-K-000 |
| 3797729 | F12-040-MF-CV-C-000 |
| 3797856 | F12-040-MS-SH-S-L08 |
| 3797952 | F12-040-MF-IV-D-L01 |
| 3797958 | F12-040-MF-IH-D-L01 |
| 3797974 | F12-040-MS-SH-S-L04 |
| 3798499 | F12-040-MF-IH-K-L01 |
| 3798636 | F12-040-MS-SE-S-000 |
| 3798803 | F12-040-MS-SV-S-L08 |
| 3798946 | F12-040-MF-CE-C-000 |
| 3798947 | F12-040-MF-IE-D-000 |
| 3799075 | F12-040-MS-SN-T-000 |
| 3799509 | F12-040-MF-IV-D-000-L01-0 |
| 3799509 | F12-040-MF-IV-D-000-L130-00 |
| 3799510 | F12-040-MF-IV-K-000-L01-0 |
| 3799510 | F12-040-MF-IV-K-000-L130-00 |
| 3799511 | F12-040-MF-IV-D-000-L01-0 |
| 3799512 | F12-040-MS-SV-S-000-L04-0 |
| 3799513 | F12-040-MS-SV-S-000-L08-0 |
| 3799513 | F12-040-MS-SV-S-000-L160-00 |
| 3799514 | F12-040-MS-SV-S-000-L08-0 |
| 3799519 | F12-040-MF-CE-C-000-000-0 |
| 3799520 | F12-040-MF-CV-C-000-000-0 |
| 3799520 | F12-040-MF-CV-C-000-0000-00 |
| 3799521 | F12-040-MF-CV-C-000-000-0 |
| 3799522 | F12-040-MF-IE-D-000-000-0 |
| 3799523 | F12-040-MF-IE-K-000-000-0 |
| 3799524 | F12-040-MF-IH-C-000-000-0 |
| 3799525 | F12-040-MF-IV-D-000-000-0 |
| 3799525 | F12-040-MF-IV-D-000-0000-00 |
| 3799526 | F12-040-MF-IV-K-000-000-0 |
| 3799526 | F12-040-MF-IV-K-000-0000-00 |
| 3799527 | F12-040-MF-IV-Z-000-000-0 |
| 3799527 | F12-040-MF-IV-Z-000-0000-00 |
| 3799528 | F12-040-MF-IN-K-000-000-0 |
| 3799528 | F12-040-MF-IN-K-000-0000-00 |
| 3799529 | F12-040-MF-IV-D-000-000-0 |
| 3799530 | F12-040-MF-IV-K-000-000-0 |
| 3799531 | F12-040-MS-SE-S-000-000-0 |
| 3799532 | F12-040-MS-SH-S |
| 3799532 | F12-040-MS-SV-S-000-000-0 |
| 3799533 | F12-040-MS-SV-T-000-000-0 |
| 3799533 | F12-040-MS-SV-T-000-0000-00 |
| 3799534 | F12-040-MS-SN-S-000-000-0 |
| 3799534 | F12-040-MS-SN-S-000-0000-00 |
| 3799535 | F12-040-MS-SN-T-000-000-0 |
| 3799535 | F12-040-MS-SN-T-000-0000-00 |
| 3799536 | F12-040-MS-SV-S-000-000-0 |
| 3799537 | F12-040-MS-SV-T-000-000-0 |
| 3799545 | F12-040-MF-CH-C-244-000-0 |
| 3799546 | F12-040-MF-CV-C-246-000-0 |
| 3799547 | F12-040-MF-CV-C-241-000-0 |
| 3799548 | F12-040-MF-IV-D-000-E000-P0 |
| 3799548 | F12-040-MF-IV-D-239-000-0 |
| 3799551 | F12-040-MF-CV-C-243-000-0 |
| 3799617 | F12-040-MS-TH-S-000-000-0 |
| 3799881 | F12-040-MS-TV-T-000-000-0 |
| 3799881 | F12-040-MS-TV-T-000-0000-P0 |
| 3799966 | F12-040-MF-IH-D-000-000-S |
| 5027927 | F12-040-MS-SV-T-301-0000-PX |
| F12-040-MF-IV-K-000-L01-0 | |
| F12-040-MF-IV-K-000-L01-P | |
| F12-040-MF-IV-Z-000-L07-0 | |
| F12-040-MS-SE-S-000-000-0 | |
| F12-040-MS-SE-S-289-000-0 | |
| F12-040-MS-SE-T-000-000-0 | |
| F12-040-MS-SH-S-000-000-0 | |
| F12-040-MS-SH-S-000-000-P | |
| F12-040-MS-SH-S-000-000-S | |
| F12-040-MS-SH-S-000-L01-0 | |
| F12-040-MS-SH-S-000-L04-0 | |
| F12-040-MS-SH-S-000-L06-0 | |
| F12-040-MS-SH-S-000-L08-0 | |
| F12-040-MS-SH-T-000-000-0 | |
| F12-040-MS-SH-T-000-000-S | |
| F12-040-MS-SH-T-000-L01-P | |
| F12-040-MS-SH-T-237-000-0 | |
| F12-040-MS-SN-S-000-000-0 | |
| F12-040-MS-SN-S-000-L01-0 | |
| F12-040-MS-SN-S-000-L06-0 | |
| F12-040-MS-SN-S-209-000-0 | |
| F12-040-MS-SV-S-000-000-0 | |
| F12-040-MS-SV-S-000-L06-0 | |
| F12-040-MS-SV-S-000-L08-0 | |
| F12-040-MS-SV-T-000-000-0 | |
| F12-040-MS-SV-T-000-000-S | |
| F12-040-MS-TH-S-000-000-0 | |
| F12-040-MS-TH-T-000-000-0 | |
| F12-040-MS-TH-T-000-L01-0 | |
| F12-040-MS-TV-S-000-000-0 | |
| F12-040-MU-SH-S-000-000-0 | |
| F12-040-MU-SN-T-000-000-0 | |
| F12-040-MU-SV-T-000-000-0 | |
| F12-040-MU-TH-T-000-000-0 | |
| F12-040-MU-TV-T-000-000-0 | |
Q1: What maintenance is required?
A1: Change the case drain filter at first 50 hours, then every 1,000 hours.
Monitor case drain temperature—should not exceed 90°C (194°F).
Check the shaft seal for leaks (common after 5,000 hours in dusty environments).
Q2: Is the F12-040 interchangeable with other brands?
A2: Not directly. The mounting flange (SAE B 2-bolt or 4-bolt) and shaft options (keyed, splined) are standard, but port locations differ. Always adapt hoses or manifolds.
Q3: What is the price and delivery time of the F12-040 hydraulic motor?
A3: The specific price and delivery time will be provided based on the specific model you provide.
Q4:How to purchase a F12-040 hydraulic motor?
A4:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.
