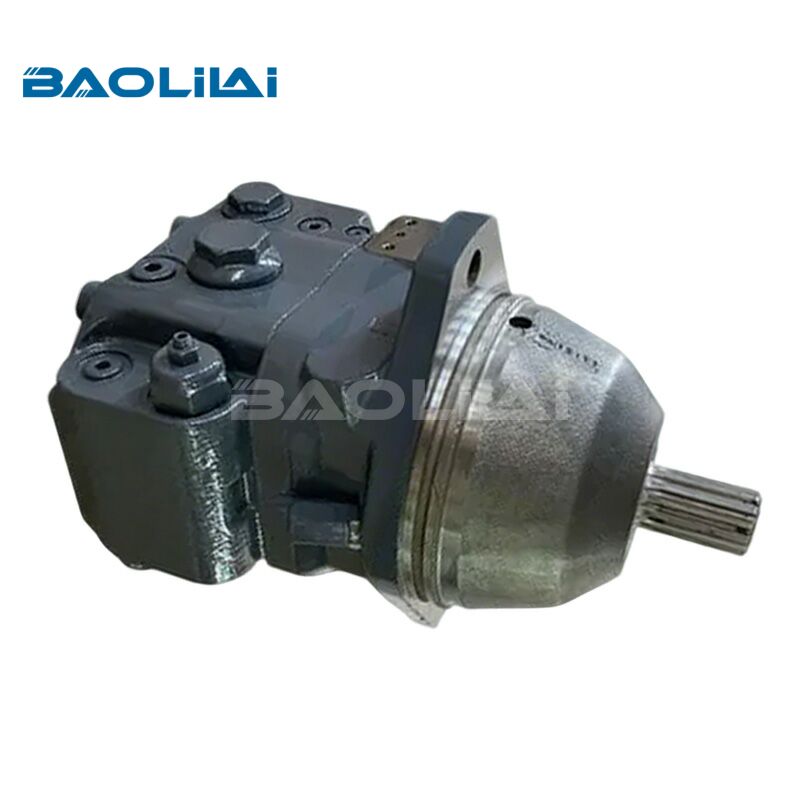

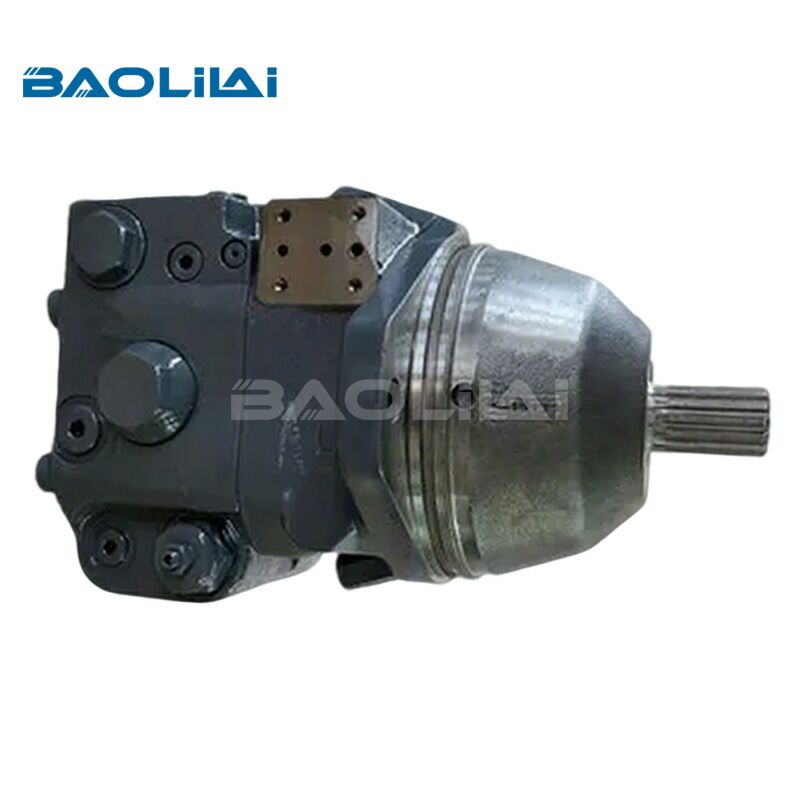

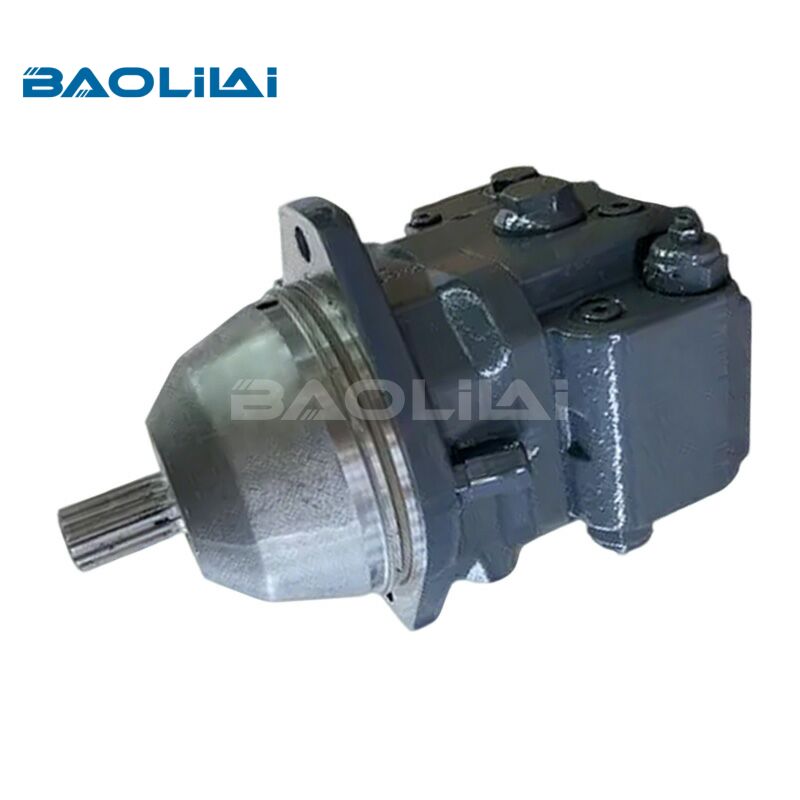

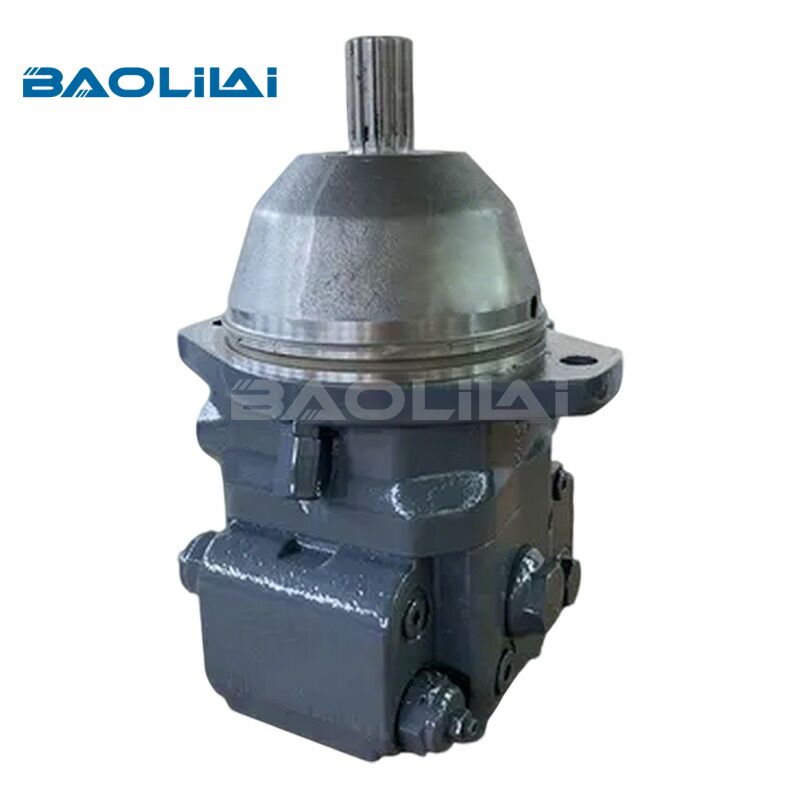

Rexroth A10VE Swash-plate design plug-in variable hydraulic motor

The A10VE is a variable-displacement axial piston motor built by Bosch Rexroth, part of the well-established A10 rotary group family that also includes the A10VM (SAE-flange version) and the A10VO/A10VSO pumps. The defining feature of the A10VE, as the name implies, is that it's a plug-in version — designed to mount directly inside a gearbox, transmission housing, or drive axle rather than sitting externally on a SAE flange.

Where the A10VM uses a standard SAE J744 2-bolt mounting flange, the A10VE uses a special 2-bolt "plug-in" flange that lets the rotary group nest inside a transmission bell housing. This is common in applications like:

Wheel drives on compact loaders and telehandlers

Winch drives integrated into truck PTOs

Drum drives on concrete mixers

Fan drives and auxiliary drives on off-highway machines

Because the plug-in design eliminates the external housing and shaft seal arrangement of a standalone motor, it saves space, weight, and cost — while relying on the surrounding gearbox housing for structural support and lubrication interface.

Installation and Maintenance Considerations

Mounting Position and Case Filling

Because the A10VE's housing must remain fluid-filled during operation (the case drain lubricates internal bearings and rotating group components), mounting orientation isn't a throwaway detail. The highest case drain port must always be used to vent air and keep the housing full; get this wrong and you risk running the bearings dry during startup.

Filtration and Fluid Cleanliness

Rexroth specifies a minimum fluid cleanliness of ISO 4406 20/18/15 for reliable operation (19/17/14 at sustained high temperatures). Axial piston units are precision-machined, and abrasive contamination is the single biggest driver of premature wear in the piston-shoe and valve-plate interfaces.

Common Failure Points

Swash plate bearing wear from prolonged operation outside the optimum viscosity band

Valve plate scoring from contamination or cavitation

Control piston sticking on DG/HZ/EZ control variants, often due to varnish buildup from degraded fluid

Case drain line routing errors, leading to housing starvation and catastrophic bearing failure

If your application needs the motor to bolt externally with its own shaft seal and bearing arrangement, the A10VM is the natural choice. If it's being integrated into a gearbox or axle housing where the surrounding structure provides bearing support, the A10VE's plug-in design is the more compact, cost-effective option.

For more information on the A10VE hydraulic motor, please visit https://www.baolilaihydraulic.com/product/.

Specifications

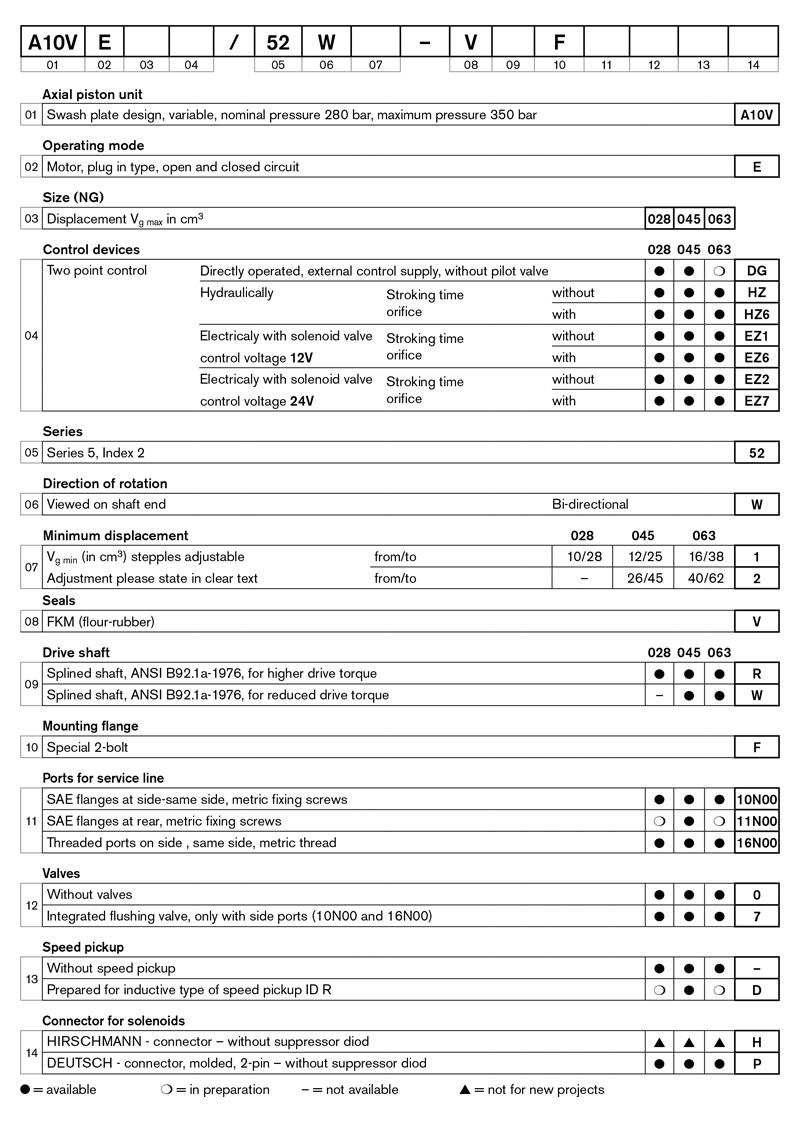

Selection Table

Q1: How do I reverse the direction of an A10VE motor?

A1: Reverse the flow direction between ports A and B. Clockwise rotation (viewed on the shaft end) corresponds to flow from B to A; counter-clockwise corresponds to A to B.

Q2: What fluid viscosity should I run?

A2: Rexroth recommends an optimum operating viscosity of 16–36 mm²/s at operating temperature, with an absolute minimum of 5 mm²/s (closed circuit) or 10 mm²/s (open circuit), and a cold-start ceiling of 1600 mm²/s for brief periods.

Q3: What is the price and delivery time of the A10VE hydraulic motor?

A3: The specific price and delivery time will be provided based on the specific model you provide.
