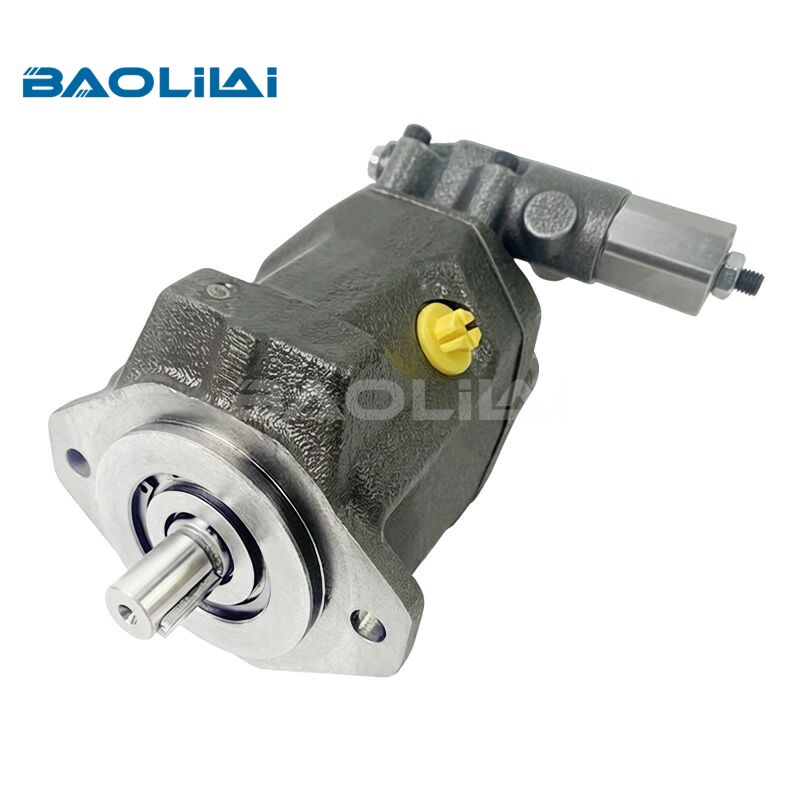

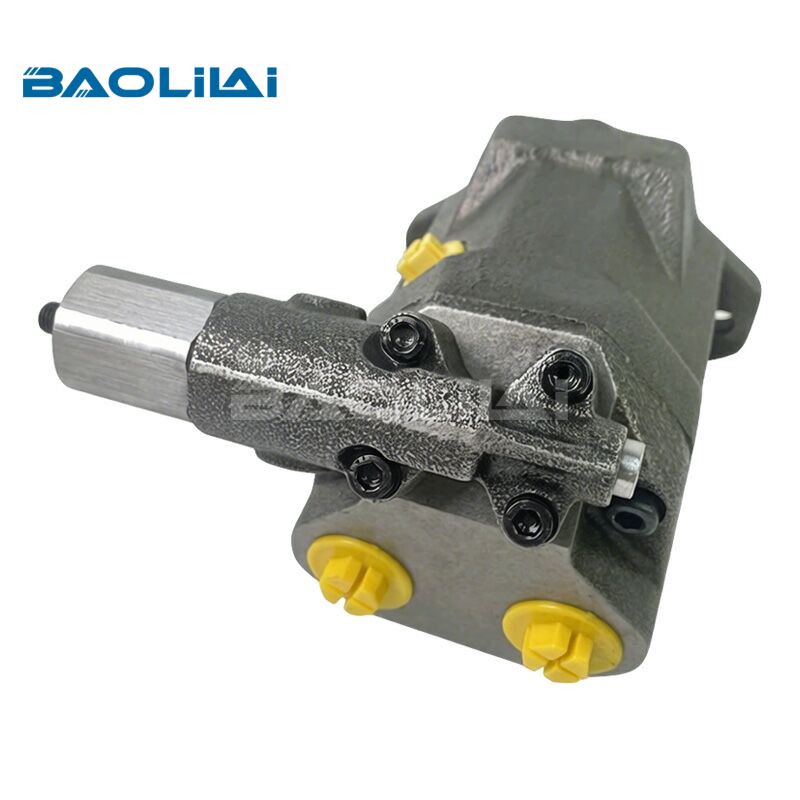

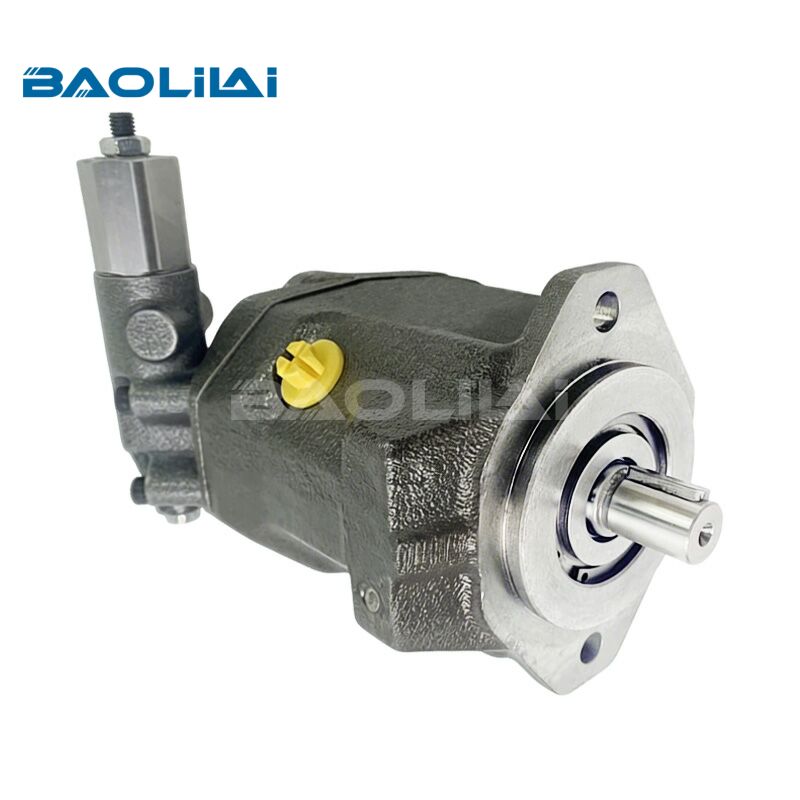

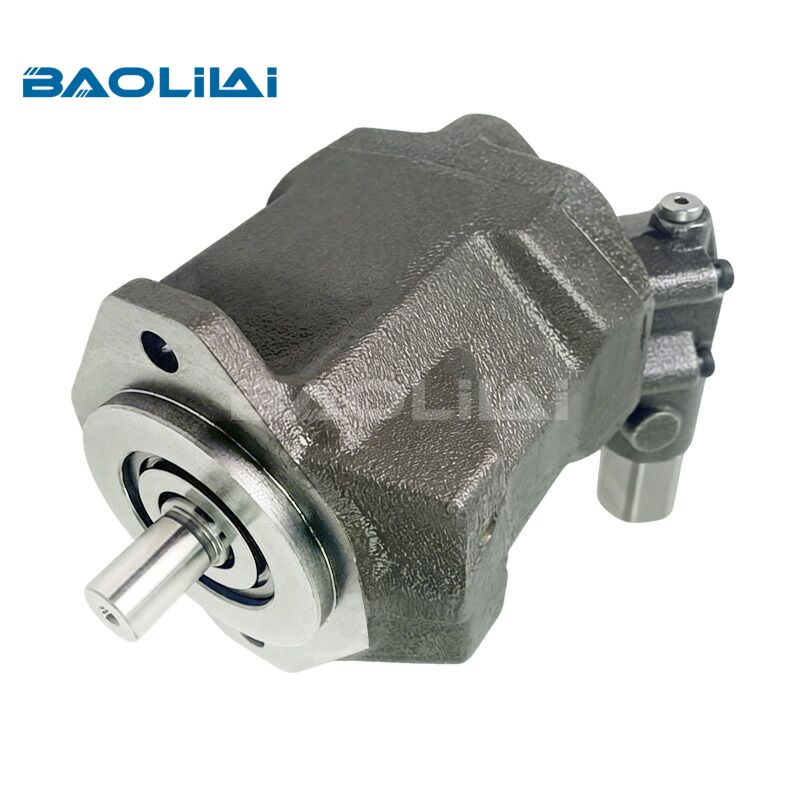

Rexroth A10VO63 axial piston hydraulic pump

At the core of the Rexroth A10VO63's renowned efficiency is its sophisticated axial-piston, variable-displacement design. The pump's operation hinges on a rotating cylinder block​ that houses an array of precisely machined pistons. These pistons are in constant contact with a variable-angle swashplate. The critical innovation lies in this adjustability: the angle of the swashplate directly dictates the length of the piston stroke. As the cylinder rotates, a greater swashplate angle creates a longer stroke, displacing more hydraulic fluid per revolution. By dynamically modulating this angle—from neutral (zero flow) to maximum—the pump can vary its output flow seamlessly from zero to 100% of its rated capacity, all while the input shaft speed remains constant. This fundamental principle of on-demand flowis the bedrock of its energy-saving performance, eliminating the wasteful throttling and heat generation inherent in fixed-displacement systems.

Deconstructing the Key Components

The pump's reliability stems from the synergy of its high-precision subsystems:

Cylinder Block & Piston Assembly:​ Manufactured to micron-level tolerances, this rotating group minimizes volumetric losses and internal leakage, ensuring high efficiency throughout the pump's service life.
Port Plate (Valve Plate):​ This stationary interface manages the critical transition of hydraulic fluid from the low-pressure inlet to the high-pressure outlet port, ensuring smooth, continuous flow with minimized pulsation and pressure spikes.
Control Piston (Servo Piston):​ Acting as the hydraulic actuator, this piston mechanically adjusts the swashplate angle in direct response to signals from the pump's integrated control logic.
Integrated Control Valves:​ The intelligence of the A10VO63. Whether a pressure compensator (DR), load-sensing controller (LR), or a proportional electro-hydraulic variant, this valve bank automatically modulates displacement to meet exact system demands, creating a self-regulating power unit.
Primary Applications: Powering Critical Machinery

The A10VO63's blend of power, control, and efficiency makes it the hydraulic powerhouse of choice across industries.

Mobile Hydraulic Applications:

Excavators & Wheel Loaders:​ Provides the primary power for implements (boom, arm, bucket). Its load-sensing capability​ delivers precise, proportional control that operators trust, while reducing engine load and fuel consumption during partial-demand cycles.
Aerial Work Platforms (AWPs) & Telehandlers:​ Ensures smooth, controlled lifting, extension, and positioning. Its reliable pressure-limiting function is a critical safety feature, preventing overloading in dynamic conditions.

Industrial Hydraulic Systems:

Plastic Injection Molding Machines:​ Delivers the high peak flow needed for fast mold clamping, then seamlessly transitions to high-pressure, low-flow holding for precise cavity filling—directly impacting part quality and cycle time efficiency.
Machine Tools & Automation:​ Powers hydraulic clamps, rotary index tables, and tool changers where leak-free, reliable operation is non-negotiable for maintaining precision and a clean factory environment.
Strategic Advantages: The Case for the A10VO63

Selecting the A10VO63 is an investment in system performance and lower total cost of ownership.

Unmatched Energy Efficiency:​ By delivering onlythe required flow, it drastically reduces the throttling losses and wasted horsepower common in fixed-displacement circuits, leading to direct reductions in fuel consumption or electrical operating costs.
Dynamic Control & Responsiveness:​ Advanced control options like LRDS (Load-Sensing with Remote Pressure Control)​ enable sophisticated, fuel-optimized system architectures that provide instantaneous response to operator input for superior machine handling.
Engineered for Durability:​ Designed for severe-duty cycles, it incorporates hardened components, robust journal bearings, and optimized internal lubrication, resulting in exceptional service life and mean time between failures (MTBF).
System Simplification & Reliability:​ Its integrated control functionality often reduces the need for complex external valve stacks, simplifying plumbing, reducing potential leak points, and lowering overall system cost and complexity.

For more information on the A10VO63 hydraulic pump, please visit https://www.baolilaihydraulic.com/.

Specifications

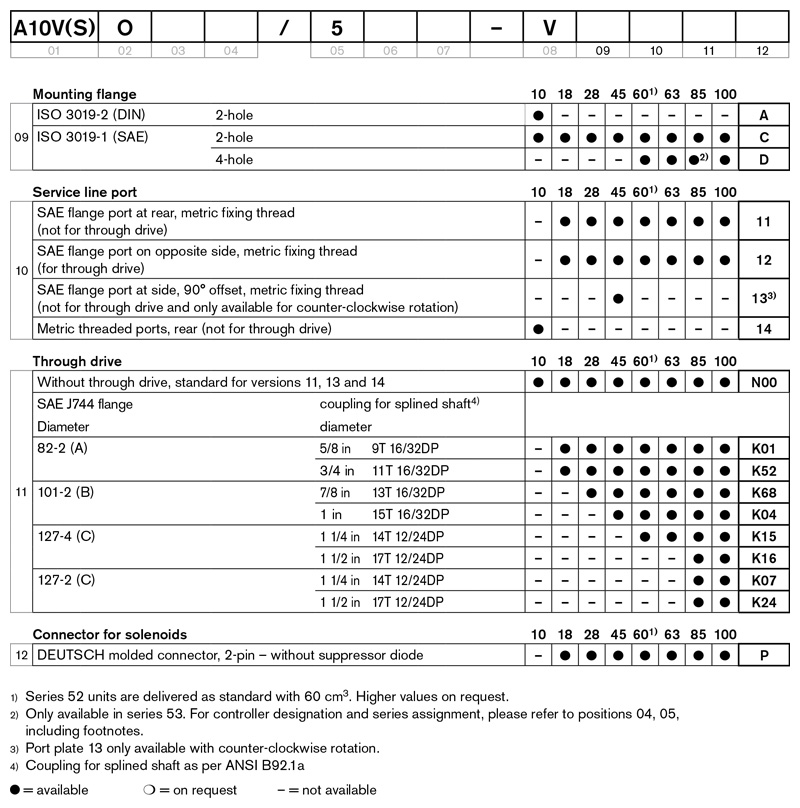

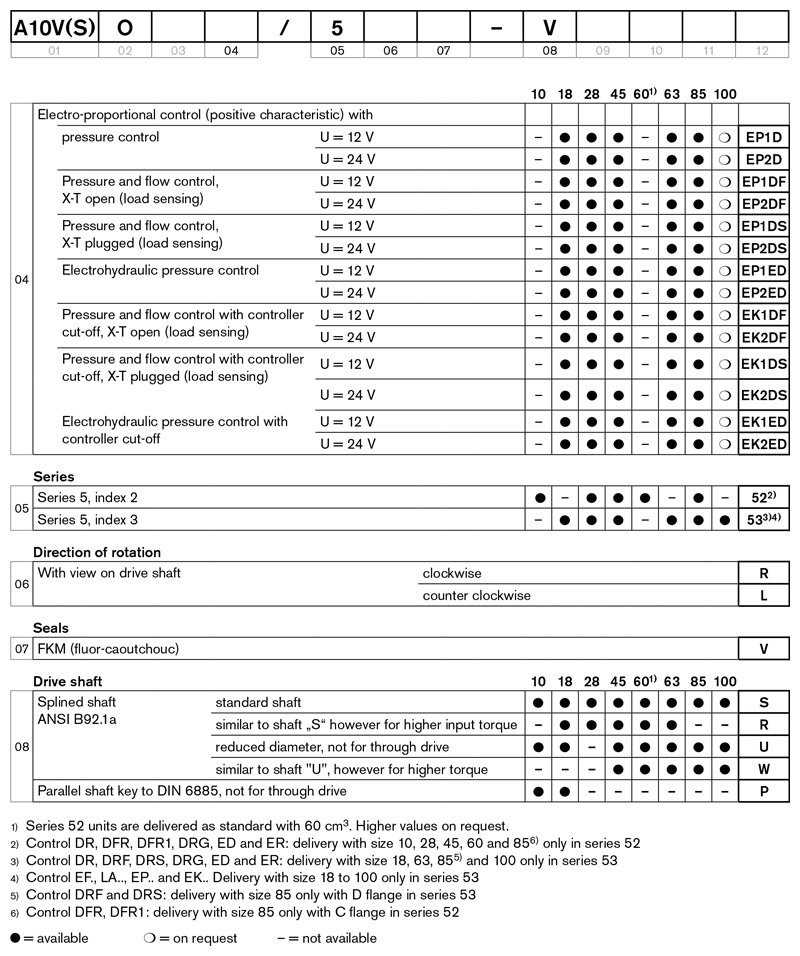

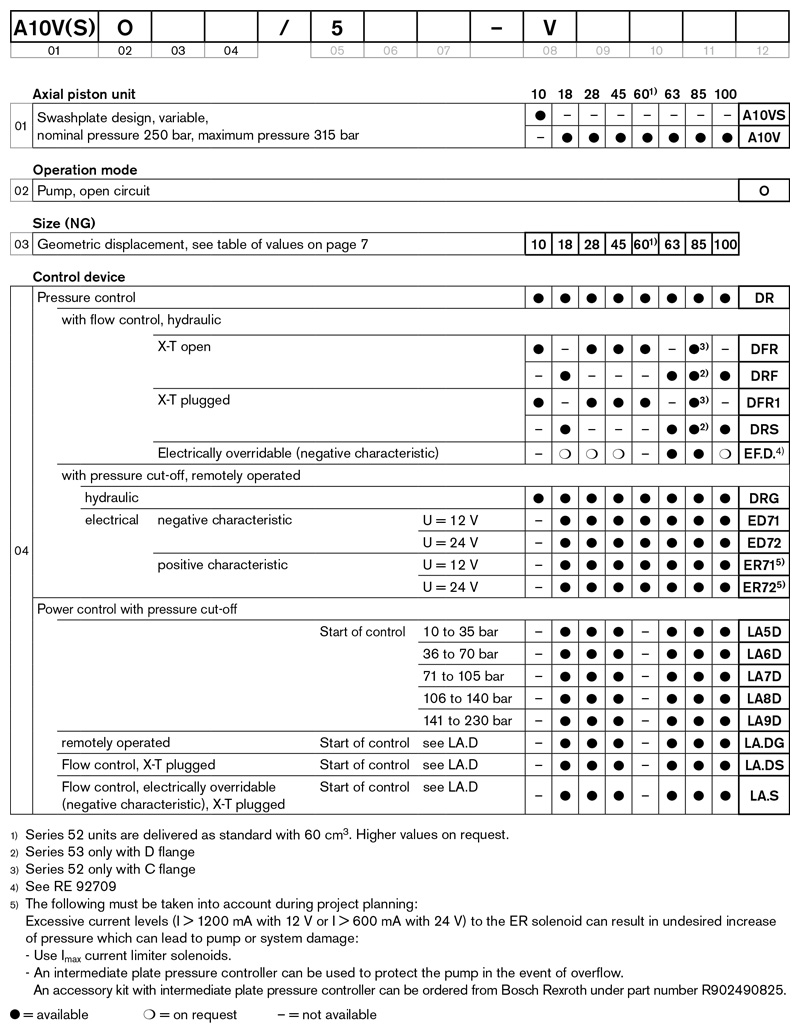

Selection Table

Q1: What does "A10VO" designate in the model name?

A1:This is the Bosch Rexroth series code. "A" typically denotes axial piston design, "10" indicates a specific size series and porting style, and "VO" signifies variable displacement, open circuit.

Q2:What are the most common control options for this pump?

A2:The most prevalent are:

Pressure Compensation (DR):​ Maintains a set system pressure by reducing flow to near zero when pressure is reached.

Load Sensing (LR):​ Adjusts flow and pressure to precisely meet the highest demand in a circuit, plus a margin (delta p).

Torque Limiting (DA):​ Controls displacement to prevent the pump from exceeding the input power of the prime mover.

Q3:How to purchase an A10VO63 hydraulic pump?

A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.

Q4:What is the price and delivery time of the A10VO63 hydraulic pump?

A4:The specific price and delivery time will be provided based on the specific model you provide.
