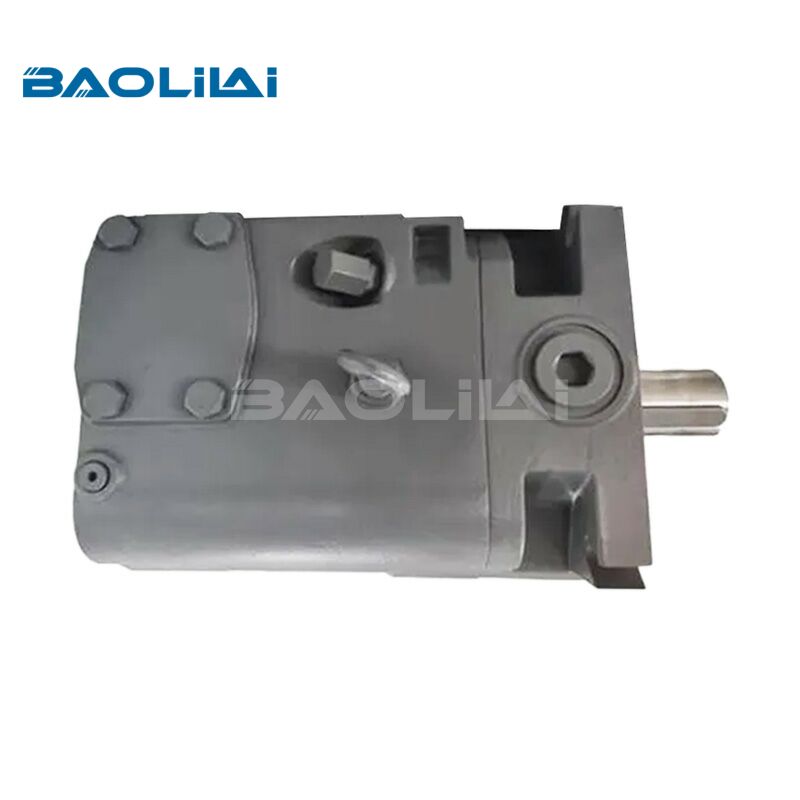

Rexroth A15VSO axial piston variable hydraulic pump

The A15VSO is a variable displacement axial piston pump of swashplate design, built by Bosch Rexroth for use in open hydraulic circuits. It belongs to the same broader pump family philosophy as the better-known A10VSO and A4VSO series, but it's positioned for a specific pressure and displacement window that suits demanding stationary and industrial installations.

Typical Applications

The A15VSO isn't a general-purpose pump you'd find on a mobile excavator. It's engineered for stationary industrial hydraulics, and its usage pattern reflects that.

Machine Tools

CNC machining centers, grinding machines, and presses often need a hydraulic power unit that can deliver rapid clamping or positioning flow, then throttle back to a steady, lower-flow state for sustained clamping force without wasting energy or generating excess heat. The A15VSO's pressure and power controllers are purpose-built for exactly this duty cycle.

Metallurgical and Forming Equipment

Forging presses, extrusion equipment, and rolling mill auxiliary systems benefit from the pump's high peak pressure capability (420 bar) combined with smooth, controllable flow — important when forming forces need to ramp predictably rather than spike.

Plastics and Injection Molding Auxiliary Circuits

While large injection molding machines often use their own dedicated variable pumps, auxiliary hydraulic functions (ejector systems, core pulls, clamping assist) frequently use A15VSO-class pumps for their compact size relative to output.

General Industrial Power Units

Any centralized hydraulic power unit (HPU) feeding multiple actuators with varying flow demands is a candidate, particularly where energy efficiency and heat generation are design concerns — a fixed displacement pump would otherwise dump excess flow across a relief valve, generating heat and wasting energy.

Installation and Maintenance Considerations

Fluid Cleanliness Is Non-Negotiable

Axial piston pumps like the A15VSO operate with tight tolerances between pistons, cylinder bores, and the swashplate/slipper interface. Contamination is the single most common cause of premature wear in this pump class. Rexroth's documentation specifies target ISO 4406 cleanliness codes, and adherence to proper filtration (typically 10-micron or finer, depending on the control option) is essential for reaching expected service life.

Priming and Start-Up

Because the A15VSO can be self-priming or paired with a charge pump (as the A15VLO), correct installation orientation and suction line sizing matter. Suction lift, line diameter, and fluid viscosity at start-up (especially in cold environments) all affect whether the pump will prime correctly on first start.

Common Troubleshooting Symptoms

Loss of flow at rated speed: Often points to worn pistons/cylinder bores, a failing control device, or incorrect swashplate positioning due to a control linkage fault.

Excessive noise or cavitation sounds: Frequently a suction-side issue — clogged strainer, undersized suction line, or air ingress at a fitting.

Overheating: Can indicate the pump is operating outside its efficient displacement range for extended periods, or that a pressure/power controller is misadjusted, causing continuous high-pressure standby operation.

Erratic flow control response: Usually traced to the control device (pressure compensator, power controller, or proportional valve) rather than the pumping unit itself.

For more information on the A15VSO hydraulic pump, please visit https://www.baolilaihydraulic.com/product/.

Specifications

Selection Table

Q1: What causes an A15VSO to lose displacement or flow over time?

A1: The most common causes are contamination-driven wear on piston/cylinder bore clearances, worn swashplate bearings or slippers, or a malfunctioning control device (pressure or power compensator) that's preventing full stroke. Fluid cleanliness and correct control device calibration are the first two things to check.

Q2: Can the A15VSO run in a closed circuit?

A2: No. The A15VSO is specifically designed for open-circuit applications. Rexroth offers separate closed-circuit variable pump series (such as the A4VG or A10VG family names in various product lines) for closed-loop hydrostatic transmissions.
