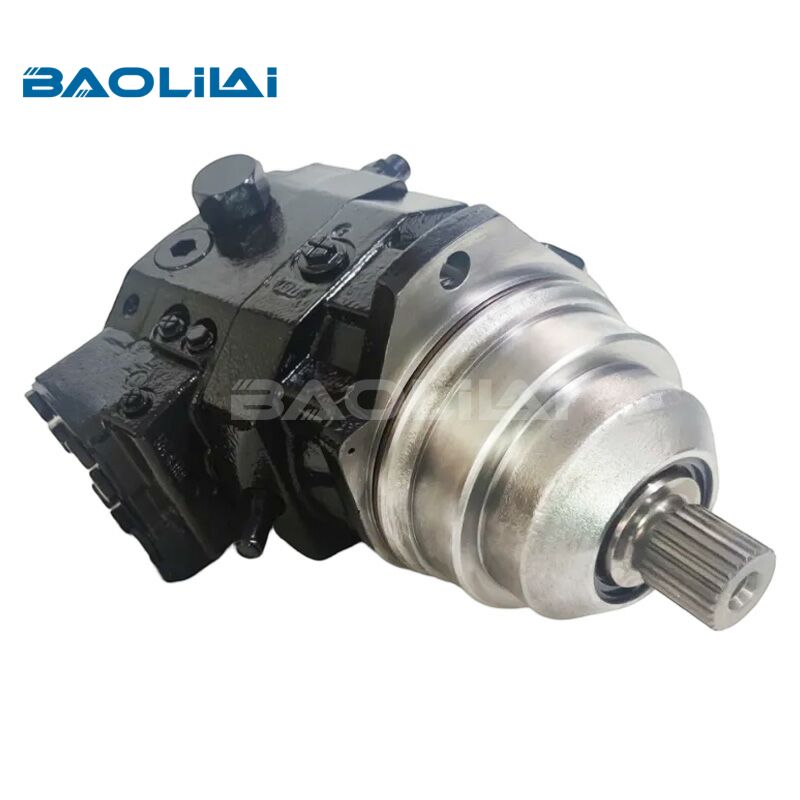

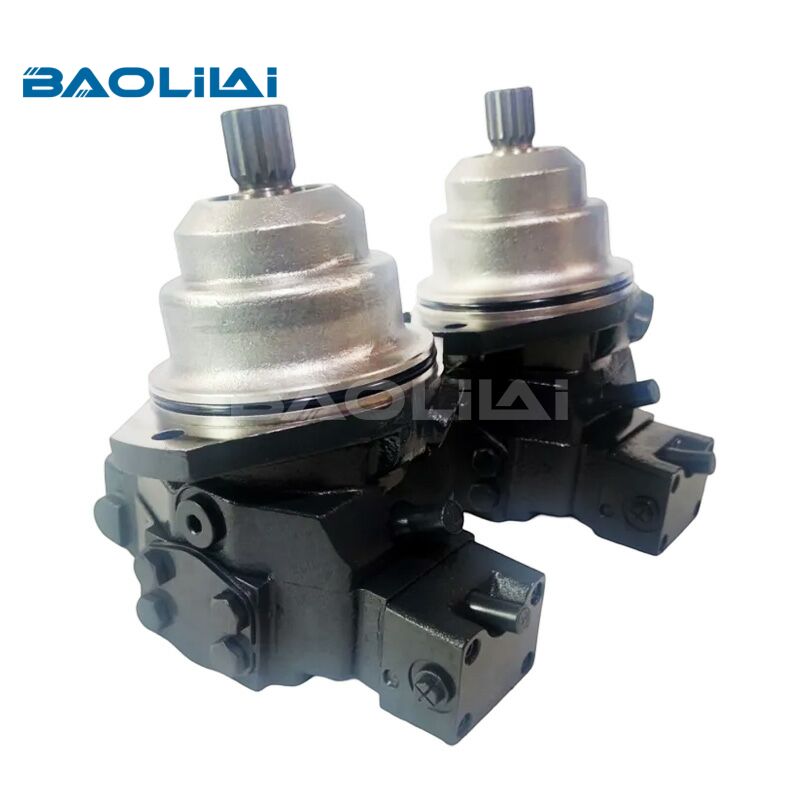

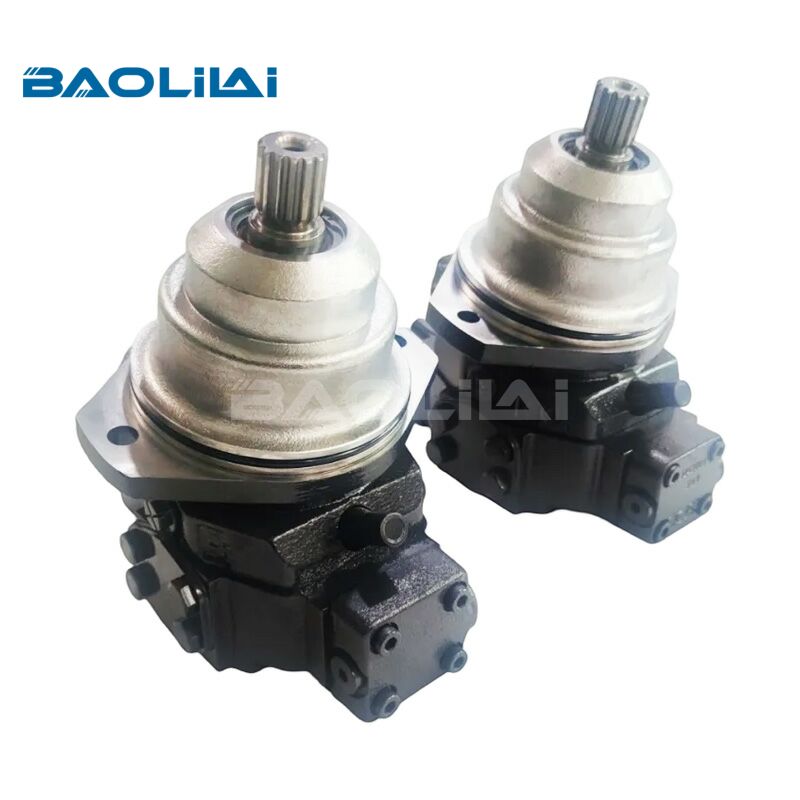

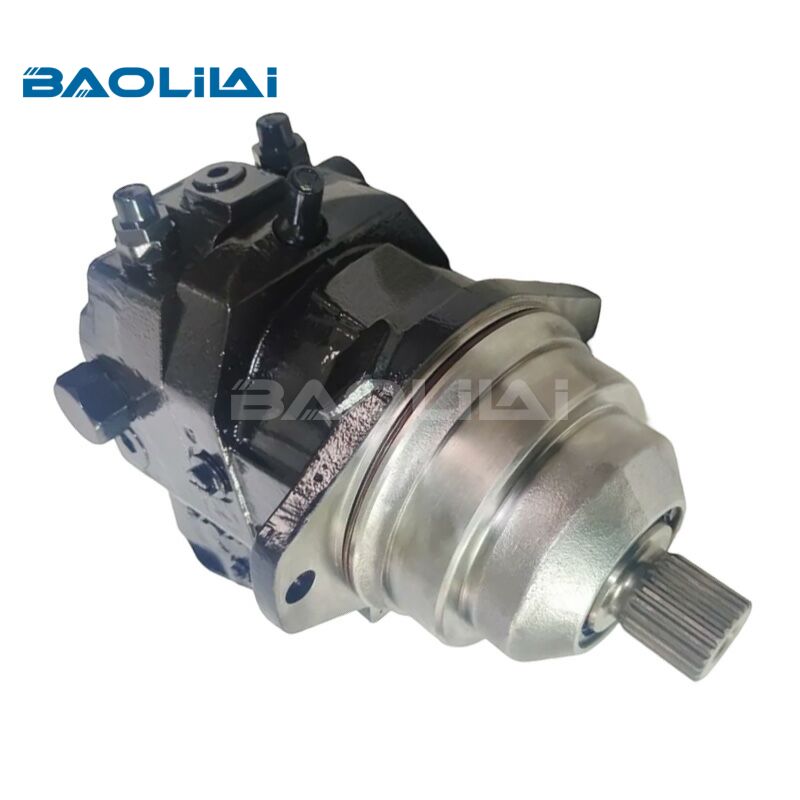

Rexroth A6VE28 Variable displacement hydraulic motor
SERIES : A6VE
BRAND : For Rexroth
Model Size :A6VE28
Displacement : 28cm3/rev
Speed : 5550rpm
Maximum Pressure : 450bar
Nominal Pressure : 400bar
Download PDF
- Product Details
- Product Model
- FAQ
The Rexroth A6VE28 is a high-performance axial piston variable displacement hydraulic motor designed for open circuit applications. It is engineered for robust performance in demanding mobile and industrial machinery, including construction equipment, agricultural vehicles, and material handling systems.
A key feature of the A6VE28 is its variable displacement capability, which allows precise control of speed and torque by adjusting the swashplate angle. This provides excellent flexibility and efficiency across a wide range of operating conditions. The motor is known for its high power density, delivering significant output from a compact design. It offers high starting torque, smooth operation at low speeds, and reliable performance under high continuous pressure.
Built for durability, it features robust construction with optimized hydraulics for low noise levels and high overall efficiency. Control options typically include hydraulic, electro-hydraulic, or mechanical displacement control for seamless integration into various hydraulic systems. The Rexroth A6VE28 is a proven solution for applications requiring powerful, efficient, and controllable hydraulic drive systems, supported by Bosch Rexroth's global service and support network.
For more information on the A6VE28 hydraulic motor, please visit https://www.baolilaihydraulic.com/.
Specifications
| Size | 28 | 55 | 80 | 107 | 160 | 250 | ||
| Displacement¹ | Vg max | cm³ | 28.1 | 54.8 | 80 | 107 | 160 | 250 |
| Vg 0 | cm³ | 0 | 0 | 0 | 0 | 0 | 0 | |
| Rotation speed max.(while adhering tomax. permited flow) | nmax at Vg max | rpm | 5550 | 4450 | 3900 | 3550 | 3100 | 2700 |
| nmax at Vg<Vg 1 | rpm | 8750 | 7000 | 6150 | 5600 | 4900 | 3600 | |
| Vg 1 | cm³ | 18 | 35 | 51 | 68 | 101 | 188 | |
| nmax 0 at Vg 0 | rpm | 10450 | 8350 | 7350 | 6300 | 5500 | 3600 | |
| Flow max. | qV max | L/min | 156 | 244 | 312 | 380 | 496 | 675 |
| Torque max. | Tmax at Vg max² | Nm | 179 | 349 | 509 | 681 | 1019 | 1391 |
| Rotary stiffness | Nm/rad | 360 | 700 | 1150 | 1560 | 2320 | 3733 | |
| Mass moment of inertia arround output shaft | J | kgm² | 0,0014 | 0,0042 | 0,0080 | 0,0127 | 0,0253 | 0,061 |
| Filling capacity | L | 0,5 | 0,75 | 1,2 | 1,5 | 2,4 | 3,0 | |
| Mass (approx.) | port plate 02 | kg | 16 | 26 | 34 | 47 | 64 | 90 |
| port plate 22 | kg | - | 35 | 43 | 53 | 72 | - | |

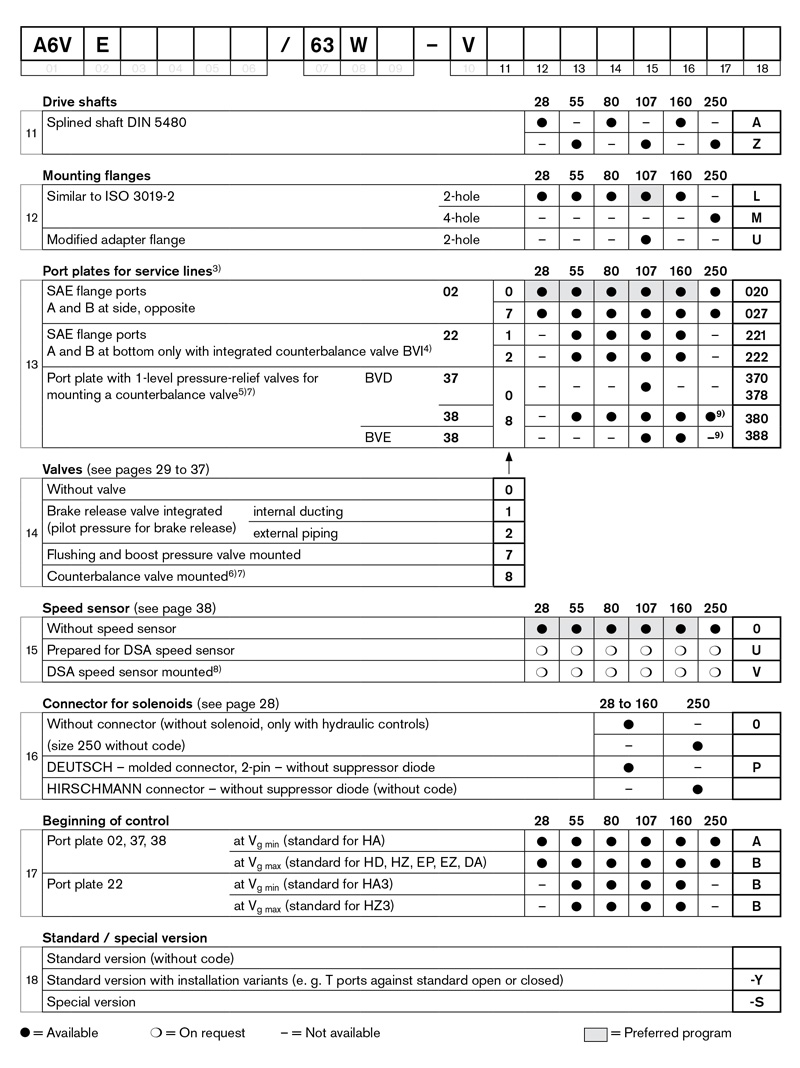

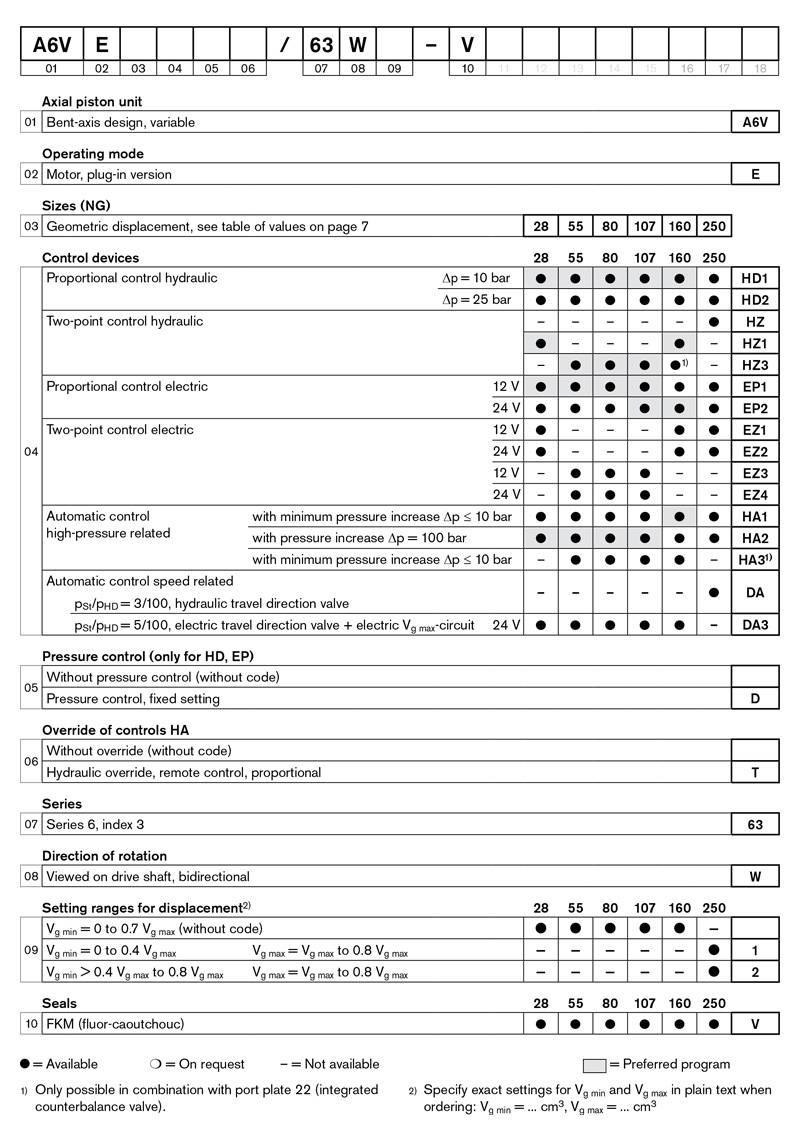

Selection Table
| A6VE28 hydraulic motor | |
| Model No. | Model Code |
| R909604418 | A6VE28EP1/63W-VAL010B |
| R909604360 | A6VE28EP1/63W-VAL020B |
| R902042452 | A6VE28EP1/63W-VAL020DB-S |
| R902042450 | A6VE28EP1/63W-VAL020DB-SK |
| R902057345 | A6VE28EP1/63W-VAL020HB |
| R902257682 | A6VE28EP1/63W-VAL020VPB |
| R902257841 | A6VE28EP1/63W-VAL020VPB |
| R902049244 | A6VE28EP1/63W-VAL027DB-S |
| R902057343 | A6VE28EP1/63W-VAL027DHB-S |
| R902182465 | A6VE28EP1/63W-VAL027FPA-S |
| R902182463 | A6VE28EP1/63W-VAL027FPA-SK |
| R902222232 | A6VE28EP1/63W-VAL027HPA |
| R902245171 | A6VE28EP1/63W-VAL027HPB |
| R902155106 | A6VE28EP1/63W-VAL027UPB |
| R902218661 | A6VE28EP1/63W-VAL027UPB |
| R902202480 | A6VE28EP1/63W-VAL027UPB-S |
| R902202478 | A6VE28EP1/63W-VAL027UPB-SK |
| R902277243 | A6VE28EP1/63W-VAL027VPA |
| R909604419 | A6VE28EP2/63W-VAL010B |
| R902115579 | A6VE28EP2/63W-VAL010FHB-S |
| R902115573 | A6VE28EP2/63W-VAL010FHB-SK |
| R902204923 | A6VE28EP2/63W-VAL010VPB |
| R902239650 | A6VE28EP2/63W-VAL010VTB |
| R902218673 | A6VE28EP2/63W-VAL017FHB |
| R902094970 | A6VE28EP2/63W-VAL017FHB-S |
| R902126727 | A6VE28EP2/63W-VAL017FHB-SK |
| R902101585 | A6VE28EP2/63W-VAL017FPB-ES |
| R902163562 | A6VE28EP2/63W-VAL017FTB-S |
| R902163560 | A6VE28EP2/63W-VAL017FTB-SK |
| R992000623 | A6VE28EP2/63W-VAL017FTB-SK |
| R902139534 | A6VE28EP2/63W-VAL017FWB-S |
| R902139532 | A6VE28EP2/63W-VAL017FWB-SK |
| R902101628 | A6VE28EP2/63W-VAL017HPB |
| R902218710 | A6VE28EP2/63W-VAL017HPB |
| R902218719 | A6VE28EP2/63W-VAL017HTB-S |
| R902151722 | A6VE28EP2/63W-VAL017UPB-S |
| R902151720 | A6VE28EP2/63W-VAL017VPB-SK |
| R902250818 | A6VE28EP2/63W-VAL017VTB-S |
| R902208910 | A6VE28EP2/63W-VAL0200PB |
| R902218671 | A6VE28EP2/63W-VAL0200PB |
| R909604361 | A6VE28EP2/63W-VAL020B |
| R902060352 | A6VE28EP2/63W-VAL020DHB-S |
| R902063516 | A6VE28EP2/63W-VAL020DHB-SK |
| R902065838 | A6VE28EP2/63W-VAL020DHB-SK |
| R902078740 | A6VE28EP2/63W-VAL020FHB-S |
| R902078738 | A6VE28EP2/63W-VAL020FHB-SK |
| R902084347 | A6VE28EP2/63W-VAL020FHB-SK |
| R902139972 | A6VE28EP2/63W-VAL020FHB-SK |
| R902170363 | A6VE28EP2/63W-VAL020FPB |
| R902191522 | A6VE28EP2/63W-VAL020FPB-S |
| R902191520 | A6VE28EP2/63W-VAL020FPB-SK |
| R902057347 | A6VE28EP2/63W-VAL020HB |
| R902218720 | A6VE28EP2/63W-VAL020HHB |
| R902165619 | A6VE28EP2/63W-VAL020HPB |
| R902196061 | A6VE28EP2/63W-VAL020HPB-S |
| R902163538 | A6VE28EP2/63W-VAL020PB |
| R902215115 | A6VE28EP2/63W-VAL020VPB |
| R902217893 | A6VE28EP2/63W-VAL020VPB |
| R902250835 | A6VE28EP2/63W-VAL020VPB |
| R902208753 | A6VE28EP2/63W-VAL020VTB |
| R902068579 | A6VE28EP2/63W-VAL027DHB-S |
| R902068577 | A6VE28EP2/63W-VAL027DHB-SK |
| R902101739 | A6VE28EP2/63W-VAL027FHB-S |
| R902101737 | A6VE28EP2/63W-VAL027FHB-SK |
| R902151620 | A6VE28EP2/63W-VAL027FHB-SK |
| R902132023 | A6VE28EP2/63W-VAL027FPB-S |
| R902194400 | A6VE28EP2/63W-VAL027FPB-S |
| R902132021 | A6VE28EP2/63W-VAL027FPB-SK |
| R902155077 | A6VE28EP2/63W-VAL027FPB-SK |
| R902194398 | A6VE28EP2/63W-VAL027FPB-SK |
| R902202154 | A6VE28EP2/63W-VAL027FPB-SK |
| R902170463 | A6VE28EP2/63W-VAL027HHB |
| R902218672 | A6VE28EP2/63W-VAL027HHB |
| R902218679 | A6VE28EP2/63W-VAL027HHB |
| R902224092 | A6VE28EP2/63W-VAL027HHB |
| R902165209 | A6VE28EP2/63W-VAL027HPB |
| R902225712 | A6VE28EP2/63W-VAL027HPB |
| R902240023 | A6VE28EP2/63W-VAL027HPB |
| R902259038 | A6VE28EP2/63W-VAL027HPB |
| R902203493 | A6VE28EP2/63W-VAL027HPB-S |
| R902255782 | A6VE28EP2/63W-VAL027HPB-S |
| R902247092 | A6VE28EP2/63W-VAL027VPB-S |
| R902200217 | A6VE28EPX/63W-VAL027FPB-S |
| R902204605 | A6VE28EPX/63W-VAL027FPB-S |
| R902200215 | A6VE28EPX/63W-VAL027FPB-SK |
| R909446019 | A6VE28EZ1/61W-PAL020B |
| R909604416 | A6VE28EZ1/63W-VAL010B |
| R909604358 | A6VE28EZ1/63W-VAL020B |
| R902052423 | A6VE28EZ1/63W-VAL020HB |
| R902257842 | A6VE28EZ1/63W-VAL020UQB |
| R902218662 | A6VE28EZ1/63W-VAL0270HB |
| R902253646 | A6VE28EZ1/63W-VAL0270PB |
| R909605776 | A6VE28EZ1/63W-VAL027B |
| R902040080 | A6VE28EZ1/63W-VAL027DB-S |
| R902052421 | A6VE28EZ1/63W-VAL027DHB-S |
| R902149101 | A6VE28EZ1/63W-VAL027FPB-S |
| R902149099 | A6VE28EZ1/63W-VAL027FPB-SK |
| R902153501 | A6VE28EZ1/63W-VAL027FPB-SK |
| R902052426 | A6VE28EZ1/63W-VAL027HB |
| R992000074 | A6VE28EZ1/63W-VAL027HB |
| R902162166 | A6VE28EZ1/63W-VAL027HB-E |
| R902212060 | A6VE28EZ1/63W-VAL027HPB |
| R902218707 | A6VE28EZ2/63W-VAL0100HB |
| R909604417 | A6VE28EZ2/63W-VAL010B |
| R902153790 | A6VE28EZ2/63W-VAL010FHB-S |
| R902153788 | A6VE28EZ2/63W-VAL010FHB-SK |
| R902153786 | A6VE28EZ2/63W-VAL010HB |
| R902218706 | A6VE28EZ2/63W-VAL010HHB |
| R902215107 | A6VE28EZ2/63W-VAL0200HB |
| R902251602 | A6VE28EZ2/63W-VAL0200PB |
| R909604359 | A6VE28EZ2/63W-VAL020B |
| R902073592 | A6VE28EZ2/63W-VAL020DHB-S |
| R902073590 | A6VE28EZ2/63W-VAL020DHB-SK |
| R902138337 | A6VE28EZ2/63W-VAL020FHB-S |
| R902138335 | A6VE28EZ2/63W-VAL020FHB-SK |
| R902102571 | A6VE28EZ2/63W-VAL020FPB-S |
| R902102569 | A6VE28EZ2/63W-VAL020FPB-SK |
| R902052425 | A6VE28EZ2/63W-VAL020HB |
| R902189074 | A6VE28EZ2/63W-VAL020HB-S |
| R902165301 | A6VE28EZ2/63W-VAL020PB |
| R902251604 | A6VE28EZ2/63W-VAL020UPB |
| R902092396 | A6VE28EZ2/63W-VAL027FHB-ES |
| R902075415 | A6VE28EZ2/63W-VAL027FHB-S |
| R902075413 | A6VE28EZ2/63W-VAL027FHB-SK |
| R902086987 | A6VE28EZ2/63W-VAL027FHB-SK |
| R902165303 | A6VE28EZ2/63W-VAL027FPB-SK |
| R909610585 | A6VE28HA1/61W-NAL020A-S |
| R909610959 | A6VE28HA1/61W-NAL020A-S |
| R909605268 | A6VE28HA1/61W-PAL020A |
| R909604420 | A6VE28HA1/63W-VAL010A |
| R902207323 | A6VE28HA1/63W-VAL02000A-Y |
| R909604362 | A6VE28HA1/63W-VAL020A |
| R909610601 | A6VE28HA1/63W-VAL020A-S |
| R909423439 | A6VE28HA1T/60W-PAL020A *G* |
| R909438942 | A6VE28HA1T/61W-PAL020A |
| R909446053 | A6VE28HA1T/61W-PAL026A |
| R902204546 | A6VE28HA1T/63W-VAL02700A |
| R909610641 | A6VE28HA1T/63W-VAL027A |
| R909437111 | A6VE28HA1U/60W-PAL020A *G* |
| R909605241 | A6VE28HA1U/61W-PAL020A |
| R902011766 | A6VE28HA1U1/63W-VAL020A |
| R909434499 | A6VE28HA2/60W-PAL020A *G* |
| R909434165 | A6VE28HA2/60W-PZL020A *G* |
| R909603096 | A6VE28HA2/61W-PAL020A |
| R909604421 | A6VE28HA2/63W-VAL010A |
| R909604363 | A6VE28HA2/63W-VAL020A |
| R902024898 | A6VE28HA2/63W-VAL027A |
| R909437092 | A6VE28HA2T/60W-437092 |
| R909424583 | A6VE28HA2T/60W-PAL020A |
| R909605970 | A6VE28HA2T/60W-PAL020DA-SK |
| R909441963 | A6VE28HA2T/61W-PAL020A |
| R909442609 | A6VE28HA2T/61W-PAL020DA-S |
| R902009605 | A6VE28HA2T/61W-PAL020DA-SK |
| R909603677 | A6VE28HA2T/61W-VAL020A |
| R902155150 | A6VE28HA2T/63W-VAL02000A |
| R902207173 | A6VE28HA2T/63W-VAL02000A |
| R902218683 | A6VE28HA2T/63W-VAL02000A |
| R902218702 | A6VE28HA2T/63W-VAL02000A |
| R902218709 | A6VE28HA2T/63W-VAL02000A |
| R902220569 | A6VE28HA2T/63W-VAL02000A |
| R902222366 | A6VE28HA2T/63W-VAL02000A |
| R902223441 | A6VE28HA2T/63W-VAL02000A |
| R902225889 | A6VE28HA2T/63W-VAL02000A |
| R902227880 | A6VE28HA2T/63W-VAL02000A |
| R902233255 | A6VE28HA2T/63W-VAL02000A |
| R902257681 | A6VE28HA2T/63W-VAL02000A |
| R902276869 | A6VE28HA2T/63W-VAL02000A |
| R902218666 | A6VE28HA2T/63W-VAL02000A-Y |
| R902218686 | A6VE28HA2T/63W-VAL02000A-Y |
| R902218687 | A6VE28HA2T/63W-VAL02000A-Y |
| R909604589 | A6VE28HA2T/63W-VAL020A |
| R902031765 | A6VE28HA2T/63W-VAL020A-S |
| R992001772 | A6VE28HA2T/63W-VAL020A-S |
| R902253993 | A6VE28HA2T/63W-VAL020D0A |
| R902031789 | A6VE28HA2T/63W-VAL020DA-S |
| R902047212 | A6VE28HA2T/63W-VAL020DA-S |
| R902132270 | A6VE28HA2T/63W-VAL020DA-SK |
| R902088979 | A6VE28HA2T/63W-VAL020FA-S |
| R902088977 | A6VE28HA2T/63W-VAL020FA-SK |
| R902196083 | A6VE28HA2T/63W-VAL020H0A |
| R902225890 | A6VE28HA2T/63W-VAL020H0A |
| R902207172 | A6VE28HA2T/63W-VAL020H0A-S |
| R902027109 | A6VE28HA2T/63W-VAL027A |
| R902060116 | A6VE28HA2T/63W-VAL027DA-S |
| R902218723 | A6VE28HA2U1/63W-VAL0270HA |
| R902018087 | A6VE28HA2U1/63W-VAL027A |
| R902027189 | A6VE28HA2U1X/63W-VAL027A-S |
| R902218714 | A6VE28HA2U2/63W-VAL0200PA |
| R902156418 | A6VE28HA2U2/63W-VAL020PA |
| R902202204 | A6VE28HA2U2/63W-VAL027FPA-S |
| R902202202 | A6VE28HA2U2/63W-VAL027FPA-SK |
| R902040251 | A6VE28HA2X/63W-VAL020A-S |
| R902096982 | A6VE28HATX/63W-VAL020DA-S |
| R902042285 | A6VE28HAX/63W-VAL020A-S |
| R909605521 | A6VE28HAXT/61W-PAL020A-S |
| R909605504 | A6VE28HAXT/61W-PAL020DA-S |
| R909605503 | A6VE28HAXT/61W-PAL020DA-SK |
| R902227998 | A6VE28HAXT/63W-VAL01000A-S |
| R902231055 | A6VE28HAXT/63W-VAL01000A-S |
| R902231138 | A6VE28HAXT/63W-VAL01000A-S |
| R902191799 | A6VE28HAXT/63W-VAL010A-S |
| R902231056 | A6VE28HAXT/63W-VAL010V0A-S |
| R902231139 | A6VE28HAXT/63W-VAL010V0A-S |
| R902233638 | A6VE28HAXT/63W-VAL01700A-S |
| R902233637 | A6VE28HAXT/63W-VAL017V0A-S |
| R902208979 | A6VE28HAXT/63W-VAL02000A-S |
| R902208980 | A6VE28HAXT/63W-VAL02000A-S |
| R902218704 | A6VE28HAXT/63W-VAL02000A-S |
| R902218949 | A6VE28HAXT/63W-VAL02000A-S |
| R902218958 | A6VE28HAXT/63W-VAL02000A-S |
| R902218959 | A6VE28HAXT/63W-VAL02000A-S |
| R902218995 | A6VE28HAXT/63W-VAL02000A-S |
| R902221535 | A6VE28HAXT/63W-VAL02000A-S |
| R902004238 | A6VE28HAXT/63W-VAL020A-S |
| R902065710 | A6VE28HAXT/63W-VAL020A-S |
| R909605517 | A6VE28HAXT/63W-VAL020A-S |
| R992000003 | A6VE28HAXT/63W-VAL020A-S |
| R902030618 | A6VE28HAXT/63W-VAL020DA-S |
| R902221533 | A6VE28HAXT/63W-VAL020F0A-S |
| R902221534 | A6VE28HAXT/63W-VAL020F0A-S |
| R902162059 | A6VE28HAXT/63W-VAL020FA-S |
| R902162057 | A6VE28HAXT/63W-VAL020FA-SK |
| R902243058 | A6VE28HAXT/63W-VAL020V0A-S |
| R902274546 | A6VE28HAXT/63W-VAL020V0A-S |
| R909429562 | A6VE28HD1/60W-PAL010B *G* |
| R909422222 | A6VE28HD1/60W-PAL020B |
| R909437112 | A6VE28HD1/60W-PAL026B *G* |
| R909447124 | A6VE28HD1/60W-PALO2ODB *G* |
| R909603670 | A6VE28HD1/61W-NAL010B |
| R909438941 | A6VE28HD1/61W-PAL020B |
| R909447208 | A6VE28HD1/61W-PAL020B |
| R909438943 | A6VE28HD1/61W-PAL020DB-S |
| R902065506 | A6VE28HD1/63W-VAL010B |
| R902227881 | A6VE28HD1/63W-VAL02000B |
| R902231158 | A6VE28HD1/63W-VAL02000B |
| R902233235 | A6VE28HD1/63W-VAL02000B |
| R902233236 | A6VE28HD1/63W-VAL02000B |
| R909604197 | A6VE28HD1/63W-VAL02000B |
| R902092711 | A6VE28HD1/63W-VAL020B-E |
| R902151706 | A6VE28HD1/63W-VAL020B-E |
| R902218676 | A6VE28HD1/63W-VAL020D0B-S |
| R902068612 | A6VE28HD1/63W-VAL020DB-S |
| R902110073 | A6VE28HD1/63W-VAL020DB-S |
| R902115926 | A6VE28HD1/63W-VAL020DB-S |
| R909605620 | A6VE28HD1/63W-VAL020DB-S |
| R902155035 | A6VE28HD1/63W-VAL020F0B |
| R902207980 | A6VE28HD1/63W-VAL020F0B |
| R902110357 | A6VE28HD1/63W-VAL020FB-S |
| R902182017 | A6VE28HD1/63W-VAL020FB-S |
| R902110355 | A6VE28HD1/63W-VAL020FB-SK |
| R902182008 | A6VE28HD1/63W-VAL020FB-SK |
| R902217846 | A6VE28HD1/63W-VAL020U0B |
| R902033334 | A6VE28HD1/63W-VAL027B |
| R902060125 | A6VE28HD1D/63W-VAL017B |
| R909446877 | A6VE28HD2/61W-PAL020B-S |
| R902212072 | A6VE28HD2/63W-VAL02000B |
| R902218996 | A6VE28HD2/63W-VAL02000B |
| R902218997 | A6VE28HD2/63W-VAL02000B |
| R902239641 | A6VE28HD2/63W-VAL02000B |
| R902257675 | A6VE28HD2/63W-VAL02000B |
| R902036752 | A6VE28HD2/63W-VAL020B |
| R992000056 | A6VE28HD2/63W-VAL020B |
| R902036753 | A6VE28HD2/63W-VAL020DB-S |
| R902107756 | A6VE28HD2/63W-VAL020DB-S |
| R902218998 | A6VE28HD2/63W-VAL020F0B |
| R902218999 | A6VE28HD2/63W-VAL020F0B |
| R902086500 | A6VE28HD2/63W-VAL020FB-S |
| R992000272 | A6VE28HD2/63W-VAL020FB-S |
| R902101353 | A6VE28HD2/63W-VAL020FB-SK |
| R902221532 | A6VE28HD2/63W-VAL020FOB |
| R902214683 | A6VE28HD2/63W-VAL020H0B |
| R902239640 | A6VE28HD2/63W-VAL020H0B |
| R902257674 | A6VE28HD2/63W-VAL020H0B |
| R902247468 | A6VE28HD2/63W-VAL020V0B |
| R902205982 | A6VE28HD2/63W-VAL027V0B |
| R902235345 | A6VE28HD2/63W-VAL027V0B |
| R902040016 | A6VE28HD2D/63W-VAL020B |
| R902047430 | A6VE28HD2DX/63W-VAL020B-S |
| R909610598 | A6VE28HD6/60W-NAL020B |
| R909610919 | A6VE28HD6/61W-PAL020B |
| R902045318 | A6VE28HD6/63W-VAL020B |
| R902150344 | A6VE28HD6/63W-VAL020U0B-S |
| R902155054 | A6VE28HD7/63W-VAL020U0B-Y |
| R902186365 | A6VE28HD7/63W-VAL020UB-S |
| R902186363 | A6VE28HD7/63W-VAL020UB-SK |
| R909429815 | A6VE28HZ/60W-429815 *G* |
| R909427199 | A6VE28HZ/60W-PAL020B |
| R909437217 | A6VE28HZ/60W-PAL020B-S *G* |
| R909448202 | A6VE28HZ/61W-NAL010B |
| R909448204 | A6VE28HZ/61W-NAL010B |
| R909438547 | A6VE28HZ/61W-PAL020B |
| R909437651 | A6VE28HZ/61W-PZL020B |
| R902231400 | A6VE28HZ1/63W-KAL02000B-Y |
| R909604415 | A6VE28HZ1/63W-VAL010B |
| R909605373 | A6VE28HZ1/63W-VAL010DB-S |
| R909605372 | A6VE28HZ1/63W-VAL010DB-SK |
| R902063668 | A6VE28HZ1/63W-VAL010FA-S |
| R902060377 | A6VE28HZ1/63W-VAL010FA-SK |
| R902150200 | A6VE28HZ1/63W-VAL02000B |
| R902207976 | A6VE28HZ1/63W-VAL02000B |
| R902212089 | A6VE28HZ1/63W-VAL02000B |
| R902212092 | A6VE28HZ1/63W-VAL02000B |
| R902223214 | A6VE28HZ1/63W-VAL02000B |
| R902225579 | A6VE28HZ1/63W-VAL02000B |
| R902226405 | A6VE28HZ1/63W-VAL02000B |
| R902227723 | A6VE28HZ1/63W-VAL02000B |
| R902233318 | A6VE28HZ1/63W-VAL02000B |
| R902233446 | A6VE28HZ1/63W-VAL02000B |
| R902233488 | A6VE28HZ1/63W-VAL02000B |
| R902239780 | A6VE28HZ1/63W-VAL02000B |
| R902240352 | A6VE28HZ1/63W-VAL02000B |
| R909604357 | A6VE28HZ1/63W-VAL02000B |
| R902245656 | A6VE28HZ1/63W-VAL02000B-S |
| R902186016 | A6VE28HZ1/63W-VAL020B-S |
| R902207981 | A6VE28HZ1/63W-VAL020D0B |
| R902092611 | A6VE28HZ1/63W-VAL020DB-ES |
| R902011509 | A6VE28HZ1/63W-VAL020DB-S |
| R902186017 | A6VE28HZ1/63W-VAL020DB-S |
| R902090417 | A6VE28HZ1/63W-VAL020DB-SK |
| R902245657 | A6VE28HZ1/63W-VAL020F0B-S |
| R902218678 | A6VE28HZ1/63W-VAL020F0B-Y |
| R902218682 | A6VE28HZ1/63W-VAL020F0B-Y |
| R902090135 | A6VE28HZ1/63W-VAL020FB-S |
| R902090133 | A6VE28HZ1/63W-VAL020FB-SK |
| R902096959 | A6VE28HZ1/63W-VAL020FB-SK |
| R902215096 | A6VE28HZ1/63W-VAL020H0B |
| R902225558 | A6VE28HZ1/63W-VAL020H0B |
| R902233319 | A6VE28HZ1/63W-VAL020H0B |
| R902240351 | A6VE28HZ1/63W-VAL020H0B |
| R902251793 | A6VE28HZ1/63W-VAL020H0B |
| R902212111 | A6VE28HZ1/63W-VAL020H0B-Y |
| R902212112 | A6VE28HZ1/63W-VAL020H0B-Y |
| R902218728 | A6VE28HZ1/63W-VAL020H0B-Y |
| R902251999 | A6VE28HZ1/63W-VAL020V0B |
| R992002034 | A6VE28HZ1/63W-VAL020V0B |
| R902233742 | A6VE28HZ1/63W-VAL02700B |
| R902075134 | A6VE28HZ1/63W-VAL027B |
| R902211543 | A6VE28HZ1/63W-VAL027F0B |
| R902092437 | A6VE28HZ1/63W-VAL027FB-ESK |
| R902082386 | A6VE28HZ1/63W-VAL027FB-S |
| R902082367 | A6VE28HZ1/63W-VAL027FB-SK |
| R902101445 | A6VE28HZ1/63W-VAL027FB-SK |
| R902212098 | A6VE28HZ1/63W-VAL027H0B |
| R902218684 | A6VE28HZ1/63W-VAL027H0B |
| R902275387 | PT-A6VE28EZ2/63W-VAL0200PB |
| R902260407 | PT-A6VE28HD2/63W-VAL027V0B |
| R902250633 | PT-A6VE28HZ1/63W-VAL02000B |
| R909603693 | A6VEN28EP2/62W-VAL020DB-S *G* |
| R909605607 | A6VEN28EZ2/62W-NAL026DB-S *G* |
| R909603100 | A6VEN28HD1/62W-NAL020DB-S *G* |
| R909603980 | A6VEN28HZ/62W-VAL020DB-S *G* |
Q1: What is the primary application of the Rexroth A6VE28 hydraulic motor?
A1:The A6VE28 hydraulic motor is primarily designed for demanding mobile and industrial machinery applications, such as in construction equipment, agricultural vehicles, and material handling systems.
Q2:How can the displacement of the A6VE28 motor be controlled?
A2: The displacement of the A6VE28 motor can be controlled via hydraulic, electro-hydraulic, or mechanical means, allowing for seamless integration into various hydraulic system architectures.
Q3: What is the price and delivery time of the A6VE28 hydraulic motor?
A3: The specific price and delivery time will be provided based on the specific model you provide.
Q4:How to purchase an A6VE28 hydraulic motor?
A4:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.
