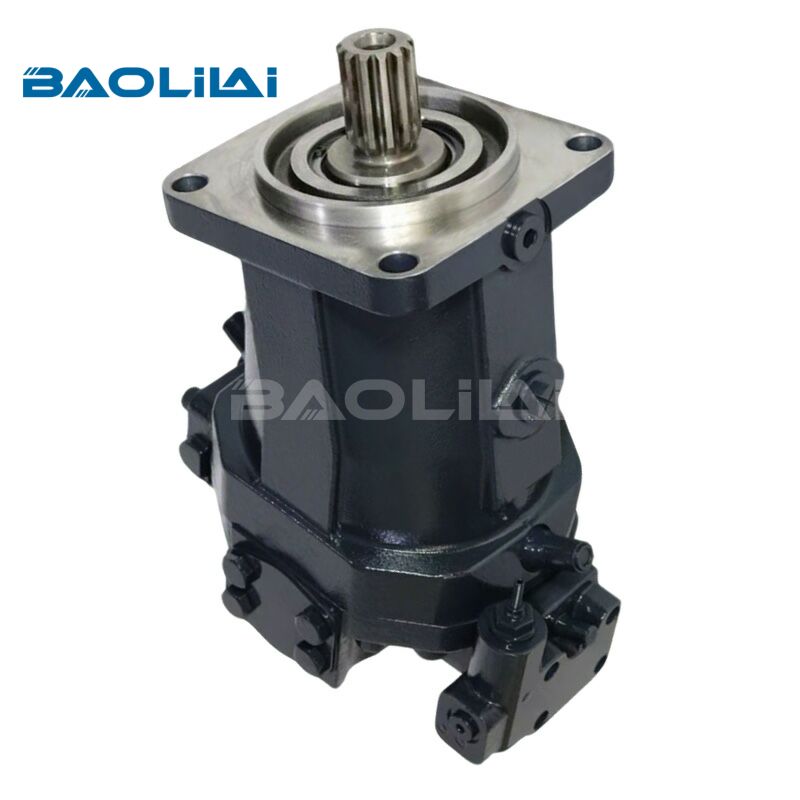

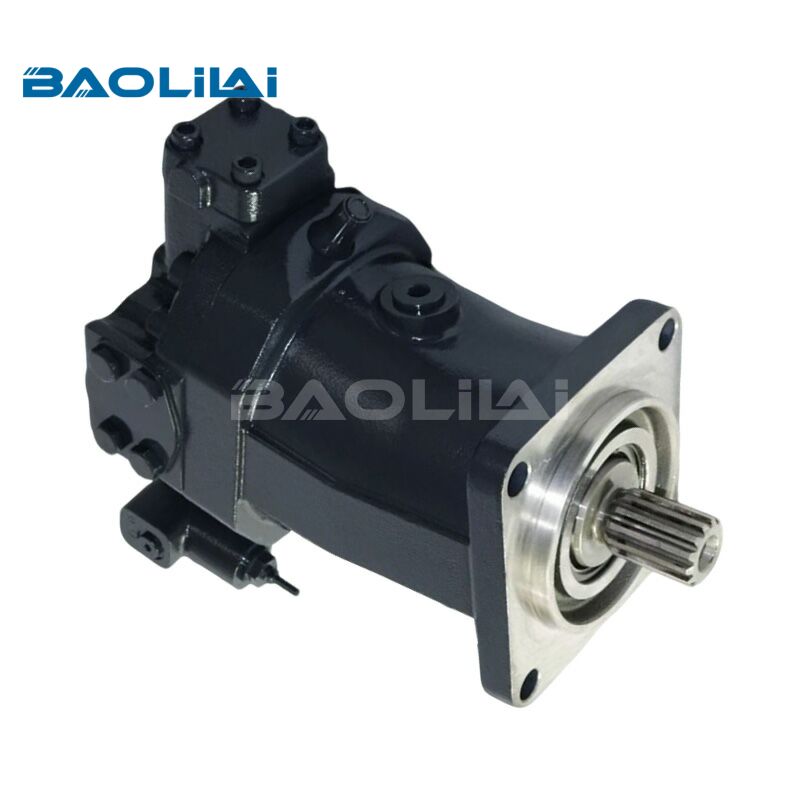

Rexroth AA6VM250 axial piston variable hydraulic motor

The AA6VM250 utilizes a reciprocating axial piston design arranged in a bent-axis configuration. The angle between the drive shaft and the cylinder block determines the motor's displacement. Because this angle can be dynamically varied, the motor can seamlessly transition from maximum displacement (high torque, low speed) to minimum displacement (low torque, high speed).

Core Features and Performance Benefits

High Power Density

The 250cc frame size delivers massive torque output without requiring an excessively large envelope. This compact power density allows heavy equipment OEMs to save valuable chassis space while maintaining extreme lifting or pulling capacities.

Wide Control Range

The AA6VM series is known for its ability to destroke all the way to $V_g = 0$ (or a specified minimum), allowing for a broad ratio of speed variation. This eliminates the need for complex multi-speed mechanical gearboxes in many mobile applications.

Robust Construction and Longevity

Featuring optimized rotary groups, high-load bearings, and a rigid housing design, the AA6VM250 is built to endure harsh operating environments—from the abrasive dust of mining sites to the corrosive salt spray of offshore platforms.

Control Mechanisms: Adapting to the Workload

One of the greatest strengths of the Rexroth AA6VM250 is its versatility in control options. Depending on the machine’s architecture, operators can utilize different control regulators:

EP (Electric Control with Proportional Solenoid): Allows for precise, electronic integration with the machine’s central ECU. Displacement is regulated proportionally via electrical current.

HD (Hydraulic Control, Pilot-Pressure Related): The motor's displacement changes relative to an external hydraulic pilot pressure signal.

HZ (Hydraulic Two-Position Control): A simple, robust solution that toggles the motor between minimum and maximum displacement based on a hydraulic switching signal.

Real-World Applications

The AA6VM250 is rarely sitting still. It is typically deployed in heavy-duty machinery where operating conditions fluctuate violently between high resistance and high speed.

1. Construction and Mobile Cranes

On a crawler crane, the winch drive requires massive torque to break a heavy load off the ground. The AA6VM250 starts at maximum displacement to provide that initial grunt. As the load begins moving and requires faster lifting speeds, the motor automatically destrokes to a lower displacement, increasing drum speed without bogging down the engine.

2. Mining and Drilling Rigs

In rotary drilling applications, the motor faces unpredictable subterranean resistance. If the drill bit hits hard rock, a pressure-responsive control on the AA6VM250 will instantly up-stroke the motor to maximum displacement, sacrificing speed to ensure the system has enough torque to cut through the obstruction.

3. Marine and Offshore Winches

Saltwater environments demand components that won't fail under continuous load. The AA6VM250 is frequently found powering marine mooring winches, where its precise control prevents snap-loads on cables during vessel mooring.

For more information on the AA6VM250 hydraulic motor, please visit https://www.baolilaihydraulic.com/product/.

Specifications

Selection Table

Q1: What type of hydraulic fluid should be used?

A1: The motor is compatible with standard mineral-oil-based hydraulic fluids (HL, HLP). For applications requiring environmentally acceptable or fire-resistant fluids (HFDR, HFAE), specific seal compounds (such as FKM/Viton) and pressure deratings may apply. Always consult the Rexroth 90220 fluid data sheet.

Q2: How do I identify the exact configuration of my AA6VM250?

A2: Look at the data plate riveted to the motor housing. It contains a comprehensive model code (e.g., AA6VM250EP2D/63W-VSD527B). This code dictates the series, control device, rotation direction, seals, and shaft configuration required when ordering exact replacement parts.

Q3: What is the price and delivery time of the AA6VM250 hydraulic motor?

A3: The specific price and delivery time will be provided based on the specific model you provide.

Q4:How to purchase an AA6VM250 hydraulic motor?

A4: You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.
