Rexroth AA7VO250 High-pressure Axial Piston hydraulic Pump

At the heart of high-demand hydraulic systems lies the AA7VO250—a variable-displacement, swashplate-type axial piston pump engineered to deliver exceptional power density and precision control. Designed for rigorous applications, it sustains continuous operating pressures up to 350 bar (5075 psi) and withstands peak pressures of 400 bar (5800 psi), making it a critical component where reliability, compact design, and high power output are non-negotiable.

1. How It Works: The Swashplate Mechanism

The pump’s core operation centers on a rotating cylinder block housing multiple pistons. These pistons are in constant contact with an adjustable angled swashplate. The swashplate’s tilt directly governs piston stroke length, which in turn regulates pump displacement and flow output:

• Maximum swashplate angle → Full piston stroke → Maximum displacement and flow.

• Reduced angle → Shorter stroke → Decreased displacement and flow, matching system demand.

• Zero angle → Stroke neutralized → Flow stops while the shaft idles, enabling significant energy savings and heat reduction.

This seamless variability allows the pump to deliver exactly the flow needed, optimizing efficiency and responsiveness in real time.

2. Technical Specifications & Design Features

• Nominal Displacement: 250 cm³/rev

• Pressure Ratings: 350 bar (continuous) / 400 bar (peak)

• Control Variants: HD (Hydraulic Displacement Control), LR (Power Limiting Control), EL (Electronic Proportional Control) for total application flexibility.

• High-Efficiency Design: Optimized internal porting and piston geometry minimize flow losses and torque drag, boosting overall system efficiency.

• Rugged Construction: Built to endure high torsional loads and operate reliably in contaminated or harsh industrial environments.

3. Intelligent Control: The DR Differential Pressure Remote System

Many AA7VO250 pumps feature the integrated DR (Differential Pressure Remote) control—a proprietary system that transforms closed-loop hydraulic drives. The DR continuously modulates pump displacement to maintain a set pressure differential across the hydraulic motor, delivering:

• Superior drive linearity for smooth, predictable machine response.

• Inherent load-sensing behavior—flow and pressure adapt dynamically to actual demand.

• Enhanced system stability, eliminating “hunting” and ensuring consistent performance under fluctuating loads.

4. Real-World Applications: Powering Heavy-Duty Machinery

The AA7VO250 is built for the most demanding mobile and industrial hydraulic systems, where durability, control, and power are essential.

• Track-Driven Excavators (30-ton class)

Used to drive travel motors, the AA7VO250 with DR control provides smooth, proportional crawler motion. Operators benefit from seamless acceleration and slope-climbing ability, with instant pump response to load changes—maximizing both control and fuel efficiency.

• Industrial Mixers & Agitators

In large batch mixing systems, the pump enables precise rotary speed control of heavy agitator shafts. From soft-start sequences to high-speed homogenization, its variable displacement manages torque and flow exactly, handling high breakaway torque with ease.

• Marine Winches & Heavy Hoists

For deck cranes and large winches, the pump operates effectively in all four quadrants of motion—providing controlled lifting, lowering, and holding. This ensures safe, precise load handling even in challenging power-down scenarios.

Specifications

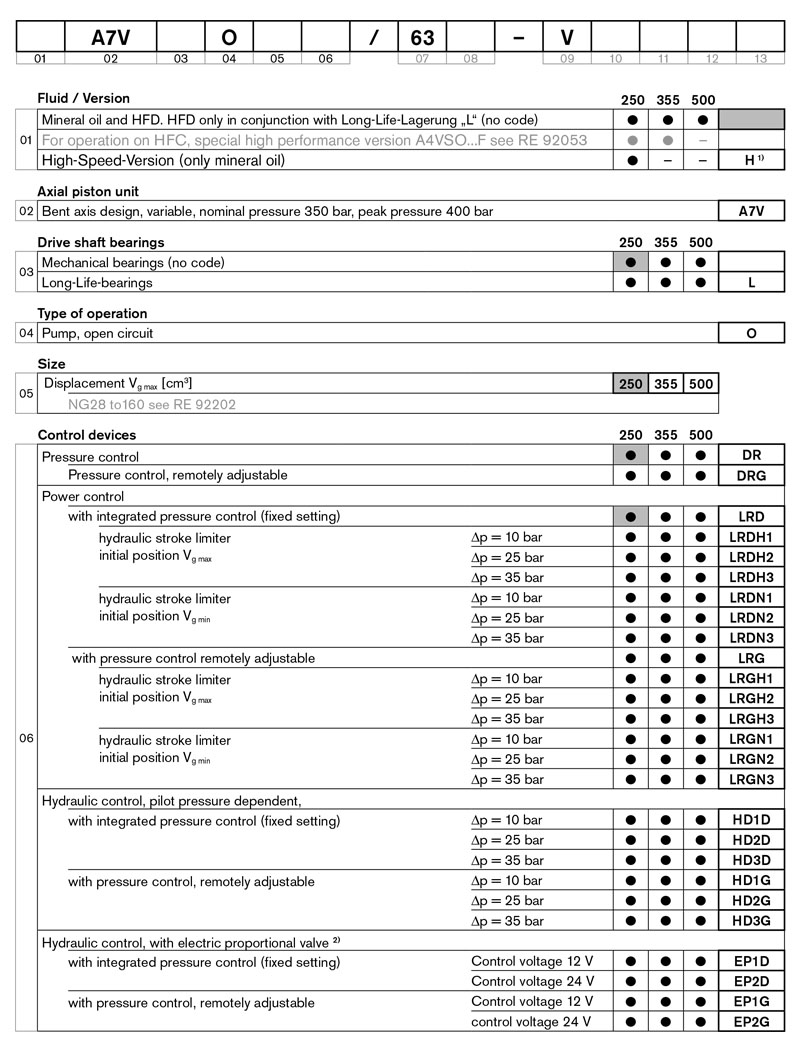

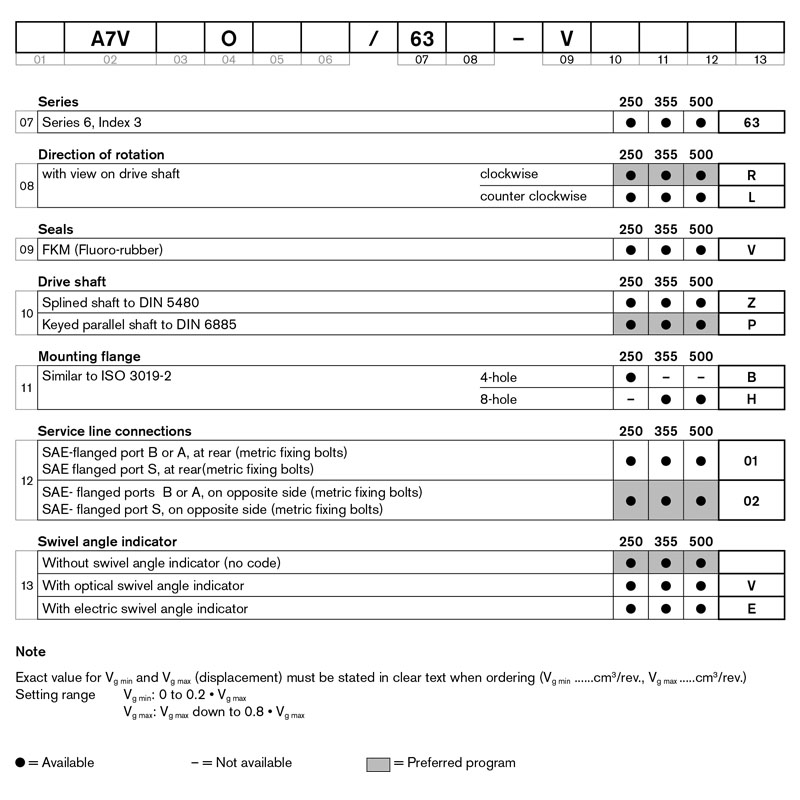

Selection Table

Q1:What is the significance of the "HD," "LR," or "EL" designations in the model code?

A1:These specify the type of displacement control​ mechanism fitted to the pump.

HD:​ Hydraulic displacement control, typically a simple servo-cylinder for proportional control via a pilot pressure signal.

LR:​ Load-sensing power limiter control. It adjusts displacement to maintain a set pressure, effectively limiting input horsepower and preventing engine stall.

EL:​ Electronic proportional control. It uses an integrated electro-proportional valve (e.g., with a 24V DC coil) for precise electronic control of displacement, enabling easy interface with modern PLCs and joysticks.

Q2:How critical is filtration for this pump?

A2:Extremely critical. Like all high-performance axial piston pumps, the AA7VO250 has tight tolerances. Bosch Rexroth​ typically recommends maintaining fluid cleanliness to ISO 4406 18/16/13 or better. Consistent use of high-pressure and return line filters with the correct beta ratings is non-negotiable for achieving a 10,000+ hour service life.

Q3:How to purchase an AA7VO250 hydraulic pump?

A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.

Q4:What is the price and delivery time of the AA7VO250 hydraulic pump?

A4:The specific price and delivery time will be provided based on the specific model you provide.
