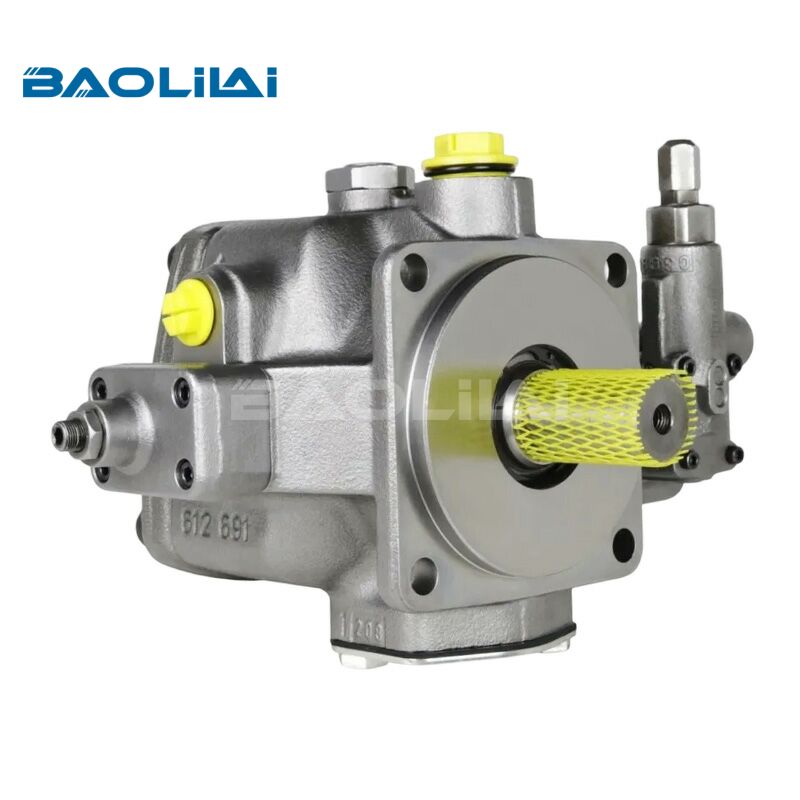

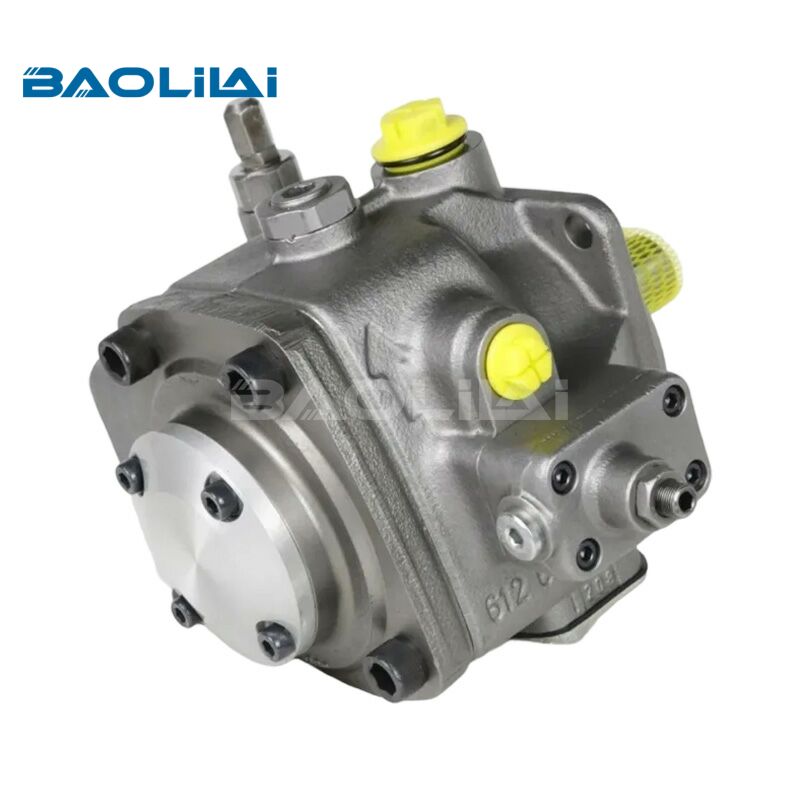

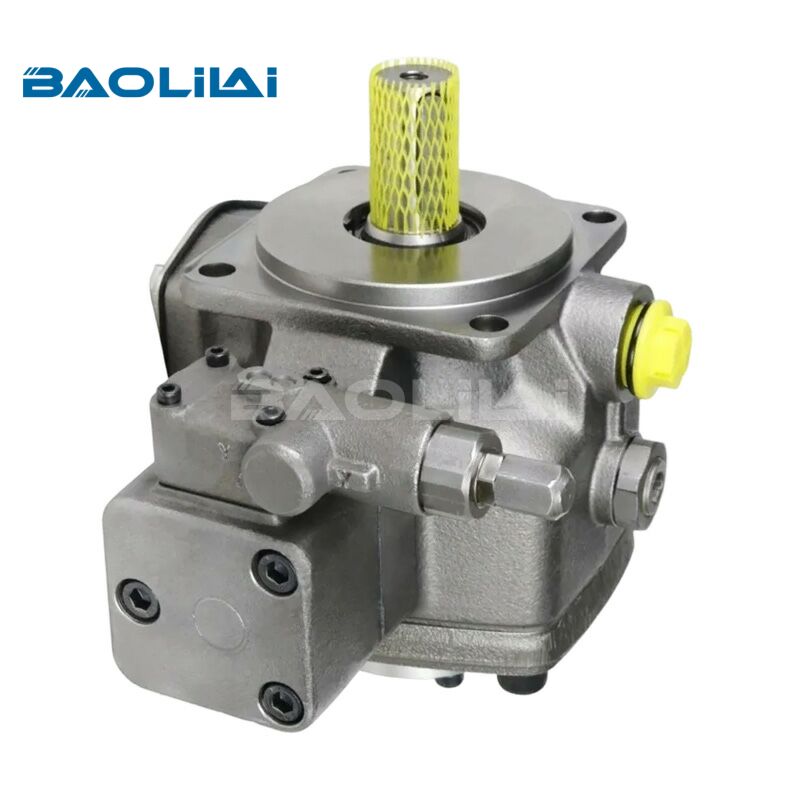

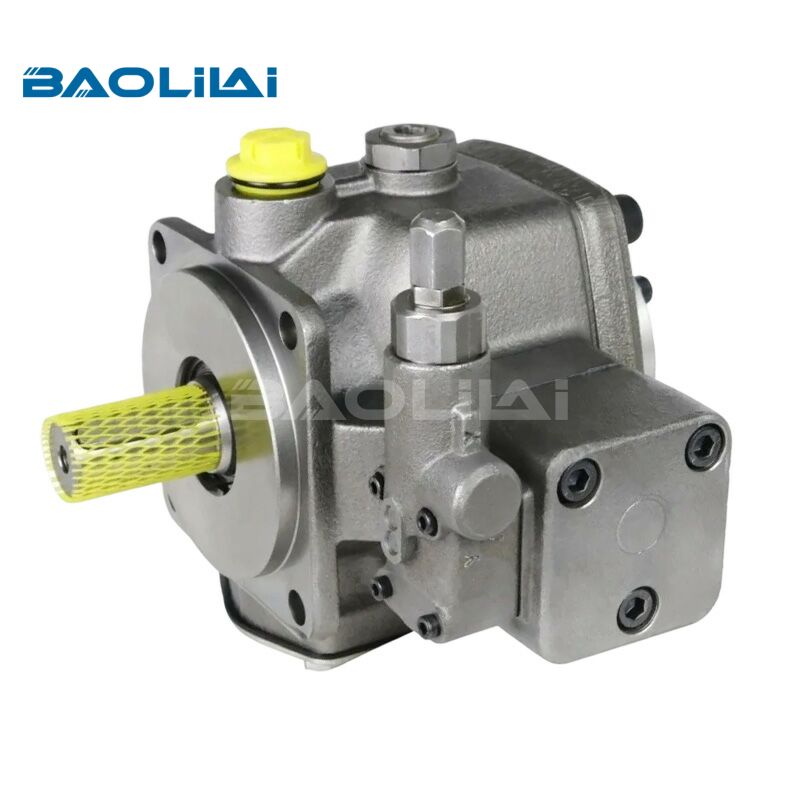

Rexroth PV7-1X variable displacement vane pump

The Rexroth PV7-1X is a high-performance, variable displacement vane pump designed for demanding industrial and stationary hydraulic applications. Its primary function is to convert mechanical power into hydraulic power, with the key advantage of providing adjustable flow on demand to match system requirements, thereby improving energy efficiency.

Key Design Features:
• Variable Displacement: Uses a pressure compensator to automatically adjust the eccentricity of the rotor within the cam ring. This varies the pump's output flow (up to a defined maximum) in response to system pressure, maintaining a preset pressure level and reducing flow when not needed.

• Hydraulic Balancing: The innovative design hydraulically balances the rotor and vanes, minimizing internal bearing loads. This results in very low noise levels, high operational efficiency, and exceptional service life, even at continuous pressures up to 250 bar.

• Robust Construction: Built for reliability with a reinforced housing. It features a hardened and ground cam ring, precision-cast pressure-loaded vanes, and a cartridge-type design that simplifies maintenance and replacement.

For more information on the PV7-1X vane pump, please visit https://www.baolilaihydraulic.com/

Typical Applications:
It is ideally suited for machine tools, plastics injection molding machines, press lines, and other industrial machinery where efficient, quiet, and reliable variable flow is essential for controlling cylinders or hydraulic motors.

Primary Benefits:
The pump’s defining benefits are its outstanding energy efficiency due to demand-based flow control, exceptionally low operating noise, and proven durability under continuous high-pressure operation, making it a cost-effective solution for modern hydraulic systems.

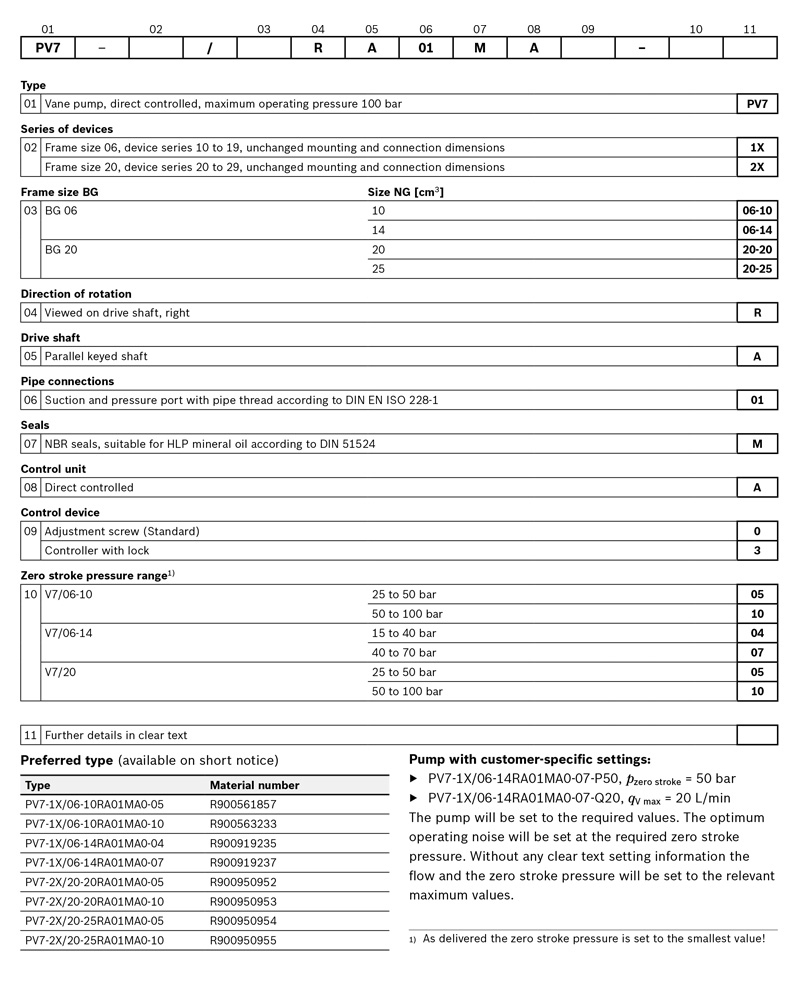

Selection Table

Q1: For what kind of applications is the Rexroth PV7-1X pump particularly well-suited?

A1: The PV7-1X pump is perfectly suited for demanding industrial and stationary hydraulic applications. Typical uses include machine tools, plastics injection molding machines, and press lines. It is ideal for any machinery requiring efficient, quiet, and reliable variable flow to control actuators like cylinders or hydraulic motors.

Q2:What are the key construction features that contribute to the pump's durability and ease of maintenance?

A2:The PV7-1X pump is built for robustness and serviceability. Key features include a reinforced housing, a hardened and ground cam ring for wear resistance, and precision-cast pressure-loaded vanes. Furthermore, its cartridge-type design allows the core pumping element to be easily removed and replaced, simplifying maintenance.

Q3:How to purchase a PV7-1X vane pump?

A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.

Q4:What is the price and delivery time of the PV7-1X vane pump?

A4:The specific price and delivery time will be provided based on the specific model you provide.
