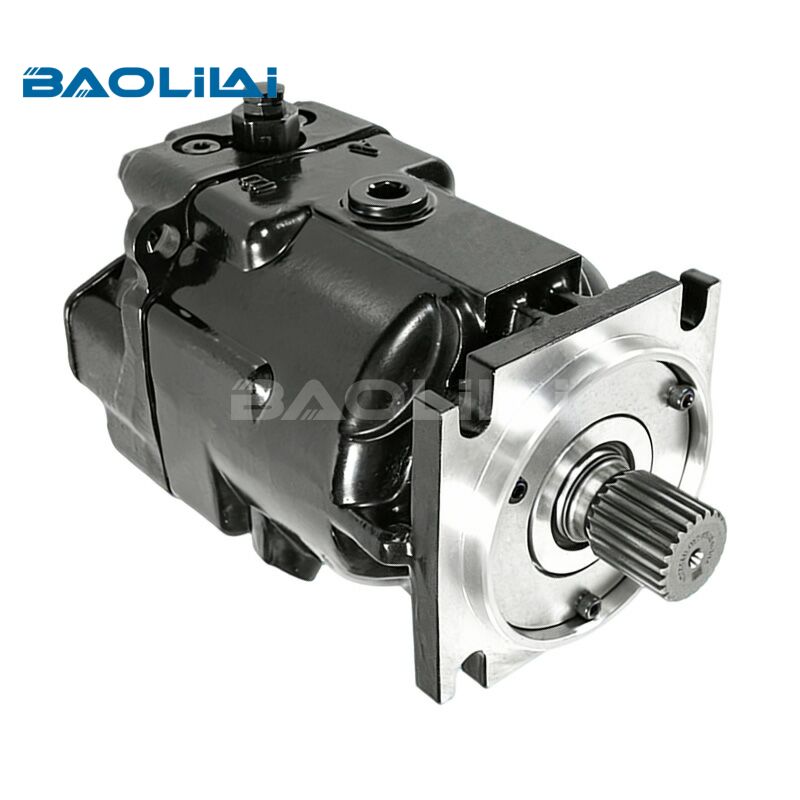

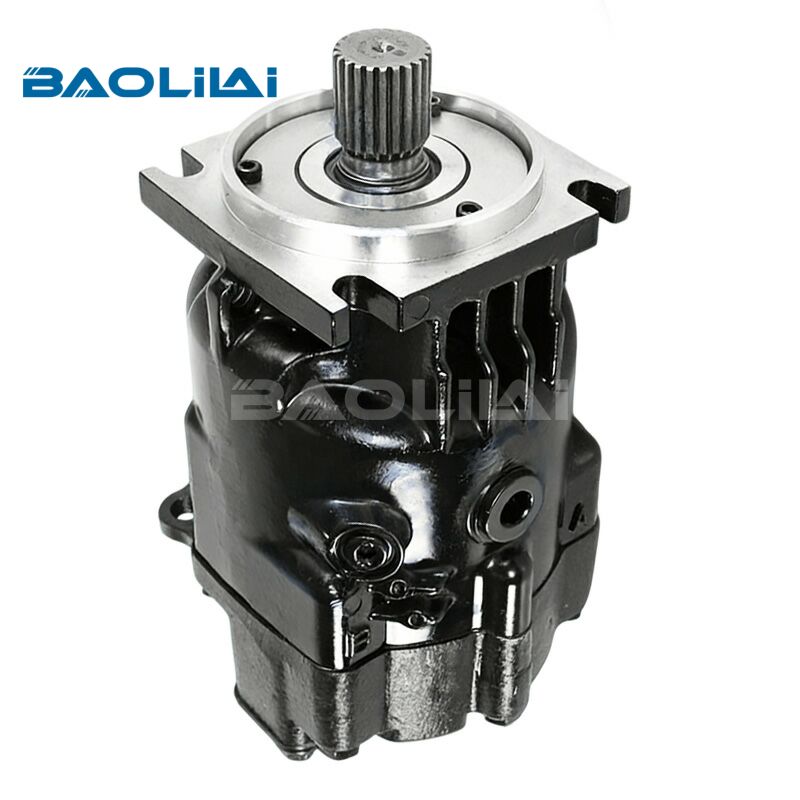

Sauer danfoss 90K055 90K075 Cartridge-type axial piston hydraulic motor

If you've spent time around mobile hydraulics—wheel loaders, agricultural equipment, forestry machines, or industrial drive systems—you've probably run into the Sauer Danfoss Series 90 family. In that lineup, the 90K055 and 90K075 cartridge-type axial piston motors fill a specific niche: compact, high-performance drive units designed to integrate directly into a gearbox or housing rather than bolt on as a standalone motor.

Series 90 Family Context

Sauer Danfoss (now operating under the Danfoss Power Solutions brand after the 2013 rebrand) built the Series 90 platform as a modular family of axial piston pumps and motors spanning a wide displacement range. The naming convention tells you a lot at a glance:

The "90" prefix identifies the platform generation.

The "K" designation typically signals a cartridge or "kit" configuration rather than a fully housed unit.

The trailing number (055, 075) refers to displacement in cubic centimeters per revolution (cc/rev).

90K055 vs. 90K075: Key Differences

In practice, the choice between the two isn't just "bigger is better." A machine designer picks displacement based on the torque required at the wheel or output shaft, the available pump flow, and the desired top-end travel speed. Oversizing displacement sacrifices speed; undersizing it starves the machine of torque under load.

How the Motor Works Internally

Both models operate on the same fundamental axial piston, bent-axis-free (in-line, swashplate-style) principle common to Series 90 motors:

1. Rotating group: A cylinder block houses pistons arranged parallel to the drive shaft axis.

2. Valve plate: Timed porting directs high-pressure oil into pistons on one side of the block and allows low-pressure return flow on the other.

3. Swashplate: A fixed-angle (in these cartridge configurations, typically fixed displacement) swashplate converts the axial motion of the pistons into rotational torque at the output shaft.

4. Case drain: Internal leakage is routed out through a case drain port, which is critical to monitor — rising case drain flow is often the earliest sign of internal wear.

Because these are cartridge units, the bearings that support radial and thrust loads on the output shaft are often supplied by the housing design rather than built into the motor cartridge itself, which is a key distinction from Sauer Danfoss's fully housed 90-Series motors.

Typical Applications

Cartridge-type motors like the 90K055 and 90K075 show up wherever an engineer wants hydraulic drive torque without the bulk of a standalone motor. Common examples include:

Compact wheel drives and final drives on skid steers, compact track loaders, and small wheel loaders, where the motor cartridge drops directly into a planetary reduction housing.

Auger and mixer drives on concrete trucks and agricultural equipment, where space inside the drum support structure is limited.

Winch and hoist drives in construction and forestry equipment, integrated into a custom gear reduction unit.

Conveyor and material-handling drives in industrial settings, where the motor is built into a shaft-mounted reducer.

Specification and Selection Considerations

When specifying or cross-referencing a 90K055 or 90K075, an engineer or technician should confirm:

Displacement and configuration (fixed vs. variable — most cartridge units in this family are fixed displacement)

Shaft spline or interface type, since cartridge motors are matched to a specific housing interface

Case drain port size and routing, to ensure adequate drainage capacity for the housing design

Pressure rating, including continuous and intermittent (peak) pressure limits

Direction of rotation and porting configuration

Seal compatibility with the hydraulic fluid in service

Getting any of these wrong at the design stage isn't a minor issue — a mismatched cartridge can lead to inadequate case drainage, premature seal failure, or torque output that doesn't match the machine's duty cycle.

Maintenance and Troubleshooting Notes

Because a cartridge motor lives inside a housing that's often designed and maintained by the OEM (not Danfoss), diagnosing problems requires a slightly different mindset than with a standalone motor:

Rising case drain flow usually points to internal wear in the piston/cylinder block or valve plate — not necessarily a housing problem.

Unusual noise or vibration can originate either in the motor cartridge itself or in the housing's bearing and gear set, so isolating the source matters before ordering parts.

Fluid contamination is a leading cause of premature wear in axial piston designs generally, and cartridge motors are no more forgiving of dirty oil than housed ones.

Housing bore wear over time can allow the cartridge to shift slightly, affecting valve plate timing and accelerating wear — something that wouldn't be a factor with a self-contained motor.

Routine fluid analysis and case drain flow monitoring remain the most cost-effective ways to catch problems before they become catastrophic failures.

For more information on the 90K055 and 90K075 hydraulic motors, please visit https://www.baolilaihydraulic.com/product/.

Specifications

Selection Table

Q1: Are the 90K055 and 90K075 interchangeable?

A1: Not directly. They have different displacements (roughly 55 cc/rev vs. 75 cc/rev), which changes torque and speed characteristics. A housing and gear reduction designed around one displacement generally can't simply be swapped for the other without re-evaluating the whole drive system's torque and speed targets.

Q2: What does the "K" in 90K055 and 90K075 stand for?

A2: It denotes the cartridge (or "kit") configuration of the Series 90 motor platform — a rotating group and valve assembly designed to be installed into a customer-supplied housing, rather than a complete, self-housed motor unit.

Q3: How to purchase a 90K hydraulic motor?

A3: You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4: What is the price and delivery time of the 90K hydraulic motor?

A4: The specific price and delivery time will be provided based on the specific model you provide.
