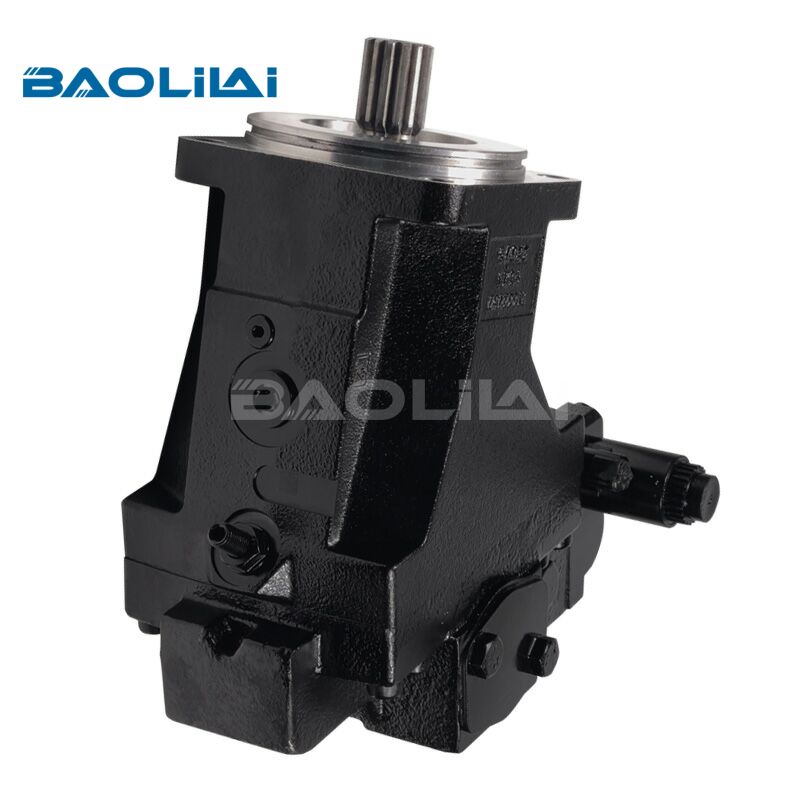

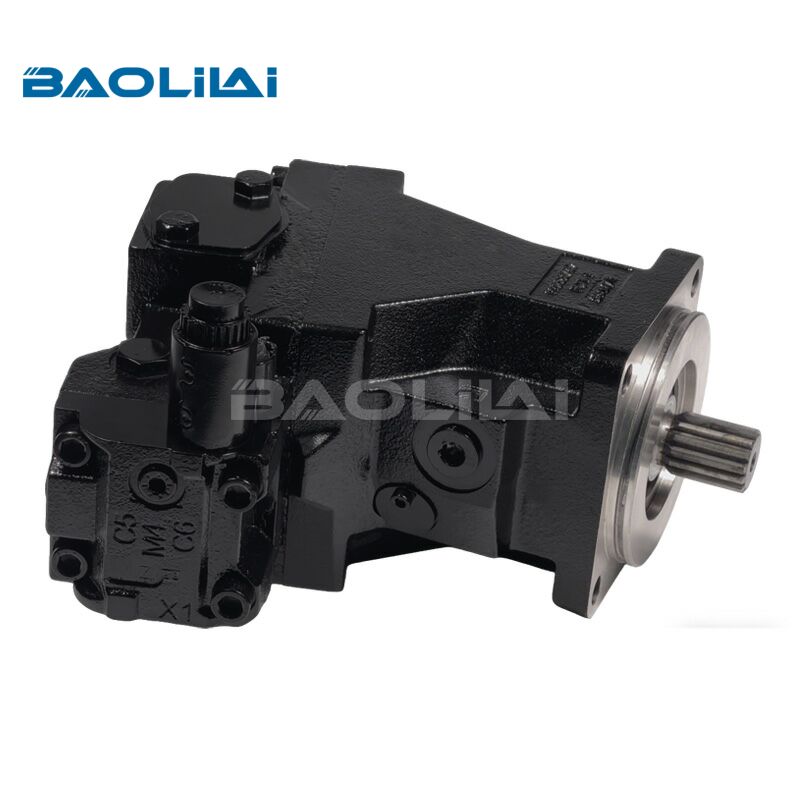

Sauer danfoss H1B210 variable displacement hydraulic motor
SERIES : H1B
BRAND : For Sauer Danfoss
Model Size :H1B210
Displacement : 210cm3/rev
Speed : 1800-6660rpm
Maximum Pressure : 480bar
Nominal Pressure : 200-450bar
Download PDF
- Product Details
- Product Model
- FAQ
The H1B210 is an axial-piston, bent-axis variable displacement motor, a design philosophy long championed by Danfoss for its inherent strength and efficiency. With a maximum displacement of 210 cc/rev, it is strategically positioned, filling the gap between the H1B160 and H1B250 models. This frame size is not just about displacement; it's a complete engineering package designed for optimal performance.
Real-World Applications: Where the H1B210 Excels
The versatility of the H1B210 makes it a prime choice for a wide range of high-power mobile machinery. Its ability to deliver high corner power while leveraging a cost-efficient drop-box transmission makes it particularly attractive.
Typical applications include:
Forestry Equipment: Forwarders, harvesters, and shredders benefit from the motor's high torque output, robust construction, and precise control for navigating challenging terrain.
Agricultural Machinery: Combine harvesters and large tractors rely on the efficiency and anti-slip capabilities of the H1B210 for demanding field operations.
Construction and Material Handling: Wheel loaders, telehandlers (telescopic handlers), dumpers, and crawler tractors utilize this motor for its high power density and reliability in daily, heavy-duty cycles.
In specialized applications, such as grapple winches for log extraction, the motor has demonstrated its durability by delivering high torque while incorporating features like load-holding valves for safety on steep slopes. Its performance in extreme conditions, including cold-start capability at -30°C and compatibility with biodegradable fluids for sustainable forestry, showcases its adaptability.
For more information on the H1B210 hydraulic motor, please visit https://www.baolilaihydraulic.com/product/.
Specifications
| Features | Unit | Size | |||||
| 060 | 080 | 110 | 160 | 250 | |||
| Displacement | Maximum | cm³[in³] | 60 [3.66] | 80 [4.88] | 110 [6.71] | 160 [9.75] | 250 [15.25] |
| Minimum | 12 [0.73] | 16 [0.98] | 22 [1.34] | 32 [1.95] | 50 [3.05] | ||
| Theor. flow at max. displ. | at rated speed | l/min
[US gal/min] |
216 [57] | 256 [68] | 319 [84] | 416 [110] | 550 [145] |
| at max. speed | 270 [71] | 320 [87] | 407 [108] | 526 [139] | 700 [185] | ||
| Theoretical torque at max. displacement | N·m/bar
[lb·in/1000 psi] |
0.96
[583] |
1.27
[777] |
1.75
[1069] |
2.55
[1555] |
3.98
[2426] |
|
| Theor. power at rated speed and max. working pressure (Δp = 450 bar [6527 psi]) | kW
[hp] |
266
[357] |
321
[430] |
396
[531] |
513
[689] |
684
[917] |
|
| Mass moment of inertia of rotating components | kg·m²
[slug·ft²] |
0.0038
[0.0028] |
0.0062
[0.0046] |
0.0108
[0.0080] |
0.0211
[0.0156] |
0.0402
[0.0296] |
|
| SAE | kg [lb] | 29.8 [65.7] | 34.8 [76.7] | 48.8 [107.6] | 61.9 [136.5] | 87.0 [1916.2] | |
| DIN | 28.3 [62.4] | 34.4 [75.8] | 45.0 [99.2] | 59.3 [130.7] | - | ||
| Cartridge | 26.9 [59.3] | 33.0 [72.6] | 41.8 [92.2] | 54.7 [120.6] | - | ||
| Case volume | l [US gal] | 0.9 [0.24] | 1.0 [0.26] | 1.4 [0.37] | 2.7 [0.71] | 4.1 [1.08] | |
| SAE ISO 3019/1 | 127-4 (SAE C) 4-bolt | 152-4 (SAE D) 4-bolt | 165-4 (SAE E) | ||||
| DIN ISO 3019/2, B4 | 125 HL 4-bolt | 140 HL 4-bolt | 160 HL 4-bolt | 180 HL 4-bolt | - | ||
| Cartridge | Pilot Ø160 mm 2-bolt (200 dist.) M16 | Pilot Ø190 mm
2-bolt (224 dist.) M20 |
Pilot Ø200 mm
2-bolt (250 dist.) M20 |
- | |||
Selection Table
| H1B210 hydraulic motor | ||
| Model No. | Model Code | Model Code |
| 83043819 | H1-B-210-A-A-D1-M1-N-A-PA-VS-DS-S-A-20-NP-042-N-16-NNN | H1B210AAD1M1NAPAVSDSSA20NP042N16NNN |
| 83084415 | H1-B-210-A-A-D1-M1-N-A-PA-VS-DS-S-A-20-NP-100-N-20-NNN | H1B210AAD1M1NAPAVSDSSA20NP100N20NNN |
| 83084377 | H1-B-210-A-A-D1-M1-N-A-PA-VS-DS-S-A-30-NP-100-N-30-NNN | H1B210AAD1M1NAPAVSDSSA30NP100N30NNN |
| 83041452 | H1-B-210-AA-D1-M1-NA-PB-VN-DN-NA-20-NP-000-N-16-NNN | H1B210AAD1M1NAPBVNDNNA20NP000N16NNN |
| 83052116 | H1-B-210-A-A-D1-MA-N-B-PB-VS-FS-P-A-20-NP-042-N-30-NNN | H1B210AAD1MANBPBVSFSPA20NP042N30NNN |
| 83093518 | H1-B-210-A-A-D2-M2-N-A-PA-VS-DS-S-B-20-NP-100-N-30-NNN | H1B210AAD2M2NAPAVSDSSB20NP100N30NNN |
| 83055086 | H1-B-210-A-A-D2-M2-N-B-PA-DN-LN-N-A-20-NP-070-N-18-NNN | H1B210AAD2M2NBPADNLNNA20NP070N18NNN |
| 83055087 | H1-B-210-A-A-D2-M2-N-B-PA-DN-LN-N-A-20-NP-140-N-18-NNN | H1B210AAD2M2NBPADNLNNA20NP140N18NNN |
| 83049272 | H1-B-210-A-A-D2-M2-N-B-PA-DS-LS-P-A-30-NP-000-N-30-NNN | H1B210AAD2M2NBPADSLSPA30NP000N30NNN |
| 83049273 | H1-B-210-A-A-D2-M2-N-B-PA-DS-LS-S-A-30-NP-000-N-30-NNN | H1B210AAD2M2NBPADSLSSA30NP000N30NNN |
| 83058025 | H1-B-210-A-A-D2-M2-N-B-PB-VS-DS-S-A-20-NP-094-N-32-NNN | H1B210AAD2M2NBPBVSDSSA20NP094N32NNN |
| 83052764 | H1-B-210-A-A-D2-MA-N-A-PA-DS-LS-P-N-NN-NP-065-N-23-NNN | H1B210AAD2MANAPADSLSPNNNNP065N23NNN |
| 83073071 | H1-B-210-A-A-D2-MA-N-A-PA-DS-LS-S-N-NN-NP-065-N-24-NNN | H1B210AAD2MANAPADSLSSNNNNP065N24NNN |
| 83064697 | H1-B-210-A-A-D2-MA-N-A-PA-VS-FS-B-A-20-NP-070-N-39-N29 | H1B210AAD2MANAPAVSFSBA20NP070N39N29 |
| 83092471 | H1-B-210-A-A-D2-MA-N-A-PB-DS-LS-B-A-20-NP-063-N-20-NNN | H1B210AAD2MANAPBDSLSBA20NP063N20NNN |
| 83062279 | H1-B-210-A-A-D2-MA-N-B-PA-DN-LN-N-A-20-NP-070-N-18-NNN | H1B210AAD2MANBPADNLNNA20NP070N18NNN |
| 83072187 | H1-B-210-A-A-D2-MA-N-B-PA-DN-LN-N-N-NN-NP-000-N-37-NNN | H1B210AAD2MANBPADNLNNNNNNP000N37NNN |
| 83072141 | H1-B-210-A-A-D2-MA-N-B-PA-DN-LN-N-N-NN-NP-049-N-37-NNN | H1B210AAD2MANBPADNLNNNNNNP049N37NNN |
| 83087079 | H1-B-210-A-A-D2-MA-N-B-PA-DS-LS-B-N-NN-NP-060-N-30-NNN | H1B210AAD2MANBPADSLSBNNNNP060N30NNN |
| 83094883 | H1-B-210-A-A-D2-MA-N-B-PA-DS-LS-P-N-NN-NP-070-N-23-NNN | H1B210AAD2MANBPADSLSPNNNNP070N23NNN |
| 83063869 | H1-B-210-A-A-D2-MA-N-B-PA-DS-LS-S-N-NN-NP-065-N-23-NNN | H1B210AAD2MANBPADSLSSNNNNP065N23NNN |
| 83083196 | H1-B-210-A-A-D2-MA-N-B-PA-DS-LS-S-N-NN-NP-070-N-23-NNN | H1B210AAD2MANBPADSLSSNNNNP070N23NNN |
| 83087456 | H1-B-210-A-A-D2-MA-N-B-PB-DS-LS-P-N-NN-NP-070-N-20-NNN | H1B210AAD2MANBPBDSLSPNNNNP070N20NNN |
| 83058460 | H1-B-210-A-A-D2-MA-N-B-PB-VS-FS-B-A-10-NP-105-N-25-NNN | H1B210AAD2MANBPBVSFSBA10NP105N25NNN |
| 83058132 | H1-B-210-A-A-D2-MA-N-B-PB-VS-FS-B-A-10-NP-105-N-30-NNN | H1B210AAD2MANBPBVSFSBA10NP105N30NNN |
| 83078134 | H1-B-210-A-A-D2-MA-N-B-PB-VS-FS-B-A-30-NP-120-N-32-N25 | H1B210AAD2MANBPBVSFSBA30NP120N32N25 |
| 83087124 | H1-B-210-A-A-D2-MA-N-B-PB-VS-LS-P-N-NN-NP-130-N-24-NNN | H1B210AAD2MANBPBVSLSPNNNNP130N24NNN |
| 83082198 | H1-B-210-A-A-DH-MA-A-B-PB-DN-LN-N-A-20-NP-100-N-24-NNN | H1B210AADHMAABPBDNLNNA20NP100N24NNN |
| 83057270 | H1-B-210-A-A-DH-MA-E-B-PB-DN-LN-N-N-NN-NP-105-N-30-NNN | H1B210AADHMAEBPBDNLNNNNNNP105N30NNN |
| 83064234 | H1-B-210-A-A-DH-MA-F-B-PB-VS-FS-P-N-NN-NP-050-D-30-NNN | H1B210AADHMAFBPBVSFSPNNNNP050D30NNN |
| 83063868 | H1-B-210-A-A-DH-MA-I-B-PB-VS-FS-S-N-NN-NP-076-N-23-NNN | H1B210AADHMAIBPBVSFSSNNNNP076N23NNN |
| 83062194 | H1-B-210-A-A-DH-MA-K-B-PA-DN-DN-N-N-NN-NP-130-A-16-NNN | H1B210AADHMAKBPADNDNNNNNNP130A16NNN |
| 83062110 | H1-B-210-A-A-DH-MA-K-B-PA-DN-LN-N-N-NN-NP-132-N-16-NNN | H1B210AADHMAKBPADNLNNNNNNP132N16NNN |
| 83062341 | H1-B-210-A-A-DH-MA-K-B-PA-VN-DN-N-N-NN-NP-130-A-16-NNN | H1B210AADHMAKBPAVNDNNNNNNP130A16NNN |
| 83073833 | H1-B-210-A-A-DH-MA-L-B-PA-VN-DN-N-N-NN-NP-049-N-24-NNN | H1B210AADHMALBPAVNDNNNNNNP049N24NNN |
| 83048276 | H1-B-210-A-A-DH-MA-M-B-PB-DN-FN-N-N-NN-NP-110-N-16-NNN | H1B210AADHMAMBPBDNFNNNNNNP110N16NNN |
| 83069306 | H1-B-210-A-A-DH-MA-P-B-PB-VN-DN-N-N-NN-NP-070-N-20-NNN | H1B210AADHMAPBPBVNDNNNNNNP070N20NNN |
| 83051078 | H1-B-210-A-A-DH-MH-B-B-PB-DS-LS-S-B-20-NP-090-N-25-NNN | H1B210AADHMHBBPBDSLSSB20NP090N25NNN |
| 83043821 | H1-B-210-A-A-E1-AA-N-A-TA-DS-DS-S-A-20-NN-042-Z-00-NNN | H1B210AAE1AANATADSDSSA20NN042Z00NNN |
| 83042843 | H1-B-210-AA-E1-AA-NA-TB-VN-FN-NA-15-NN-042-Z-00-NNN | H1B210AAE1AANATBVNFNNA15NN042Z00NNN |
| 83084899 | H1-B-210-A-A-E2-AA-N-A-TA-DN-LN-N-N-NN-NN-045-Z-00-NNN | H1B210AAE2AANATADNLNNNNNNN045Z00NNN |
| 83055620 | H1-B-210-A-A-E2-AA-N-A-TA-DN-LN-N-N-NN-NN-135-Z-00-NNN | H1B210AAE2AANATADNLNNNNNNN135Z00NNN |
| 83092429 | H1-B-210-A-A-E2-AA-N-A-TA-DS-LS-S-A-15-NN-070-Z-00-NNN | H1B210AAE2AANATADSLSSA15NN070Z00NNN |
| 83086607 | H1-B-210-A-A-E2-AA-N-A-TA-VS-DS-S-A-20-NN-065-Z-00-NNN | H1B210AAE2AANATAVSDSSA20NN065Z00NNN |
| 83076254 | H1-B-210-A-A-E2-AA-N-A-TA-VS-DS-S-A-30-NN-065-Z-00-NNN | H1B210AAE2AANATAVSDSSA30NN065Z00NNN |
| 83075037 | H1-B-210-A-A-E2-AA-N-A-TA-VS-DS-S-A-30-NN-076-Z-00-NNN | H1B210AAE2AANATAVSDSSA30NN076Z00NNN |
| 83084250 | H1-B-210-A-A-E2-AA-N-A-TB-VN-DN-N-B-20-NN-MB0-Q-00-NNN | H1B210AAE2AANATBVNDNNB20NNMB0Q00NNN |
| 83082399 | H1-B-210-A-A-E2-AA-N-B-TB-DN-LN-N-N-NN-NN-070-Z-00-NNN | H1B210AAE2AANBTBDNLNNNNNNN070Z00NNN |
| 83077694 | H1-B-210-A-A-E2-AA-N-B-TB-VN-DN-N-A-15-NN-063-Z-00-NNN | H1B210AAE2AANBTBVNDNNA15NN063Z00NNN |
| 83076783 | H1-B-210-A-A-E2-AA-N-B-TB-VS-DS-S-N-NN-NN-100-Z-00-NNN | H1B210AAE2AANBTBVSDSSNNNNN100Z00NNN |
| 83092143 | H1-B-210-A-A-E2-AA-N-B-TB-VS-FS-P-A-20-NN-085-Z-00-NNN | H1B210AAE2AANBTBVSFSPA20NN085Z00NNN |
| 83042844 | H1-B-210-AA-F1-EA-NA-TB-VN-FN-NA-15-NN-042-Z-00-NNN | H1B210AAF1EANATBVNFNNA15NN042Z00NNN |
| 83054464 | H1-B-210-A-A-HE-HE-N-A-TA-DS-LS-S-N-NN-NN-105-Q-00-NNN | H1B210AAHEHENATADSLSSNNNNN105Q00NNN |
| 83061712 | H1-B-210-A-A-HE-HE-N-A-TB-VN-FN-N-N-NN-NN-065-S-00-NNN | H1B210AAHEHENATBVNFNNNNNNN065S00NNN |
| 83054821 | H1-B-210-A-A-HE-HE-N-A-TB-VS-FS-B-A-30-NN-042-Z-00-NNN | H1B210AAHEHENATBVSFSBA30NN042Z00NNN |
| 83093052 | H1-B-210-A-A-HE-HE-N-B-TA-DN-LN-N-N-NN-NN-125-Z-00-NNN | H1B210AAHEHENBTADNLNNNNNNN125Z00NNN |
| 83067031 | H1-B-210-A-A-HE-HE-N-B-TB-DN-LN-N-B-20-NN-093-Z-00-NNN | H1B210AAHEHENBTBDNLNNB20NN093Z00NNN |
| 83058089 | H1-B-210-A-A-HE-HE-N-B-TB-DN-LN-N-N-NN-NN-105-Z-00-NNN | H1B210AAHEHENBTBDNLNNNNNNN105Z00NNN |
| 83051012 | H1-B-210-A-A-HE-HE-N-B-TB-VN-DN-N-A-20-NN-110-Z-00-NNN | H1B210AAHEHENBTBVNDNNA20NN110Z00NNN |
| 83079733 | H1-B-210-A-A-HE-HE-N-B-TB-VN-FN-N-A-30-NN-142-Z-00-NNN | H1B210AAHEHENBTBVNFNNA30NN142Z00NNN |
| 83057772 | H1-B-210-A-A-HE-HE-N-B-TB-VS-DS-B-B-40-NN-105-Z-00-NNN | H1B210AAHEHENBTBVSDSBB40NN105Z00NNN |
| 83051000 | H1-B-210-A-A-HE-HE-N-B-TB-VS-DS-S-A-20-NN-110-Z-00-NNN | H1B210AAHEHENBTBVSDSSA20NN110Z00NNN |
| 83078714 | H1-B-210-A-A-HE-HE-N-B-TB-VS-FS-P-A-10-NN-100-Z-00-NNN | H1B210AAHEHENBTBVSFSPA10NN100Z00NNN |
| 83050382 | H1-B-210-A-A-HE-HE-N-B-TB-VS-FS-P-A-20-NN-142-S-00-NNN | H1B210AAHEHENBTBVSFSPA20NN142S00NNN |
| 83052670 | H1-B-210-A-A-HE-HE-N-B-TB-VS-FS-S-A-30-NN-142-Z-00-NNN | H1B210AAHEHENBTBVSFSSA30NN142Z00NNN |
| 83092023 | H1-B-210-A-A-HE-HE-N-C-TB-VN-DN-N-A-30-NN-142-Z-00-NNN | H1B210AAHEHENCTBVNDNNA30NN142Z00NNN |
| 83043817 | H1-B-210-A-A-K1-K1-N-A-RA-VS-DS-S-A-20-NP-042-N-30-NNN | H1B210AAK1K1NARAVSDSSA20NP042N30NNN |
| 83041453 | H1-B-210-AA-K1-K1-NA-RB-VN-FN-NA-20-NP-000-N-16-NNN | H1B210AAK1K1NARBVNFNNA20NP000N16NNN |
| 83068556 | H1-B-210-A-A-K1-K1-N-B-RB-DS-LS-B-A-20-NP-042-N-30-NNN | H1B210AAK1K1NBRBDSLSBA20NP042N30NNN |
| 83058571 | H1-B-210-A-A-K2-K2-N-A-RA-DS-DS-S-B-30-NP-047-N-30-NNN | H1B210AAK2K2NARADSDSSB30NP047N30NNN |
| 83091032 | H1-B-210-A-A-K2-K2-N-B-RA-DS-LS-P-N-NN-NP-000-N-26-NNN | H1B210AAK2K2NBRADSLSPNNNNP000N26NNN |
| 83075478 | H1-B-210-A-A-K2-K2-N-B-RA-DS-LS-S-A-30-NP-080-N-30-NNN | H1B210AAK2K2NBRADSLSSA30NP080N30NNN |
| 83075476 | H1-B-210-A-A-K2-K2-N-B-RA-DS-LS-S-A-30-NP-090-N-30-NNN | H1B210AAK2K2NBRADSLSSA30NP090N30NNN |
| 83090915 | H1-B-210-A-A-K2-K2-N-B-RA-VS-DS-S-A-15-NP-049-N-29-NNN | H1B210AAK2K2NBRAVSDSSA15NP049N29NNN |
| 83090872 | H1-B-210-A-A-K2-K2-N-B-RA-VS-DS-S-A-20-NP-049-N-29-NNN | H1B210AAK2K2NBRAVSDSSA20NP049N29NNN |
| 83085417 | H1-B-210-A-A-K2-K2-N-B-RB-DS-LS-B-A-20-NP-042-N-30-NNN | H1B210AAK2K2NBRBDSLSBA20NP042N30NNN |
| 83090378 | H1-B-210-A-A-K2-K2-N-B-RB-DS-LS-S-A-20-NP-042-N-28-NNN | H1B210AAK2K2NBRBDSLSSA20NP042N28NNN |
| 83064919 | H1-B-210-A-A-K2-K2-N-B-RB-VS-DS-S-A-15-NP-000-N-28-NNN | H1B210AAK2K2NBRBVSDSSA15NP000N28NNN |
| 83086963 | H1-B-210-A-A-K2-KA-N-A-RA-DN-LN-N-A-20-NP-070-N-22-NNN | H1B210AAK2KANARADNLNNA20NP070N22NNN |
| 83076492 | H1-B-210-A-A-K2-KA-N-B-RA-DN-FN-N-A-20-NP-120-N-28-NNN | H1B210AAK2KANBRADNFNNA20NP120N28NNN |
| 83048619 | H1-B-210-A-A-L1-BA-N-A-PA-VS-DS-S-A-30-NP-062-N-00-NNN | H1B210AAL1BANAPAVSDSSA30NP062N00NNN |
| 83048574 | H1-B-210-A-A-L1-BA-N-A-PA-VS-FS-S-B-50-NP-050-N-00-NNN | H1B210AAL1BANAPAVSFSSB50NP050N00NNN |
| 83041450 | H1-B-210-A-A-L1-BA-N-A-PB-DN-LN-N-A-20-NP-000-N-00-NNN | H1B210AAL1BANAPBDNLNNA20NP000N00NNN |
| 83095177 | H1-B-210-A-A-L1-BA-N-A-PB-VS-FS-S-A-20-NP-MB0-N-00-NNN | H1B210AAL1BANAPBVSFSSA20NPMB0N00NNN |
| 83062230 | H1-B-210-A-A-L1-BA-N-B-PA-DW-LS-S-A-20-NP-042-N-00-NNN | H1B210AAL1BANBPADWLSSA20NP042N00NNN |
| 83077956 | H1-B-210-A-A-L1-BA-N-B-PB-DS-LS-S-A-20-NP-045-N-00-NNN | H1B210AAL1BANBPBDSLSSA20NP045N00NNN |
| 83058953 | H1-B-210-A-A-L1-BA-N-B-PB-DW-LS-S-A-20-NP-042-N-00-NNN | H1B210AAL1BANBPBDWLSSA20NP042N00NNN |
| 83085595 | H1-B-210-A-A-L1-BA-N-B-PB-VS-FS-S-A-15-NP-MB0-N-00-NNN | H1B210AAL1BANBPBVSFSSA15NPMB0N00NNN |
| 83086895 | H1-B-210-A-A-L1-BA-N-B-PB-VS-FS-S-A-30-NP-098-N-00-NNN | H1B210AAL1BANBPBVSFSSA30NP098N00NNN |
| 83073696 | H1-B-210-A-A-L1-BA-N-C-PA-VS-FS-S-A-20-NP-MB0-N-00-NNN | H1B210AAL1BANCPAVSFSSA20NPMB0N00NNN |
| 83087423 | H1-B-210-A-A-L2-BA-N-A-PA-DS-LS-B-A-15-NP-050-N-00-NNN | H1B210AAL2BANAPADSLSBA15NP050N00NNN |
| 83060264 | H1-B-210-A-A-L2-BA-N-A-PA-DS-LS-B-A-20-NP-050-N-00-NNN | H1B210AAL2BANAPADSLSBA20NP050N00NNN |
| 83055358 | H1-B-210-A-A-L2-BA-N-A-PA-VN-DN-N-B-40-NP-142-N-00-NNN | H1B210AAL2BANAPAVNDNNB40NP142N00NNN |
| 83090677 | H1-B-210-A-A-L2-BA-N-A-PA-VS-DS-S-A-20-NP-065-N-00-NNN | H1B210AAL2BANAPAVSDSSA20NP065N00NNN |
| 83077439 | H1-B-210-A-A-L2-BA-N-A-PB-DS-LS-B-A-20-NP-080-N-00-NNN | H1B210AAL2BANAPBDSLSBA20NP080N00NNN |
| 83083809 | H1-B-210-A-A-L2-BA-N-A-PB-DS-LS-S-A-20-NP-072-A-00-NNN | H1B210AAL2BANAPBDSLSSA20NP072A00NNN |
| 83094611 | H1-B-210-A-A-L2-BA-N-A-PB-VN-FN-N-A-20-NP-047-N-00-NNN | H1B210AAL2BANAPBVNFNNA20NP047N00NNN |
| 83055925 | H1-B-210-A-A-L2-BA-N-B-PA-DN-LN-N-A-20-NP-050-N-00-NNN | H1B210AAL2BANBPADNLNNA20NP050N00NNN |
| 83049103 | H1-B-210-A-A-L2-BA-N-B-PA-DN-LN-N-A-30-NP-000-N-00-NNN | H1B210AAL2BANBPADNLNNA30NP000N00NNN |
| 83078740 | H1-B-210-A-A-L2-BA-N-B-PA-DS-LS-B-A-20-NP-MB0-N-00-NNN | H1B210AAL2BANBPADSLSBA20NPMB0N00NNN |
| 83045275 | H1-B-210-A-A-L2-BA-N-B-PA-DS-LS-S-A-20-NP-050-N-00-NNN | H1B210AAL2BANBPADSLSSA20NP050N00NNN |
| 83049104 | H1-B-210-A-A-L2-BA-N-B-PA-DS-LS-S-A-30-NP-000-N-00-NNN | H1B210AAL2BANBPADSLSSA30NP000N00NNN |
| 83075480 | H1-B-210-A-A-L2-BA-N-B-PA-DS-LS-S-A-30-NP-080-N-00-NNN | H1B210AAL2BANBPADSLSSA30NP080N00NNN |
| 83075481 | H1-B-210-A-A-L2-BA-N-B-PA-DS-LS-S-A-30-NP-090-N-00-NNN | H1B210AAL2BANBPADSLSSA30NP090N00NNN |
| 83083689 | H1-B-210-A-A-L2-BA-N-B-PA-VN-FN-N-N-NN-NP-070-N-00-NNN | H1B210AAL2BANBPAVNFNNNNNNP070N00NNN |
| 83067341 | H1-B-210-A-A-L2-BA-N-B-PA-VS-DS-B-A-10-NP-090-N-00-NNN | H1B210AAL2BANBPAVSDSBA10NP090N00NNN |
| 83067832 | H1-B-210-A-A-L2-BA-N-B-PA-VS-DS-P-A-30-NP-100-N-00-NNN | H1B210AAL2BANBPAVSDSPA30NP100N00NNN |
| 83089998 | H1-B-210-A-A-L2-BA-N-B-PA-VS-DS-S-B-20-NP-078-N-00-NNN | H1B210AAL2BANBPAVSDSSB20NP078N00NNN |
| 83093291 | H1-B-210-A-A-L2-BA-N-B-PA-VS-DS-S-N-NN-NP-112-N-00-NNN | H1B210AAL2BANBPAVSDSSNNNNP112N00NNN |
| 83084205 | H1-B-210-A-A-L2-BA-N-B-PA-VS-FS-S-N-NN-NP-MB0-N-00-NNN | H1B210AAL2BANBPAVSFSSNNNNPMB0N00NNN |
| 83063476 | H1-B-210-A-A-L2-BA-N-B-PB-DN-LN-N-B-20-NP-000-N-00-NNN | H1B210AAL2BANBPBDNLNNB20NP000N00NNN |
| 83063814 | H1-B-210-A-A-L2-BA-N-B-PB-DS-LS-S-A-20-NP-000-N-00-NNN | H1B210AAL2BANBPBDSLSSA20NP000N00NNN |
| 83064351 | H1-B-210-A-A-L2-BA-N-B-PB-VS-DS-S-A-20-NP-000-N-00-NNN | H1B210AAL2BANBPBVSDSSA20NP000N00NNN |
| 83056112 | H1-B-210-A-A-L2-BA-N-B-PB-VS-DS-S-A-30-NP-042-N-00-NNN | H1B210AAL2BANBPBVSDSSA30NP042N00NNN |
| 83064373 | H1-B-210-A-A-L2-BA-N-B-PB-VS-DS-S-N-NN-NP-000-N-00-NNN | H1B210AAL2BANBPBVSDSSNNNNP000N00NNN |
| 83065589 | H1-B-210-A-A-L2-BA-N-B-PB-VS-FS-S-B-20-NP-063-N-00-NNN | H1B210AAL2BANBPBVSFSSB20NP063N00NNN |
| 83091781 | H1-B-210-A-A-LH-BA-B-A-PA-DN-LN-N-N-NN-NP-042-N-00-NNN | H1B210AALHBABAPADNLNNNNNNP042N00NNN |
| 83054445 | H1-B-210-A-A-LH-BA-C-C-PB-VS-FS-P-B-30-NP-100-N-00-NNN | H1B210AALHBACCPBVSFSPB30NP100N00NNN |
| 83068610 | H1-B-210-A-A-LH-BA-E-B-PB-DN-LN-N-N-NN-NP-042-N-00-NNN | H1B210AALHBAEBPBDNLNNNNNNP042N00NNN |
| 83063511 | H1-B-210-A-A-LH-BA-E-B-PB-DN-LN-N-N-NN-NP-060-A-00-NNN | H1B210AALHBAEBPBDNLNNNNNNP060A00NNN |
| 83061046 | H1-B-210-A-A-LH-BA-E-B-PB-DN-LN-N-N-NN-NP-070-N-00-NNN | H1B210AALHBAEBPBDNLNNNNNNP070N00NNN |
| 83049701 | H1-B-210-A-A-LH-BA-F-B-PA-VN-FN-N-A-20-NP-042-N-00-NNN | H1B210AALHBAFBPAVNFNNA20NP042N00NNN |
| 83067504 | H1-B-210-A-A-LH-BA-F-B-PB-VS-FS-P-N-NN-NP-050-D-00-NNN | H1B210AALHBAFBPBVSFSPNNNNP050D00NNN |
| 83068849 | H1-B-210-A-A-LH-BA-I-B-PB-DN-LN-N-N-NN-NP-050-A-00-NNN | H1B210AALHBAIBPBDNLNNNNNNP050A00NNN |
| 83064561 | H1-B-210-A-A-M1-CA-N-B-RA-DW-LS-S-A-20-NP-042-N-00-NNN | H1B210AAM1CANBRADWLSSA20NP042N00NNN |
| 83043026 | H1-B-210-A-A-M1-CA-N-B-RA-VS-FS-S-A-20-NP-000-N-00-NNN | H1B210AAM1CANBRAVSFSSA20NP000N00NNN |
| 83043822 | H1-B-210-A-A-M2-CA-N-A-RA-VS-DS-S-A-20-NP-000-N-00-NNN | H1B210AAM2CANARAVSDSSA20NP000N00NNN |
| 83065825 | H1-B-210-A-A-M2-CA-N-A-RB-DN-LN-N-N-NN-NP-000-N-00-NNN | H1B210AAM2CANARBDNLNNNNNNP000N00NNN |
| 83052246 | H1-B-210-A-A-M2-CA-N-A-RB-DS-LS-S-A-10-NP-MB0-N-00-NNN | H1B210AAM2CANARBDSLSSA10NPMB0N00NNN |
| 83059408 | H1-B-210-A-A-M2-CA-N-A-RB-DS-LS-S-A-15-NP-MB0-N-00-NNN | H1B210AAM2CANARBDSLSSA15NPMB0N00NNN |
| 83051726 | H1-B-210-A-A-M2-CA-N-A-RB-DS-LS-S-A-20-NP-000-N-00-NNN | H1B210AAM2CANARBDSLSSA20NP000N00NNN |
| 83076105 | H1-B-210-A-A-M2-CA-N-A-RB-VS-DS-S-A-15-NP-MB0-N-00-NNN | H1B210AAM2CANARBVSDSSA15NPMB0N00NNN |
| 83076220 | H1-B-210-A-A-M2-CA-N-A-RB-VS-DS-S-A-20-NP-MB0-N-00-NNN | H1B210AAM2CANARBVSDSSA20NPMB0N00NNN |
| 83055580 | H1-B-210-A-A-M2-CA-N-B-RA-DN-DN-N-N-NN-NP-000-N-00-NNN | H1B210AAM2CANBRADNDNNNNNNP000N00NNN |
| 83089156 | H1-B-210-A-A-M2-CA-N-B-RA-DS-LS-S-A-30-NP-MB0-N-00-NNN | H1B210AAM2CANBRADSLSSA30NPMB0N00NNN |
| 83078601 | H1-B-210-A-A-M2-CA-N-B-RA-DS-LS-S-N-NN-NP-MB0-N-00-NNN | H1B210AAM2CANBRADSLSSNNNNPMB0N00NNN |
| 83075826 | H1-B-210-A-A-M2-CA-N-B-RA-VS-DS-B-B-10-NP-MB0-N-00-NNN | H1B210AAM2CANBRAVSDSBB10NPMB0N00NNN |
| 83062184 | H1-B-210-A-A-M2-CA-N-B-RB-VN-FN-N-A-20-NP-056-N-00-NNN | H1B210AAM2CANBRBVNFNNA20NP056N00NNN |
| 83090380 | H1-B-210-A-A-M2-CA-N-C-RB-VN-DN-N-A-20-NP-054-N-00-NNN | H1B210AAM2CANCRBVNDNNA20NP054N00NNN |
| 83054712 | H1-B-210-A-A-M2-CA-N-C-RB-VN-DN-N-A-20-NP-137-N-00-NNN | H1B210AAM2CANCRBVNDNNA20NP137N00NNN |
| 83045302 | H1-B-210-AA-NA-NR-NN-PA-VS-FS-PN-NN-NP-042-N-00-0NN | H1B210AANANRNNPAVSFSPNNNNP042N000NN |
| 83045303 | H1-B-210-AA-NA-NR-NN-PB-VS-DS-PN-NN-NP-042-N-00-0NN | H1B210AANANRNNPBVSDSPNNNNP042N000NN |
| 83086089 | H1-B-210-A-A-NB-NT-N-N-TA-VN-DN-N-A-20-NN-MB0-Z-00-NNN | H1B210AANBNTNNTAVNDNNA20NNMB0Z00NNN |
| 83045304 | H1-B-210-AA-NB-NT-NN-TA-VS-FS-PN-NN-NN-042-Z-00-0NN | H1B210AANBNTNNTAVSFSPNNNNN042Z000NN |
| 83082874 | H1-B-210-A-A-NB-NT-N-N-TA-VS-FS-S-A-20-NN-142-Z-00-NNN | H1B210AANBNTNNTAVSFSSA20NN142Z00NNN |
| 83076440 | H1-B-210-A-A-NB-NT-N-N-TB-DN-LN-N-A-15-NN-000-Z-00-NNN | H1B210AANBNTNNTBDNLNNA15NN000Z00NNN |
| 83059019 | H1-B-210-A-A-NB-NT-N-N-TB-DS-LS-S-A-20-NN-000-U-00-NNN | H1B210AANBNTNNTBDSLSSA20NN000U00NNN |
| 83052929 | H1-B-210-A-A-NB-NT-N-N-TB-DS-LS-S-A-20-NN-042-Z-00-NNN | H1B210AANBNTNNTBDSLSSA20NN042Z00NNN |
| 83068224 | H1-B-210-A-A-NB-NT-N-N-TB-VN-DN-N-A-20-NN-000-Z-00-NNN | H1B210AANBNTNNTBVNDNNA20NN000Z00NNN |
| 83068223 | H1-B-210-A-A-NB-NT-N-N-TB-VN-DN-N-A-30-NN-000-Z-00-NNN | H1B210AANBNTNNTBVNDNNA30NN000Z00NNN |
| 83051685 | H1-B-210-A-A-NB-NT-N-N-TB-VN-DN-N-A-30-NN-042-Z-00-NNN | H1B210AANBNTNNTBVNDNNA30NN042Z00NNN |
| 83088852 | H1-B-210-A-A-NB-NT-N-N-TB-VN-DN-N-N-NN-NN-MB0-T-00-0NN | H1B210AANBNTNNTBVNDNNNNNNNMB0T000NN |
| 83087798 | H1-B-210-A-A-NB-NT-N-N-TB-VN-DN-N-N-NN-NN-MB0-T-00-NNN | H1B210AANBNTNNTBVNDNNNNNNNMB0T00NNN |
| 83054451 | H1-B-210-A-A-NB-NT-N-N-TB-VN-FN-N-A-20-NN-142-Z-00-NNN | H1B210AANBNTNNTBVNFNNA20NN142Z00NNN |
| 83045305 | H1-B-210-AA-NB-NT-NN-TB-VS-DS-PN-NN-NN-042-Z-00-0NN | H1B210AANBNTNNTBVSDSPNNNNN042Z000NN |
| 83059329 | H1-B-210-A-A-NB-NT-N-N-TB-VS-DS-S-A-20-NN-000-Z-00-NNN | H1B210AANBNTNNTBVSDSSA20NN000Z00NNN |
| 83093739 | H1-B-210-A-A-NB-NT-N-N-TB-VS-DS-S-A-30-NN-MB0-T-00-NNN | H1B210AANBNTNNTBVSDSSA30NNMB0T00NNN |
| 83042845 | H1-B-210-AA-P1-D1-NA-TB-VN-FN-NA-15-NN-042-Z-24-NNN | H1B210AAP1D1NATBVNFNNA15NN042Z24NNN |
| 83057708 | H1-B-210-A-A-P1-D1-N-B-TA-DS-LS-S-A-20-NN-042-Z-24-NNN | H1B210AAP1D1NBTADSLSSA20NN042Z24NNN |
| 83043808 | H1-B-210-AA-P1-D1-NB-TA-DW-LS-SA-20-NN-045-Z-24-NNN | H1B210AAP1D1NBTADWLSSA20NN045Z24NNN |
| 83060431 | H1-B-210-A-A-P1-D1-N-B-TA-DW-LS-S-A-20-NN-050-Z-24-NNN | H1B210AAP1D1NBTADWLSSA20NN050Z24NNN |
| 83064042 | H1-B-210-A-A-P2-D2-N-B-TA-DW-LS-B-A-20-NN-044-Z-24-NNN | H1B210AAP2D2NBTADWLSBA20NN044Z24NNN |
| 83064253 | H1-B-210-A-A-P2-D2-N-B-TA-DW-LS-S-A-20-NN-044-Z-24-NNN | H1B210AAP2D2NBTADWLSSA20NN044Z24NNN |
| 83090845 | H1-B-210-A-A-P2-D2-N-B-TB-VS-FS-B-A-20-NN-103-Z-24-NNN | H1B210AAP2D2NBTBVSFSBA20NN103Z24NNN |
| 83089379 | H1-B-210-A-A-P2-D2-N-B-TB-VS-FS-S-A-20-NN-103-Z-24-NNN | H1B210AAP2D2NBTBVSFSSA20NN103Z24NNN |
| 83087008 | H1-B-210-A-A-P2-DA-N-A-TB-DN-LN-N-B-20-NN-070-Z-24-NNN | H1B210AAP2DANATBDNLNNB20NN070Z24NNN |
| 83054970 | H1-B-210-A-A-T1-AD-N-C-TB-VS-DS-S-A-20-NN-080-Z-30-NNN | H1B210AAT1ADNCTBVSDSSA20NN080Z30NNN |
| 83091502 | H1-B-210-A-A-T1-D1-N-B-TB-DS-LS-B-A-15-NN-046-S-36-NNN | H1B210AAT1D1NBTBDSLSBA15NN046S36NNN |
| 83091321 | H1-B-210-A-A-T1-D1-N-B-TB-DS-LS-B-A-15-NN-065-R-36-NNN | H1B210AAT1D1NBTBDSLSBA15NN065R36NNN |
| 83076924 | H1-B-210-A-A-T1-D1-N-B-TB-VN-FN-N-B-20-NN-123-Z-24-NNN | H1B210AAT1D1NBTBVNFNNB20NN123Z24NNN |
| 83055618 | H1-B-210-A-A-T1-D1-N-B-TB-VS-FS-S-A-30-NN-042-Z-20-NNN | H1B210AAT1D1NBTBVSFSSA30NN042Z20NNN |
| 83079650 | H1-B-210-A-A-T1-G1-N-B-TB-DS-LS-B-A-15-NN-042-S-36-NNN | H1B210AAT1G1NBTBDSLSBA15NN042S36NNN |
| 83076694 | H1-B-210-A-A-T1-G1-N-B-TB-DS-LS-B-A-20-NN-042-S-30-NNN | H1B210AAT1G1NBTBDSLSBA20NN042S30NNN |
| 83067835 | H1-B-210-A-A-T2-D2-N-A-TB-VS-DS-P-A-30-NN-100-Z-30-NNN | H1B210AAT2D2NATBVSDSPA30NN100Z30NNN |
| 83069249 | H1-B-210-A-A-T2-D2-N-B-TB-VN-DN-N-A-15-NN-063-Z-29-NNN | H1B210AAT2D2NBTBVNDNNA15NN063Z29NNN |
| 83057889 | H1-B-210-A-A-T2-D2-N-B-TB-VN-DN-N-A-20-NN-092-Z-20-NNN | H1B210AAT2D2NBTBVNDNNA20NN092Z20NNN |
| 83086925 | H1-B-210-A-A-T2-D2-N-B-TB-VS-DS-S-A-20-NN-050-Z-20-NNN | H1B210AAT2D2NBTBVSDSSA20NN050Z20NNN |
| 83072162 | H1-B-210-A-A-T2-D2-N-C-TB-VN-DN-N-A-20-NN-138-Z-29-NNN | H1B210AAT2D2NCTBVNDNNA20NN138Z29NNN |
| 83067308 | H1-B-210-A-A-T2-DA-N-A-TA-DN-LN-N-A-30-NN-070-Z-30-NNN | H1B210AAT2DANATADNLNNA30NN070Z30NNN |
| 83058585 | H1-B-210-A-A-T2-DA-N-A-TB-DN-LN-N-A-20-NN-070-Z-22-NNN | H1B210AAT2DANATBDNLNNA20NN070Z22NNN |
| 83093567 | H1-B-210-A-A-T2-DA-N-A-TB-DN-LN-N-A-30-NN-100-Z-18-NNN | H1B210AAT2DANATBDNLNNA30NN100Z18NNN |
| 83081861 | H1-B-210-A-A-T2-DA-N-A-TB-DN-LN-N-B-20-NN-070-Z-22-NNN | H1B210AAT2DANATBDNLNNB20NN070Z22NNN |
| 83063882 | H1-B-210-A-A-T2-DA-N-B-TA-VS-DS-B-B-10-NN-042-Z-30-NNN | H1B210AAT2DANBTAVSDSBB10NN042Z30NNN |
| 83092355 | H1-B-210-A-A-T2-DA-N-B-TB-DS-LS-P-A-20-NN-100-Z-28-N12 | H1B210AAT2DANBTBDSLSPA20NN100Z28N12 |
| 83058133 | H1-B-210-A-A-T2-DA-N-B-TB-VS-FS-B-A-10-NN-105-Z-30-NNN | H1B210AAT2DANBTBVSFSBA10NN105Z30NNN |
| 83065895 | H1-B-210-A-A-TA-DA-N-A-TA-DN-LN-N-A-30-NN-070-Z-30-NNN | H1B210AATADANATADNLNNA30NN070Z30NNN |
| 83078235 | H1-B-210-A-A-TA-DA-N-A-TB-DN-LN-N-A-30-NN-080-Z-29-NNN | H1B210AATADANATBDNLNNA30NN080Z29NNN |
| 83052445 | H1-B-210-A-A-TA-DA-N-A-TB-DN-LN-N-N-NN-NN-044-Q-16-NNN | H1B210AATADANATBDNLNNNNNNN044Q16NNN |
| 83072867 | H1-B-210-A-A-TA-DA-N-B-TA-DS-LS-B-A-30-NN-105-Z-23-NNN | H1B210AATADANBTADSLSBA30NN105Z23NNN |
| 83093272 | H1-B-210-A-A-TA-DA-N-B-TA-VN-FN-N-A-20-NN-100-Z-29-NNN | H1B210AATADANBTAVNFNNA20NN100Z29NNN |
| 83089962 | H1-B-210-A-A-TH-HA-N-A-TA-VN-DN-N-N-NN-NN-142-Z-20-NNN | H1B210AATHHANATAVNDNNNNNNN142Z20NNN |
| 83077388 | H1-B-210-A-M-D2-MA-N-B-PA-DS-LS-S-N-NN-NP-065-N-23-NNN | H1B210AMD2MANBPADSLSSNNNNP065N23NNN |
| 83077347 | H1-B-210-A-M-DH-MA-I-B-PB-VS-FS-S-N-NN-NP-076-N-23-NNN | H1B210AMDHMAIBPBVSFSSNNNNP076N23NNN |
| 83049138 | H1-B-210-A-M-L1-BA-N-A-PA-VS-DS-S-B-40-NP-MB0-N-00-NNN | H1B210AML1BANAPAVSDSSB40NPMB0N00NNN |
| 83046680 | H1-B-210-A-M-L1-BA-N-B-PA-VS-DS-S-B-40-NP-MB0-N-00-NNN | H1B210AML1BANBPAVSDSSB40NPMB0N00NNN |
| 83077818 | H1-B-210-A-M-L2-BA-N-B-PA-DS-LS-P-N-NN-NP-065-N-00-NNN | H1B210AML2BANBPADSLSPNNNNP065N00NNN |
Q1:In what applications is the H1B210 motor commonly used?
A1: The H1B210 hydraulic motor is typically used in demanding mobile and industrial machinery. Common applications include heavy-duty equipment like winches, conveyors, drilling rigs, and various drive systems.
Q2:What control options are available for this motor?
A2: A wide range of controls is offered, including electric proportional displacement control (24V), electric two-position control, and hydraulic proportional control. Pressure compensator and speed sensor options are also available.
Q3:How to purchase an H1B210 hydraulic motor?
A3: You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.
Q4:What is the price and delivery time of the H1B210 hydraulic motor?
A4:The specific price and delivery time will be provided based on the specific model you provide.
