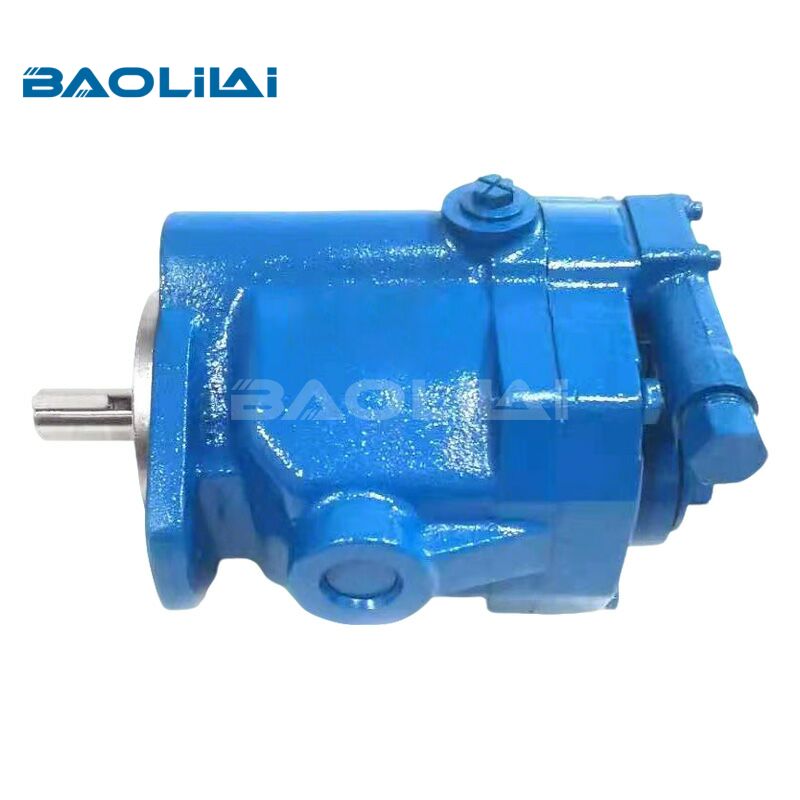

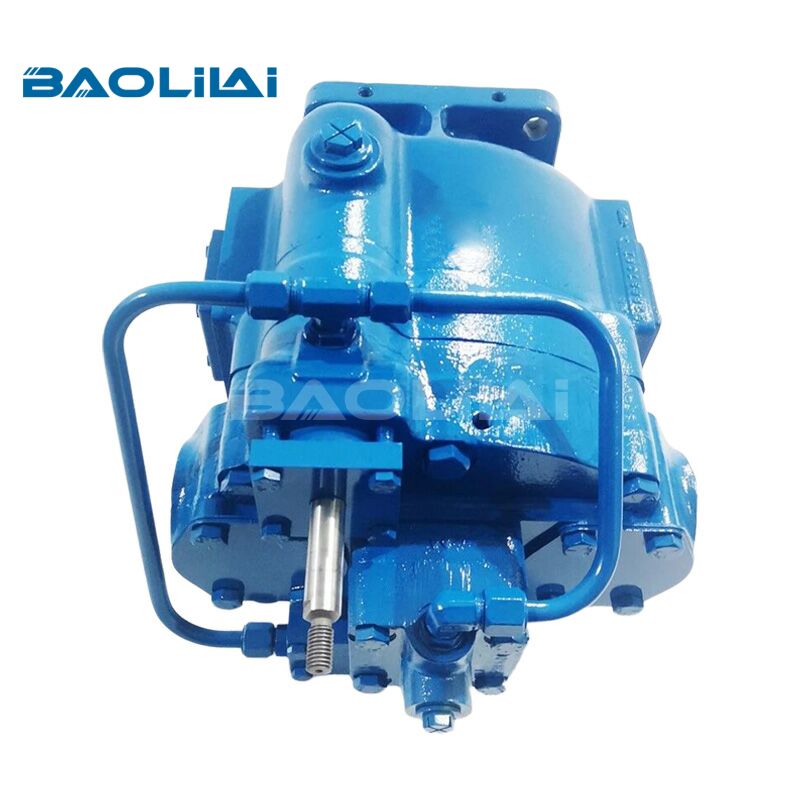

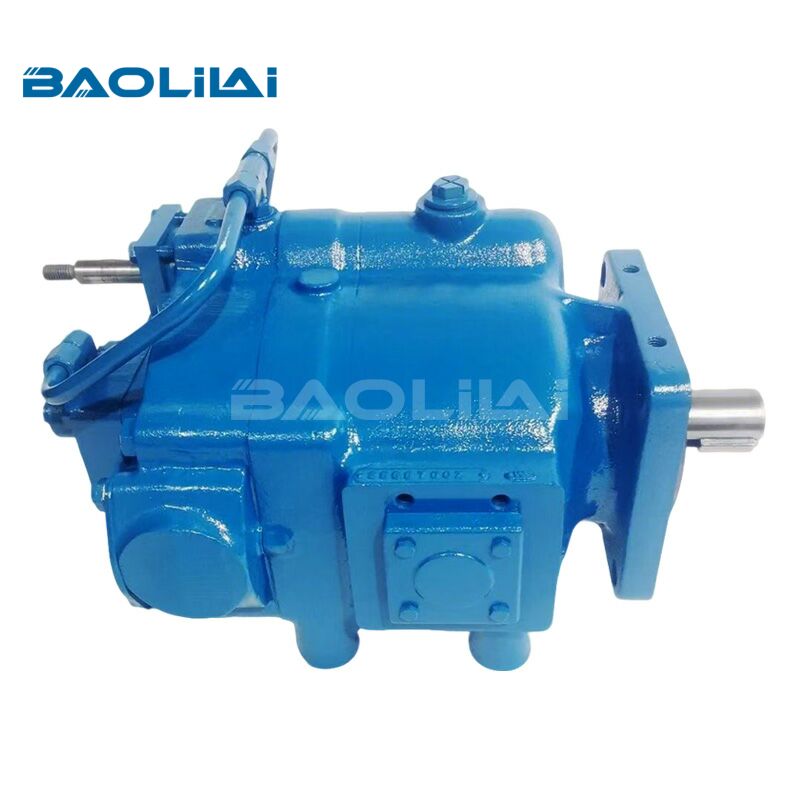

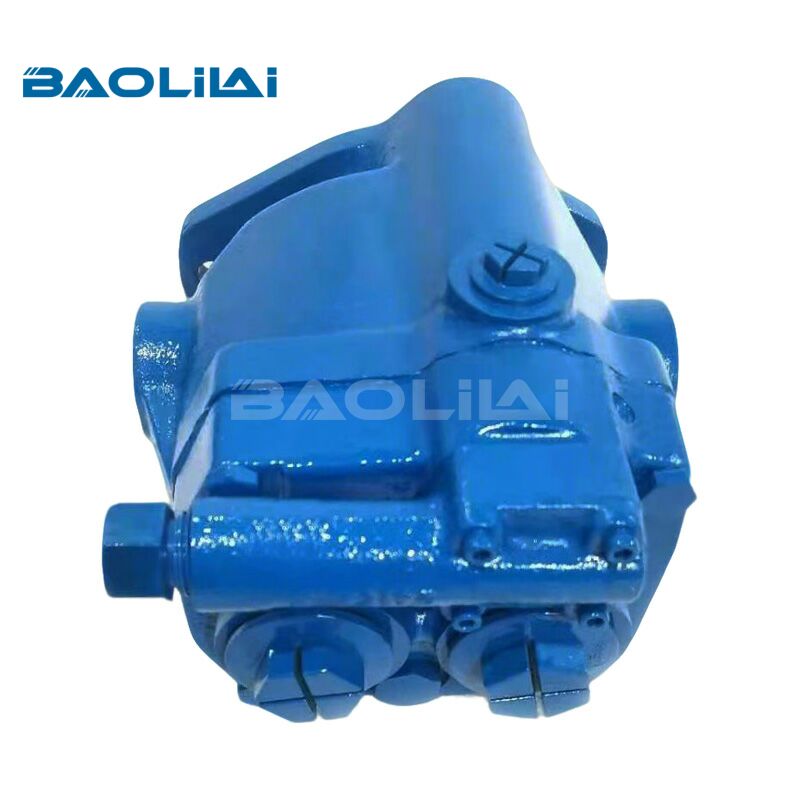

Vickers PVB20 axial piston hydraulic Pump

SERIES : PVB

BRAND : For Vickers

Model Size :PVB20

Displacement : 20cm3/rev

Speed : 500-3600rpm

Maximum Pressure : 210bar

Nominal Pressure : 170-210bar

Download PDF

For more new products, please call us or email us

Product Details
Product Model
FAQ

The Vickers PVB20 is a variable-displacement axial piston pump widely used in industrial hydraulic systems. Its compact design includes a rotating group of pistons arranged in a cylinder block, which reciprocate as the swashplate angle changes, allowing precise control of flow output independent of drive speed. A key advantage is its pressure compensation feature: the swashplate automatically adjusts to maintain the preset system pressure, optimizing efficiency and protecting components. The PVB20 is known for quiet operation, high volumetric efficiency, and durability, typically operating at pressures up to 250–300 bar. It is commonly used in machine tools, plastics machinery, and other demanding applications requiring reliable, variable-flow hydraulic power.

For more information on the PVB20 hydraulic pump, please visit https://www.baolilaihydraulic.com/.

Specifications

Pressure and Speed Limits
Basic model designation	Geometric dispalcement, cm³/r(in³/r)	Maximum shaft speed(r/min)			Maximum outlet pressure, bar(psi)
Basic model designation	Geometric dispalcement, cm³/r(in³/r)	Anti-wear hydraulic oil	Water-in- oil emulsion (40%/60%)	Water- glycol	Anti-wear hydraulic oil	Water glycol	Water-in- oil emulsion (40%/60%)
PFB5	10,55(0.64)	3600	1800	1800	210(3000)	175(2500)	175(2500)
PFB10	21,10(1.29)	3200			210(3000)
PFB20	42,80(2.61)	2400			175(2500)
PVB5	10,55(0.64)	1800	1800	1800	210(3000)	140(2000)	140(2000)
PVB6	13,81(0.84)				140(2000)	100(1500)	100(1500)
PVB10	21,10(1.29)				210(3000)	140(2000)	140 (2000)
PVB15	33,00(2.01)				140(2000)	100(1500)	100(1500)
PVB20	42,80(2.61)				210(3000)	140(2000)	140(2000)
PVB29	61,60(3.76)				140(2000)	100(1500)	100(1500)
PVB45	94,50(5.76)				210(3000)	140(2000)	140(2000)
PVB90	197,50(12.0)	1800	1200	1200	210(3000)	140(2000)	140(2000)

Selection Table

PVB20 axial piston hydraulic pump

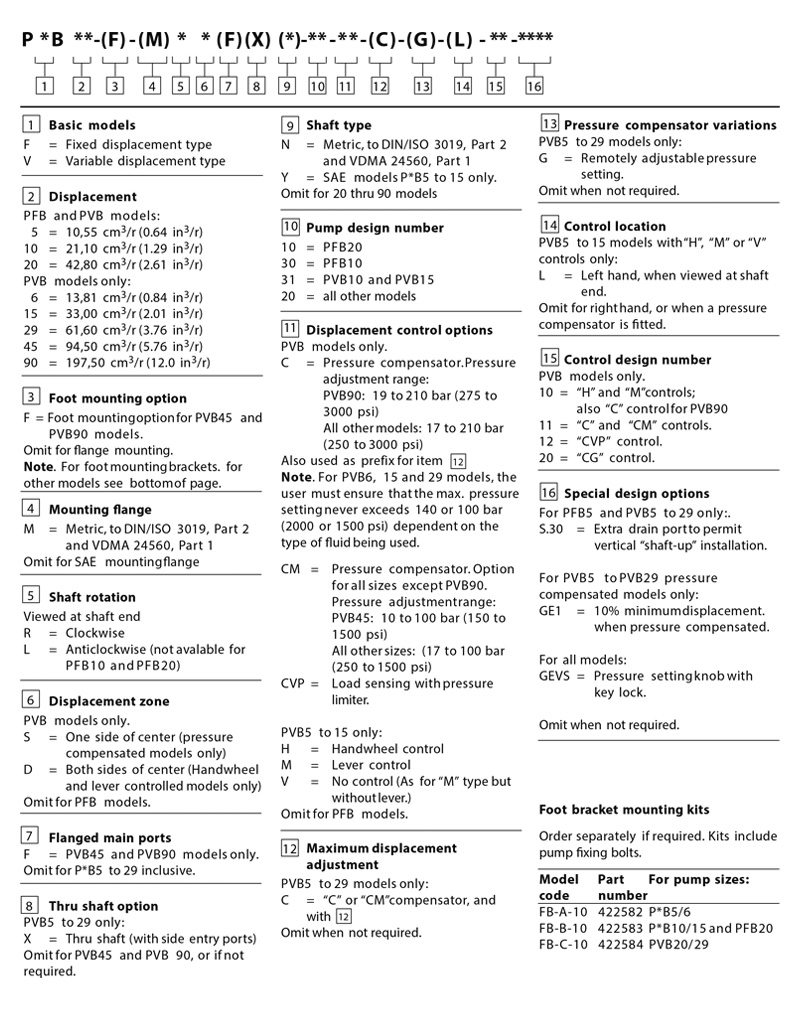

Model Code

PVB20-FLS-LSY-20-C-CC-CG-11-20-JA-PRC

PVB20-FLS-LSY-20-CM-CD-11-20-JA-PRC

PVB20-F-MRSFXN

PVB20-FRS-20-C11

PVB20-FRS-20-C-11

PVB20-FRS-20-C-11-JA

PVB20FRS20CC11

PVB20-FRS-20-CC-11

PVB20-FRS-20-CC-11-JA

PVB20-FRS-20-CCV-10-PRC

PVB20-FRS-20-CM-11-JA

PVB20-FRS-20-CM-11-S30

PVB20-FRS-20-S30-CM-11

PVB20-FRSFX-20-C-11

PVB20-FRS-RSY-20-C-CC-CG-11-20-JA-PRC

PVB20-FRS-RSY-20-CM-CD-11-20-JA-PRC

PVB20-FRSWY-20-CG-12-JA

PVB20-FRSWY-20-CM-11-JA

PVB20-FRSWY-20-CM-12-JA

PVB20-FRSWY-30-CMC-11-JA

PVB20-FRSWY-40-CMC-11-JA

PVB20-FRSWY-41-C-12-JA

PVB20-FRSWY-41-CMC-11-JA

PVB20-FRSWY-41-CMC-12-JA

PVB20-LS-10-CC-11-JA

PVB20LS20C11

PVB20-LS-20-C-11

PVB20-LS-20-C-11-PRC

PVB20-LS-20-CC-11

PVB20-LS-20-C-C-11

PVB20-LS-20-CC-11-JA

PVB20-LS-20-CC-11-PRC

PVB20-LS-20-CM-11

PVB20-LS-31-CC-11-JA

PVB20-LS-32-CMC-11-JA

PVB20-LS-FLSY-20-C-CC-CG-11-20-JA-PRC

PVB20-LS-FLSY-20-CM-CD-11-20-JA-PRC

PVB20-LSG-20-C-11

PVB20-LSG-20-C-11-JA

PVB20-LSW-CMC-11-JA

PVB20-LSY-20-C-11

PVB20-LSY-20-C-11-JA

PVB20-LSY-20-CC-11

PVB20-LSY-20-CC-11-JA

PVB20-RS-10-CM9-10SIG

PVB20-RS-10举报

PVB20-RS-20-C-10-JA

PVB20RS20C11

PVB20-RS-20C-11

PVB20-RS-20-C-11

PVB20-RS-20-C-11-JA

PVB20-RS-20-C-11-PRC

PVB20RS20C11S124

PVB20RS20CC11

PVB20-RS-20CC-11

PVB20-RS-20-CC-11

PVB20-RS-20-CC-11/

PVB20-RS-20-CC-11-JA

PVB20-RS-20-CC-11-PRC

PVB20-RS-20-CCG-11

PVB20RS20CCG20

PVB20-RS-20-CCG-20

PVB20-RS-20-CG-11-PRC

PVB20RS20CG20

PVB20-RS-20-CG-20

PVB20RS20CM11

PVB20-RS-20-CM-11

PVB20-RS-20-CM-11-JA

PVB20RS20CMC11

PVB20-RS-20-CMC-11

PVB20-RS-20-CVP-11

PVB20RS20CVP12

PVB20-RS-20-CVP-12

PVB20-RS-20GMD11

PVB20-RS-22-C-11-PRC

PVB20-RS-22-CC-11-PRC

PVB20-RS-31-C-11

PVB20-RS-31-C-11-JA

PVB20-RS-31-C-11-PRC

PVB20-RS-31-CM-11-JA

PVB20-RS40-CC11

PVB20-RS41-CC11

PVB20-RS-41-CC-12

PVB20RS41CG11

PVB20-RS-CM-11

PVB20-RS-FRSY-20-C-CC-CG-11-20-JA-PRC

PVB20-RS-FRSY-20-CM-CD-11-20-JA-PRC

PVB20-RSFW-22-CMC-11

PVB20RSFX20C11

PVB20-RSFX-20-C-11

PVB20-RSG-20-C-11

PVB20-RSG-20-CC-11

PVB20-RSW-20-C-11-PRC

PVB20-RSW-20-CC-11-PRC

PVB20-RSY-20-C-11

PVB20-RSY-20-C-11-JA

PVB20-RSY-20-C-12-JA

PVB20-RSY-20-CC-11

PVB20-RSY-20-CC-11-JA

PVB20-RSY-20-CC-11-PRC

PVB20-RSY-20-CC-12

PVB20-RSY-20-CCG-11

PVB20-RSY-20-CD-11

PVB20-RSY-20-CD-11-JA

PVB20-RSY-20-CG-11-JA

PVB20-RSY-20-CG-12-JA

PVB20-RSY-20-CM-11

PVB20-RSY-20-CM-11-JA

PVB20-RSY-20-CM-12-JA

PVB20-RSY-21-C-11

PVB20-RSY-21-C-11-JA

PVB20-RSY-22-C-11

PVB20-RSY-22-C-11-JA

PVB20-RSY-30-C-11-JA

PVB20-RSY-30-C-12-JA

PVB20-RSY-31-C-11

PVB20-RSY-31-CG-11-JA

PVB20-RSY-31-CM-11

PVB20-RSY-40-C-11-JA

PVB20-RSY-40-C-12-JA

PVB20-RSY-40-CC-11-JA

PVB20-RSY-40-CC-12-JA

PVB20-RSY-41-C-10

PVB20-RSY-41-C-10-JA

PVB20-RSY-41-C-11-JA

PVB20-RSY-41-C-12-JA

PVB20-RSY-41-CC-11-JA

PVB20-RSY-41-CC-12-JA

PVB20-RSY-41-CG-11-JA

PVB20-RSY-41-CM-11-JA

PVB20-RSY-41-CM-12-JA

PVB20-RSY-C-11

Q1: What is the Vickers PVB20, and what is its primary function?

A1:The Vickers PVB20 is a variable-displacement axial piston hydraulic pump. Its primary function is to convert mechanical power (from a prime mover like an electric motor) into variable hydraulic flow and pressure, providing the core power source for industrial hydraulic systems.

Q2: In what types of applications is the Vickers PVB20 commonly found?

A2: The Vickers PVB20 is commonly found in demanding industrial applications such as machine tools, injection molding machines for plastics, and other industrial machinery that requires reliable, efficient, and controllable hydraulic power.

Q3:How to purchase a PVB20 hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the PVB20 hydraulic pump?

A4:The specific price and delivery time will be provided based on the specific model you provide.A variety of hydraulic solutions are available at https://www.baolilaihydraulic.com/.
