Vickers PVH057 Variable displacement hydraulic Pump
- Product Details
- Product Model
- FAQ

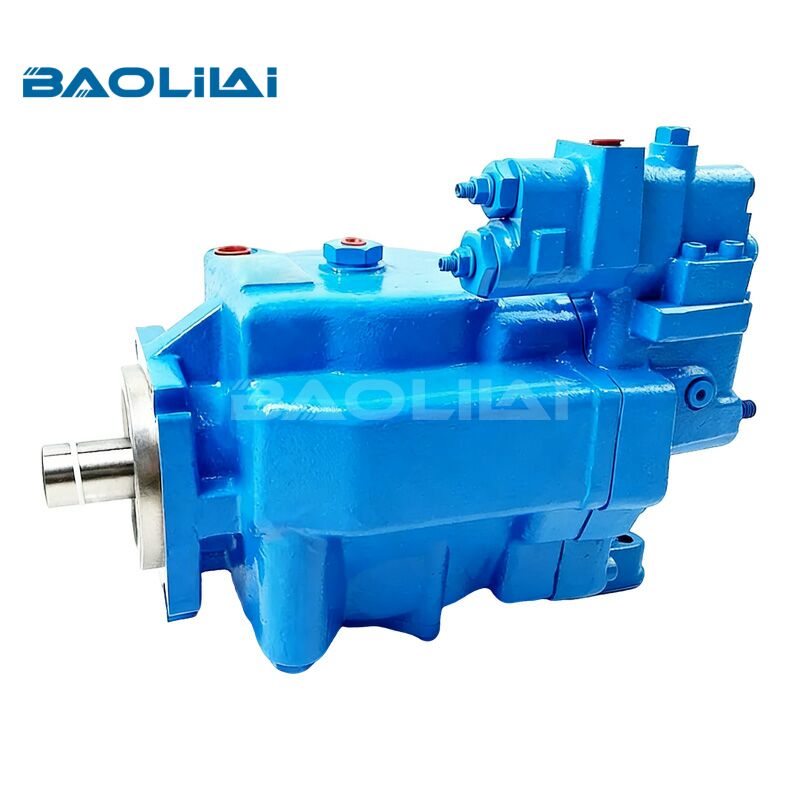

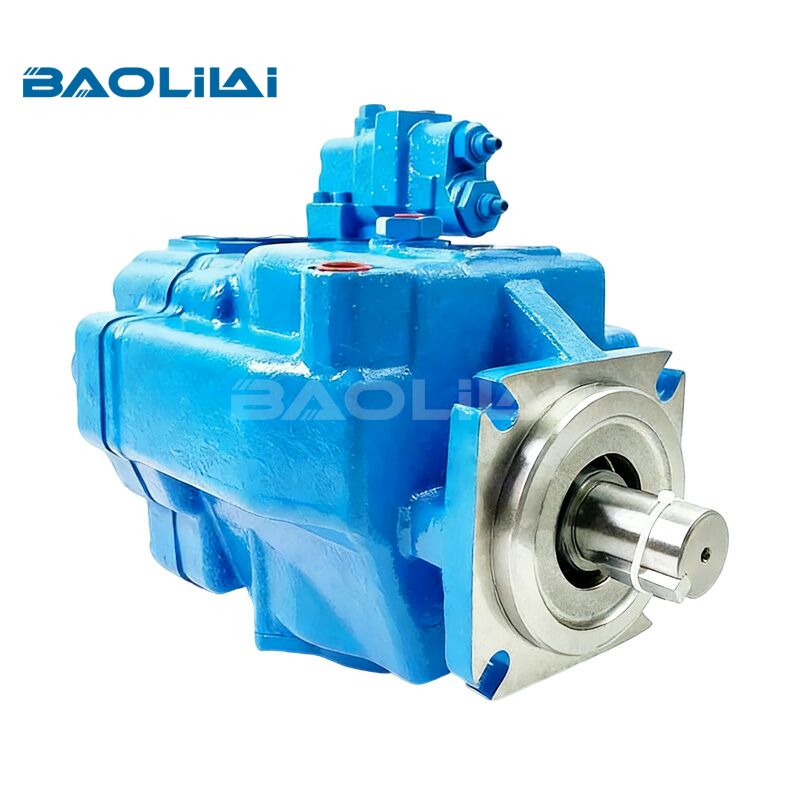

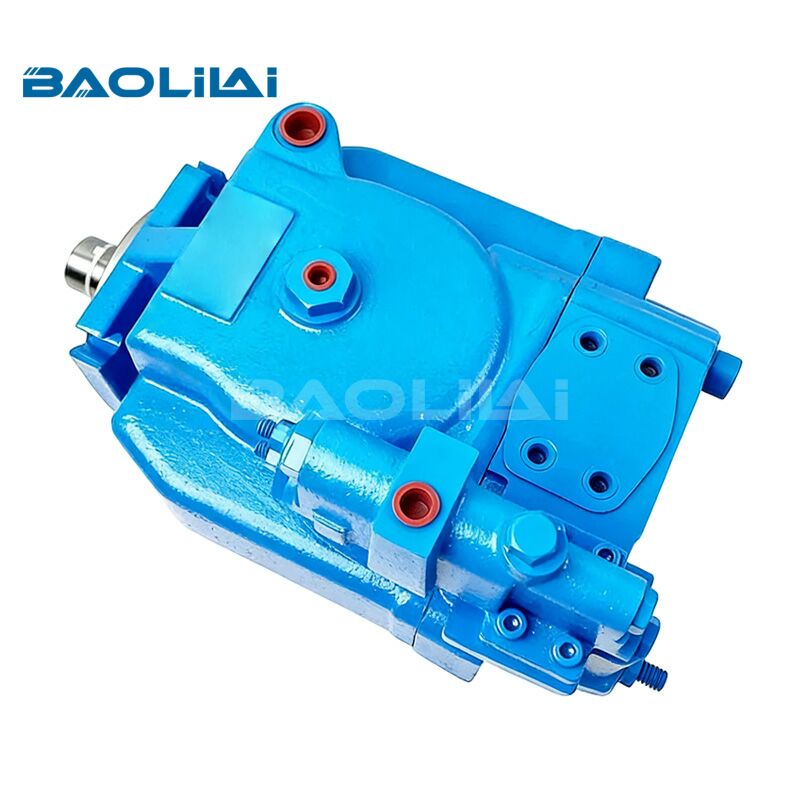

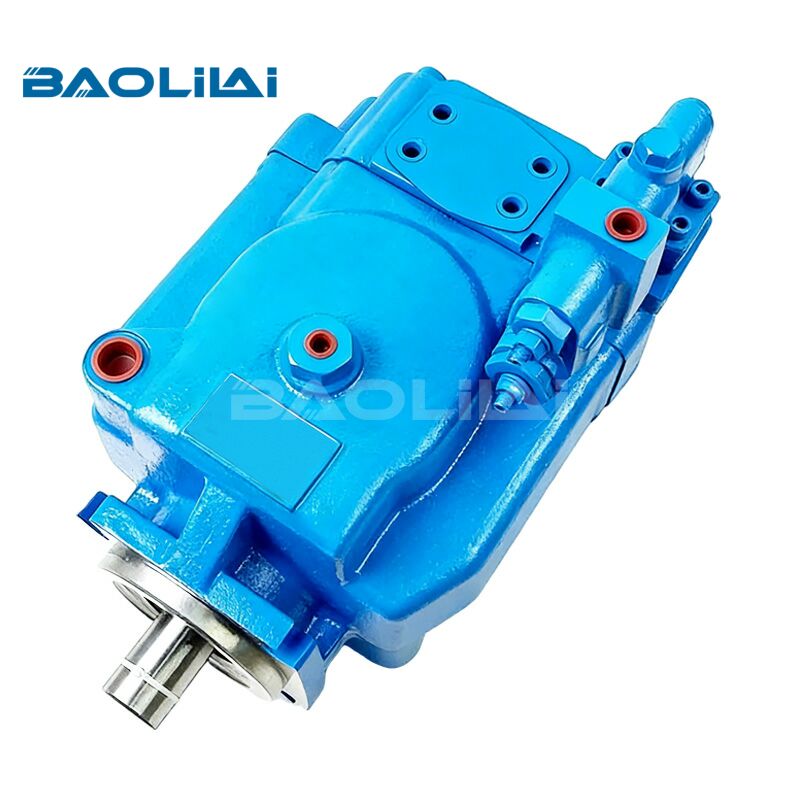

The Vickers PVH057 is a high-performance, variable displacement axial piston pump designed for demanding industrial and mobile hydraulic applications. It uses a swashplate design with hydrostatic balancing, enabling smooth and responsive displacement changes through its integrated pressure compensator, flow compensator, or horsepower control options. The pump operates efficiently at high pressures, with typical continuous ratings up to 350 bar, and at high speeds. Its key strengths include high volumetric and overall efficiency, low noise levels, and excellent durability due to robust construction. The PVH057 is especially valued for its reliable control, compact size-to-power ratio, and versatility in systems requiring precise fluid power management, such as plastic injection molding machines, presses, and construction equipment.
For more information on the PVH057 hydraulic pump, please visit https://www.baolilaihydraulic.com/.
Specifications
| Rated Characteristics of PVH Industrial Pumps* | ||||||||
| Parameters | PVH057 | PVH063 | PVH074 | PVH081 | PVH098 | PVH106 | PVH131 | PVH141 |
| Geometric displacement, max.cm3/r (in3/r) |
57,4 (3.5) |
63,1 (3.85) |
73,7 (4.5) |
81,0 (4.94) |
98,3 (6.0) |
106,5 (6.50) |
131,1 (8.0) |
141,1 (8.60) |
| Rated pressure bar(psi) |
250 (3625)+ |
230 (3300)+ |
250 (3625)+ |
230 (3300)+ |
250 (3625)+ |
230 (3300)+ |
250 (3625)+ |
230 (3300)+ |
| Rated speeds in r/min at various inlet pressures |
||||||||
| 127 mm Hg(5" Hg) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1200 | 1200 |
| Zero inlet pressure | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1500 | 1500 |
| 0,48 bar(7 psi) | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Typical effective flow in l/min(USgpm) Rated Pressure | ||||||||
| at 1500 r/min 83 | 102 (22) |
140 (27) |
186 (37) |
(49) | ||||
| at 1800 r/min | 98(26) | 125(33) | 170(45) | 223(59) | ||||
+ In load sensing systems the compensator can be set at 280 bar(4060 psi).
* Industrial Valve Plates are specified in Pump Special Feature'Q250' or'Q140'
| Ratings of PVH Industrial Pumps with Alternate Fluids | ||||
| Parameters | Petroleum based |
Polyol ester | Water glycol | HWBF(90-10) thickened |
| Max. pressurebar(psi) | 250(3625) | 230(3300) | 172(2500) | 155(2250) |
| Max. speed in r/min at: | ||||
| 1,0 bar abs.(0 psi) | 1800△ | 1800 | 1800 | 1700 |
| 0,85 bar abs.(5" Hg) | 1500□ | 1500 | 1500 | 1500 |
| Max.inlet temp.deg.C(deg.F) | 93(200) | 65(150) | 50(120) | 50(120) |
△1500 rpm for PVH131/141 only.
□1200 rpm for PVH131/141 only.
| Rated Characteristics of PVH Mobile Pumps ◊ | ||||||||
| Parameters | PVH057 | PVH063 | PVH074 | PVH081 | PVH098 | PVH106 | PVH131 | PVH141 |
| Rated speeds in r/min at various inlet pressures |
||||||||
| 127 mm Hg(5" Hg) | 2000 | 2000 | 1850 | 1850 | 1750 | 1750 | 1650 | 1500 |
| Zero inlet pressure | 2400 | 2400 | 2200 | 2200 | 2100 | 2100 | 2000 | 2000 |
| 0,48 bar(7 psi) | 3000 | 3000 | 2750 | 2750 | 2600 | 2600 | 2500 | 2500 |
| Typical effective flow in l/min(USgpm) at 250 bar(3625 psi) |
||||||||
| and rated speed@ | 134 | 146 | 156 | 172 | 202 | 216 | 249 | 272 |
| zero inlet pressure | (35) | (38) | (41) | (45) | (53) | (57) | (66) | (72) |
◊ Displacements& rated pressure are same as for PVH*** industrial pumps.
Selection Table
| PVH057 axial piston hydraulic pump |

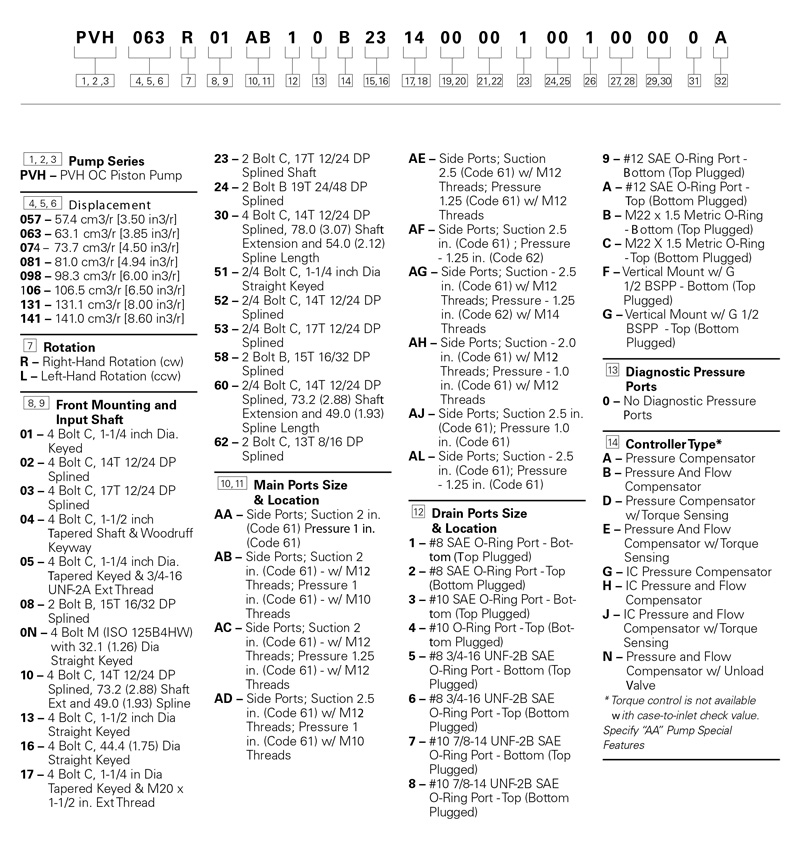

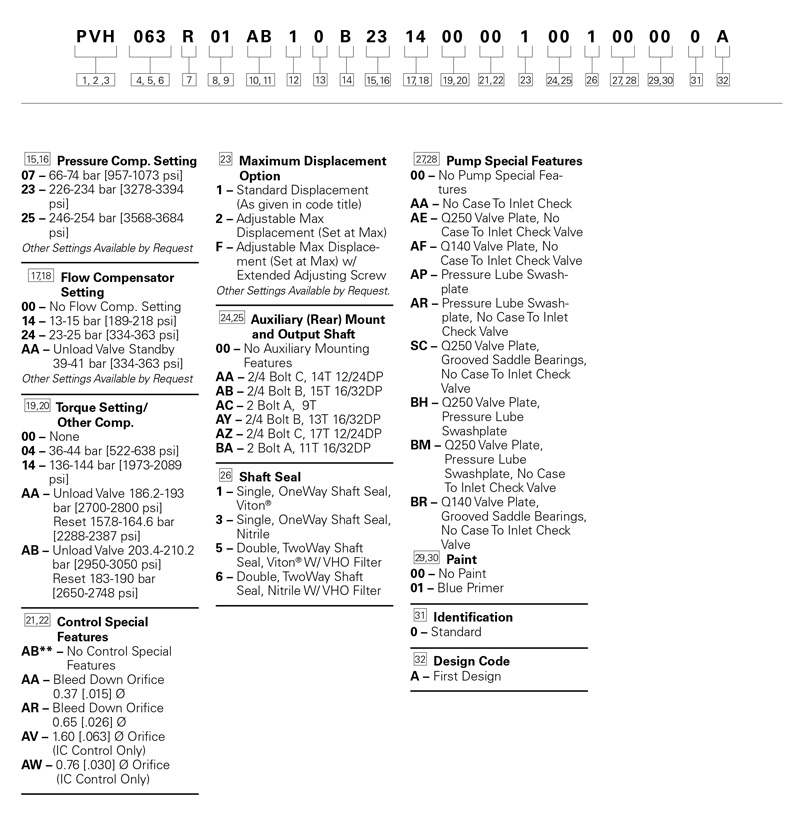

| Model Code |
| PVH057L01AA10A21000000100100010A |
| PVH057L01AA10A2500000020 |
| PVH057L01AA10A25000000200100010A |
| PVH057L01AA10B122000AG1AE100010A |
| PVH057L01AA10B2520000010 |
| PVH057L01AA10B25200000100100010A |
| PVH057L01AA10B252000001AE1AB010A |
| PVH057L02AA10A100000AG100100010A |
| PVH057L02AA10A250000001001AB010A |
| PVH057L02AA10B122000AG1AB100010A |
| PVH057L02AA10B17200000100100010A |
| PVH057L02AA10B172000001AK100010A |
| PVH057L02AA10B182000001001AT010A |
| PVH057L02AA10B212000001A |
| PVH057L02AA10B2520000010 |
| PVH057L02AA10B2520000010010001 |
| PVH057L02AA10B25200000100100010A |
| PVH057L02AA10B252000001001AA010A |
| PVH057L02AA10B252000001001AB010A |
| PVH057L02AA10B252000001A |
| PVH057L02AA10B252000001AE10001 |
| PVH057L02AA10B2520000020 |
| PVH057L02AA10B25200000200100010A |
| PVH057L02AA10B25200000200200010A |
| PVH057L02AA10E252015001001AA010A |
| PVH057L02AB10B212000001AE100010A |
| PVH057L51AA10B25200000200100010A |
| PVH057L52AA10A25000000200100010A |
| PVH057L52AA10B252000001001AB010A |
| PVH057L52AA10B252000001AE100010A |
| PVH057L52AA10H002000AW2001AB010A |
| PVH057QICRSF1S10 |
| PVH057R01AA10A0700000010 |
| PVH057R01AA10A07000000100100010A |
| PVH057R01AA10A070000001001AB010A |
| PVH057R01AA10A070000001001AC010A |
| PVH057R01AA10A070000001001AE010A |
| PVH057R01AA10A070000001A |
| PVH057R01AA10A070000001AE1AB010A |
| PVH057R01AA10A070000001AE1AC010A |
| PVH057R01AA10A0700000020 |
| PVH057R01AA10A070000002001AB010A |
| PVH057R01AA10A070000002001AC010A |
| PVH057R01AA10A1 |
| PVH057R01AA10A120000AG1001AB010A |
| PVH057R01AA10A1400000010 |
| PVH057R01AA10A1400000010010001 |
| PVH057R01AA10A14000000100100010A |
| PVH057R01AA10A140000001001AC010A |
| PVH057R01AA10A140000001AE1AB010A |
| PVH057R01AA10A250000 |
| PVH057R01AA10A2500000010 |
| PVH057R01AA10A25000000100100010A |
| PVH057R01AA10A250000001001AB010A |
| PVH057R01AA10A250000001001AE010A |
| PVH057R01AA10A250000001001AW010A |
| PVH057R01AA10A25000000100200010A |
| PVH057R01AA10A25000000100200010A |
| PVH057R01AA10A250000001A |
| PVH057R01AA10A250000001AE100010A |
| PVH057R01AA10A250000001AE1AB010A |
| PVH057R01AA10A250000001AE1AE010A |
| PVH057R01AA10A250000001AN1AB010A |
| PVH057R01AA10A2500000020 |
| PVH057R01AA10A25000000200100010A |
| PVH057R01AA10A250000002001AB010A |
| PVH057R01AA10A250000002001AE |
| PVH057R01AA10A250000002001AE010A |
| PVH057R01AA10A250000002001AE10A |
| PVH057R01AA10A25000001001AB |
| PVH057R01AA10B142000001AE1AB010A |
| PVH057R01AA10B162000001001AB010A |
| PVH057R01AA10B162000001001AC010A |
| PVH057R01AA10B162000001A |
| PVH057R01AA10B162000001AE1AC010A |
| PVH057R01AA10B162000002001AF010A |
| PVH057R01AA10B2520000010 |
| PVH057R01AA10B25200000100100010A |
| PVH057R01AA10B252000001001AB010A |
| PVH057R01AA10B252000001001AE010A |
| PVH057R01AA10B252000001001AE010A |
| PVH057R01AA10B252000001A |
| PVH057R01AA10B252000001AE100010A |
| PVH057R01AA10B252000001AE1AA010A |
| PVH057R01AA10B252000001AE1AB010A |
| PVH057R01AA10B252000001AN1AB010A |
| PVH057R01AA10B2520000020 |
| PVH057R01AA10B25200000200100010A |
| PVH057R01AA10B252000002001AB01 |
| PVH057R01AA10B252000002001AB010A |
| PVH057R01AA10D2500040010 |
| PVH057R01AA10D250004001001AE010A |
| PVH057R01AA10D250020009001AE010A |
| PVH057R01AA10E2520040010 |
| PVH057R01AA10E252004001001AA010A |
| PVH057R01AA10E252004001001AE010A |
| PVH057R01AA10E252004001AE1AA010A |
| PVH057R01AA10E252004001AE1AE010A |
| PVH057R01AA10E2520080010 |
| PVH057R01AA10E252008001001AE010A |
| PVH057R01AA10E252015001AE1 |
| PVH057R01AA10H002000AW10 |
| PVH057R01AA10H002000AW1001AB010A |
| PVH057R01AA10H002000AW1A |
| PVH057R01AA10H002000AW1AE1AB010A |
| PVH057R01AA10H002000AW20 |
| PVH057R01AA10H002000AW2001AB010A |
| PVH057R01AA10H002000BG1001AB010A |
| PVH057R01AA50A2500000010 |
| PVH057R01AA50A250000001001AB01 |
| PVH057R01AA50A250000001001AB010A |
| PVH057R01AA50A250000001001AB010A |
| PVH057R01AA50A250000001A |
| PVH057R01AA50A250000001AE1AB01 |
| PVH057R01AA50A250000001AE1AB010A |
| PVH057R01AA50B2520000010 |
| PVH057R01AA50B252000001001AB010A |
| PVH057R01AA50B252000001AE100010A |
| PVH057R01AA50B25200000200100010A |
| PVH057R01AA50B252000002001AB010A |
| PVH057R01AA50G002000AW1001AB000A |
| PVH057R01AA50H002000AW1001AB010A |
| PVH057R01AA50H002000AW1001AB010A |
| PVH057R01AB10A070000001001AB010A |
| PVH057R01AB10A2500000010 |
| PVH057R01AB10A250000001001AB010A |
| PVH057R01AB10A250000002001 |
| PVH057R01AB10A250000002001AE010A |
| PVH057R01AB10B161400001AY1AC010A |
| PVH057R01AB10B252000001001AA010A |
| PVH057R01AB10H002000AS1001AB010A |
| PVH057R02AA10A0700000010 |
| PVH057R02AA10A07000000100100010A |
| PVH057R02AA10A070000001001AB010 |
| PVH057R02AA10A070000001001AB010A |
| PVH057R02AA10A070000001001AC010A |
| PVH057R02AA10A15000000010200010A |
| PVH057R02AA10A15000000100200010A |
| PVH057R02AA10A25000000100100010A |
| PVH057R02AA10A250000001001AA010A |
| PVH057R02AA10A250000001001AB010A |
| PVH057R02AA10A250000001001AE010A |
| PVH057R02AA10A25000000200100010A |
| PVH057R02AA10A25000000200100010A |
| PVH057R02AA10A250000002001AB010A |
| PVH057R02AA10B162000001001AC010A |
| PVH057R02AA10B25200000100100010A |
| PVH057R02AA10B252000001001AA010A |
| PVH057R02AA10B252000001001AB010A |
| PVH057R02AA10B252000001001AE010A |
| PVH057R02AA10B252000001001AF010A |
| PVH057R02AA10B25200000100200010A |
| PVH057R02AA10B252000001AE100010A |
| PVH057R02AA10B252000001AE1AB010A |
| PVH057R02AA10B252000001AK1AE010A |
| PVH057R02AA10B252000002001AA010A |
| PVH057R02AA10K25000000100100010A |
| PVH057R51AA10A250000001001AB010A |
| PVH057R51AA10A25000000200100010A |
| PVH057R51AA10A2500000020010001AB010A |
| PVH057R51AA10B252000001AE100010A |
| PVH057R51AA10B252000001AE100010A |
| PVH57C-RAF-2S-10-C11V-31 |
| PVH57CRAF2S10C25V31REF421AK00485A/509A |
| PVH57C-RF-1S-10-C14-31 |
| PVH57C-RF-1S-10-C25-31 |
| PVH57C-RF-1S-10-C25V-31 |
| PVH57C-RF-1S-10-CM7-31 |
| PVH57C-RF-1S-11-C25VT4-31 |
| PVH57C-RF-2S-10-C25-31 |
| PVH57C-RF-2S-10-C25V-31 |
| PVH57C-RF-2S-10-CM7-31 |
| PVH57C-RF-2S-11-C25-31 |
| PVH57C-RF-2S-11-C25V-31 |
| PVH57C-RM-1S-11-C25V-31 |
| PVH57C-RM-2S-11-C25V-31 |
| PVH57C-RSF-1S-10-C25-31 |
| PVH57C-RSF-1S-10-C25-31-027 |
| PVH57C-RSF-1S-10-C25V-31 |
| PVH57C-RSF-2S-10-C25-31 |
| PVH57C-RSF-2S-11-C25V-31 |
| PVH57QIC-LF-2S-10-C25-31 |
| PVH57QIC-LF-2S-10-C25V-31-027 |
| PVH57QIC-RAF-1S-10-IC-31 |
| PVH57QIC-RAF-2S-10-C25V-31 |
| PVH57QIC-RCF-1S-10-C25-31 |
| PVH57QIC-RF-1S-10-C12-31 |
| PVH57QIC-RF-1S-10-C14-31 |
| PVH57QIC-RF-1S-10-C16V-31 |
| PVH57QIC-RF-1S-10-C25-31 |
| PVH57QIC-RF-1S-10-C25-31-027 |
| PVH57QIC-RF-1S-10-C25-31-057 |
| PVH57QIC-RF-1S-10-C25-31-115 |
| PVH57QIC-RF-1S-10-C25V-31 |
| PVH57QIC-RF-1S-10-C25V-31-057 |
| PVH57QIC-RF-1S-10-CM7-31 |
| PVH57QIC-RF-1S-10-IC-31 |
| PVH57QIC-RF-1S-10-IC-31-057 |
| PVH57QIC-RF-1S-11-C13-31 |
| PVH57QIC-RF-1S-11-C25-31 |
| PVH57QIC-RF-1S-11-C25V-31 |
| PVH57QIC-RF-1S-11-CM7-31-CD |
| PVH57QIC-RF-2S-10-C25-31 |
| PVH57QIC-RF-2S-10-C25V-31 |
| PVH57QIC-RF-2S-11-C25-31 |
| PVH57QIC-RF-2S-11-C25V-31 |
| PVH57QIC-RM-1S-10-C25-31 |
| PVH57QIC-RM-1S-10-C25-31-057 |
| PVH57QIC-RM-1S-10-C25V-31 |
| PVH57QIC-RM-1S-10-CM7-31 |
| PVH57QIC-RM-1S-10-IC-31-057 |
| PVH57QIC-RM-1S-11-C25-31 |
| PVH57QICRSF1S10 |
| PVH57QICRSF1S10C25 |
| PVH57QICRSF1S10C25-31 |
| PVH57QIC-RSF-1S10-C25-31 |
| PVH57QIC-RSF-1S-10-C25-31 |
| PVH57QIC-RSF-1S-10-C25V-31 |
| PVH57QIC-RSF-1S-10-CM7-31 |
| PVH57QIC-RSF-1S-11-C25-31 |
| PVH57QIC-RSF-1S-11-C25V-31 |
| PVH57QIC-RSF-2S-10-C25-31 |
| PVH57QIC-RSM-1S-11-C25-31 |
| PVH57QICRSMIS11C2531 |
| PVH57QPC-RF-1S-10-C14-31 |
| PVH57QPC-RF-1S-10-CM7-31 |
| PVH57QPC-RSF-1S-10-CM7-31 |
Q1: In which key applications is the Vickers PVH057 pump commonly utilized?
A1: The PVH057 hydraulic pump is versatile and commonly found in heavy-duty applications. Key examples include plastic injection molding machines, hydraulic presses, and various types of construction equipment, where precise and reliable variable fluid power is essential.
Q2: What is the primary design and control principle of the Vickers PVH057 variable displacement hydraulic pump?
A2: The PVH057 is an axial piston pump with a swashplate design. Its primary principle for variable displacement is the adjustment of the swashplate angle, which is controlled by an integrated compensator. Common control options include pressure compensation, flow compensation, and horsepower control, allowing the pump to automatically adjust its output to meet system demands efficiently.
Q3:How to purchase a PVH057 hydraulic pump?
A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.
Q4:What is the price and delivery time of the PVH057 hydraulic pump?
A4:The specific price and delivery time will be provided based on the specific model you provide.A variety of hydraulic solutions are available at https://www.baolilaihydraulic.com/.
