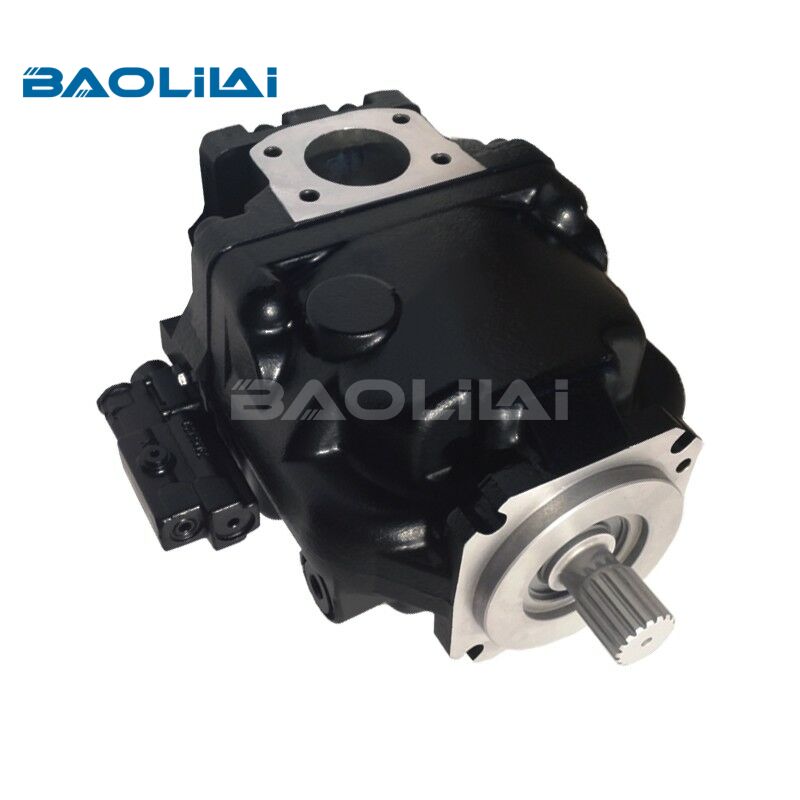

ERL100 axial piston hydraulic pump
ERL100 axial piston hydraulic pump
SERIES : ERL100
BRAND : For Sauer Danfoss
Model Size :
ERL100
Displacement :
100
Speed :
500-2880
Maximum Pressure :
400bar
Nominal Pressure :
310bar
Download PDF
- Product Details
- Product Model
- FAQ
In the realm of hydraulic systems, the ERL100 hydraulic pump stands out as a high-performance, versatile component designed to meet the rigorous demands of both industrial and mobile machinery. As a key member of the ER Series 45 open-circuit variable displacement axial piston pumps, it is engineered to deliver consistent power, exceptional durability, and flexible adaptability across a wide range of applications.
The ERL100 hydraulic pump is meticulously designed to prioritize durability, ease of installation, and low operational noise—key considerations for modern hydraulic systems. One of its standout design features is the use of heavy-duty tapered roller bearings, which enhance wear resistance and extend the pump's service life by effectively distributing loads and reducing friction . The pump also incorporates a one-piece rigid housing, which minimizes internal leakage and reduces vibration, contributing to both improved efficiency and quieter operation .
Adaptability is another cornerstone of the ERL100's design. It offers a wide range of mounting flanges, shaft types, and rear transition covers with couplings, allowing for both standalone installation and multi-pump configurations (tandem mounting) . This flexibility makes it compatible with various machinery layouts, eliminating the need for custom modifications in most cases. Furthermore, the pump is equipped with robust input shaft bearings capable of handling large external loads, ensuring stability even in harsh operating conditions . Its compact design also helps minimize installation space requirements, a critical advantage for mobile equipment where space is at a premium.
Specifications
| E frame | |||||
| Unit | 100B | 130B | 147C | ||
| Maximum Displacement | cm3 [in3] | 100 [6.1] | 130 [7.93] | 147 [8.97] | |
| Working Input speed | Minimum | min−1 [rpm] | 500 | 500 | 500 |
| Continuous | 2450 | 2200 | 2100 | ||
| Maximum | 2880 | 2600 | 2475 | ||
| Working Pressure | Continuous | bar [psi] | 310 [4500] | 310 [4500] | 260 [3770] |
| Maximum | 400 [5800] | 400 [5800] | 350 [5075] | ||
| Flow at rated speed (theoretical) | l/min | 245 | 286 | 309 | |
| US gal/min | 64.7 | 75.6 | 81.6 | ||
| Input torque at maximum displacement (theoretical) at 49∘C (120∘F) | Nm/bar | 1.592 | 2.07 | 2.341 | |
| lbf·in/1000 psi | 972 | 1263.6 | 1428.8 | ||
| Mass moment of inertia of internal rotating components | kg·m2 | 0.0128 | 0.0128 | 0.0128 | |
| slug·ft2 | 0.00944 | 0.00944 | 0.00944 | ||
| Weight | Axial ports | kg [lb] | 52.0 [115.0] | ||
| Radial ports | 56.0 [123.3] | ||||
| External Shaft Loads | External moment (Me) | N·m [lbf·in] | 455 [4027] | 360 [3186] | 396 [3505] |
| Thrust in (Tin), out (Tout) | N [lbf] | 2846 [640] | 1735 [390] | 2113 [475] | |
| Mounting flange load moments | Vibratory (continuous) | N·m [lbf·in] | 1920 [17000] | ||
| Shock (maximum) | 6779 [60000] | ||||
| ERL100 Series Some Models | ||
| Model No. | Model Code | Model Code |
| 83068352 | ER-L-100B-AF-10-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BAF1020NNN3S1CPA1NNNNNNNNNN |
| 83031575 | ER-L-100B-AG-15-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL100BAG1520NNN3S4CPA1NNNNNNNNNN |
| 83003627 | ER-L-100B-AG-21-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BAG2120NNN3S1NPA1NNNNNNNNNN |
| 83049974 | ER-L-100B-AT-17-21-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BAT1721NNN3S1CPA1NNNNNNNNNN |
| 83038143 | ER-L-100B-AT-18-25-NN-E-3-S1NL-A1N-NNN-NNN-NNN | ERL100BAT1825NNE3S1NLA1NNNNNNNNNN |
| 83038212 | ER-L-100B-AT-24-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BAT2420NNN3S1CPA1NNNNNNNNNN |
| 83024556 | ER-L-100B-AT-28-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL100BAT2820NNN3S1NPA1NAAANNNNNN |
| 83024557 | ER-L-100B-AT-28-20-NN-N-3-S4CP-A1N-AAA-NNN-NNN | ERL100BAT2820NNN3S4CPA1NAAANNNNNN |
| 83028260 | ER-L-100B-AY-17-20-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL100BAY1720NNN3S1BPA1NAAANNNNNN |
| 83017261 | ER-L-100B-AY-21-10-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BAY2110NNN3S1NLA1NNNNNNNNNN |
| 7000664 | ER-L-100B-BB-29-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BBB2920NNN3S1NPA1NNNNNNNNNN |
| 83010253 | ER-L-100B-BB-29-20-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL100BBB2920NNN3S2NLA1NNNNNNNNNN |
| 83025793 | ER-L-100B-BB-31-30-NN-N-3-S4NL-A1N-AAA-NNN-NNN | ERL100BBB3130NNN3S4NLA1NAAANNNNNN |
| 83044519 | ER-L-100B-BC-31-NN-NN-N-3-K5BP-A1N-AAA-NNN-NNN | ERL100BBC31NNNNN3K5BPA1NAAANNNNNN |
| 80003586 | ER-L-100B-BC-31-NN-NN-N-3-K5NL-A1N-AAA-NNN-NNN | ERL100BBC31NNNNN3K5NLA1NAAANNNNNN |
| 83028939 | ER-L-100B-BC-31-NN-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL100BBC31NNNNN3S1CPA1NAAANNNNNN |
| 83037605 | ER-L-100B-BC-31-NN-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL100BBC31NNNNN3S1CPA1NAAANNNNNN |
| 83036127 | ER-L-100B-BF-31-10-NN-N-3-S1VP-A1N-NNN-NNN-NNN | ERL100BBF3110NNN3S1VPA1NNNNNNNNNN |
| 83034720 | ER-L-100B-BP-31-20-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL100BBP3120NNN3S1APA1NAAANNNNNN |
| 83037644 | ER-L-100B-BP-31-20-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL100BBP3120NNN3S1APA1NAAANNNNNN |
| 83004586 | ER-L-100B-BP-31-20-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL100BBP3120NNN3S1APA1NNNNNNNNNN |
| 83037532 | ER-L-100B-BP-31-20-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL100BBP3120NNN3S1APA1NNNNNNNNNN |
| 83002058 | ER-L-100B-BP-31-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BBP3120NNN3S1BPA1NNNNNNNNNN |
| 83040783 | ER-L-100B-BP-31-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BBP3120NNN3S1BPA1NNNNNNNNNN |
| 83004585 | ER-L-100B-BP-31-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL100BBP3120NNN3S4CPA1NNNNNNNNNN |
| 83037647 | ER-L-100B-BP-31-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL100BBP3120NNN3S4CPA1NNNNNNNNNN |
| 83003047 | ER-L-100B-BP-31-20-NN-N-3-S4RP-A1N-NNN-NNN-NNN | ERL100BBP3120NNN3S4RPA1NNNNNNNNNN |
| 83046463 | ER-L-100B-BS-29-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BBS2920NNN3S1BPA1NNNNNNNNNN |
| 11110482 | ER-L-100B-BS-29-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL100BBS2920NNN3S1RPA1NAAANNNNNN |
| 83040859 | ER-L-100B-BS-29-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL100BBS2920NNN3S1RPA1NAAANNNNNN |
| 11110470 | ER-L-100B-BS-29-20-NN-N-3-S2CP-A1N-AAA-NNN-NNN | ERL100BBS2920NNN3S2CPA1NAAANNNNNN |
| 83004350 | ER-L-100B-BS-29-21-NN-N-3-S4TP-A1N-AAA-NNN-NNN | ERL100BBS2921NNN3S4TPA1NAAANNNNNN |
| 80005754 | ER-L-100B-BS-30-20-NN-N-3-K5BP-A1N-AAA-NNN-NNN | ERL100BBS3020NNN3K5BPA1NAAANNNNNN |
| 83066997 | ER-L-100B-BS-30-20-NN-N-3-K5CP-A1N-AAA-NNN-NNN | ERL100BBS3020NNN3K5CPA1NAAANNNNNN |
| 80005716 | ER-L-100B-BS-30-20-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL100BBS3020NNN3S1APA1NNNNNNNNNN |
| 83037490 | ER-L-100B-BS-30-20-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL100BBS3020NNN3S1APA1NNNNNNNNNN |
| 80005717 | ER-L-100B-BS-30-20-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL100BBS3020NNN3S1BPA1NAAANNNNNN |
| 83037491 | ER-L-100B-BS-30-20-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL100BBS3020NNN3S1BPA1NAAANNNNNN |
| 83007322 | ER-L-100B-BS-30-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BBS3020NNN3S1BPA1NNNNNNNNNN |
| 83047164 | ER-L-100B-BS-30-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BBS3020NNN3S1BPA1NNNNNNNNNN |
| 702154 | ER-L-100B-BS-30-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL100BBS3020NNN3S1NPA1NAAANNNNNN |
| 83038718 | ER-L-100B-BS-30-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL100BBS3020NNN3S1NPA1NAAANNNNNN |
| 11000297 | ER-L-100B-BS-30-20-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL100BBS3020NNN3S2NLA1NNNNNNNNNN |
| 80003282 | ER-L-100B-BS-30-20-NN-N-3-S2NP-A1N-AAA-NNN-NNN | ERL100BBS3020NNN3S2NPA1NAAANNNNNN |
| 80002952 | ER-L-100B-BS-30-20-NN-N-3-S4AP-A1N-AAA-NNN-NNN | ERL100BBS3020NNN3S4APA1NAAANNNNNN |
| 702537 | ER-L-100B-BS-30-20-NN-N-3-S4BP-A1N-AAA-NNN-NNN | ERL100BBS3020NNN3S4BPA1NAAANNNNNN |
| 83044711 | ER-L-100B-BS-30-20-NN-N-3-S4BP-A1N-NNN-NNN-NNN | ERL100BBS3020NNN3S4BPA1NNNNNNNNNN |
| 7000612 | ER-L-100B-BS-30-20-NN-N-3-S4NP-A1N-NNN-NNN-NNN | ERL100BBS3020NNN3S4NPA1NNNNNNNNNN |
| 80003283 | ER-L-100B-BS-30-20-NN-N-3-S4WP-A1N-AAA-NNN-NNN | ERL100BBS3020NNN3S4WPA1NAAANNNNNN |
| 83001055 | ER-L-100B-BS-30-24-NN-N-3-S1TP-A1N-NNN-NNN-NNN | ERL100BBS3024NNN3S1TPA1NNNNNNNNNN |
| 83053936 | ER-L-100B-BS-30-25-NN-N-3-K5NP-A1N-AAA-NNN-NNN | ERL100BBS3025NNN3K5NPA1NAAANNNNNN |
| 80002901 | ER-L-100B-BS-30-25-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL100BBS3025NNN3S1APA1NNNNNNNNNN |
| 83037725 | ER-L-100B-BS-30-25-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL100BBS3025NNN3S1APA1NNNNNNNNNN |
| 80002922 | ER-L-100B-BS-30-25-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BBS3025NNN3S1BPA1NNNNNNNNNN |
| 83037484 | ER-L-100B-BS-30-25-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BBS3025NNN3S1BPA1NNNNNNNNNN |
| 83015072 | ER-L-100B-BS-30-28-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BBS3028NNN3S1CPA1NNNNNNNNNN |
| 83005368 | ER-L-100B-BS-30-30-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL100BBS3030NNN3S1APA1NAAANNNNNN |
| 83005118 | ER-L-100B-BS-30-30-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL100BBS3030NNN3S4CPA1NNNNNNNNNN |
| 83032735 | ER-L-100B-BS-31-20-NN-E-3-S1NL-A1N-AAA-NNN-NNN | ERL100BBS3120NNE3S1NLA1NAAANNNNNN |
| 83043962 | ER-L-100B-BS-31-20-NN-E-3-S2BP-A1N-AAA-NNN-NNN | ERL100BBS3120NNE3S2BPA1NAAANNNNNN |
| 83012790 | ER-L-100B-BS-31-20-NN-N-3-K5VP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3K5VPA1NNNNNNNNNN |
| 7000670 | ER-L-100B-BS-31-20-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL100BBS3120NNN3S1APA1NAAANNNNNN |
| 83037468 | ER-L-100B-BS-31-20-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL100BBS3120NNN3S1APA1NAAANNNNNN |
| 83050487 | ER-L-100B-BS-31-20-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL100BBS3120NNN3S1BPA1NAAANNNNNN |
| 83054085 | ER-L-100B-BS-31-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S1BPA1NNNNNNNNNN |
| 83028938 | ER-L-100B-BS-31-20-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL100BBS3120NNN3S1CPA1NAAANNNNNN |
| 83037604 | ER-L-100B-BS-31-20-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL100BBS3120NNN3S1CPA1NAAANNNNNN |
| 83014502 | ER-L-100B-BS-31-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S1CPA1NNNNNNNNNN |
| 83001158 | ER-L-100B-BS-31-20-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL100BBS3120NNN3S1NLA1NAAANNNNNN |
| 80005903 | ER-L-100B-BS-31-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL100BBS3120NNN3S1NPA1NAAANNNNNN |
| 83001427 | ER-L-100B-BS-31-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S1NPA1NNNNNNNNNN |
| 83037458 | ER-L-100B-BS-31-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S1NPA1NNNNNNNNNN |
| 83067627 | ER-L-100B-BS-31-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL100BBS3120NNN3S1RPA1NAAANNNNNN |
| 83014182 | ER-L-100B-BS-31-20-NN-N-3-S1RP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S1RPA1NNNNNNNNNN |
| 83054086 | ER-L-100B-BS-31-20-NN-N-3-S1VP-A1N-AAA-NNN-NNN | ERL100BBS3120NNN3S1VPA1NAAANNNNNN |
| 83016873 | ER-L-100B-BS-31-20-NN-N-3-S1VP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S1VPA1NNNNNNNNNN |
| 80002449 | ER-L-100B-BS-31-20-NN-N-3-S2AP-A1N-AAA-NNN-NNN | ERL100BBS3120NNN3S2APA1NAAANNNNNN |
| 80003602 | ER-L-100B-BS-31-20-NN-N-3-S2AP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S2APA1NNNNNNNNNN |
| 83037751 | ER-L-100B-BS-31-20-NN-N-3-S2AP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S2APA1NNNNNNNNNN |
| 80003823 | ER-L-100B-BS-31-20-NN-N-3-S2BP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S2BPA1NNNNNNNNNN |
| 83037754 | ER-L-100B-BS-31-20-NN-N-3-S2BP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S2BPA1NNNNNNNNNN |
| 80002469 | ER-L-100B-BS-31-20-NN-N-3-S2NL-A1N-AAA-NNN-NNN | ERL100BBS3120NNN3S2NLA1NAAANNNNNN |
| 11002734 | ER-L-100B-BS-31-20-NN-N-3-S2NL-A1N-AAA-NNN-NNN | ERL100BBS3120NNN3S2NLA1NAAANNNNNN |
| 83045193 | ER-L-100B-BS-31-20-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S2NLA1NNNNNNNNNN |
| 7000638 | ER-L-100B-BS-31-20-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S2NLA1NNNNNNNNNN |
| 83045437 | ER-L-100B-BS-31-20-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S2NPA1NNNNNNNNNN |
| 83023745 | ER-L-100B-BS-31-20-NN-N-3-S2WP-A1N-AAA-NNN-NNN | ERL100BBS3120NNN3S2WPA1NAAANNNNNN |
| 83001664 | ER-L-100B-BS-31-20-NN-N-3-S4AP-A1N-AAA-NNN-NNN | ERL100BBS3120NNN3S4APA1NAAANNNNNN |
| 83037518 | ER-L-100B-BS-31-20-NN-N-3-S4AP-A1N-AAA-NNN-NNN | ERL100BBS3120NNN3S4APA1NAAANNNNNN |
| 702247 | ER-L-100B-BS-31-20-NN-N-3-S4AP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S4APA1NNNNNNNNNN |
| 80003473 | ER-L-100B-BS-31-20-NN-N-3-S4AP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S4APA1NNNNNNNNNN |
| 80006483 | ER-L-100B-BS-31-20-NN-N-3-S4BP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S4BPA1NNNNNNNNNN |
| 7000625 | ER-L-100B-BS-31-20-NN-N-3-S4CP-A1N-AAA-NNN-NNN | ERL100BBS3120NNN3S4CPA1NAAANNNNNN |
| 83037466 | ER-L-100B-BS-31-20-NN-N-3-S4CP-A1N-AAA-NNN-NNN | ERL100BBS3120NNN3S4CPA1NAAANNNNNN |
| 80003832 | ER-L-100B-BS-31-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S4CPA1NNNNNNNNNN |
| 83037487 | ER-L-100B-BS-31-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S4CPA1NNNNNNNNNN |
| 80005381 | ER-L-100B-BS-31-20-NN-N-3-S4NP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S4NPA1NNNNNNNNNN |
| 83014882 | ER-L-100B-BS-31-20-NN-N-3-S4VP-A1N-AAA-NNN-NNN | ERL100BBS3120NNN3S4VPA1NAAANNNNNN |
| 83015035 | ER-L-100B-BS-31-20-NN-N-3-S4VP-A1N-NNN-NNN-NNN | ERL100BBS3120NNN3S4VPA1NNNNNNNNNN |
| 83006931 | ER-L-100B-BS-31-25-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BBS3125NNN3S1BPA1NNNNNNNNNN |
| 7000672 | ER-L-100B-BS-31-25-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BBS3125NNN3S1CPA1NNNNNNNNNN |
| 83037469 | ER-L-100B-BS-31-25-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BBS3125NNN3S1CPA1NNNNNNNNNN |
| 83006830 | ER-L-100B-BS-31-25-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BBS3125NNN3S1NLA1NNNNNNNNNN |
| 80001927 | ER-L-100B-BS-31-27-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL100BBS3127NNN3S2NLA1NNNNNNNNNN |
| 83045016 | ER-L-100B-BS-31-28-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL100BBS3128NNN3S1NLA1NAAANNNNNN |
| 83014474 | ER-L-100B-BS-31-30-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL100BBS3130NNN3K5NPA1NNNNNNNNNN |
| 83023087 | ER-L-100B-BS-31-30-NN-N-3-S2CP-A1N-NNN-NNN-NNN | ERL100BBS3130NNN3S2CPA1NNNNNNNNNN |
| 7000655 | ER-L-100B-BS-31-32-NN-N-3-S2RP-A1N-AAA-NNN-NNN | ERL100BBS3132NNN3S2RPA1NAAANNNNNN |
| 83047557 | ER-L-100B-CK-10-10-NN-E-3-S1BP-A1N-NNN-NNN-NNN | ERL100BCK1010NNE3S1BPA1NNNNNNNNNN |
| 83041211 | ER-L-100B-CK-28-10-NN-E-3-S1BP-A1N-NNN-NNN-NNN | ERL100BCK2810NNE3S1BPA1NNNNNNNNNN |
| 83041282 | ER-L-100B-CK-28-10-NN-E-3-S1NP-A1N-NNN-NNN-NNN | ERL100BCK2810NNE3S1NPA1NNNNNNNNNN |
| 83040708 | ER-L-100B-FA-20-16-NN-N-3-S4NL-A1N-NNN-NNN-NNN | ERL100BFA2016NNN3S4NLA1NNNNNNNNNN |
| 83019995 | ER-L-100B-FA-20-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BFA2020NNN3S1CPA1NNNNNNNNNN |
| 83019996 | ER-L-100B-FA-20-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BFA2020NNN3S1NPA1NNNNNNNNNN |
| 83033917 | ER-L-100B-FA-24-16-NN-N-3-S4NL-A1N-NNN-NNN-NNN | ERL100BFA2416NNN3S4NLA1NNNNNNNNNN |
| 83033430 | ER-L-100B-FA-24-16-NN-N-3-S4RP-A1N-NNN-NNN-NNN | ERL100BFA2416NNN3S4RPA1NNNNNNNNNN |
| 83023866 | ER-L-100B-FA-24-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BFA2420NNN3S1NLA1NNNNNNNNNN |
| 83042587 | ER-L-100B-FF-21-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BFF2120NNN3S1NPA1NNNNNNNNNN |
| 83024239 | ER-L-100B-FF-24-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BFF2420NNN3S1NLA1NNNNNNNNNN |
| 83031116 | ER-L-100B-FF-25-20-NN-N-3-S1RP-A1N-NNN-NNN-NNN | ERL100BFF2520NNN3S1RPA1NNNNNNNNNN |
| 83031117 | ER-L-100B-FF-25-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL100BFF2520NNN3S4CPA1NNNNNNNNNN |
| 83042588 | ER-L-100B-FF-27-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BFF2720NNN3S1CPA1NNNNNNNNNN |
| 83034861 | ER-L-100B-FG-18-19-NN-F-3-S1NP-A1N-NNN-NNN-NNN | ERL100BFG1819NNF3S1NPA1NNNNNNNNNN |
| 83031122 | ER-L-100B-FG-20-20-NN-F-3-S1CP-A1N-NNN-NNN-NNN | ERL100BFG2020NNF3S1CPA1NNNNNNNNNN |
| 83031123 | ER-L-100B-FG-20-20-NN-F-3-S1NP-A1N-NNN-NNN-NNN | ERL100BFG2020NNF3S1NPA1NNNNNNNNNN |
| 83043079 | ER-L-100B-LB-10-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLB1020NNN3S1NLA1NNNNNNNNNN |
| 80006373 | ER-L-100B-LB-16-24-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLB1624NNN3S1NPA1NNNNNNNNNN |
| 80001673 | ER-L-100B-LB-17-25-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BLB1725NNN3S1BPA1NNNNNNNNNN |
| 80001576 | ER-L-100B-LB-17-25-NN-N-3-S2CP-A1N-NNN-NNN-NNN | ERL100BLB1725NNN3S2CPA1NNNNNNNNNN |
| 83022576 | ER-L-100B-LB-17-28-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL100BLB1728NNN3K5NPA1NNNNNNNNNN |
| 83037104 | ER-L-100B-LB-19-20-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL100BLB1920NNN3K5NPA1NNNNNNNNNN |
| 83038845 | ER-L-100B-LB-19-20-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL100BLB1920NNN3K5NPA1NNNNNNNNNN |
| 80002697 | ER-L-100B-LB-19-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLB1920NNN3S1NPA1NNNNNNNNNN |
| 83039697 | ER-L-100B-LB-20-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BLB2020NNN3S1CPA1NNNNNNNNNN |
| 7000685 | ER-L-100B-LB-21-14-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BLB2114NNN3S1BPA1NNNNNNNNNN |
| 7000539 | ER-L-100B-LB-21-20-NN-N-3-S2AP-A1N-AAA-NNN-NNN | ERL100BLB2120NNN3S2APA1NAAANNNNNN |
| 7000540 | ER-L-100B-LB-21-20-NN-N-3-S2NL-A1N-AAA-NNN-NNN | ERL100BLB2120NNN3S2NLA1NAAANNNNNN |
| 83028235 | ER-L-100B-LB-23-20-NN-N-3-K5NP-A1N-AAA-NNN-NNN | ERL100BLB2320NNN3K5NPA1NAAANNNNNN |
| 83037603 | ER-L-100B-LB-23-20-NN-N-3-K5NP-A1N-AAA-NNN-NNN | ERL100BLB2320NNN3K5NPA1NAAANNNNNN |
| 7000570 | ER-L-100B-LB-25-12-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BLB2512NNN3S1BPA1NNNNNNNNNN |
| 7000569 | ER-L-100B-LB-25-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BLB2520NNN3S1BPA1NNNNNNNNNN |
| 7000599 | ER-L-100B-LB-25-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLB2520NNN3S1NPA1NNNNNNNNNN |
| 83013108 | ER-L-100B-LB-25-30-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLB2530NNN3S1NPA1NNNNNNNNNN |
| 83014294 | ER-L-100B-LB-26-20-NN-N-3-S2BP-A1N-NNN-NNN-NNN | ERL100BLB2620NNN3S2BPA1NNNNNNNNNN |
| 83032273 | ER-L-100B-LB-28-17-NN-F-3-S2BP-A1N-AAA-NNN-NNN | ERL100BLB2817NNF3S2BPA1NAAANNNNNN |
| 83003267 | ER-L-100B-LB-28-24-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL100BLB2824NNN3S1BPA1NAAANNNNNN |
| 83040498 | ER-L-100B-LS-10-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS1020NNN3S1NLA1NNNNNNNNNN |
| 83039842 | ER-L-100B-LS-10-20-NN-N-3-S1RP-A1N-NNN-NNN-NNN | ERL100BLS1020NNN3S1RPA1NNNNNNNNNN |
| 83047537 | ER-L-100B-LS-10-26-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL100BLS1026NNN3S1BPA1NAAANNNNNN |
| 83056189 | ER-L-100B-LS-10-30-NN-N-3-S1VP-A1N-NNN-NNN-NNN | ERL100BLS1030NNN3S1VPA1NNNNNNNNNN |
| 83057622 | ER-L-100B-LS-10-30-NN-N-3-S1VP-A1R-NNN-ANS-NNN | ERL100BLS1030NNN3S1VPA1RNNNANSNNN |
| 83022495 | ER-L-100B-LS-12-20-NN-N-3-K5NP-A1N-AAA-NNN-NNN | ERL100BLS1220NNN3K5NPA1NAAANNNNNN |
| 83033173 | ER-L-100B-LS-12-20-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL100BLS1220NNN3S1APA1NNNNNNNNNN |
| 83016753 | ER-L-100B-LS-14-10-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL100BLS1410NNN3K5NPA1NNNNNNNNNN |
| 83010502 | ER-L-100B-LS-14-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BLS1420NNN3S1BPA1NNNNNNNNNN |
| 83010501 | ER-L-100B-LS-14-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BLS1420NNN3S1CPA1NNNNNNNNNN |
| 83014893 | ER-L-100B-LS-14-20-NN-N-3-S4VP-A1N-NNN-NNN-NNN | ERL100BLS1420NNN3S4VPA1NNNNNNNNNN |
| 83013630 | ER-L-100B-LS-14-24-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL100BLS1424NNN3K5NPA1NNNNNNNNNN |
| 83057277 | ER-L-100B-LS-15-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS1520NNN3S1NLA1NNNNNNNNNN |
| 11191151 | ER-L-100B-LS-15-20-NN-N-3-S2CP-A1N-AAA-NNN-NNN | ERL100BLS1520NNN3S2CPA1NAAANNNNNN |
| 83055093 | ER-L-100B-LS-15-20-NN-N-3-S4NL-A1N-NNN-NNN-NNN | ERL100BLS1520NNN3S4NLA1NNNNNNNNNN |
| 83058499 | ER-L-100B-LS-16-15-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL100BLS1615NNN3S1CPA1NAAANNNNNN |
| 80005669 | ER-L-100B-LS-16-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BLS1620NNN3S1BPA1NNNNNNNNNN |
| 83003226 | ER-L-100B-LS-16-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL100BLS1620NNN3S4CPA1NNNNNNNNNN |
| 7000605 | ER-L-100B-LS-17-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BLS1720NNN3S1CPA1NNNNNNNNNN |
| 83058315 | ER-L-100B-LS-17-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS1720NNN3S1NLA1NNNNNNNNNN |
| 7000604 | ER-L-100B-LS-17-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS1720NNN3S1NPA1NNNNNNNNNN |
| 83017741 | ER-L-100B-LS-17-28-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL100BLS1728NNN3K5NPA1NNNNNNNNNN |
| 83052380 | ER-L-100B-LS-17-28-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BLS1728NNN3S1BPA1NNNNNNNNNN |
| 83011756 | ER-L-100B-LS-17-30-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL100BLS1730NNN3K5NPA1NNNNNNNNNN |
| 83059215 | ER-L-100B-LS-17-30-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL100BLS1730NNN3S1APA1NAAANNNNNN |
| 83030929 | ER-L-100B-LS-17-34-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS1734NNN3S1NPA1NNNNNNNNNN |
| 83041032 | ER-L-100B-LS-18-17-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BLS1817NNN3S1BPA1NNNNNNNNNN |
| 83047705 | ER-L-100B-LS-18-20-NN-N-3-K5NL-A1N-NNN-NNN-NNN | ERL100BLS1820NNN3K5NLA1NNNNNNNNNN |
| 7000646 | ER-L-100B-LS-18-20-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL100BLS1820NNN3K5NPA1NNNNNNNNNN |
| 83008699 | ER-L-100B-LS-18-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BLS1820NNN3S1BPA1NNNNNNNNNN |
| 83037544 | ER-L-100B-LS-18-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BLS1820NNN3S1BPA1NNNNNNNNNN |
| 83011669 | ER-L-100B-LS-18-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BLS1820NNN3S1CPA1NNNNNNNNNN |
| 83040316 | ER-L-100B-LS-18-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BLS1820NNN3S1CPA1NNNNNNNNNN |
| 80005900 | ER-L-100B-LS-18-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS1820NNN3S1NLA1NNNNNNNNNN |
| 83037492 | ER-L-100B-LS-18-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS1820NNN3S1NLA1NNNNNNNNNN |
| 83001422 | ER-L-100B-LS-18-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS1820NNN3S1NPA1NNNNNNNNNN |
| 83037508 | ER-L-100B-LS-18-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS1820NNN3S1NPA1NNNNNNNNNN |
| 11110471 | ER-L-100B-LS-18-20-NN-N-3-S2BP-A1N-AAA-NNN-NNN | ERL100BLS1820NNN3S2BPA1NAAANNNNNN |
| 83037728 | ER-L-100B-LS-18-20-NN-N-3-S2BP-A1N-AAA-NNN-NNN | ERL100BLS1820NNN3S2BPA1NAAANNNNNN |
| 83033567 | ER-L-100B-LS-18-25-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BLS1825NNN3S1CPA1NNNNNNNNNN |
| 83037614 | ER-L-100B-LS-18-25-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BLS1825NNN3S1CPA1NNNNNNNNNN |
| 83047893 | ER-L-100B-LS-18-26-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL100BLS1826NNN3S1BPA1NAAANNNNNN |
| 83003699 | ER-L-100B-LS-19-20-NN-N-3-K5CP-A1N-NNN-NNN-NNN | ERL100BLS1920NNN3K5CPA1NNNNNNNNNN |
| 83042783 | ER-L-100B-LS-19-20-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL100BLS1920NNN3S1APA1NAAANNNNNN |
| 7000548 | ER-L-100B-LS-19-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS1920NNN3S1NPA1NNNNNNNNNN |
| 83041085 | ER-L-100B-LS-19-20-NN-N-3-S4AP-A1N-AAA-NNN-NNN | ERL100BLS1920NNN3S4APA1NAAANNNNNN |
| 83037032 | ER-L-100B-LS-19-32-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS1932NNN3S1NPA1NNNNNNNNNN |
| 83047556 | ER-L-100B-LS-20-16-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS2016NNN3S1NLA1NNNNNNNNNN |
| 83047132 | ER-L-100B-LS-20-16-NN-N-3-S1TP-A1N-NNN-NNN-NNN | ERL100BLS2016NNN3S1TPA1NNNNNNNNNN |
| 7000636 | ER-L-100B-LS-20-20-NN-N-3-K5NP-A1N-AAA-NNN-NNN | ERL100BLS2020NNN3K5NPA1NAAANNNNNN |
| 7000635 | ER-L-100B-LS-20-20-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL100BLS2020NNN3K5NPA1NNNNNNNNNN |
| 80006660 | ER-L-100B-LS-20-20-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL100BLS2020NNN3S1APA1NNNNNNNNNN |
| 83008744 | ER-L-100B-LS-20-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BLS2020NNN3S1BPA1NNNNNNNNNN |
| 701691 | ER-L-100B-LS-20-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BLS2020NNN3S1CPA1NNNNNNNNNN |
| 83016126 | ER-L-100B-LS-20-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BLS2020NNN3S1CPA1NNNNNNNNNN |
| 83017302 | ER-L-100B-LS-20-20-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL100BLS2020NNN3S1NLA1NAAANNNNNN |
| 83019802 | ER-L-100B-LS-20-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS2020NNN3S1NLA1NNNNNNNNNN |
| 83037662 | ER-L-100B-LS-20-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS2020NNN3S1NPA1NNNNNNNNNN |
| 7000595 | ER-L-100B-LS-20-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS2020NNN3S1NPA1NNNNNNNNNN |
| 710-000009 | ER-L-100B-LS-20-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL100BLS2020NNN3S1RPA1NAAANNNNNN |
| 83040861 | ER-L-100B-LS-20-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL100BLS2020NNN3S1RPA1NAAANNNNNN |
| 83067514 | ER-L-100B-LS-20-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL100BLS2020NNN3S1RPA1NAAANNNNNN |
| 83018883 | ER-L-100B-LS-20-20-NN-N-3-S1RP-A1N-NNN-NNN-NNN | ERL100BLS2020NNN3S1RPA1NNNNNNNNNN |
| 83018126 | ER-L-100B-LS-20-20-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL100BLS2020NNN3S2NLA1NNNNNNNNNN |
| 83034744 | ER-L-100B-LS-20-20-NN-N-3-S4CP-A1N-AAA-NNN-NNN | ERL100BLS2020NNN3S4CPA1NAAANNNNNN |
| 7000529 | ER-L-100B-LS-20-21-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL100BLS2021NNN3K5NPA1NNNNNNNNNN |
| 83054171 | ER-L-100B-LS-20-21-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS2021NNN3S1NPA1NNNNNNNNNN |
| 83060931 | ER-L-100B-LS-20-26-NN-N-3-S2BP-A1N-NNN-NNN-NNN | ERL100BLS2026NNN3S2BPA1NNNNNNNNNN |
| 7000560 | ER-L-100B-LS-20-26-NN-N-3-S2BP-A1N-NNN-NNN-NNN | ERL100BLS2026NNN3S2BPA1NNNNNNNNNN |
| 83029447 | ER-L-100B-LS-20-26-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL100BLS2026NNN3S2NPA1NNNNNNNNNN |
| 83029446 | ER-L-100B-LS-20-26-NN-N-3-S2RP-A1N-NNN-NNN-NNN | ERL100BLS2026NNN3S2RPA1NNNNNNNNNN |
| 83047579 | ER-L-100B-LS-20-28-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BLS2028NNN3S1CPA1NNNNNNNNNN |
| 83050768 | ER-L-100B-LS-21-14-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BLS2114NNN3S1BPA1NNNNNNNNNN |
| 83029904 | ER-L-100B-LS-21-14-NN-N-3-S1LP-A1N-NNN-NNN-NNN | ERL100BLS2114NNN3S1LPA1NNNNNNNNNN |
| 83013380 | ER-L-100B-LS-21-15-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS2115NNN3S1NLA1NNNNNNNNNN |
| 83057178 | ER-L-100B-LS-21-20-NN-E-3-S1N1-A1N-NNN-NNN-NNN | ERL100BLS2120NNE3S1N1A1NNNNNNNNNN |
| 83021144 | ER-L-100B-LS-21-20-NN-N-3-K5NL-A1N-NNN-NNN-NNN | ERL100BLS2120NNN3K5NLA1NNNNNNNNNN |
| 11169462 | ER-L-100B-LS-21-20-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL100BLS2120NNN3S1APA1NAAANNNNNN |
| 83020100 | ER-L-100B-LS-21-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BLS2120NNN3S1BPA1NNNNNNNNNN |
| 83014520 | ER-L-100B-LS-21-20-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL100BLS2120NNN3S1CPA1NAAANNNNNN |
| 7000591 | ER-L-100B-LS-21-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BLS2120NNN3S1CPA1NNNNNNNNNN |
| 83037552 | ER-L-100B-LS-21-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS2120NNN3S1NLA1NNNNNNNNNN |
| 83011026 | ER-L-100B-LS-21-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS2120NNN3S1NLA1NNNNNNNNNN |
| 80002047 | ER-L-100B-LS-21-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS2120NNN3S1NLA1NNNNNNNNNN |
| 83013264 | ER-L-100B-LS-21-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS2120NNN3S1NPA1NNNNNNNNNN |
| 83037560 | ER-L-100B-LS-21-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS2120NNN3S1NPA1NNNNNNNNNN |
| 83056528 | ER-L-100B-LS-21-20-NN-N-3-S1VP-A1N-NNN-NNN-NNN | ERL100BLS2120NNN3S1VPA1NNNNNNNNNN |
| 7000680 | ER-L-100B-LS-21-20-NN-N-3-S2BP-A1N-AAA-NNN-NNN | ERL100BLS2120NNN3S2BPA1NAAANNNNNN |
| 83037646 | ER-L-100B-LS-21-20-NN-N-3-S2BP-A1N-AAA-NNN-NNN | ERL100BLS2120NNN3S2BPA1NAAANNNNNN |
| 83044447 | ER-L-100B-LS-21-20-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL100BLS2120NNN3S2NLA1NNNNNNNNNN |
| 83044428 | ER-L-100B-LS-21-20-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL100BLS2120NNN3S2NLA1NNNNNNNNNN |
| 7000511 | ER-L-100B-LS-21-20-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL100BLS2120NNN3S2NPA1NNNNNNNNNN |
| 7000661 | ER-L-100B-LS-21-25-NN-N-3-K5AP-A1N-AAA-NNN-NNN | ERL100BLS2125NNN3K5APA1NAAANNNNNN |
| 80002013 | ER-L-100B-LS-21-25-NN-N-3-K5CP-A1N-AAA-NNN-NNN | ERL100BLS2125NNN3K5CPA1NAAANNNNNN |
| 7000581 | ER-L-100B-LS-21-25-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL100BLS2125NNN3S1APA1NAAANNNNNN |
| 7000544 | ER-L-100B-LS-21-25-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS2125NNN3S1NLA1NNNNNNNNNN |
| 7000573 | ER-L-100B-LS-21-25-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS2125NNN3S1NPA1NNNNNNNNNN |
| 83037462 | ER-L-100B-LS-21-25-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS2125NNN3S1NPA1NNNNNNNNNN |
| 7000574 | ER-L-100B-LS-21-25-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL100BLS2125NNN3S2NPA1NNNNNNNNNN |
| 83055737 | ER-L-100B-LS-22-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS2220NNN3S1NLA1NNNNNNNNNN |
| 83028802 | ER-L-100B-LS-22-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL100BLS2220NNN3S1NPA1NAAANNNNNN |
| 83033620 | ER-L-100B-LS-22-20-NN-N-3-S2BP-A1N-NNN-NNN-NNN | ERL100BLS2220NNN3S2BPA1NNNNNNNNNN |
| 83037615 | ER-L-100B-LS-22-20-NN-N-3-S2BP-A1N-NNN-NNN-NNN | ERL100BLS2220NNN3S2BPA1NNNNNNNNNN |
| 83057728 | ER-L-100B-LS-22-20-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL100BLS2220NNN3S2NLA1NNNNNNNNNN |
| 83010707 | ER-L-100B-LS-22-28-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS2228NNN3S1NPA1NNNNNNNNNN |
| 83037770 | ER-L-100B-LS-22-28-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS2228NNN3S1NPA1NNNNNNNNNN |
| 83024623 | ER-L-100B-LS-23-10-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BLS2310NNN3S1CPA1NNNNNNNNNN |
| 7000665 | ER-L-100B-LS-23-20-NN-N-3-K5CP-A1N-AAA-NNN-NNN | ERL100BLS2320NNN3K5CPA1NAAANNNNNN |
| 710-000032 | ER-L-100B-LS-23-20-NN-N-3-K5NL-A1N-AAA-NNN-NNN | ERL100BLS2320NNN3K5NLA1NAAANNNNNN |
| 83013752 | ER-L-100B-LS-23-20-NN-N-3-K5NP-A1N-AAA-NNN-NNN | ERL100BLS2320NNN3K5NPA1NAAANNNNNN |
| 83037699 | ER-L-100B-LS-23-20-NN-N-3-K5NP-A1N-AAA-NNN-NNN | ERL100BLS2320NNN3K5NPA1NAAANNNNNN |
| 710-000016 | ER-L-100B-LS-23-20-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL100BLS2320NNN3S1APA1NAAANNNNNN |
| 83008679 | ER-L-100B-LS-23-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BLS2320NNN3S1CPA1NNNNNNNNNN |
| 83069471 | ER-L-100B-LS-23-20-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL100BLS2320NNN3S1NLA1NAAANNNNNN |
| 80006664 | ER-L-100B-LS-23-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL100BLS2320NNN3S1NPA1NAAANNNNNN |
| 83047163 | ER-L-100B-LS-23-20-NN-N-3-S2BP-A1N-NNN-NNN-NNN | ERL100BLS2320NNN3S2BPA1NNNNNNNNNN |
| 83010446 | ER-L-100B-LS-23-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL100BLS2320NNN3S4CPA1NNNNNNNNNN |
| 83037548 | ER-L-100B-LS-23-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL100BLS2320NNN3S4CPA1NNNNNNNNNN |
| 83014477 | ER-L-100B-LS-23-24-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL100BLS2324NNN3S1NPA1NAAANNNNNN |
| 80004463 | ER-L-100B-LS-23-25-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL100BLS2325NNN3S2NLA1NNNNNNNNNN |
| 83009760 | ER-L-100B-LS-24-18-NN-N-3-S2NP-A1N-AAA-NNN-NNN | ERL100BLS2418NNN3S2NPA1NAAANNNNNN |
| 83009698 | ER-L-100B-LS-24-20-NN-N-3-K5AP-A1N-NNN-NNN-NNN | ERL100BLS2420NNN3K5APA1NNNNNNNNNN |
| 83057742 | ER-L-100B-LS-24-20-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL100BLS2420NNN3S1BPA1NAAANNNNNN |
| 83048112 | ER-L-100B-LS-24-20-NN-N-3-S1N1-A1N-NNN-NNN-NNN | ERL100BLS2420NNN3S1N1A1NNNNNNNNNN |
| 83046835 | ER-L-100B-LS-24-20-NN-N-3-S1VP-A1N-NNN-NNN-NNN | ERL100BLS2420NNN3S1VPA1NNNNNNNNNN |
| 80001577 | ER-L-100B-LS-24-20-NN-N-3-S4NP-A1N-AAA-NNN-NNN | ERL100BLS2420NNN3S4NPA1NAAANNNNNN |
| 83047162 | ER-L-100B-LS-24-20-NN-N-3-S4NP-A1N-AAA-NNN-NNN | ERL100BLS2420NNN3S4NPA1NAAANNNNNN |
| 83006683 | ER-L-100B-LS-24-22-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS2422NNN3S1NPA1NNNNNNNNNN |
| 7000592 | ER-L-100B-LS-24-24-NN-N-3-S1TP-A1N-NNN-NNN-NNN | ERL100BLS2424NNN3S1TPA1NNNNNNNNNN |
| 80003552 | ER-L-100B-LS-24-30-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL100BLS2430NNN3S2NPA1NNNNNNNNNN |
| 83008150 | ER-L-100B-LS-25-15-NN-N-3-S1VP-A1N-NNN-NNN-NNN | ERL100BLS2515NNN3S1VPA1NNNNNNNNNN |
| 83001810 | ER-L-100B-LS-25-20-NN-N-3-K5AP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3K5APA1NNNNNNNNNN |
| 7000679 | ER-L-100B-LS-25-20-NN-N-3-K5BP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3K5BPA1NAAANNNNNN |
| 83012532 | ER-L-100B-LS-25-20-NN-N-3-K5CP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3K5CPA1NAAANNNNNN |
| 83042875 | ER-L-100B-LS-25-20-NN-N-3-K5CP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3K5CPA1NAAANNNNNN |
| 83001413 | ER-L-100B-LS-25-20-NN-N-3-K5NL-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3K5NLA1NAAANNNNNN |
| 7000516 | ER-L-100B-LS-25-20-NN-N-3-K5NL-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3K5NLA1NNNNNNNNNN |
| 83057372 | ER-L-100B-LS-25-20-NN-N-3-K5NP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3K5NPA1NAAANNNNNN |
| 83019247 | ER-L-100B-LS-25-20-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3K5NPA1NNNNNNNNNN |
| 83001622 | ER-L-100B-LS-25-20-NN-N-3-K5RP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3K5RPA1NAAANNNNNN |
| 83058191 | ER-L-100B-LS-25-20-NN-N-3-K5RP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3K5RPA1NNNNNNNNNN |
| 7000572 | ER-L-100B-LS-25-20-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S1APA1NAAANNNNNN |
| 83037461 | ER-L-100B-LS-25-20-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S1APA1NAAANNNNNN |
| 83060550 | ER-L-100B-LS-25-20-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S1APA1NNNNNNNNNN |
| 83043955 | ER-L-100B-LS-25-20-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S1APA1NNNNNNNNNN |
| 7000629 | ER-L-100B-LS-25-20-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S1BPA1NAAANNNNNN |
| 83042530 | ER-L-100B-LS-25-20-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S1BPA1NAAANNNNNN |
| 83005110 | ER-L-100B-LS-25-20-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S1CPA1NAAANNNNNN |
| 83042529 | ER-L-100B-LS-25-20-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S1CPA1NAAANNNNNN |
| 83009685 | ER-L-100B-LS-25-20-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S1CPA1NNNNNNNNNN |
| 7000523 | ER-L-100B-LS-25-20-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S1NLA1NAAANNNNNN |
| 7000527 | ER-L-100B-LS-25-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S1NLA1NNNNNNNNNN |
| 83037455 | ER-L-100B-LS-25-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S1NLA1NNNNNNNNNN |
| 83001484 | ER-L-100B-LS-25-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S1NPA1NAAANNNNNN |
| 7000650 | ER-L-100B-LS-25-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S1NPA1NNNNNNNNNN |
| 83037467 | ER-L-100B-LS-25-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S1NPA1NNNNNNNNNN |
| 7000525 | ER-L-100B-LS-25-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S1RPA1NAAANNNNNN |
| 83040851 | ER-L-100B-LS-25-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S1RPA1NAAANNNNNN |
| 701285 | ER-L-100B-LS-25-20-NN-N-3-S1RP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S1RPA1NNNNNNNNNN |
| 83051035 | ER-L-100B-LS-25-20-NN-N-3-S1RP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S1RPA1NNNNNNNNNN |
| 83031165 | ER-L-100B-LS-25-20-NN-N-3-S1VP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S1VPA1NAAANNNNNN |
| 83067909 | ER-L-100B-LS-25-20-NN-N-3-S2AP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S2APA1NAAANNNNNN |
| 83004757 | ER-L-100B-LS-25-20-NN-N-3-S2BP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S2BPA1NAAANNNNNN |
| 83037533 | ER-L-100B-LS-25-20-NN-N-3-S2BP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S2BPA1NAAANNNNNN |
| 83032676 | ER-L-100B-LS-25-20-NN-N-3-S2BP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S2BPA1NNNNNNNNNN |
| 83037613 | ER-L-100B-LS-25-20-NN-N-3-S2BP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S2BPA1NNNNNNNNNN |
| 83018888 | ER-L-100B-LS-25-20-NN-N-3-S2CP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S2CPA1NAAANNNNNN |
| 7000564 | ER-L-100B-LS-25-20-NN-N-3-S2CP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S2CPA1NNNNNNNNNN |
| 7000504 | ER-L-100B-LS-25-20-NN-N-3-S2NL-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S2NLA1NAAANNNNNN |
| 83040848 | ER-L-100B-LS-25-20-NN-N-3-S2RP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S2RPA1NAAANNNNNN |
| 7000505 | ER-L-100B-LS-25-20-NN-N-3-S2RP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S2RPA1NAAANNNNNN |
| 83032835 | ER-L-100B-LS-25-20-NN-N-3-S2RP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S2RPA1NNNNNNNNNN |
| 7000515 | ER-L-100B-LS-25-20-NN-N-3-S2VP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S2VPA1NNNNNNNNNN |
| 7000678 | ER-L-100B-LS-25-20-NN-N-3-S2WP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S2WPA1NNNNNNNNNN |
| 7000618 | ER-L-100B-LS-25-20-NN-N-3-S4AP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S4APA1NAAANNNNNN |
| 83067938 | ER-L-100B-LS-25-20-NN-N-3-S4AP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S4APA1NNNNNNNNNN |
| 7000624 | ER-L-100B-LS-25-20-NN-N-3-S4BP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S4BPA1NNNNNNNNNN |
| 83039995 | ER-L-100B-LS-25-20-NN-N-3-S4BP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S4BPA1NNNNNNNNNN |
| 7000537 | ER-L-100B-LS-25-20-NN-N-3-S4CP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S4CPA1NAAANNNNNN |
| 83037464 | ER-L-100B-LS-25-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S4CPA1NNNNNNNNNN |
| 7000616 | ER-L-100B-LS-25-20-NN-N-3-S4CP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S4CPA1NNNNNNNNNN |
| 83012169 | ER-L-100B-LS-25-20-NN-N-3-S4NL-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S4NLA1NNNNNNNNNN |
| 7000563 | ER-L-100B-LS-25-20-NN-N-3-S4NP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S4NPA1NNNNNNNNNN |
| 7000565 | ER-L-100B-LS-25-20-NN-N-3-S4RP-A1N-AAA-NNN-NNN | ERL100BLS2520NNN3S4RPA1NAAANNNNNN |
| 7000627 | ER-L-100B-LS-25-20-NN-N-3-S4RP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S4RPA1NNNNNNNNNN |
| 83032834 | ER-L-100B-LS-25-20-NN-N-3-S4WP-A1N-NNN-NNN-NNN | ERL100BLS2520NNN3S4WPA1NNNNNNNNNN |
| 83015709 | ER-L-100B-LS-25-25-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL100BLS2525NNN3S1APA1NAAANNNNNN |
| 83067138 | ER-L-100B-LS-25-25-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BLS2525NNN3S1BPA1NNNNNNNNNN |
| 80001875 | ER-L-100B-LS-25-25-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL100BLS2525NNN3S1CPA1NAAANNNNNN |
| 7000617 | ER-L-100B-LS-25-28-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS2528NNN3S1NLA1NNNNNNNNNN |
| 83038791 | ER-L-100B-LS-25-30-NN-N-3-S2BP-A1N-NNN-NNN-NNN | ERL100BLS2530NNN3S2BPA1NNNNNNNNNN |
| 83043239 | ER-L-100B-LS-25-30-NN-N-3-S2BP-A1N-NNN-NNN-NNN | ERL100BLS2530NNN3S2BPA1NNNNNNNNNN |
| 7000554 | ER-L-100B-LS-26-20-NN-N-3-K5NL-A1N-NNN-NNN-NNN | ERL100BLS2620NNN3K5NLA1NNNNNNNNNN |
| 83047161 | ER-L-100B-LS-26-20-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL100BLS2620NNN3K5NPA1NNNNNNNNNN |
| 83013263 | ER-L-100B-LS-26-20-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL100BLS2620NNN3S1BPA1NAAANNNNNN |
| 83005085 | ER-L-100B-LS-26-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS2620NNN3S1NLA1NNNNNNNNNN |
| 83037535 | ER-L-100B-LS-26-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS2620NNN3S1NLA1NNNNNNNNNN |
| 83004319 | ER-L-100B-LS-26-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL100BLS2620NNN3S1NPA1NAAANNNNNN |
| 83017880 | ER-L-100B-LS-26-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL100BLS2620NNN3S1RPA1NAAANNNNNN |
| 83018008 | ER-L-100B-LS-26-20-NN-N-3-S2CP-A1N-NNN-NNN-NNN | ERL100BLS2620NNN3S2CPA1NNNNNNNNNN |
| 7000566 | ER-L-100B-LS-26-20-NN-N-3-S2NL-A1N-AAA-NNN-NNN | ERL100BLS2620NNN3S2NLA1NAAANNNNNN |
| 80003953 | ER-L-100B-LS-26-20-NN-N-3-S2VP-A1N-NNN-NNN-NNN | ERL100BLS2620NNN3S2VPA1NNNNNNNNNN |
| 83017939 | ER-L-100B-LS-26-20-NN-N-3-S2WP-A1N-NNN-NNN-NNN | ERL100BLS2620NNN3S2WPA1NNNNNNNNNN |
| 7000669 | ER-L-100B-LS-26-20-NN-N-3-S4NL-A1N-AAA-NNN-NNN | ERL100BLS2620NNN3S4NLA1NAAANNNNNN |
| 83064017 | ER-L-100B-LS-26-24-NN-N-3-S1N1-A1N-AAA-NNN-NNN | ERL100BLS2624NNN3S1N1A1NAAANNNNNN |
| 83001424 | ER-L-100B-LS-26-30-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS2630NNN3S1NLA1NNNNNNNNNN |
| 83006411 | ER-L-100B-LS-27-22-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BLS2722NNN3S1BPA1NNNNNNNNNN |
| 83021558 | ER-L-100B-LS-28-10-NN-N-3-S4AP-A1N-AAA-NNN-NNN | ERL100BLS2810NNN3S4APA1NAAANNNNNN |
| 83037642 | ER-L-100B-LS-28-10-NN-N-3-S4AP-A1N-AAA-NNN-NNN | ERL100BLS2810NNN3S4APA1NAAANNNNNN |
| 83006775 | ER-L-100B-LS-28-20-NN-N-3-K5NL-A1N-NNN-NNN-NNN | ERL100BLS2820NNN3K5NLA1NNNNNNNNNN |
| 83003976 | ER-L-100B-LS-28-20-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL100BLS2820NNN3K5NPA1NNNNNNNNNN |
| 83037632 | ER-L-100B-LS-28-20-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL100BLS2820NNN3K5NPA1NNNNNNNNNN |
| 83048758 | ER-L-100B-LS-28-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BLS2820NNN3S1BPA1NNNNNNNNNN |
| 83011499 | ER-L-100B-LS-28-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BLS2820NNN3S1BPA1NNNNNNNNNN |
| 11094532 | ER-L-100B-LS-28-20-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL100BLS2820NNN3S1CPA1NAAANNNNNN |
| 11172636 | ER-L-100B-LS-28-20-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL100BLS2820NNN3S1CPA1NAAANNNNNN |
| 83037710 | ER-L-100B-LS-28-20-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL100BLS2820NNN3S1CPA1NAAANNNNNN |
| 80002740 | ER-L-100B-LS-28-20-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL100BLS2820NNN3S1CPA1NAAANNNNNN |
| 83018328 | ER-L-100B-LS-28-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BLS2820NNN3S1NLA1NNNNNNNNNN |
| 83020750 | ER-L-100B-LS-28-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL100BLS2820NNN3S1NPA1NAAANNNNNN |
| 83001451 | ER-L-100B-LS-28-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS2820NNN3S1NPA1NNNNNNNNNN |
| 83037509 | ER-L-100B-LS-28-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BLS2820NNN3S1NPA1NNNNNNNNNN |
| 83008285 | ER-L-100B-LS-28-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL100BLS2820NNN3S1RPA1NAAANNNNNN |
| 83040852 | ER-L-100B-LS-28-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL100BLS2820NNN3S1RPA1NAAANNNNNN |
| 83058494 | ER-L-100B-LS-28-20-NN-N-3-S2BP-A1N-NNN-NNN-NNN | ERL100BLS2820NNN3S2BPA1NNNNNNNNNN |
| 7000518 | ER-L-100B-LS-28-20-NN-N-3-S2NL-A1N-AAA-NNN-NNN | ERL100BLS2820NNN3S2NLA1NAAANNNNNN |
| 83037628 | ER-L-100B-LS-28-20-NN-N-3-S2NL-A1N-AAA-NNN-NNN | ERL100BLS2820NNN3S2NLA1NAAANNNNNN |
| 83002347 | ER-L-100B-LS-28-20-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL100BLS2820NNN3S2NPA1NNNNNNNNNN |
| 83041224 | ER-L-100B-LS-28-20-NN-N-3-S4AP-A1N-AAA-NNN-NNN | ERL100BLS2820NNN3S4APA1NAAANNNNNN |
| 83020749 | ER-L-100B-LS-28-20-NN-N-3-S4CP-A1N-AAA-NNN-NNN | ERL100BLS2820NNN3S4CPA1NAAANNNNNN |
| 83061475 | ER-L-100B-LS-28-24-NN-N-3-S2CP-A1N-NNN-NNN-NNN | ERL100BLS2824NNN3S2CPA1NNNNNNNNNN |
| 83061738 | ER-L-100B-LS-28-24-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL100BLS2824NNN3S2NPA1NNNNNNNNNN |
| 83060297 | ER-L-100B-LS-28-24-NN-N-3-S2U6-A1N-NNN-NNN-NNN | ERL100BLS2824NNN3S2U6A1NNNNNNNNNN |
| 83017043 | ER-L-100B-LS-28-24-NN-N-3-S4CP-A1N-AAA-NNN-NNN | ERL100BLS2824NNN3S4CPA1NAAANNNNNN |
| 83004566 | ER-L-100B-LS-28-25-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL100BLS2825NNN3S1APA1NNNNNNNNNN |
| 83037531 | ER-L-100B-LS-28-25-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL100BLS2825NNN3S1APA1NNNNNNNNNN |
| 83052860 | ER-L-100B-LS-28-28-NN-N-3-S1RP-A1N-NNN-NNN-NNN | ERL100BLS2828NNN3S1RPA1NNNNNNNNNN |
| 83018344 | ER-L-100B-PC-10-NN-NN-N-3-K5CP-A1N-AAA-NNN-NNN | ERL100BPC10NNNNN3K5CPA1NAAANNNNNN |
| 83038467 | ER-L-100B-PC-10-NN-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL100BPC10NNNNN3S1BPA1NAAANNNNNN |
| 80004196 | ER-L-100B-PC-10-NN-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL100BPC10NNNNN3S1CPA1NAAANNNNNN |
| 80004197 | ER-L-100B-PC-10-NN-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL100BPC10NNNNN3S1NLA1NAAANNNNNN |
| 83041415 | ER-L-100B-PC-11-NN-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BPC11NNNNN3S1NPA1NNNNNNNNNN |
| 702081 | ER-L-100B-PC-14-NN-NN-N-3-K5NL-A1N-NNN-NNN-NNN | ERL100BPC14NNNNN3K5NLA1NNNNNNNNNN |
| 7000630 | ER-L-100B-PC-14-NN-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL100BPC14NNNNN3S2NPA1NNNNNNNNNN |
| 83002226 | ER-L-100B-PC-15-NN-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BPC15NNNNN3S1BPA1NNNNNNNNNN |
| 80004813 | ER-L-100B-PC-17-NN-NN-N-3-K5BP-A1N-AAA-NNN-NNN | ERL100BPC17NNNNN3K5BPA1NAAANNNNNN |
| 83010559 | ER-L-100B-PC-17-NN-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BPC17NNNNN3S1NLA1NNNNNNNNNN |
| 83002981 | ER-L-100B-PC-18-NN-NN-N-3-K5NL-A1N-NNN-NNN-NNN | ERL100BPC18NNNNN3K5NLA1NNNNNNNNNN |
| 7000561 | ER-L-100B-PC-18-NN-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BPC18NNNNN3S1BPA1NNNNNNNNNN |
| 83001521 | ER-L-100B-PC-18-NN-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BPC18NNNNN3S1CPA1NNNNNNNNNN |
| 83015680 | ER-L-100B-PC-18-NN-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BPC18NNNNN3S1NPA1NNNNNNNNNN |
| 80004164 | ER-L-100B-PC-18-NN-NN-N-3-S1VP-A1N-NNN-NNN-NNN | ERL100BPC18NNNNN3S1VPA1NNNNNNNNNN |
| 7000668 | ER-L-100B-PC-20-NN-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL100BPC20NNNNN3K5NPA1NNNNNNNNNN |
| 83037663 | ER-L-100B-PC-20-NN-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL100BPC20NNNNN3K5NPA1NNNNNNNNNN |
| 83068762 | ER-L-100B-PC-20-NN-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BPC20NNNNN3S1CPA1NNNNNNNNNN |
| 83007613 | ER-L-100B-PC-20-NN-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BPC20NNNNN3S1NLA1NNNNNNNNNN |
| 83020897 | ER-L-100B-PC-20-NN-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL100BPC20NNNNN3S1NPA1NAAANNNNNN |
| 83001471 | ER-L-100B-PC-20-NN-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BPC20NNNNN3S1NPA1NNNNNNNNNN |
| 83037514 | ER-L-100B-PC-20-NN-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BPC20NNNNN3S1NPA1NNNNNNNNNN |
| 11069958 | ER-L-100B-PC-20-NN-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL100BPC20NNNNN3S1RPA1NAAANNNNNN |
| 83024650 | ER-L-100B-PC-20-NN-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL100BPC20NNNNN3S1RPA1NAAANNNNNN |
| 7000673 | ER-L-100B-PC-21-NN-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL100BPC21NNNNN3S1CPA1NAAANNNNNN |
| 83012501 | ER-L-100B-PC-21-NN-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL100BPC21NNNNN3S1NLA1NAAANNNNNN |
| 83011433 | ER-L-100B-PC-21-NN-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL100BPC21NNNNN3S1NPA1NAAANNNNNN |
| 80002201 | ER-L-100B-PC-21-NN-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BPC21NNNNN3S1NPA1NNNNNNNNNN |
| 83037474 | ER-L-100B-PC-21-NN-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BPC21NNNNN3S1NPA1NNNNNNNNNN |
| 7000536 | ER-L-100B-PC-21-NN-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL100BPC21NNNNN3S2NPA1NNNNNNNNNN |
| 83019830 | ER-L-100B-PC-22-NN-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL100BPC22NNNNN3S1BPA1NAAANNNNNN |
| 83006409 | ER-L-100B-PC-25-NN-NN-N-3-K5AP-A1N-AAA-NNN-NNN | ERL100BPC25NNNNN3K5APA1NAAANNNNNN |
| 83013477 | ER-L-100B-PC-25-NN-NN-N-3-K5CP-A1N-AAA-NNN-NNN | ERL100BPC25NNNNN3K5CPA1NAAANNNNNN |
| 83027690 | ER-L-100B-PC-25-NN-NN-N-3-K5CP-A1N-NNN-NNN-NNN | ERL100BPC25NNNNN3K5CPA1NNNNNNNNNN |
| 83011233 | ER-L-100B-PC-25-NN-NN-N-3-K5NL-A1N-AAA-NNN-NNN | ERL100BPC25NNNNN3K5NLA1NAAANNNNNN |
| 83002957 | ER-L-100B-PC-25-NN-NN-N-3-S1AP-A1N-AAA-NNN-NNN | ERL100BPC25NNNNN3S1APA1NAAANNNNNN |
| 7000667 | ER-L-100B-PC-25-NN-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL100BPC25NNNNN3S1BPA1NAAANNNNNN |
| 83007960 | ER-L-100B-PC-25-NN-NN-N-3-S1CP-A1N-AAA-NNN-NNN | ERL100BPC25NNNNN3S1CPA1NAAANNNNNN |
| 7000524 | ER-L-100B-PC-25-NN-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL100BPC25NNNNN3S1NLA1NAAANNNNNN |
| 83002637 | ER-L-100B-PC-25-NN-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL100BPC25NNNNN3S1NPA1NAAANNNNNN |
| 83003235 | ER-L-100B-PC-25-NN-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL100BPC25NNNNN3S1RPA1NAAANNNNNN |
| 83052914 | ER-L-100B-PC-25-NN-NN-N-3-S2NP-A1N-AAA-NNN-NNN | ERL100BPC25NNNNN3S2NPA1NAAANNNNNN |
| 7000590 | ER-L-100B-PC-25-NN-NN-N-3-S2NP-A1N-AAA-NNN-NNN | ERL100BPC25NNNNN3S2NPA1NAAANNNNNN |
| 83007880 | ER-L-100B-PC-25-NN-NN-N-3-S2RP-A1N-AAA-NNN-NNN | ERL100BPC25NNNNN3S2RPA1NAAANNNNNN |
| 83007881 | ER-L-100B-PC-25-NN-NN-N-3-S2RP-A1N-AAA-NNN-NNN | ERL100BPC25NNNNN3S2RPA1NAAANNNNNN |
| 11001953 | ER-L-100B-PC-25-NN-NN-N-3-S2RP-A1N-NNN-NNN-NNN | ERL100BPC25NNNNN3S2RPA1NNNNNNNNNN |
| 83015938 | ER-L-100B-PC-25-NN-NN-N-3-S4AP-A1N-AAA-NNN-NNN | ERL100BPC25NNNNN3S4APA1NAAANNNNNN |
| 7000513 | ER-L-100B-PC-25-NN-NN-N-3-S4NL-A1N-AAA-NNN-NNN | ERL100BPC25NNNNN3S4NLA1NAAANNNNNN |
| 7000526 | ER-L-100B-PC-25-NN-NN-N-3-S4NP-A1N-AAA-NNN-NNN | ERL100BPC25NNNNN3S4NPA1NAAANNNNNN |
| 83007892 | ER-L-100B-PC-25-NN-NN-N-3-S4WP-A1N-AAA-NNN-NNN | ERL100BPC25NNNNN3S4WPA1NAAANNNNNN |
| 83024252 | ER-L-100B-PC-28-NN-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BPC28NNNNN3S1CPA1NNNNNNNNNN |
| 7000606 | ER-L-100B-PC-28-NN-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL100BPC28NNNNN3S1NLA1NAAANNNNNN |
| 83020242 | ER-L-100B-PC-28-NN-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BPC28NNNNN3S1NLA1NNNNNNNNNN |
| 7000602 | ER-L-100B-PC-28-NN-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL100BPC28NNNNN3S1NPA1NAAANNNNNN |
| 83021920 | ER-L-100B-PC-28-NN-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BPC28NNNNN3S1NPA1NNNNNNNNNN |
| 83024351 | ER-L-100B-PC-28-NN-NN-N-3-S1VP-A1N-NNN-NNN-NNN | ERL100BPC28NNNNN3S1VPA1NNNNNNNNNN |
| 83059354 | ER-L-100B-PC-28-NN-NN-N-3-S2NP-A1N-NNN-NNN-NNN | ERL100BPC28NNNNN3S2NPA1NNNNNNNNNN |
| 83023896 | ER-L-100B-RP-10-20-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL100BRP1020NNN3S1NLA1NAAANNNNNN |
| 7000600 | ER-L-100B-RP-14-20-NN-N-3-K5NP-A1N-NNN-NNN-NNN | ERL100BRP1420NNN3K5NPA1NNNNNNNNNN |
| 83062156 | ER-L-100B-RP-14-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BRP1420NNN3S1NPA1NNNNNNNNNN |
| 83040754 | ER-L-100B-RP-15-30-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BRP1530NNN3S1CPA1NNNNNNNNNN |
| 83049937 | ER-L-100B-RP-17-20-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL100BRP1720NNN3S1NLA1NAAANNNNNN |
| 83048735 | ER-L-100B-RP-17-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL100BRP1720NNN3S1NPA1NAAANNNNNN |
| 83001452 | ER-L-100B-RP-18-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BRP1820NNN3S1NPA1NNNNNNNNNN |
| 83037510 | ER-L-100B-RP-18-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BRP1820NNN3S1NPA1NNNNNNNNNN |
| 83013493 | ER-L-100B-RP-18-20-NN-N-3-S4NP-A1N-NNN-NNN-NNN | ERL100BRP1820NNN3S4NPA1NNNNNNNNNN |
| 83003657 | ER-L-100B-RP-20-20-NN-N-3-S1NL-A1N-NNN-NNN-NNN | ERL100BRP2020NNN3S1NLA1NNNNNNNNNN |
| 7000651 | ER-L-100B-RP-20-20-NN-N-3-S2NL-A1N-NNN-NNN-NNN | ERL100BRP2020NNN3S2NLA1NNNNNNNNNN |
| 83047048 | ER-L-100B-RP-20-30-NN-N-3-S1CP-A1N-NNN-NNN-NNN | ERL100BRP2030NNN3S1CPA1NNNNNNNNNN |
| 83036285 | ER-L-100B-RP-21-12-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL100BRP2112NNN3S1NLA1NAAANNNNNN |
| 83034136 | ER-L-100B-RP-21-20-NN-N-3-K5BP-A1N-AAA-NNN-NNN | ERL100BRP2120NNN3K5BPA1NAAANNNNNN |
| 83040782 | ER-L-100B-RP-21-20-NN-N-3-K5BP-A1N-AAA-NNN-NNN | ERL100BRP2120NNN3K5BPA1NAAANNNNNN |
| 83040785 | ER-L-100B-RP-21-20-NN-N-3-K5BP-A1N-AAA-NNN-NNN | ERL100BRP2120NNN3K5BPA1NAAANNNNNN |
| 83017428 | ER-L-100B-RP-21-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BRP2120NNN3S1NPA1NNNNNNNNNN |
| 83037576 | ER-L-100B-RP-21-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BRP2120NNN3S1NPA1NNNNNNNNNN |
| 11002032 | ER-L-100B-RP-21-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL100BRP2120NNN3S1RPA1NAAANNNNNN |
| 83039657 | ER-L-100B-RP-21-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN | ERL100BRP2120NNN3S1RPA1NAAANNNNNN |
| 83004457 | ER-L-100B-RP-21-20-NN-N-3-S2CP-A1N-NNN-NNN-NNN | ERL100BRP2120NNN3S2CPA1NNNNNNNNNN |
| 83037530 | ER-L-100B-RP-21-20-NN-N-3-S2CP-A1N-NNN-NNN-NNN | ERL100BRP2120NNN3S2CPA1NNNNNNNNNN |
| 83033699 | ER-L-100B-RP-21-20-NN-N-3-S4CP-A1N-AAA-NNN-NNN | ERL100BRP2120NNN3S4CPA1NAAANNNNNN |
| 83041808 | ER-L-100B-RP-22-20-NN-N-3-K5BP-A1N-NNN-NNN-NNN | ERL100BRP2220NNN3K5BPA1NNNNNNNNNN |
| 83001487 | ER-L-100B-RP-22-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN | ERL100BRP2220NNN3S1NPA1NAAANNNNNN |
| 83029822 | ER-L-100B-RP-25-10-NN-N-3-S1BP-A1N-AAA-NNN-NNN | ERL100BRP2510NNN3S1BPA1NAAANNNNNN |
| 83023897 | ER-L-100B-RP-25-20-NN-N-3-K5CP-A1N-AAA-NNN-NNN | ERL100BRP2520NNN3K5CPA1NAAANNNNNN |
| 83037457 | ER-L-100B-RP-25-20-NN-N-3-S1AP-A1N-NNN-NNN-NNN | ERL100BRP2520NNN3S1APA1NNNNNNNNNN |
| 83002076 | ER-L-100B-RP-25-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BRP2520NNN3S1BPA1NNNNNNNNNN |
| 83004164 | ER-L-100B-RP-25-20-NN-N-3-S1NL-A1N-AAA-NNN-NNN | ERL100BRP2520NNN3S1NLA1NAAANNNNNN |
| 83007080 | ER-L-100B-RP-26-20-NN-N-3-S1NP-A1N-NNN-NNN-NNN | ERL100BRP2620NNN3S1NPA1NNNNNNNNNN |
| 83007875 | ER-L-100B-RP-28-20-NN-N-3-S1BP-A1N-NNN-NNN-NNN | ERL100BRP2820NNN3S1BPA1NNNNNNNNNN |
| 83023429 | ER-L-100B-RP-28-24-NN-N-3-S2AP-A1N-NNN-NNN-NNN | ERL100BRP2824NNN3S2APA1NNNNNNNNNN |
| 83054409 | ER-L-100B-TH-31-20-NN-N-C-S4NP-A1R-NNN-ANS-NNN | ERL100BTH3120NNNCS4NPA1RNNNANSNNN |
Q1:Which types of mobile machinery are the main application scenarios of the ERL100 hydraulic pump?
A1:The main application scenarios of the ERL100 hydraulic pump are various mobile machinery. Four specific examples are cranes, telescopic handlers, forklift trucks, and wheel loaders (other valid examples include backhoe loaders, mini-excavators, harvesters, etc., as mentioned in the article).
Q2:What advantages does the ERL100 hydraulic pump have in terms of installation flexibility? How does this flexibility meet the needs of different machinery layouts?
A2:In terms of installation flexibility, the ERL100 hydraulic pump offers a wide range of mounting flanges, shaft types, and rear transition covers with couplings, supporting both standalone installation and multi-pump tandem mounting. This flexibility allows it to be compatible with various machinery layouts, eliminating the need for custom modifications in most cases and meeting the installation needs of different equipment.
Q3:What after-sales support and quality assurance measures are provided for the ERL100 hydraulic pump to ensure the confidence of end-users?
A3:The quality assurance and after-sales support measures include:
- A 1-year warranty covering manufacturing defects;
- Production in compliance with strict quality standards and international specifications;
- Comprehensive after-sales support such as online technical assistance, spare parts availability, and OEM customization services to meet specific application requirements.
