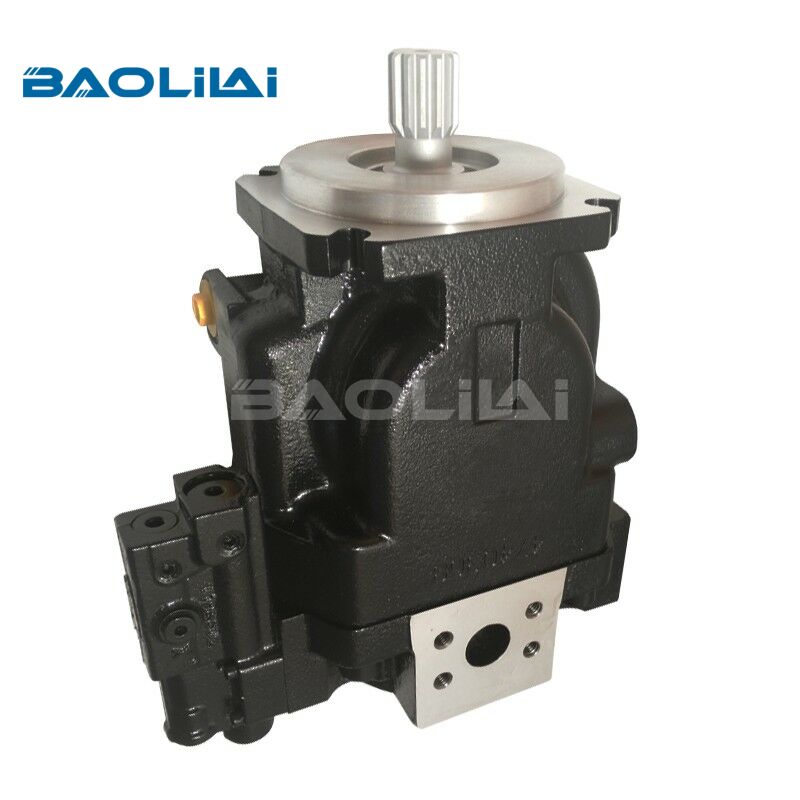

FRL090 axial piston hydraulic pump
FRL090 axial piston hydraulic pump
SERIES : FRL090
BRAND : For Sauer Danfoss
Model Size :
FRL090
Displacement :
90cm3/rev
Speed :
500-2600rpm
Maximum Pressure :
350bar
Nominal Pressure :
260bar
Download PDF
- Product Details
- Product Model
- FAQ
Specifications
| Unit | F frame | |||
| 074B | 090C | |||
| Maximum Displacement | cm3 [in3] | 74 [4.52] | 90 [5.49] | |
| Working Input speed | Minimum | min−1 [rpm] | 500 | 500 |
| Continuous | 2400 | 2200 | ||
| Maximum | 2800 | 2600 | ||
| Working Pressure | Continuous | bar [psi] | 310 [4500] | 260 [3770] |
| Maximum | 400 [5800] | 350 [5075] | ||
| Flow at rated speed (theoretical) | l/min | 178 | 198 | |
| US gal/min | 46.9 | 52.3 | ||
| Input torque at maximum displacement (theoretical) at 49∘C (120∘F) | Nm/bar | 1.178 | 1.433 | |
| lbf·in/1000 psi | 719.3 | 874.8 | ||
| Mass moment of inertia of internal rotating components | kg·m2 | 0.0063 | 0.0065 | |
| slug·ft2 | -0.00465 | -0.00479 | ||
| Weight | Axial ports | kg [lb] | 29.5 [65.0] | |
| Radial ports | 32.6 [71.9] | |||
| External Shaft Loads | External moment (Me) | N·m [lbf·in] | 300 [2655] | 300 [2655] |
| Thrust in (Tin), out (Tout) | N [lbf] | 2900 [652] | 2900 [652] | |
| Mounting flange load moments | Vibratory (continuous) | N·m [lbf·in] | 3730 [33 100] | |
| Shock (maximum) | 13220 [117 100] | |||
Selection Table
| FRL090 Series Some Models | ||
| Model No. | Model Code | Model Code |
| 83032471 | FR-L-090C-AF-13-15-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRL090CAF1315NNN3K4N2A1NNNNNNNNNN |
| 83010048 | FR-L-090C-AG-19-10-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL090CAG1910NNN3S1A2A1NNNNNNNNNN |
| 83004617 | FR-L-090C-AG-20-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CAG2020NNN3S1B2A1NNNNNNNNNN |
| 83059451 | FR-L-090C-AK-21-20-NN-E-3-S1C2-A1N-AAA-NNN-NNN | FRL090CAK2120NNE3S1C2A1NAAANNNNNN |
| 83095258 | FR-L-090C-AK-23-20-NN-F-3-K4N2-A1N-AAA-NNN-NNN | FRL090CAK2320NNF3K4N2A1NAAANNNNNN |
| 83041070 | FR-L-090C-AK-23-20-NN-F-3-S1B2-A1N-AAA-NNN-NNN | FRL090CAK2320NNF3S1B2A1NAAANNNNNN |
| 83048828 | FR-L-090C-AK-23-20-NN-F-3-S6B2-A1N-NNN-NNN-NNN | FRL090CAK2320NNF3S6B2A1NNNNNNNNNN |
| 83045009 | FR-L-090C-AT-17-10-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CAT1710NNN3S1C2A1NNNNNNNNNN |
| 83045156 | FR-L-090C-AT-17-10-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL090CAT1710NNN3S1N2A1NAAANNNNNN |
| 83045006 | FR-L-090C-AT-17-10-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CAT1710NNN3S1N2A1NNNNNNNNNN |
| 83065049 | FR-L-090C-AY-25-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CAY2520NNN3S1C2A1NNNNNNNNNN |
| 83019790 | FR-L-090C-AY-25-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CAY2520NNN3S1N2A1NNNNNNNNNN |
| 83024524 | FR-L-090C-AY-26-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL090CAY2620NNN3S1R2A1NAAANNNNNN |
| 83039677 | FR-L-090C-BS-29-20-NN-N-3-K4N4-A1N-AAA-NNN-NNN | FRL090CBS2920NNN3K4N4A1NAAANNNNNN |
| 83023576 | FR-L-090C-LB-10-26-NN-N-3-S1B2-A3N-AAA-NNN-NNN | FRL090CLB1026NNN3S1B2A3NAAANNNNNN |
| 83010793 | FR-L-090C-LB-15-17-NN-N-3-C3N4-A3N-NNN-NNN-NNN | FRL090CLB1517NNN3C3N4A3NNNNNNNNNN |
| 80005735 | FR-L-090C-LB-19-25-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLB1925NNN3S1N4A1NNNNNNNNNN |
| 83008084 | FR-L-090C-LB-20-15-NN-N-3-S1N4-A3N-NNN-NNN-NNN | FRL090CLB2015NNN3S1N4A3NNNNNNNNNN |
| 80004116 | FR-L-090C-LB-20-16-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLB2016NNN3S1N2A1NNNNNNNNNN |
| 83009211 | FR-L-090C-LB-24-16-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CLB2416NNN3S1C2A1NNNNNNNNNN |
| 83009813 | FR-L-090C-LB-25-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CLB2520NNN3S1B2A1NNNNNNNNNN |
| 83022926 | FR-L-090C-LB-25-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CLB2520NNN3S1C2A1NNNNNNNNNN |
| 83006712 | FR-L-090C-LB-25-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLB2520NNN3S1N2A1NNNNNNNNNN |
| 83006713 | FR-L-090C-LB-25-20-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRL090CLB2520NNN3S2C2A1NNNNNNNNNN |
| 83054378 | FR-L-090C-LB-25-20-NN-N-3-S2N2-A1N-AAA-NNN-NNN | FRL090CLB2520NNN3S2N2A1NAAANNNNNN |
| 80002768 | FR-L-090C-LB-26-21-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CLB2621NNN3S1C2A1NNNNNNNNNN |
| 80002769 | FR-L-090C-LB-26-21-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLB2621NNN3S1N2A1NNNNNNNNNN |
| 83018059 | FR-L-090C-LB-26-21-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLB2621NNN3S1N4A1NAAANNNNNN |
| 7002010 | FR-L-090C-LS-10-20-NN-N-3-S2N2-A1N-NNN-NNN-NNN | FRL090CLS1020NNN3S2N2A1NNNNNNNNNN |
| 83007727 | FR-L-090C-LS-14-24-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRL090CLS1424NNN3K4N2A1NNNNNNNNNN |
| 83043703 | FR-L-090C-LS-15-10-NN-F-3-S1A2-A1N-AAA-NNN-NNN | FRL090CLS1510NNF3S1A2A1NAAANNNNNN |
| 83035638 | FR-L-090C-LS-15-21-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLS1521NNN3S1N4A1NAAANNNNNN |
| 83011042 | FR-L-090C-LS-15-25-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS1525NNN3S1N2A1NNNNNNNNNN |
| 83015015 | FR-L-090C-LS-15-25-NN-N-3-S1V2-A1N-NNN-NNN-NNN | FRL090CLS1525NNN3S1V2A1NNNNNNNNNN |
| 83006824 | FR-L-090C-LS-16-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS1620NNN3S1N4A1NNNNNNNNNN |
| 83015326 | FR-L-090C-LS-17-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS1720NNN3S1N4A1NNNNNNNNNN |
| 83005763 | FR-L-090C-LS-18-20-NN-N-3-S1N2-A3N-AAA-NNN-NNN | FRL090CLS1820NNN3S1N2A3NAAANNNNNN |
| 83057701 | FR-L-090C-LS-20-19-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2019NNN3S1N2A1NNNNNNNNNN |
| 83010593 | FR-L-090C-LS-20-20-NN-N-3-K4B2-A1N-NNN-NNN-NNN | FRL090CLS2020NNN3K4B2A1NNNNNNNNNN |
| 83005692 | FR-L-090C-LS-20-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CLS2020NNN3S1B2A1NNNNNNNNNN |
| 83064350 | FR-L-090C-LS-20-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2020NNN3S1N2A1NNNNNNNNNN |
| 83006736 | FR-L-090C-LS-20-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2020NNN3S1N4A1NNNNNNNNNN |
| 83032948 | FR-L-090C-LS-20-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2020NNN3S1N4A1NNNNNNNNNN |
| 83051420 | FR-L-090C-LS-20-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL090CLS2020NNN3S1R2A1NAAANNNNNN |
| 83037989 | FR-L-090C-LS-20-20-NN-N-3-S1R2-A1N-NNN-NNN-NNN | FRL090CLS2020NNN3S1R2A1NNNNNNNNNN |
| 83003695 | FR-L-090C-LS-20-24-NN-N-3-S1C2-A1N-NNN-NNN-CCP | FRL090CLS2024NNN3S1C2A1NNNNNNNCCP |
| 83003697 | FR-L-090C-LS-20-24-NN-N-3-S1N2-A1N-NNN-NNN-CCP | FRL090CLS2024NNN3S1N2A1NNNNNNNCCP |
| 80004481 | FR-L-090C-LS-20-30-NN-N-3-K4N4-A1N-AAA-NNN-NNN | FRL090CLS2030NNN3K4N4A1NAAANNNNNN |
| 83035497 | FR-L-090C-LS-21-17-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL090CLS2117NNN3S1N2A1NAAANNNNNN |
| 83033241 | FR-L-090C-LS-21-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CLS2120NNN3S1B2A1NNNNNNNNNN |
| 83028483 | FR-L-090C-LS-21-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL090CLS2120NNN3S1N2A1NAAANNNNNN |
| 80002971 | FR-L-090C-LS-21-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2120NNN3S1N2A1NNNNNNNNNN |
| 83039743 | FR-L-090C-LS-21-20-NN-N-3-S1V2-A1N-NNN-NNN-NNN | FRL090CLS2120NNN3S1V2A1NNNNNNNNNN |
| 83038535 | FR-L-090C-LS-21-21-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL090CLS2121NNN3S1R2A1NAAANNNNNN |
| 83015540 | FR-L-090C-LS-21-28-NN-N-3-C3N4-A3N-NNN-NNN-NNN | FRL090CLS2128NNN3C3N4A3NNNNNNNNNN |
| 80003585 | FR-L-090C-LS-21-30-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRL090CLS2130NNN3K4N2A1NNNNNNNNNN |
| 83039520 | FR-L-090C-LS-21-30-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRL090CLS2130NNN3S1C2A1NAAANNNNNN |
| 80002171 | FR-L-090C-LS-21-30-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2130NNN3S1N2A1NNNNNNNNNN |
| 80002334 | FR-L-090C-LS-21-30-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2130NNN3S1N4A1NNNNNNNNNN |
| 83039521 | FR-L-090C-LS-21-30-NN-N-3-S2N2-A1N-AAA-NNN-NNN | FRL090CLS2130NNN3S2N2A1NAAANNNNNN |
| 83078951 | FR-L-090C-LS-22-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL090CLS2220NNN3S1A2A1NNNNNNNNNN |
| 83034840 | FR-L-090C-LS-22-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CLS2220NNN3S1B2A1NNNNNNNNNN |
| 83020472 | FR-L-090C-LS-22-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CLS2220NNN3S1C2A1NNNNNNNNNN |
| 83033192 | FR-L-090C-LS-22-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLS2220NNN3S1N4A1NAAANNNNNN |
| 83033677 | FR-L-090C-LS-22-20-NN-N-3-S1N5-A1N-AAA-NNN-NNN | FRL090CLS2220NNN3S1N5A1NAAANNNNNN |
| 83021312 | FR-L-090C-LS-22-20-NN-N-3-S1R2-A1N-NNN-NNN-NNN | FRL090CLS2220NNN3S1R2A1NNNNNNNNNN |
| 83062772 | FR-L-090C-LS-23-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL090CLS2320NNN3S1A2A1NNNNNNNNNN |
| 83004506 | FR-L-090C-LS-23-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2320NNN3S1N2A1NNNNNNNNNN |
| 83032940 | FR-L-090C-LS-23-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2320NNN3S1N2A1NNNNNNNNNN |
| 83028889 | FR-L-090C-LS-23-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLS2320NNN3S1N4A1NAAANNNNNN |
| 80003483 | FR-L-090C-LS-23-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2320NNN3S1N4A1NNNNNNNNNN |
| 83004505 | FR-L-090C-LS-23-20-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRL090CLS2320NNN3S2C2A1NNNNNNNNNN |
| 83032939 | FR-L-090C-LS-23-20-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRL090CLS2320NNN3S2C2A1NNNNNNNNNN |
| 83038186 | FR-L-090C-LS-23-24-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2324NNN3S1N2A1NNNNNNNNNN |
| 83061338 | FR-L-090C-LS-23-24-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2324NNN3S1N4A1NNNNNNNNNN |
| 80003230 | FR-L-090C-LS-24-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2420NNN3S1N4A1NNNNNNNNNN |
| 83017113 | FR-L-090C-LS-24-24-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLS2424NNN3S1N4A1NAAANNNNNN |
| 83075961 | FR-L-090C-LS-24-25-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2425NNN3S1N2A1NNNNNNNNNN |
| 80002842 | FR-L-090C-LS-25-15-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CLS2515NNN3S1C2A1NNNNNNNNNN |
| 83033000 | FR-L-090C-LS-25-15-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CLS2515NNN3S1C2A1NNNNNNNNNN |
| 83068231 | FR-L-090C-LS-25-20-NN-E-3-S1C2-A1N-NNN-NNN-NNN | FRL090CLS2520NNE3S1C2A1NNNNNNNNNN |
| 83070029 | FR-L-090C-LS-25-20-NN-E-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2520NNE3S1N2A1NNNNNNNNNN |
| 83059452 | FR-L-090C-LS-25-20-NN-E-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLS2520NNE3S1N4A1NAAANNNNNN |
| 83067093 | FR-L-090C-LS-25-20-NN-F-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2520NNF3S1N2A1NNNNNNNNNN |
| 83008788 | FR-L-090C-LS-25-20-NN-N-3-K4A2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3K4A2A1NAAANNNNNN |
| 83002590 | FR-L-090C-LS-25-20-NN-N-3-K4A2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3K4A2A1NNNNNNNNNN |
| 80002492 | FR-L-090C-LS-25-20-NN-N-3-K4C2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3K4C2A1NNNNNNNNNN |
| 83010655 | FR-L-090C-LS-25-20-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3K4N2A1NAAANNNNNN |
| 80004990 | FR-L-090C-LS-25-20-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3K4N2A1NNNNNNNNNN |
| 83032919 | FR-L-090C-LS-25-20-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3K4N2A1NNNNNNNNNN |
| 83012617 | FR-L-090C-LS-25-20-NN-N-3-K4R2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3K4R2A1NNNNNNNNNN |
| 83009045 | FR-L-090C-LS-25-20-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1A2A1NAAANNNNNN |
| 83046662 | FR-L-090C-LS-25-20-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1A2A1NAAANNNNNN |
| 80005264 | FR-L-090C-LS-25-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S1A2A1NNNNNNNNNN |
| 83040738 | FR-L-090C-LS-25-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S1A2A1NNNNNNNNNN |
| 80002617 | FR-L-090C-LS-25-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1B2A1NAAANNNNNN |
| 83032900 | FR-L-090C-LS-25-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1B2A1NAAANNNNNN |
| 83002937 | FR-L-090C-LS-25-20-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1C2A1NAAANNNNNN |
| 80002760 | FR-L-090C-LS-25-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S1C2A1NNNNNNNNNN |
| 83032903 | FR-L-090C-LS-25-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S1C2A1NNNNNNNNNN |
| 80001904 | FR-L-090C-LS-25-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1N2A1NAAANNNNNN |
| 83032893 | FR-L-090C-LS-25-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1N2A1NAAANNNNNN |
| 80002491 | FR-L-090C-LS-25-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S1N2A1NNNNNNNNNN |
| 83032897 | FR-L-090C-LS-25-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S1N2A1NNNNNNNNNN |
| 7002008 | FR-L-090C-LS-25-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1N4A1NAAANNNNNN |
| 83032882 | FR-L-090C-LS-25-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1N4A1NAAANNNNNN |
| 80003502 | FR-L-090C-LS-25-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S1N4A1NNNNNNNNNN |
| 83032327 | FR-L-090C-LS-25-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S1N4A1NNNNNNNNNN |
| 83005979 | FR-L-090C-LS-25-20-NN-N-3-S1N4-A1N-NNN-NNN-P00 | FRL090CLS2520NNN3S1N4A1NNNNNNNP00 |
| 7002006 | FR-L-090C-LS-25-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1R2A1NAAANNNNNN |
| 83047117 | FR-L-090C-LS-25-20-NN-N-3-S1R2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S1R2A1NNNNNNNNNN |
| 80003737 | FR-L-090C-LS-25-20-NN-N-3-S1V2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1V2A1NAAANNNNNN |
| 80004592 | FR-L-090C-LS-25-20-NN-N-3-S1V2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1V2A1NAAANNNNNN |
| 80004604 | FR-L-090C-LS-25-20-NN-N-3-S1V2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S1V2A1NAAANNNNNN |
| 80003269 | FR-L-090C-LS-25-20-NN-N-3-S2A2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S2A2A1NNNNNNNNNN |
| 83038406 | FR-L-090C-LS-25-20-NN-N-3-S2A2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S2A2A1NNNNNNNNNN |
| 83027698 | FR-L-090C-LS-25-20-NN-N-3-S2N2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S2N2A1NNNNNNNNNN |
| 7002009 | FR-L-090C-LS-25-20-NN-N-3-S2N4-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S2N4A1NAAANNNNNN |
| 7002007 | FR-L-090C-LS-25-20-NN-N-3-S2R2-A1N-AAA-NNN-NNN | FRL090CLS2520NNN3S2R2A1NAAANNNNNN |
| 83028810 | FR-L-090C-LS-25-20-NN-N-3-S2V2-A1N-NNN-NNN-NNN | FRL090CLS2520NNN3S2V2A1NNNNNNNNNN |
| 83005542 | FR-L-090C-LS-25-24-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL090CLS2524NNN3S1B2A1NAAANNNNNN |
| 83056950 | FR-L-090C-LS-25-25-NN-F-3-S1C2-A3N-AAA-NNN-NNN | FRL090CLS2525NNF3S1C2A3NAAANNNNNN |
| 83056951 | FR-L-090C-LS-25-25-NN-F-3-S1N2-A1N-AAA-NNN-NNN | FRL090CLS2525NNF3S1N2A1NAAANNNNNN |
| 83029863 | FR-L-090C-LS-25-25-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2525NNN3S1N4A1NNNNNNNNNN |
| 83048259 | FR-L-090C-LS-25-27-NN-E-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2527NNE3S1N4A1NNNNNNNNNN |
| 83059450 | FR-L-090C-LS-25-30-NN-E-3-S1C2-A1N-AAA-NNN-NNN | FRL090CLS2530NNE3S1C2A1NAAANNNNNN |
| 83059453 | FR-L-090C-LS-25-30-NN-E-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLS2530NNE3S1N4A1NAAANNNNNN |
| 83007203 | FR-L-090C-LS-26-14-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL090CLS2614NNN3S1B2A1NAAANNNNNN |
| 83033001 | FR-L-090C-LS-26-14-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL090CLS2614NNN3S1B2A1NAAANNNNNN |
| 83033097 | FR-L-090C-LS-26-20-NN-N-3-K4C2-A1N-NNN-NNN-NNN | FRL090CLS2620NNN3K4C2A1NNNNNNNNNN |
| 83038297 | FR-L-090C-LS-26-20-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRL090CLS2620NNN3S1A2A1NAAANNNNNN |
| 80004544 | FR-L-090C-LS-26-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL090CLS2620NNN3S1A2A1NNNNNNNNNN |
| 83054342 | FR-L-090C-LS-26-20-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL090CLS2620NNN3S1B2A1NAAANNNNNN |
| 80002705 | FR-L-090C-LS-26-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CLS2620NNN3S1B2A1NNNNNNNNNN |
| 83033011 | FR-L-090C-LS-26-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CLS2620NNN3S1B2A1NNNNNNNNNN |
| 80003504 | FR-L-090C-LS-26-20-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL090CLS2620NNN3S1N2A1NAAANNNNNN |
| 83014680 | FR-L-090C-LS-26-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CLS2620NNN3S1N4A1NAAANNNNNN |
| 83024795 | FR-L-090C-LS-26-20-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2620NNN3S1N4A1NNNNNNNNNN |
| 83033624 | FR-L-090C-LS-26-20-NN-N-3-S1N4-A3N-AAA-NNN-NNN | FRL090CLS2620NNN3S1N4A3NAAANNNNNN |
| 83047937 | FR-L-090C-LS-26-20-NN-N-3-S1N4-A3N-NNN-NNN-NNN | FRL090CLS2620NNN3S1N4A3NNNNNNNNNN |
| 83036406 | FR-L-090C-LS-26-20-NN-N-3-S2C2-A1N-NNN-NNN-NNN | FRL090CLS2620NNN3S2C2A1NNNNNNNNNN |
| 80004890 | FR-L-090C-LS-26-25-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CLS2625NNN3S1N4A1NNNNNNNNNN |
| 83025641 | FR-L-090C-LS-26-28-NN-N-3-S1B2-A3N-AAA-NNN-CCP | FRL090CLS2628NNN3S1B2A3NAAANNNCCP |
| 83025640 | FR-L-090C-LS-26-28-NN-N-3-S1N2-A3N-AAA-NNN-CCP | FRL090CLS2628NNN3S1N2A3NAAANNNCCP |
| 7002000 | FR-L-090C-LS-D8-28-NN-N-3-S1NS-A3N-C93-NNN-CCP | FRL090CLSD828NNN3S1NSA3NC93NNNCCP |
| 83043989 | FR-L-090C-NN-NN-NN-NN-N-N-S1N2-A1N-NNN-NNN-P00 | FRL090CNNNNNNNNNNS1N2A1NNNNNNNP00 |
| 83041458 | FR-L-090C-NN-NN-NN-NN-N-N-S1N4-A1N-NNN-NNN-P00 | FRL090CNNNNNNNNNNS1N4A1NNNNNNNP00 |
| 83041459 | FR-L-090C-NN-NN-NN-NN-N-N-S1R2-A1N-NNN-NNN-P00 | FRL090CNNNNNNNNNNS1R2A1NNNNNNNP00 |
| 83041460 | FR-L-090C-NN-NN-NN-NN-N-N-S1R2-A1R-NNN-ANS-P00 | FRL090CNNNNNNNNNNS1R2A1RNNNANSP00 |
| 83003556 | FR-L-090C-PC-10-NN-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRL090CPC10NNNNN3K4N2A1NAAANNNNNN |
| 83048490 | FR-L-090C-PC-10-NN-NN-N-3-K4N4-A3N-NNN-NNN-NNN | FRL090CPC10NNNNN3K4N4A3NNNNNNNNNN |
| 83009548 | FR-L-090C-PC-10-NN-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CPC10NNNNN3S1B2A1NNNNNNNNNN |
| 83002297 | FR-L-090C-PC-13-NN-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CPC13NNNNN3S1N4A1NNNNNNNNNN |
| 83009580 | FR-L-090C-PC-15-NN-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CPC15NNNNN3S1N4A1NAAANNNNNN |
| 83051110 | FR-L-090C-PC-16-NN-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL090CPC16NNNNN3S1A2A1NNNNNNNNNN |
| 83009204 | FR-L-090C-PC-18-NN-NN-N-3-K4V2-A1N-AAA-NNN-NNN | FRL090CPC18NNNNN3K4V2A1NAAANNNNNN |
| 80003583 | FR-L-090C-PC-19-NN-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL090CPC19NNNNN3S1A2A1NNNNNNNNNN |
| 83024928 | FR-L-090C-PC-20-NN-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CPC20NNNNN3S1C2A1NNNNNNNNNN |
| 83036277 | FR-L-090C-PC-20-NN-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CPC20NNNNN3S1N4A1NNNNNNNNNN |
| 83024648 | FR-L-090C-PC-20-NN-NN-N-3-S1R2-A1N-AAA-NNN-NNN | FRL090CPC20NNNNN3S1R2A1NAAANNNNNN |
| 83036279 | FR-L-090C-PC-20-NN-NN-N-3-S1R2-A1N-NNN-NNN-NNN | FRL090CPC20NNNNN3S1R2A1NNNNNNNNNN |
| 83016935 | FR-L-090C-PC-21-NN-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL090CPC21NNNNN3S1B2A1NAAANNNNNN |
| 83012903 | FR-L-090C-PC-21-NN-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CPC21NNNNN3S1B2A1NNNNNNNNNN |
| 83047094 | FR-L-090C-PC-21-NN-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CPC21NNNNN3S1B2A1NNNNNNNNNN |
| 80004926 | FR-L-090C-PC-21-NN-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CPC21NNNNN3S1N4A1NNNNNNNNNN |
| 83002349 | FR-L-090C-PC-24-NN-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL090CPC24NNNNN3S1N2A1NAAANNNNNN |
| 83009314 | FR-L-090C-PC-24-NN-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CPC24NNNNN3S1N2A1NNNNNNNNNN |
| 83038594 | FR-L-090C-PC-25-NN-NN-N-3-K4B2-A1N-AAA-NNN-NNN | FRL090CPC25NNNNN3K4B2A1NAAANNNNNN |
| 83011273 | FR-L-090C-PC-25-NN-NN-N-3-K4B2-A1N-NNN-NNN-NNN | FRL090CPC25NNNNN3K4B2A1NNNNNNNNNN |
| 83012359 | FR-L-090C-PC-25-NN-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRL090CPC25NNNNN3K4N2A1NAAANNNNNN |
| 83013349 | FR-L-090C-PC-25-NN-NN-N-3-S1A2-A1N-AAA-NNN-NNN | FRL090CPC25NNNNN3S1A2A1NAAANNNNNN |
| 83005053 | FR-L-090C-PC-25-NN-NN-N-3-S1A2-A1N-NNN-NNN-NNN | FRL090CPC25NNNNN3S1A2A1NNNNNNNNNN |
| 83010453 | FR-L-090C-PC-25-NN-NN-N-3-S1B2-A1N-AAA-NNN-NNN | FRL090CPC25NNNNN3S1B2A1NAAANNNNNN |
| 83021420 | FR-L-090C-PC-25-NN-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CPC25NNNNN3S1B2A1NNNNNNNNNN |
| 83009725 | FR-L-090C-PC-25-NN-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CPC25NNNNN3S1N4A1NNNNNNNNNN |
| 83059798 | FR-L-090C-PC-25-NN-NN-N-3-S1N4-A1N-NNN-NNN-NNN | FRL090CPC25NNNNN3S1N4A1NNNNNNNNNN |
| 83009796 | FR-L-090C-PC-26-NN-NN-N-3-K4N4-A1N-NNN-NNN-NNN | FRL090CPC26NNNNN3K4N4A1NNNNNNNNNN |
| 80006244 | FR-L-090C-PC-26-NN-NN-N-3-S1N2-A1N-AAA-NNN-NNN | FRL090CPC26NNNNN3S1N2A1NAAANNNNNN |
| 80003284 | FR-L-090C-RP-10-20-NN-N-3-S1N4-A1N-AAA-NNN-NNN | FRL090CRP1020NNN3S1N4A1NAAANNNNNN |
| 83017967 | FR-L-090C-RP-10-26-NN-N-3-K4B2-A1N-AAA-NNN-NNN | FRL090CRP1026NNN3K4B2A1NAAANNNNNN |
| 83041742 | FR-L-090C-RP-14-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CRP1420NNN3S1C2A1NNNNNNNNNN |
| 80004898 | FR-L-090C-RP-14-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CRP1420NNN3S1N2A1NNNNNNNNNN |
| 83017331 | FR-L-090C-RP-15-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CRP1520NNN3S1B2A1NNNNNNNNNN |
| 83017330 | FR-L-090C-RP-15-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CRP1520NNN3S1C2A1NNNNNNNNNN |
| 83005970 | FR-L-090C-RP-18-20-NN-N-3-K4C2-A1N-NNN-NNN-NNN | FRL090CRP1820NNN3K4C2A1NNNNNNNNNN |
| 83006716 | FR-L-090C-RP-18-20-NN-N-3-K4N2-A1N-NNN-NNN-NNN | FRL090CRP1820NNN3K4N2A1NNNNNNNNNN |
| 83029864 | FR-L-090C-RP-19-21-NN-N-3-S1V2-A1N-AAA-NNN-NNN | FRL090CRP1921NNN3S1V2A1NAAANNNNNN |
| 83035016 | FR-L-090C-RP-19-24-NN-N-3-S1V2-A1N-AAA-NNN-NNN | FRL090CRP1924NNN3S1V2A1NAAANNNNNN |
| 83021816 | FR-L-090C-RP-21-20-NN-N-3-K4N2-A1N-AAA-NNN-NNN | FRL090CRP2120NNN3K4N2A1NAAANNNNNN |
| 83016448 | FR-L-090C-RP-21-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CRP2120NNN3S1B2A1NNNNNNNNNN |
| 83034858 | FR-L-090C-RP-21-20-NN-N-3-S1N2-A1N-NNN-NNN-NNN | FRL090CRP2120NNN3S1N2A1NNNNNNNNNN |
| 80006555 | FR-L-090C-RP-23-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CRP2320NNN3S1B2A1NNNNNNNNNN |
| 83032928 | FR-L-090C-RP-23-20-NN-N-3-S1B2-A1N-NNN-NNN-NNN | FRL090CRP2320NNN3S1B2A1NNNNNNNNNN |
| 83005154 | FR-L-090C-RP-25-20-NN-N-3-S1C2-A1N-AAA-NNN-NNN | FRL090CRP2520NNN3S1C2A1NAAANNNNNN |
| 83002971 | FR-L-090C-RP-25-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN | FRL090CRP2520NNN3S1C2A1NNNNNNNNNN |
| 83022815 | FR-L-090C-RP-26-20-NN-N-3-K4N4-A3N-AAA-NNN-NNN | FRL090CRP2620NNN3K4N4A3NAAANNNNNN |
| 83030517 | FR-L-090C-RP-26-20-NN-N-3-K4N4-A3N-AAA-NNN-P00 | FRL090CRP2620NNN3K4N4A3NAAANNNP00 |
| 83064814 | FR-L-090C-SH-22-NN-NN-R-E-S1B2-A1N-AAA-NNN-NNN | FRL090CSH22NNNNRES1B2A1NAAANNNNNN |
| 83038843 | FR-L-090C-TE-25-24-NN-E-C-S1B2-A1R-AAA-ANS-NNN | FRL090CTE2524NNECS1B2A1RAAAANSNNN |
| 83038841 | FR-L-090C-TE-25-24-NN-N-C-S1B2-A1R-AAA-ANS-NNN | FRL090CTE2524NNNCS1B2A1RAAAANSNNN |
