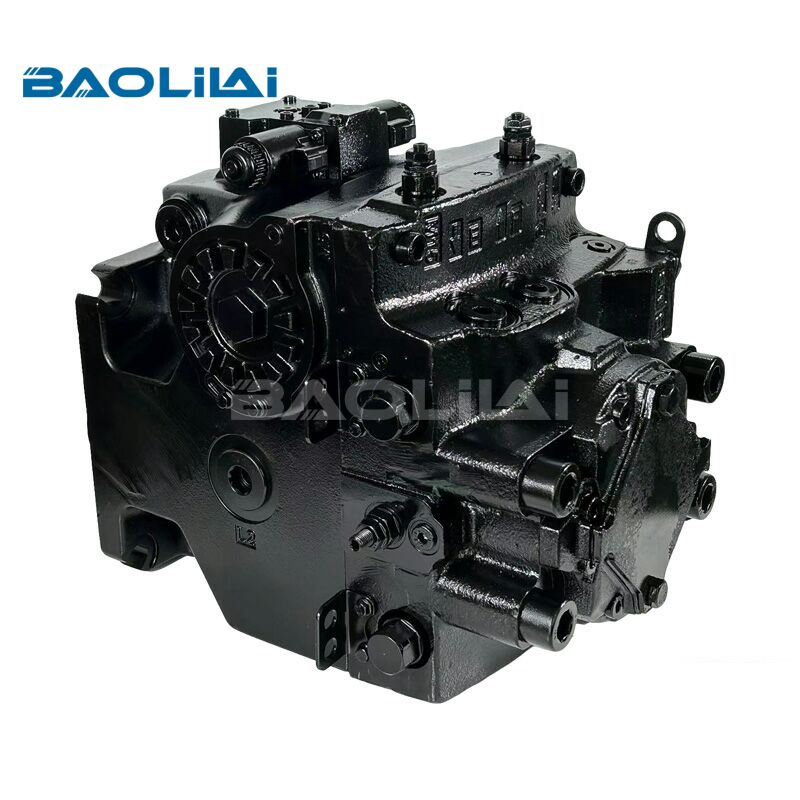

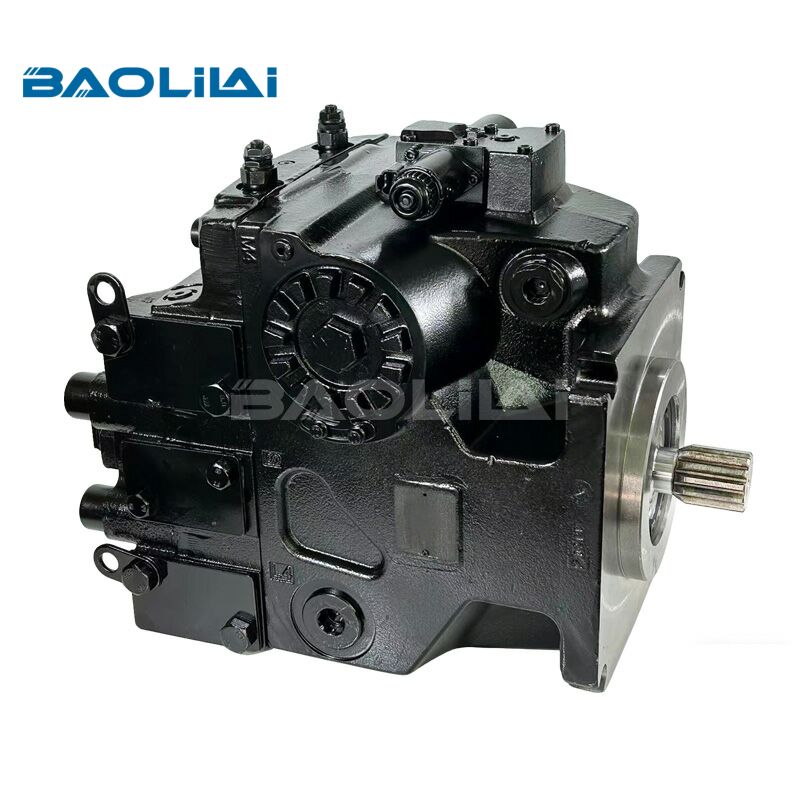

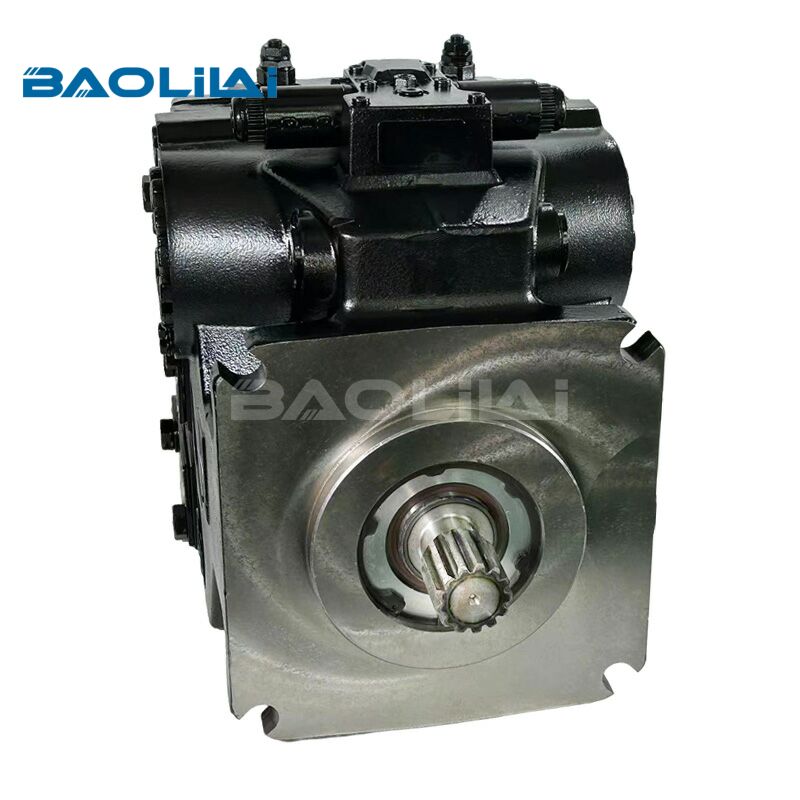

H1P250R axial piston single hydraulic pump
SERIES : H1P
BRAND : For Sauer Danfoss
Model Size :H1P250R
Displacement : 251.7cm3/rev
Speed : 2600rpm
Maximum Pressure : 480bar
Nominal Pressure : 450bar
Download PDF
- Product Details
- Product Model
- FAQ
The H1P250R is an axial piston, single hydraulic pump typically designed for high-performance mobile and industrial hydraulics. It features a fixed or variable displacement design (specific to model variant) that delivers high power density and efficiency. Operating at continuous pressures often ranging from 300 to 350 bar or higher, it is built for reliability in demanding conditions. Its compact axial piston design ensures smooth flow delivery, high volumetric efficiency, and relatively low noise levels. Common applications include construction equipment, agricultural machinery, and material handling systems. Like all precision piston pumps, it requires clean, filtered hydraulic fluid and proper maintenance for optimal service life and performance.
Specifications
| Feature | Unit | 045 | 053 | 060 | 068 | 069 | 078 | 089 | 100 | 115 | 130 | 147 | 165 | 210 | 250 |
| Displacement | cm³ [in³] | 45.0 [2.75] | 53.8 [3.28] | 60.4 [3.69] | 68.0 [4.15] | 69.2 [4.22] | 78.1 [4.77] | 89.2 [5.44] | 101.7 [6.21] | 115.2 [7.03] | 130.0 [7.93] | 147.2 [8.98] | 165.1 [10.08] | 211.5 [12.91] | 251.7 [15.36] |
| Rated speed | min-1 (rpm) | 3400 | 3400 | 3500 | 3500 | 3500 | 3500 | 3300 | 3300 | 3200 | 3200 | 3000 | 3000 | 2600 | 2600 |
| Max speed | min-1 (rpm) | 3500 | 3500 | 4000 | 4000 | 4000 | 4000 | 3800 | 3800 | 3400 | 3400 | 3100 | 3100 | 2800 | 2800 |
| Max working pressure | bar [psi] | 420 [6090] | 380 [5510] | 420 [6090] | 380 [5510] | 450 [6525] | 450 [6525] | 450 [6525] | 450 [6525] | 450 [6525] | 450 [6525] | 450 [6525] | 450 [6525] | 450 [6525] | 450 [6525] |
| Max pressure | bar [psi] | 450 [6525] | 400 [5800] | 450 [6525] | 400 [5800] | 480 [6960] | 480 [6960] | 480 [6960] | 480 [6960] | 480 [6960] | 480 [6960] | 480 [6960] | 480 [6960] | 480 [6960] | 480 [6960] |
| Weight dry (W/O PTO, filter) | kg [lb] | single: 41 [90] tandem: 65 [143] | 50 [110] | 50 [110] | 56 [123] | 56 [123] | 62 [137] | 62 [137] | 83 [187] | 83 [187] | 96 [211] | 96 [211] | 163 [360] | 163 [360] | |
| Mounting flange | SAE B 2-bolt | SAE B 2-bolt | SAE C 4-bolt | SAE C 4-bolt | SAE C 4-bolt | SAE C 4-bolt | SAE C 4-bolt | SAE C 4-bolt | SAE D 4-bolt | SAE D 4-bolt | SAE D 4-bolt | SAE D 4-bolt | SAE E 4-bolt | SAE E 4-bolt | |

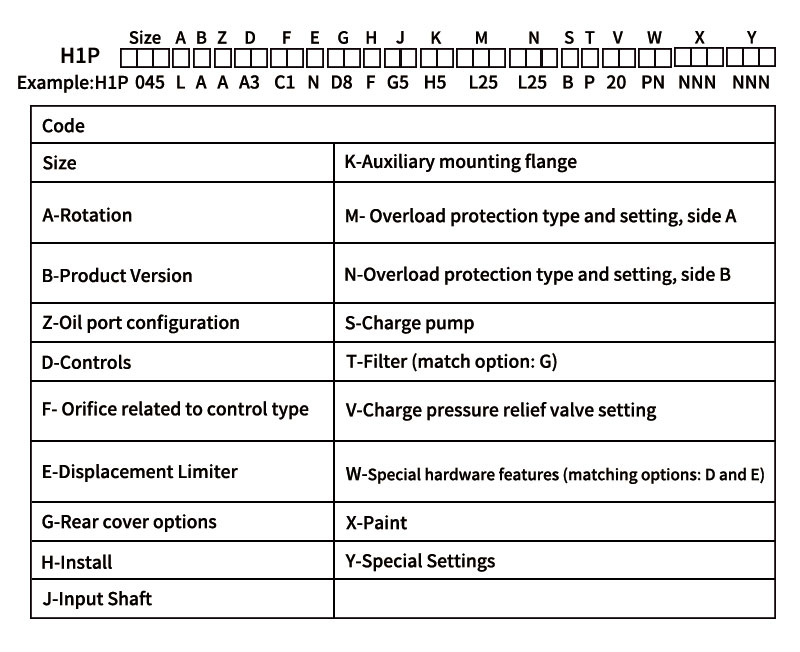

Selection Table
| H1P250R Axial Piston hydraulic Pump | ||
| Model No. | Model Code | Model Code |
| 83072980 | H1-P-250-RAA-A2-C1-B-D8-C-G2-H3-L-35-L-35-RP-24-PN-NNN-NNN | H1P250RAAA2C1BD8CG2H3L35L35RP24PNNNNNNN |
| 83077474 | H1-P-250-RAA-A2-C1-N-D8-C-G3-NN-L-41-L-41-WP-24-PN-NNN-NNN | H1P250RAAA2C1ND8CG3NNL41L41WP24PNNNNNNN |
| 83010376 | H1-P-250-R-A-A-A2-C2-N-D6-C-G2-NN-L-45-L-45-R-L-28-PN-NNN-NNN | H1P250RAAA2C2ND6CG2NNL45L45RL28PNNNNNNN |
| 83069649 | H1-P-250-RAA-A2-C2-N-D8-C-G2-E2-L-35-L-35-WP-24-PN-NNN-NNN | H1P250RAAA2C2ND8CG2E2L35L35WP24PNNNNNNN |
| 83048534 | H1-P-250-R-A-A-A2-C2-N-D8-C-G2-E2-L-42-L-42-W-P-24-PN-NNN-NNN | H1P250RAAA2C2ND8CG2E2L42L42WP24PNNNNNNN |
| 83069648 | H1-P-250-RAA-A2-C2-N-D8-C-G2-H2-L-35-L-35-WP-24-PN-NNN-NNN | H1P250RAAA2C2ND8CG2H2L35L35WP24PNNNNNNN |
| 83048533 | H1-P-250-R-A-A-A2-C2-N-D8-C-G2-H2-L-42-L-42-W-P-24-PN-NNN-NNN | H1P250RAAA2C2ND8CG2H2L42L42WP24PNNNNNNN |
| 83070438 | H1-P-250-R-A-A-A2-C2-N-D8-C-G2-H6-L-42-L-42-W-P-24-PN-NNN-NNN | H1P250RAAA2C2ND8CG2H6L42L42WP24PNNNNNNN |
| 83078788 | H1-P-250-RAA-A2-C2-N-D8-C-G2-NN-L-38-L-38-WP-28-PN-NNN-NNN | H1P250RAAA2C2ND8CG2NNL38L38WP28PNNNNNNN |
| 83057555 | H1-P-250-R-A-A-A3-C1-B-D6-C-G3-NN-K-30-K-30-R-L-20-PN-NNN-NNN | H1P250RAAA3C1BD6CG3NNK30K30RL20PNNNNNNN |
| 83067129 | H1-P-250-R-A-A-A3-C1-N-D6-C-F8-E1-L-35-L-35-W-L-34-PN-NNN-NNN | H1P250RAAA3C1ND6CF8E1L35L35WL34PNNNNNNN |
| 83064704 | H1-P-250-R-A-A-A3-C1-N-D6-C-G3-E1-L-35-L-35-W-L-34-PN-NNN-NNN | H1P250RAAA3C1ND6CG3E1L35L35WL34PNNNNNNN |
| 83038133 | H1-P-250-R-A-A-A3-C1-N-D8-C-F8-E2-L-42-L-42-W-P-24-PN-NNN-NNN | H1P250RAAA3C1ND8CF8E2L42L42WP24PNNNNNNN |
| 83085783 | H1-P-250-RAA-A3-C2-B-D8-C-G2-H3-L-42-L-42-WP-24-PN-NNN-NNN | H1P250RAAA3C2BD8CG2H3L42L42WP24PNNNNNNN |
| 83061111 | H1-P-250-R-A-A-A3-C2-B-D8-C-G2-NN-L-25-L-25-W-P-24-PN-NNN-NNN | H1P250RAAA3C2BD8CG2NNL25L25WP24PNNNNNNN |
| 83060551 | H1-P-250-R-A-A-A3-C2-N-D8-C-F8-E1-L-42-L-42-W-P-24-PN-NNN-NNN | H1P250RAAA3C2ND8CF8E1L42L42WP24PNNNNNNN |
| 83069811 | H1-P-250-RAA-A3-C2-N-D8-C-G2-H2-L-35-L-35-WP-24-PN-NNN-NNN | H1P250RAAA3C2ND8CG2H2L35L35WP24PNNNNNNN |
| 83093525 | H1-P-250-RAA-A3-C2-N-D8-C-G2-H3-L-35-L-35-WP-24-PN-C07-NNN | H1P250RAAA3C2ND8CG2H3L35L35WP24PNC07NNN |
| 83069809 | H1-P-250-RAA-A3-C2-N-D8-C-G2-H3-L-35-L-35-WP-24-PN-NNN-NNN | H1P250RAAA3C2ND8CG2H3L35L35WP24PNNNNNNN |
| 83060909 | H1-P-250-R-A-A-A3-C2-N-D8-C-G2-H3-L-42-L-42-R-P-28-PN-NNN-NNN | H1P250RAAA3C2ND8CG2H3L42L42RP28PNNNNNNN |
| 83069812 | H1-P-250-RAA-A3-C2-N-D8-C-G2-H4-L-35-L-35-WP-24-PN-NNN-NNN | H1P250RAAA3C2ND8CG2H4L35L35WP24PNNNNNNN |
| 83056331 | H1-P-250-R-A-A-A3-C2-N-D8-C-G2-H4-L-42-L-42-W-P-24-PN-NNN-NNN | H1P250RAAA3C2ND8CG2H4L42L42WP24PNNNNNNN |
| 83093531 | H1-P-250-RAA-A3-C2-N-D8-C-G2-H6-L-35-L-35-WP-24-PN-C07-NNN | H1P250RAAA3C2ND8CG2H6L35L35WP24PNC07NNN |
| 83069810 | H1-P-250-RAA-A3-C2-N-D8-C-G2-H6-L-35-L-35-WP-24-PN-NNN-NNN | H1P250RAAA3C2ND8CG2H6L35L35WP24PNNNNNNN |
| 83087484 | H1-P-250-RAA-A3-C2-N-D8-C-G2-NN-L-38-L-38-WP-24-PN-NNN-NNN | H1P250RAAA3C2ND8CG2NNL38L38WP24PNNNNNNN |
| 83083807 | H1-P-250-RAA-A3-C2-N-D8-C-G3-H3-L-42-L-42-WP-24-PN-NNN-NNN | H1P250RAAA3C2ND8CG3H3L42L42WP24PNNNNNNN |
| 83038561 | H1-P-250-R-A-A-A3-C2-N-D8-C-G3-NN-K-25-K-25-W-P-20-PN-NNN-NNN | H1P250RAAA3C2ND8CG3NNK25K25WP20PNNNNNNN |
| 83071977 | H1-P-250-RAA-A3-C3-B-D6-C-G3-H3-L-42-L-42-WL-24-PN-NNN-NNN | H1P250RAAA3C3BD6CG3H3L42L42WL24PNNNNNNN |
| 83089956 | H1-P-250-RAA-A3-C3-B-D8-C-F8-E2-K-42-K-42-NE-26-PN-NNN-NNN | H1P250RAAA3C3BD8CF8E2K42K42NE26PNNNNNNN |
| 83080567 | H1-P-250-RAA-A3-C3-B-D8-C-G2-H3-L-33-L-33-RP-24-PN-NNN-NNN | H1P250RAAA3C3BD8CG2H3L33L33RP24PNNNNNNN |
| 83044504 | H1-P-250-R-A-A-A3-C3-N-D8-C-F8-H3-K-42-K-42-R-P-34-PN-NNN-NNN | H1P250RAAA3C3ND8CF8H3K42K42RP34PNNNNNNN |
| 83044506 | H1-P-250-R-A-A-A3-C3-N-D8-C-F8-H6-K-42-K-42-R-P-34-PN-NNN-NNN | H1P250RAAA3C3ND8CF8H6K42K42RP34PNNNNNNN |
| 83044503 | H1-P-250-R-A-A-A3-C3-N-D8-C-G2-E2-K-42-K-42-R-P-34-PN-NNN-NNN | H1P250RAAA3C3ND8CG2E2K42K42RP34PNNNNNNN |
| 83041805 | H1-P-250-R-A-A-A3-C3-N-D8-C-G2-H3-L-45-L-45-R-P-24-PN-NNN-NNN | H1P250RAAA3C3ND8CG2H3L45L45RP24PNNNNNNN |
| 83057940 | H1-P-250-R-A-A-A3-C3-N-D8-C-G2-H6-K-42-K-42-R-P-34-PN-NNN-NNN | H1P250RAAA3C3ND8CG2H6K42K42RP34PNNNNNNN |
| 83072250 | H1-P-250-RAA-A3-C3-N-D8-C-G2-NN-L-45-L-45-NE-34-PN-NNN-NNN | H1P250RAAA3C3ND8CG2NNL45L45NE34PNNNNNNN |
| 83094783 | H1-P-250-RAA-A4-C1-B-D8-C-G3-NN-L-20-L-20-RP-24-PN-NNN-NNN | H1P250RAAA4C1BD8CG3NNL20L20RP24PNNNNNNN |
| 83078597 | H1-P-250-RAA-A4-C1-B-D8-E-G3-H2-L-38-L-38-RP-30-P4-NNN-NNN | H1P250RAAA4C1BD8EG3H2L38L38RP30P4NNNNNN |
| 83053476 | H1-P-250-R-A-A-A4-C2-N-D6-C-G2-H3-L-45-L-45-W-L-24-PN-NNN-NNN | H1P250RAAA4C2ND6CG2H3L45L45WL24PNNNNNNN |
| 83021328 | H1-P-250-R-A-A-A4-C2-N-D6-C-G2-H6-L-45-L-45-W-L-30-PN-NNN-NNN | H1P250RAAA4C2ND6CG2H6L45L45WL30PNNNNNNN |
| 83042759 | H1-P-250-R-A-A-A4-C3-N-D6-C-G2-H1-L-45-L-45-W-L-24-PN-NNN-NNN | H1P250RAAA4C3ND6CG2H1L45L45WL24PNNNNNNN |
| 83053881 | H1-P-250-R-A-A-A5-C1-B-D6-C-F8-E2-L-42-L-42-W-L-24-PN-NNN-NNN | H1P250RAAA5C1BD6CF8E2L42L42WL24PNNNNNNN |
| 83056691 | H1-P-250-R-A-A-A5-C1-B-D6-C-G2-NN-L-33-L-33-W-L-24-PN-NNN-NNN | H1P250RAAA5C1BD6CG2NNL33L33WL24PNNNNNNN |
| 83053882 | H1-P-250-R-A-A-A5-C1-B-D6-C-G2-NN-L-42-L-42-W-L-24-PN-NNN-NNN | H1P250RAAA5C1BD6CG2NNL42L42WL24PNNNNNNN |
| 83052610 | H1-P-250-R-A-A-A5-C1-B-D8-C-G2-H3-L-45-L-45-W-P-24-PN-NNN-NNN | H1P250RAAA5C1BD8CG2H3L45L45WP24PNNNNNNN |
| 83051854 | H1-P-250-R-A-A-A5-C1-B-D8-C-G2-H6-L-42-L-42-R-P-24-PN-NNN-NNN | H1P250RAAA5C1BD8CG2H6L42L42RP24PNNNNNNN |
| 83094551 | H1-P-250-RAA-A5-C1-N-D6-E-F8-E2-L-43-L-30-RL-28-P4-NNN-NNN | H1P250RAAA5C1ND6EF8E2L43L30RL28P4NNNNNN |
| 83046849 | H1-P-250-R-A-A-A5-C1-N-D6-E-G2-H4-L-42-L-42-W-L-24-P4-NNN-NNN | H1P250RAAA5C1ND6EG2H4L42L42WL24P4NNNNNN |
| 83065330 | H1-P-250-R-A-A-A5-C1-N-D8-C-G2-H6-L-42-L-42-R-P-26-PN-NNN-NNN | H1P250RAAA5C1ND8CG2H6L42L42RP26PNNNNNNN |
| 83038881 | H1-P-250-R-A-A-A5-C1-N-D8-C-G3-H6-L-35-L-35-W-P-24-PN-NNN-NNN | H1P250RAAA5C1ND8CG3H6L35L35WP24PNNNNNNN |
| 83059904 | H1-P-250-R-A-A-A5-C2-B-D6-C-F8-H6-L-42-L-42-R-L-24-PN-NNN-NNN | H1P250RAAA5C2BD6CF8H6L42L42RL24PNNNNNNN |
| 83067778 | H1-P-250-R-A-A-A5-C2-B-D6-C-G2-H3-L-42-L-42-R-L-24-PN-NNN-NNN | H1P250RAAA5C2BD6CG2H3L42L42RL24PNNNNNNN |
| 83062965 | H1-P-250-R-A-A-A5-C2-B-D8-C-F8-E1-L-38-L-38-W-P-24-PN-NNN-NNN | H1P250RAAA5C2BD8CF8E1L38L38WP24PNNNNNNN |
| 83084193 | H1-P-250-RAA-A5-C2-B-D8-C-F8-E2-L-30-L-30-RP-24-PN-NNN-NNN | H1P250RAAA5C2BD8CF8E2L30L30RP24PNNNNNNN |
| 83065420 | H1-P-250-R-A-A-A5-C2-B-D8-C-F8-E2-L-40-L-40-R-P-24-PN-NNN-NNN | H1P250RAAA5C2BD8CF8E2L40L40RP24PNNNNNNN |
| 83067910 | H1-P-250-R-A-A-A5-C2-B-D8-C-F8-H3-L-38-L-38-W-P-24-PN-NNN-NNN | H1P250RAAA5C2BD8CF8H3L38L38WP24PNNNNNNN |
| 83039510 | H1-P-250-R-A-A-A5-C2-B-D8-C-G2-H2-L-38-L-38-W-P-24-PN-NNN-NNN | H1P250RAAA5C2BD8CG2H2L38L38WP24PNNNNNNN |
| 83084194 | H1-P-250-RAA-A5-C2-B-D8-C-G2-H3-L-30-L-30-RP-24-PN-NNN-NNN | H1P250RAAA5C2BD8CG2H3L30L30RP24PNNNNNNN |
| 83067454 | H1-P-250-R-A-A-A5-C2-B-D8-C-G2-H3-L-38-L-38-W-P-24-PN-NNN-NNN | H1P250RAAA5C2BD8CG2H3L38L38WP24PNNNNNNN |
| 83042901 | H1-P-250-R-A-A-A5-C2-B-D8-C-G2-H6-L-35-L-35-W-P-18-PN-NNN-NNN | H1P250RAAA5C2BD8CG2H6L35L35WP18PNNNNNNN |
| 83025216 | H1-P-250-R-A-A-A5-C2-B-D8-C-G2-NN-L-35-L-35-R-P-24-PN-NNN-NNN | H1P250RAAA5C2BD8CG2NNL35L35RP24PNNNNNNN |
| 83058980 | H1-P-250-R-A-A-A5-C2-B-D8-C-G2-NN-L-38-L-38-W-P-24-PN-NNN-NNN | H1P250RAAA5C2BD8CG2NNL38L38WP24PNNNNNNN |
| 83065418 | H1-P-250-R-A-A-A5-C2-B-D8-C-G2-NN-L-40-L-40-R-P-24-PN-NNN-NNN | H1P250RAAA5C2BD8CG2NNL40L40RP24PNNNNNNN |
| 83063871 | H1-P-250-R-A-A-A5-C2-N-D6-C-F8-E2-L-40-L-40-W-L-26-PN-NNN-NNN | H1P250RAAA5C2ND6CF8E2L40L40WL26PNNNNNNN |
| 83079920 | H1-P-250-RAA-A5-C2-N-D6-C-G2-H3-L-28-L-28-WL-24-PN-NNN-NNN | H1P250RAAA5C2ND6CG2H3L28L28WL24PNNNNNNN |
| 83068161 | H1-P-250-RAA-A5-C2-N-D6-C-G2-H3-L-30-L-30-WL-24-PN-NNN-NNN | H1P250RAAA5C2ND6CG2H3L30L30WL24PNNNNNNN |
| 83030302 | H1-P-250-R-A-A-A5-C2-N-D6-C-G2-H3-L-38-L-38-W-L-30-PN-NNN-NNN | H1P250RAAA5C2ND6CG2H3L38L38WL30PNNNNNNN |
| 83064020 | H1-P-250-R-A-A-A5-C2-N-D6-C-G2-H3-L-40-L-40-W-L-26-PN-NNN-NNN | H1P250RAAA5C2ND6CG2H3L40L40WL26PNNNNNNN |
| 83047476 | H1-P-250-R-A-A-A5-C2-N-D6-C-G2-H4-L-35-L-35-R-L-24-PN-NNN-NNN | H1P250RAAA5C2ND6CG2H4L35L35RL24PNNNNNNN |
| 83032813 | H1-P-250-R-A-A-A5-C2-N-D6-C-G2-H6-L-38-L-20-R-L-24-PN-NNN-NNN | H1P250RAAA5C2ND6CG2H6L38L20RL24PNNNNNNN |
| 83057932 | H1-P-250-R-A-A-A5-C2-N-D6-C-G2-H6-L-40-L-40-W-L-24-PN-NNN-NNN | H1P250RAAA5C2ND6CG2H6L40L40WL24PNNNNNNN |
| 83053068 | H1-P-250-R-A-A-A5-C2-N-D6-C-G2-NN-L-30-L-30-W-L-24-PN-NNN-NNN | H1P250RAAA5C2ND6CG2NNL30L30WL24PNNNNNNN |
| 83046957 | H1-P-250-R-A-A-A5-C2-N-D6-C-G2-NN-L-38-L-38-W-L-30-PN-NNN-NNN | H1P250RAAA5C2ND6CG2NNL38L38WL30PNNNNNNN |
| 83070209 | H1-P-250-RAA-A5-C2-N-D6-E-G2-NN-L-35-L-35-WL-28-P4-NNN-NNN | H1P250RAAA5C2ND6EG2NNL35L35WL28P4NNNNNN |
| 83040766 | H1-P-250-R-A-A-A5-C2-N-D8-C-F8-E1-L-38-L-38-R-P-24-PN-NNN-NNN | H1P250RAAA5C2ND8CF8E1L38L38RP24PNNNNNNN |
| 83092854 | H1-P-250-RAA-A5-C2-N-D8-C-F8-E2-L-45-L-45-WP-24-PN-NNN-NNN | H1P250RAAA5C2ND8CF8E2L45L45WP24PNNNNNNN |
| 83090418 | H1-P-250-RAA-A5-C2-N-D8-C-F8-H4-L-35-L-35-WP-24-PN-NNN-NNN | H1P250RAAA5C2ND8CF8H4L35L35WP24PNNNNNNN |
| 83052470 | H1-P-250-R-A-A-A5-C2-N-D8-C-F8-H6-L-20-L-38-W-P-24-PN-NNN-NNN | H1P250RAAA5C2ND8CF8H6L20L38WP24PNNNNNNN |
| 83093083 | H1-P-250-RAA-A5-C2-N-D8-C-G2-H2-L-35-L-35-WP-28-PN-NNN-NNN | H1P250RAAA5C2ND8CG2H2L35L35WP28PNNNNNNN |
| 83086841 | H1-P-250-RAA-A5-C2-N-D8-C-G2-H3-L-42-L-42-WP-28-PN-NNN-NNN | H1P250RAAA5C2ND8CG2H3L42L42WP28PNNNNNNN |
| 83048662 | H1-P-250-R-A-A-A5-C2-N-D8-C-G2-H4-L-42-L-42-R-P-24-PN-NNN-NNN | H1P250RAAA5C2ND8CG2H4L42L42RP24PNNNNNNN |
| 83041937 | H1-P-250-R-A-A-A5-C2-N-D8-C-G2-H5-L-20-L-30-W-P-24-PN-NNN-NNN | H1P250RAAA5C2ND8CG2H5L20L30WP24PNNNNNNN |
| 83042109 | H1-P-250-R-A-A-A5-C2-N-D8-C-G2-H6-L-35-L-35-W-P-24-PN-NNN-NNN | H1P250RAAA5C2ND8CG2H6L35L35WP24PNNNNNNN |
| 83077130 | H1-P-250-RAA-A5-C2-N-D8-C-G2-H6-L-35-L-35-WP-28-PN-NNN-NNN | H1P250RAAA5C2ND8CG2H6L35L35WP28PNNNNNNN |
| 83047338 | H1-P-250-R-A-A-A5-C2-N-D8-C-G2-H6-L-38-L-38-W-P-24-PN-NNN-NNN | H1P250RAAA5C2ND8CG2H6L38L38WP24PNNNNNNN |
| 83034311 | H1-P-250-R-A-A-A5-C2-N-D8-C-G2-NN-L-35-L-28-R-P-24-PN-NNN-NNN | H1P250RAAA5C2ND8CG2NNL35L28RP24PNNNNNNN |
| 83025372 | H1-P-250-R-A-A-A5-C2-N-D8-C-G2-NN-L-35-L-28-W-P-24-PN-NNN-NNN | H1P250RAAA5C2ND8CG2NNL35L28WP24PNNNNNNN |
| 83093534 | H1-P-250-RAA-A5-C2-N-D8-C-G2-NN-L-35-L-35-WP-28-PN-NNN-NNN | H1P250RAAA5C2ND8CG2NNL35L35WP28PNNNNNNN |
| 83078943 | H1-P-250-RAA-A5-C2-N-D8-C-G3-H6-L-42-L-42-WP-30-PN-NNN-NNN | H1P250RAAA5C2ND8CG3H6L42L42WP30PNNNNNNN |
| 83038673 | H1-P-250-R-A-A-A5-C2-N-D8-C-G3-NN-L-35-L-35-W-P-24-PN-NNN-NNN | H1P250RAAA5C2ND8CG3NNL35L35WP24PNNNNNNN |
| 83086862 | H1-P-250-RAA-A5-C2-N-D8-E-G2-E2-L-42-L-42-WP-28-P4-NNN-NNN | H1P250RAAA5C2ND8EG2E2L42L42WP28P4NNNNNN |
| 83060567 | H1-P-250-R-A-A-A5-C2-N-D8-E-G2-H3-L-42-L-42-R-P-28-P4-NNN-NNN | H1P250RAAA5C2ND8EG2H3L42L42RP28P4NNNNNN |
| 83055394 | H1-P-250-R-A-A-A5-C3-B-D6-C-F8-E1-L-45-L-45-W-L-34-PN-NNN-NNN | H1P250RAAA5C3BD6CF8E1L45L45WL34PNNNNNNN |
| 83055335 | H1-P-250-R-A-A-A5-C3-B-D6-C-F8-E2-L-45-L-45-W-L-34-PN-NNN-NNN | H1P250RAAA5C3BD6CF8E2L45L45WL34PNNNNNNN |
| 83057982 | H1-P-250-R-A-A-A5-C3-B-D6-C-G2-H3-L-45-L-45-W-L-34-PN-NNN-NNN | H1P250RAAA5C3BD6CG2H3L45L45WL34PNNNNNNN |
| 83055334 | H1-P-250-R-A-A-A5-C3-B-D6-C-G2-H6-L-45-L-45-W-L-34-PN-NNN-NNN | H1P250RAAA5C3BD6CG2H6L45L45WL34PNNNNNNN |
| 83055393 | H1-P-250-R-A-A-A5-C3-B-D6-C-G3-H6-L-45-L-45-W-L-34-PN-NNN-NNN | H1P250RAAA5C3BD6CG3H6L45L45WL34PNNNNNNN |
| 83090242 | H1-P-250-RAA-A5-C3-B-D8-C-F8-E2-K-42-K-42-NE-26-PN-NNN-NNN | H1P250RAAA5C3BD8CF8E2K42K42NE26PNNNNNNN |
| 83080025 | H1-P-250-RAA-A5-C3-B-D8-C-F8-H6-L-35-L-35-RP-30-PN-NNN-NNN | H1P250RAAA5C3BD8CF8H6L35L35RP30PNNNNNNN |
| 83054005 | H1-P-250-R-A-A-A5-C3-B-D8-C-G2-E2-L-38-L-38-W-P-24-PN-NNN-NNN | H1P250RAAA5C3BD8CG2E2L38L38WP24PNNNNNNN |
| 83055017 | H1-P-250-R-A-A-A5-C3-B-D8-C-G2-H2-L-25-L-25-W-P-24-PN-NNN-NNN | H1P250RAAA5C3BD8CG2H2L25L25WP24PNNNNNNN |
| 83083543 | H1-P-250-RAA-A5-C3-B-D8-C-G2-H3-K-40-K-40-NE-26-PN-NNN-NNN | H1P250RAAA5C3BD8CG2H3K40K40NE26PNNNNNNN |
| 83089994 | H1-P-250-RAA-A5-C3-B-D8-C-G2-H3-K-42-K-42-NE-26-PN-NNN-NNN | H1P250RAAA5C3BD8CG2H3K42K42NE26PNNNNNNN |
| 83042842 | H1-P-250-R-A-A-A5-C3-B-D8-C-G2-H3-L-38-L-38-N-E-30-PN-NNN-NNN | H1P250RAAA5C3BD8CG2H3L38L38NE30PNNNNNNN |
| 83028978 | H1-P-250-R-A-A-A5-C3-B-D8-C-G2-H6-L-35-L-40-W-P-24-PN-NNN-NNN | H1P250RAAA5C3BD8CG2H6L35L40WP24PNNNNNNN |
| 83054004 | H1-P-250-R-A-A-A5-C3-B-D8-C-G2-H6-L-38-L-38-W-P-24-PN-NNN-NNN | H1P250RAAA5C3BD8CG2H6L38L38WP24PNNNNNNN |
| 83021939 | H1-P-250-R-A-A-A5-C3-B-D8-C-G2-NN-L-30-L-30-R-P-18-PN-NNN-NNN | H1P250RAAA5C3BD8CG2NNL30L30RP18PNNNNNNN |
| 83048858 | H1-P-250-R-A-A-A5-C3-N-D6-C-G2-E2-K-38-K-38-R-L-24-PN-NNN-NNN | H1P250RAAA5C3ND6CG2E2K38K38RL24PNNNNNNN |
| 83092742 | H1-P-250-RAA-A5-C3-N-D6-C-G2-E2-L-38-L-38-WL-28-PN-NNN-NNN | H1P250RAAA5C3ND6CG2E2L38L38WL28PNNNNNNN |
| 83043019 | H1-P-250-R-A-A-A5-C3-N-D6-C-G2-H1-L-45-L-45-W-L-24-PN-NNN-NNN | H1P250RAAA5C3ND6CG2H1L45L45WL24PNNNNNNN |
| 83068522 | H1-P-250-RAA-A5-C3-N-D6-C-G2-H3-L-38-L-38-RL-26-PN-NNN-NNN | H1P250RAAA5C3ND6CG2H3L38L38RL26PNNNNNNN |
| 83070646 | H1-P-250-RAA-A5-C3-N-D6-C-G2-H3-L-38-L-38-WL-28-PN-NNN-NNN | H1P250RAAA5C3ND6CG2H3L38L38WL28PNNNNNNN |
| 83069520 | H1-P-250-RAA-A5-C3-N-D6-E-G2-H3-L-38-L-23-RL-26-P4-NNN-NNN | H1P250RAAA5C3ND6EG2H3L38L23RL26P4NNNNNN |
| 83085759 | H1-P-250-RAA-A5-C3-N-D6-E-G2-H5-L-35-L-20-RL-26-P4-NNN-NNN | H1P250RAAA5C3ND6EG2H5L35L20RL26P4NNNNNN |
| 83069835 | H1-P-250-RAA-A5-C3-N-D6-E-G2-H5-L-38-L-23-RL-26-P4-NNN-NNN | H1P250RAAA5C3ND6EG2H5L38L23RL26P4NNNNNN |
| 83058303 | H1-P-250-R-A-A-A5-C3-N-D8-C-F8-H6-L-38-L-38-W-P-34-PN-NNN-NNN | H1P250RAAA5C3ND8CF8H6L38L38WP34PNNNNNNN |
| 83093549 | H1-P-250-RAA-A5-C3-N-D8-C-G2-E1-K-42-K-42-WP-22-PN-NNN-NNN | H1P250RAAA5C3ND8CG2E1K42K42WP22PNNNNNNN |
| 83052481 | H1-P-250-R-A-A-A5-C3-N-D8-C-G2-E2-L-28-L-28-W-P-24-PN-NNN-NNN | H1P250RAAA5C3ND8CG2E2L28L28WP24PNNNNNNN |
| 83031705 | H1-P-250-R-A-A-A5-C3-N-D8-C-G2-E2-L-33-L-33-W-P-24-PN-NNN-NNN | H1P250RAAA5C3ND8CG2E2L33L33WP24PNNNNNNN |
| 83062565 | H1-P-250-R-A-A-A5-C3-N-D8-C-G2-E2-L-35-L-35-W-P-24-PN-NNN-NNN | H1P250RAAA5C3ND8CG2E2L35L35WP24PNNNNNNN |
| 83052482 | H1-P-250-R-A-A-A5-C3-N-D8-C-G2-H3-L-28-L-28-W-P-24-PN-NNN-NNN | H1P250RAAA5C3ND8CG2H3L28L28WP24PNNNNNNN |
| 83062564 | H1-P-250-R-A-A-A5-C3-N-D8-C-G2-H3-L-35-L-35-W-P-24-PN-NNN-NNN | H1P250RAAA5C3ND8CG2H3L35L35WP24PNNNNNNN |
| 83069174 | H1-P-250-RAA-A5-C3-N-D8-C-G2-H3-L-42-L-42-RP-26-PN-NNN-NNN | H1P250RAAA5C3ND8CG2H3L42L42RP26PNNNNNNN |
| 83033458 | H1-P-250-R-A-A-A5-C3-N-D8-C-G2-NN-L-28-L-28-W-P-24-PN-NNN-NNN | H1P250RAAA5C3ND8CG2NNL28L28WP24PNNNNNNN |
| 83031704 | H1-P-250-R-A-A-A5-C3-N-D8-C-G2-NN-L-33-L-33-W-P-24-PN-NNN-NNN | H1P250RAAA5C3ND8CG2NNL33L33WP24PNNNNNNN |
| 83085702 | H1-P-250-RAA-A5-C3-N-D8-C-G2-NN-L-35-L-35-RP-28-PN-NNN-NNN | H1P250RAAA5C3ND8CG2NNL35L35RP28PNNNNNNN |
| 83093550 | H1-P-250-RAA-A5-C3-N-D8-C-G3-H6-K-42-K-42-WP-22-PN-NNN-NNN | H1P250RAAA5C3ND8CG3H6K42K42WP22PNNNNNNN |
| 83058621 | H1-P-250-R-A-A-A5-C3-N-D8-E-F8-H6-L-38-L-38-W-P-34-P4-NNN-NNN | H1P250RAAA5C3ND8EF8H6L38L38WP34P4NNNNNN |
| 83077483 | H1-P-250-RAA-A5-C3-N-D8-E-G2-H6-L-42-L-42-WP-28-P4-NNN-NNN | H1P250RAAA5C3ND8EG2H6L42L42WP28P4NNNNNN |
| 83093815 | H1-P-250-RAA-A5-C4-N-D8-C-F8-E2-L-33-L-33-WP-30-PN-NNN-NNN | H1P250RAAA5C4ND8CF8E2L33L33WP30PNNNNNNN |
| 83093816 | H1-P-250-RAA-A5-C4-N-D8-C-G2-H3-L-33-L-33-WP-30-PN-NNN-NNN | H1P250RAAA5C4ND8CG2H3L33L33WP30PNNNNNNN |
| 83059206 | H1-P-250-RAA-E8-C2-B-D6-C-G2-H5-L-33-L-33-WL-28-PN-C23-NNN | H1P250RAAE8C2BD6CG2H5L33L33WL28PNC23NNN |
| 83059510 | H1-P-250-RAA-E8-C2-B-D6-C-G2-H5-L-33-L-33-WL-30-PN-C23-NNN | H1P250RAAE8C2BD6CG2H5L33L33WL30PNC23NNN |
| 83035825 | H1-P-250-R-A-A-E8-C2-N-D6-C-G2-H4-L-35-L-35-W-L-30-PN-NNN-NNN | H1P250RAAE8C2ND6CG2H4L35L35WL30PNNNNNNN |
| 83083325 | H1-P-250-RAA-E8-C2-N-D6-C-G2-H5-L-38-L-20-RL-24-PN-C32-NNN | H1P250RAAE8C2ND6CG2H5L38L20RL24PNC32NNN |
| 83035692 | H1-P-250-R-A-A-E8-C2-N-D6-C-G2-H6-L-38-L-20-R-L-24-PN-NNN-NNN | H1P250RAAE8C2ND6CG2H6L38L20RL24PNNNNNNN |
| 83080187 | H1-P-250-RAA-F1-C2-C-D6-C-G3-NN-F-01-F-01-RL-24-P1-NNN-NNN | H1P250RAAF1C2CD6CG3NNF01F01RL24P1NNNNNN |
| 83090591 | H1-P-250-RAA-G3-C3-B-D6-C-F8-E2-K-48-K-48-WL-34-PN-NNN-NNN | H1P250RAAG3C3BD6CF8E2K48K48WL34PNNNNNNN |
| 83090590 | H1-P-250-RAA-G3-C3-B-D6-C-G2-H6-K-48-K-48-WL-34-PN-NNN-NNN | H1P250RAAG3C3BD6CG2H6K48K48WL34PNNNNNNN |
| 83074905 | H1-P-250-RAA-H7-C3-B-D8-C-F8-E2-K-45-K-45-NE-24-PN-NNN-NNN | H1P250RAAH7C3BD8CF8E2K45K45NE24PNNNNNNN |
| 83074902 | H1-P-250-RAA-H7-C3-B-D8-C-G2-H6-K-45-K-45-NE-24-PN-NNN-NNN | H1P250RAAH7C3BD8CG2H6K45K45NE24PNNNNNNN |
| 83077484 | H1-P-250-RAA-H7-C3-B-D8-C-G2-NN-K-45-K-45-NE-24-PN-NNN-NNN | H1P250RAAH7C3BD8CG2NNK45K45NE24PNNNNNNN |
| 83091798 | H1-P-250-RAA-H9-C2-N-D6-C-F8-E1-L-40-L-40-WL-32-PN-NNN-NNN | H1P250RAAH9C2ND6CF8E1L40L40WL32PNNNNNNN |
| 83091627 | H1-P-250-RAA-H9-C2-N-D6-C-G3-H6-L-40-L-40-WL-32-PN-NNN-NNN | H1P250RAAH9C2ND6CG3H6L40L40WL32PNNNNNNN |
| 83055280 | H1-P-250-R-A-A-M1-C1-N-D6-C-G2-NN-L-28-L-28-W-L-34-H1-NNN-M00 | H1P250RAAM1C1ND6CG2NNL28L28WL34H1NNNM00 |
| 83088942 | H1-P-250-RAA-M1-C4-N-D6-C-G2-NN-L-20-L-28-WL-26-H1-NNN-M00 | H1P250RAAM1C4ND6CG2NNL20L28WL26H1NNNM00 |
| 83081359 | H1-P-250-RAA-M1-D6-B-D8-C-G2-E2-L-35-L-35-WP-24-H1-NNN-M00 | H1P250RAAM1D6BD8CG2E2L35L35WP24H1NNNM00 |
| 83081499 | H1-P-250-RAA-M1-D6-B-D8-C-G2-H3-L-35-L-35-WP-24-H1-NNN-M00 | H1P250RAAM1D6BD8CG2H3L35L35WP24H1NNNM00 |
| 83081360 | H1-P-250-RAA-M1-D6-B-D8-C-G2-H6-L-35-L-35-WP-24-H1-NNN-M00 | H1P250RAAM1D6BD8CG2H6L35L35WP24H1NNNM00 |
| 83077129 | H1-P-250-RAA-M2-C1-B-D8-C-F8-H6-L-35-L-35-WP-24-H1-NNN-M00 | H1P250RAAM2C1BD8CF8H6L35L35WP24H1NNNM00 |
| 83057015 | H1-P-250-R-A-A-M2-C2-B-D8-C-F8-H4-L-40-L-40-W-P-24-H1-NNN-M00 | H1P250RAAM2C2BD8CF8H4L40L40WP24H1NNNM00 |
| 83057018 | H1-P-250-R-A-A-M2-C2-B-D8-C-F8-H6-L-40-L-40-W-P-24-H1-NNN-M00 | H1P250RAAM2C2BD8CF8H6L40L40WP24H1NNNM00 |
| 83077276 | H1-P-250-RAA-N2-C2-C-D8-E-F8-H3-L-42-L-42-WP-30-P2-NNN-NNN | H1P250RAAN2C2CD8EF8H3L42L42WP30P2NNNNNN |
| 83085585 | H1-P-250-RAA-N2-C3-C-D6-C-F8-E2-L-48-L-48-WL-34-P1-NNN-NNN | H1P250RAAN2C3CD6CF8E2L48L48WL34P1NNNNNN |
| 83085583 | H1-P-250-RAA-N2-C3-C-D6-E-G2-H6-L-48-L-48-WL-34-P2-NNN-NNN | H1P250RAAN2C3CD6EG2H6L48L48WL34P2NNNNNN |
| 83048165 | H1-P-250-RAA-ND-C3-B-D8-C-G3-NN-K-45-K-45-RP-24-PN-C08-NNN | H1P250RAANDC3BD8CG3NNK45K45RP24PNC08NNN |
| 83089765 | H1-P-250-RAM-E7-C3-N-D4-C-G2-H5-L-48-K-42-WM-30-PN-NNN-GAU | H1P250RAME7C3ND4CG2H5L48K42WM30PNNNNGAU |
| 83090179 | H1-P-250-RAM-E7-C3-N-D4-C-G2-H6-L-48-K-42-WM-30-PN-NNN-GAU | H1P250RAME7C3ND4CG2H6L48K42WM30PNNNNGAU |
Q1:What are the main advantages of the H1P250R pump's design?
A1:The main advantages of the H1P250R hydraulic pump's axial piston design are high power density, high volumetric efficiency, smooth flow delivery, and relatively low noise levels during operation.
Q2:In which industries or machinery is the H1P250R hydraulic pump commonly used?
A2:The H1P250R hydraulic pump is commonly used in mobile and industrial equipment such as construction machinery, agricultural vehicles, and material handling systems.
Q3:How to purchase a H1P250R hydraulic pump?
A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
Q4:What is the price and delivery time of the H1P250R hydraulic pump?
A4:The specific price and delivery time will be provided based on the specific model you provide.
