For Parker P1018 Medium pressure axial piston pump
- Product Details
- Product Model
- FAQ

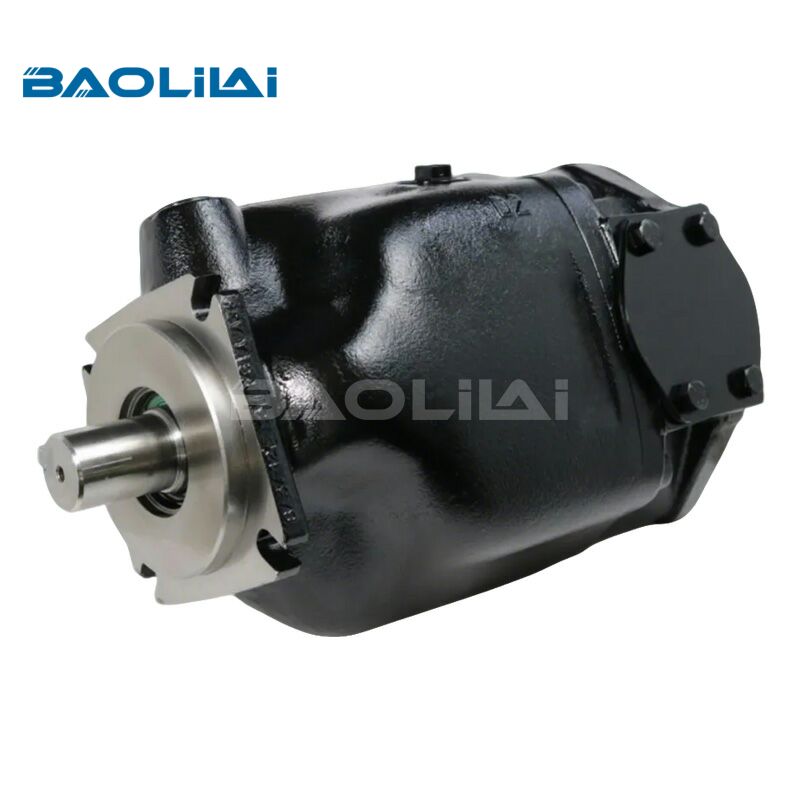

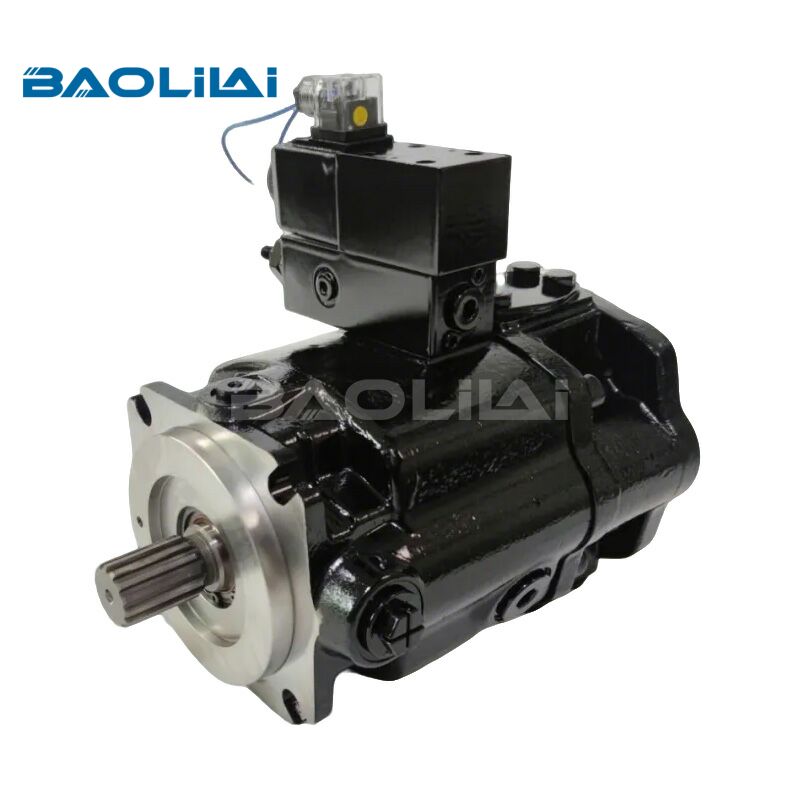

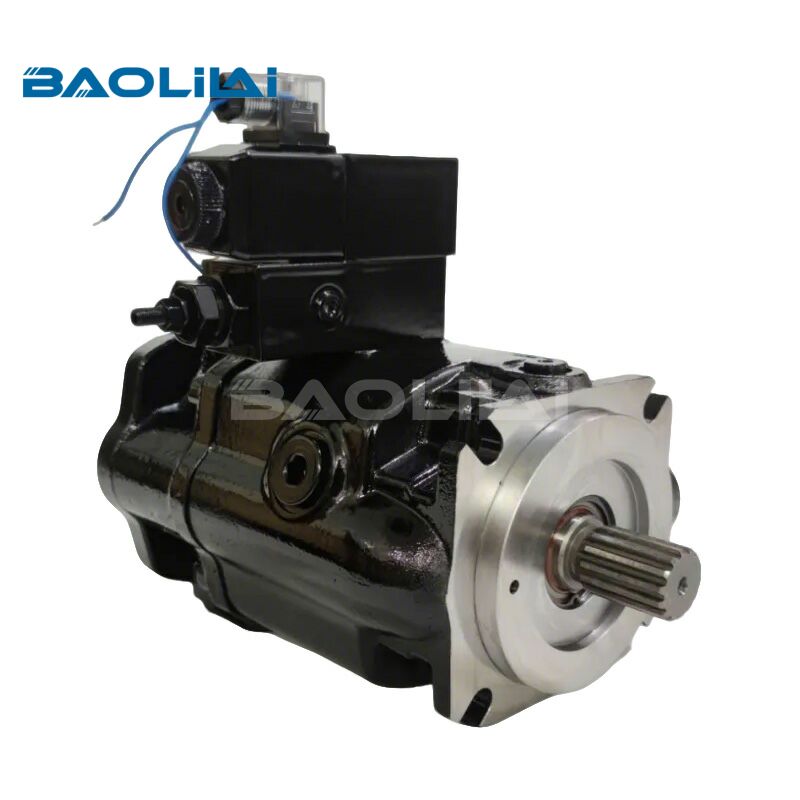

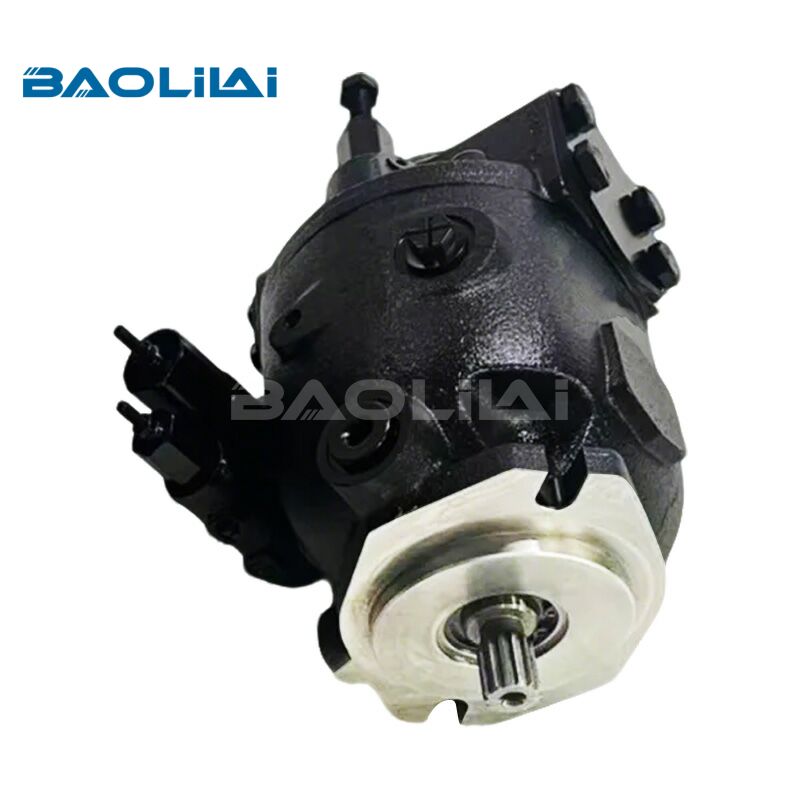

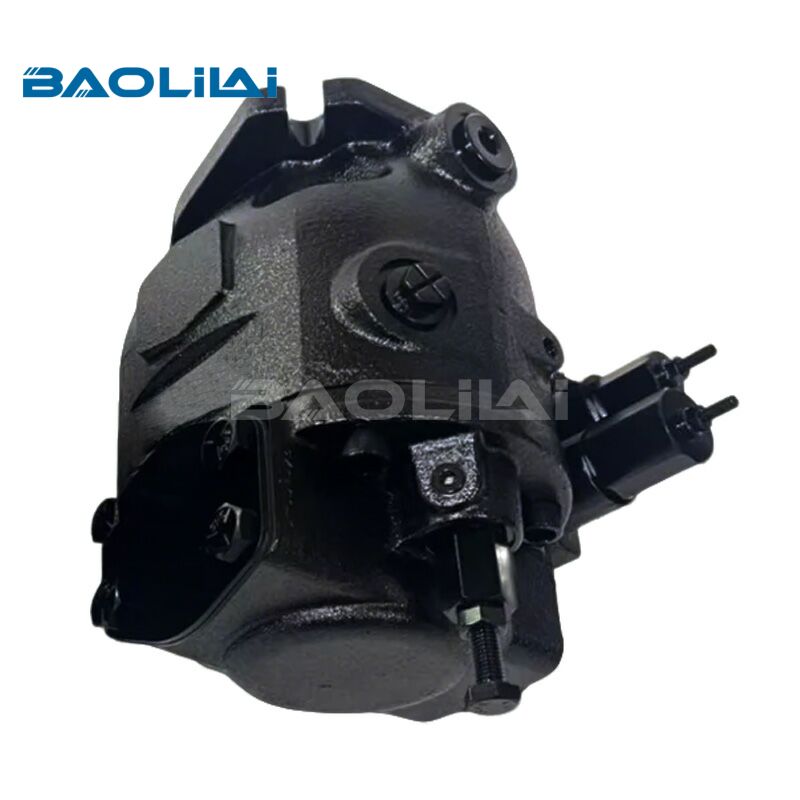

The Parker P1018 is a robust, medium-pressure, fixed-displacement axial piston pump designed for reliable service in open-circuit hydraulic systems. Engineered with a proven swashplate design and ball-type pistons, it delivers smooth, efficient flow with minimal pulsation and low noise levels. Its rated operating pressure is 250 bar, with a maximum intermittent pressure capability of 280 bar, and it offers a nominal displacement of 18 cm³ per revolution.
Key strengths of the P1018 include its exceptional durability and high volumetric efficiency. The design emphasizes excellent contamination tolerance, contributing to a long service life and reduced maintenance requirements even in challenging conditions. Its compact and lightweight construction allows for flexible installation in space-constrained applications.
This pump is ideally suited for a wide range of mobile and industrial machinery, including construction equipment, agricultural machinery, material handling systems, and various auxiliary power units. It operates effectively with standard mineral-based hydraulic fluids. Valued for its cost-effectiveness and dependable performance, the Parker P1018 is a versatile and trusted solution for powering medium-pressure hydraulic functions where consistent performance and durability are essential.
Specifications
| Model | P1/PD018 | P1/PD028 | P1/PD045 | P1/PD060 | P1/PD075 | P1/PD100 | P1/PD140 |
| Maximum Displacement, cm3/rev (cu.in./rev) | 18 (1.10) | 28(1.71) | 45(2.75) | 60(3.66) | 75(4.58) | 100(6.01) | 140(8.54) |
| Outlet Pressure – Continuous | 280 bar (4060 psi) | ||||||
| Intermittent | 320 bar (4640 psi) | ||||||
| Peak | 350 bar (5075 psi) | ||||||
| P1 Maximum Speed (1.3 bar abs inlet), rpm | 3500 | 3400 | 3100 | 2800 | 2700 | 2500 | 2400 |
| P1 (1.0 bar abs inlet), rpm | 3300 | 3200 | 2800 | 2500 | 2400 | 2250 | 2100 |
| P1 (0.8 bar abs inlet), rpm | 2900 | 2900 | 2400 | 2200 | 2100 | 1900 | 1800 |
| PD Maximum Speed (1.0 bar abs inlet), rpm | 1800 | ||||||
| PD (0.8 bar abs inlet), rpm | 1800 | ||||||
| Minimum Speed, rpm | 600 | ||||||
| Inlet Pressure – Maximum | 11 bar absolute (160 psi) | ||||||
| Rated | 1.0 bar absolute (14.5 psi) | ||||||
| Minimum | 0.8 bar absolute (11.6 psi) | ||||||
| Case Pressure – Peak, bar | 4.0 bar absolute (58 psi) and less than 0.5 bar (7.3 psi) above inlet pressure | ||||||
| Rated, bar | 2.0 bar absolute (29 psi) and less than 0.5 bar (7.3 psi) above inlet pressure | ||||||
| Fluid Temperature Range, °C (°F) | -40 to +95 (-40 to +203) | ||||||
| Fluid Viscosity – Rated, cSt | 7 to 160 | ||||||
| Optimum Range, cSt | 14-50 cSt. | ||||||
| Max. Intermittent, cSt | 5000 (for cold starting) | ||||||
| Min. Intermittent, cSt | 5 | ||||||
| Fluid Contamination – Rated, ISO | 20/18/14 | ||||||
| Weight – End Port, kg (lb) | 13.4 (29.5) | 17.7 (39.0) | 23 (50) | 29 (64) | 30 (66) | 51 (112) | 66 (145) |
| Side Port, kg (lb) | 14.2 (31.3) | 18.1 (40.0) | 24 (52) | 30 (67) | 31 (68) | 53 (117) | 67 (147) |
| Thru-Drive, kg (lb) | 15 (34) | 22 (48) | 27 (59) | 34 (75) | 35 (77) | 55 (121) | 82 (180) |
| Moment of Inertia kg·mm2 | 760 | 1555 | 3208 | 4548 | 5041 | 12027 | 21400 |
| Moment of Inertia Thru-Drive, kg·mm2 | 793 | 1618 | 3268 | 4687 | 5207 | 12402 | 22343 |

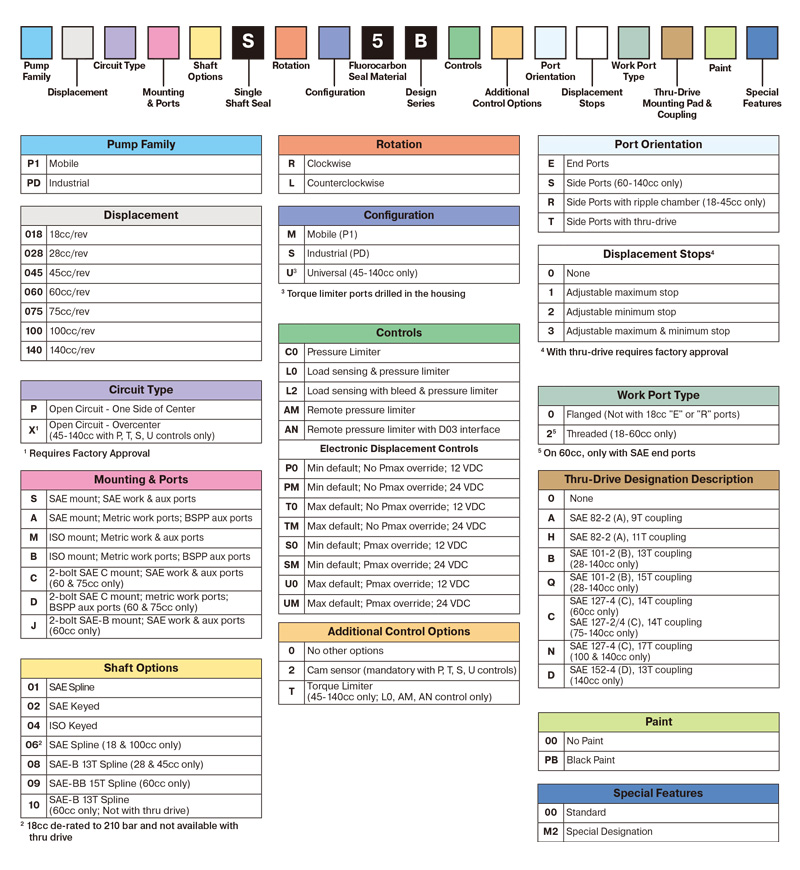

Selection Table
| P1018 hydraulic pump | |
| Model No. | Model Code |
| 02E-87514-5 | P1018PA01SRM5AC00R020PB00 |
| 02E-86727-5 | P1018PA01SRM5AL00R020PB00 |
| 02E-86991-5 | P1018PA06SLM5AL00R020PB00 |
| 02E-86616-5 | P1018PA08SLM5AC00R1200000 |
| 02E-87737-5 | P1018PB04SRM5AC00R1200000 |
| 02E-88099-5 | P1018PB04SRM5AL00E0200000 |
| 02E-87656-5 | P1018PB04SRM5AL00R1200000 |
| 02E-86181-5 | P1018PS01SLM5AAM0E0200000 |
| 02E-86163-5 | P1018PS01SLM5AAM0E1200000 |
| 02E-87023-5 | P1018PS01SLM5AC00E0300000 |
| 02E-87203-5 | P1018PS01SLM5AC00R1200000 |
| 02E-87879-5 | P1018PS01SLM5AL00E0200000 |
| 02E-86166-5 | P1018PS01SLM5AL00E1200000 |
| 02E-86711-5 | P1018PS01SLM5AL00R0200000 |
| 02E-88172-5 | P1018PS01SRM5AAM |
| 02E-86947-5 | P1018PS01SRM5AAN0R1200000 |
| 02E-87832-5 | P1018PS01SRM5AC00E0200000 |
| 02E-86653-5 | P1018PS01SRM5AC00E1200000 |
| 02E-87139-5 | P1018PS01SRM5AC00R0200000 |
| 02E-86739-5 | P1018PS01SRM5AC00R1200000 |
| 02E-87252-5 | P1018PS01SRM5AC00R120PB00 |
| 02E-88459-5 | P1018PS01SRM5AC1 |
| 02E-87188-5 | P1018PS01SRM5AL00E0200000 |
| 02E-87081-5 | P1018PS01SRM5AL00E020PB00 |
| 02E-86988-5 | P1018PS01SRM5AL00E120PB00 |
| 02E-88217-5 | P1018PS01SRM5AL00R0200000 |
| 02E-85842-5 | P1018PS01SRM5AL00R1200000 |
| 02E-88635-5 | P1018PS01SRM5AT0 |
| 02E-87388-5 | P1018PS02SLM5AAM0E120PB00 |
| 02E-88630-5 | P1018PS02SLM5AC0 |
| 02E-86930-5 | P1018PS02SLM5AC00E1200000 |
| 02E-87355-5 | P1018PS02SLM5AL00R0200000 |
| 02E-86784-5 | P1018PS02SRM5AAM0E1200000 |
| 02E-86349-5 | P1018PS02SRM5AC00E1200000 |
| 02E-87363-5 | P1018PS02SRM5AC00R1200000 |
| 02E-88616-5 | P1018PS02SRM5AC1 |
| 02E-86246-5 | P1018PS02SRM5AC10R3200000 |
| 02E-87141-5 | P1018PS02SRM5AL00E1200000 |
| 02E-86713-5 | P1018PS02SRM5AL00R0200000 |
| 02E-86816-5 | P1018PS02SRM5AL00R1200000 |
| 02E-87270-5 | P1018PS02SRM5AL20E1200000 |
| 02E-88638-5 | P1018PS02SRM5AT0 |
| 02E-88222-5 | P1018PS06SLM5AAM |
| 02E-87929-5 | P1018PS06SLM5AAM0E0200000 |
| 02E-88247-5 | P1018PS06SLM5AC0 |
| 02E-86871-5 | P1018PS06SLM5AL00E120PB00 |
| 02E-86824-5 | P1018PS06SRM5AC00E0200000 |
| 02E-87098-5 | P1018PS06SRM5AC00E220PB00 |
| 02E-88283-5 | P1018PS06SRM5AL0 |
| 02E-86670-5 | P1018PS06SRM5AL00E0200000 |
| 02E-86508-5 | P1018PS06SRM5AL00E020PB00 |
| 02E-86350-5 | P1018PS06SRM5AL00R0200000 |
| 02E-86929-5 | P1018PS06SRM5AL00R1200000 |
| 02E-86659-5 | P1018PS06SRM5AL20E020PB00 |
| 02E-86351-5 | P1018PS06SRM5AL20R0200000 |
| 02E-86152-5 | P1018PS06SRM5AL20R020PB00 |
| 02E-87292-5 | P1018PS08SLM5AC00E1200000 |
| 02E-86193-5 | P1018PS08SLM5AL00S020PB00 |
| 02E-86352-5 | P1018PS08SRM5AL00E1200000 |
| 02E-85836-5 | P1018PS08SRM5AL00E120PB00 |
Q1: In which types of applications is the P1018 hydraulic pump commonly used?
A1: The P1018 hydraulic pump is commonly used in mobile and industrial applications, such as construction equipment, agricultural machinery, material handling systems, and auxiliary power units.
Q2: What are the operational benefits provided by the P1018 hydraulic pump's design?
A2: The design of the P1018 hydraulic pump provides smooth flow with minimal pulsation, low noise levels, high volumetric efficiency, and compact installation flexibility.
Q3: What is the price and delivery time of the P1018 hydraulic pump?
A3: The specific price and delivery time will be provided based on the specific model you provide.
Q4:How to purchase a P1018 hydraulic pump?
A4:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
