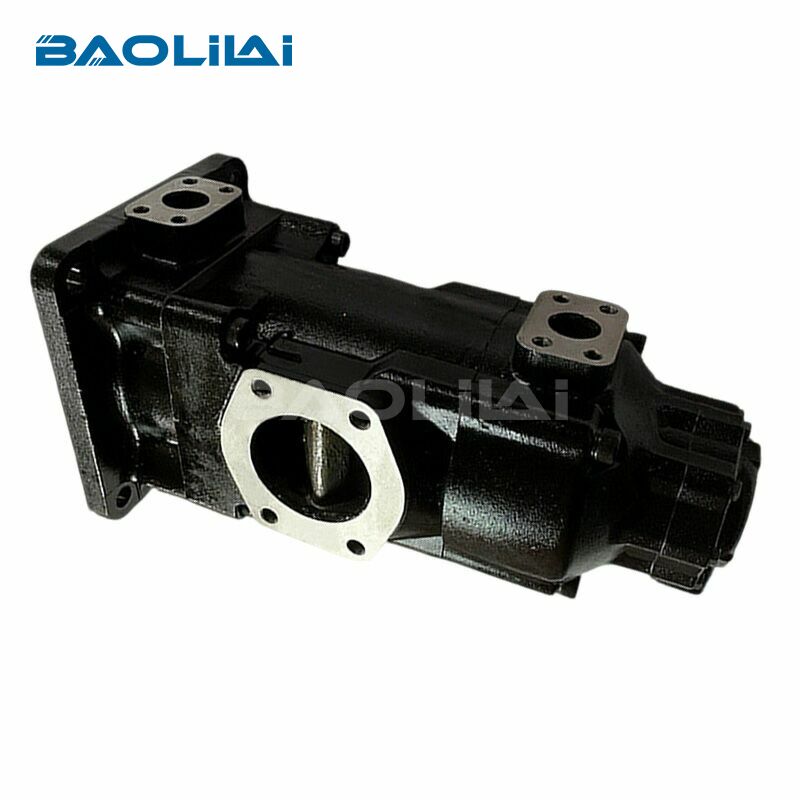

Parker Denison T6EDC fixed displacement hydraulic vane pump

The Parker Denison T6EDC is a fixed displacement, double vane pump manufactured by Parker Hannifin's Hydraulics Group — formerly known as Denison Hydraulics before Parker's acquisition. The "T6" designates the cartridge-style vane pump family. The "E" and "D" in the model string each refer to individual pump sections (typically differing in displacement), and "C" indicates a combined or tandem configuration with a common inlet.

Design, Architecture, and Operating Principle

How Vane Pumps Work

A vane pump operates on a deceptively simple principle. A slotted rotor spins inside an elliptical (or circular offset) cam ring. Spring-loaded or hydraulically loaded vanes extend outward from the rotor slots, maintaining contact with the cam ring surface. As the rotor turns, the vanes sweep through expanding and contracting chambers.

During expansion — when the vane is moving away from the cam ring center — fluid is drawn in through the inlet port. As the chamber contracts on the outlet side, the trapped fluid is pressurized and discharged. The elliptical cam ring geometry in the T6 series creates two inlet and two outlet cycles per shaft revolution (a balanced vane design), which hydrostatically balances the rotor and dramatically reduces bearing side loads.

The T6EDC Double-Section Configuration

The T6EDC takes this further. Two complete cartridge assemblies — an "E" section and a "D" section — are stacked on a common through-shaft. A center section body provides structural support and separates the two pumping chambers. The common inlet means both sections draw from the same reservoir connection, simplifying plumbing, while their separate outlets allow each to feed entirely independent hydraulic circuits.

This arrangement is mechanically elegant. The torque demands of both sections add together at the shaft coupling, but the hydraulic circuits remain fully isolated. Circuit 1 can operate at 3,000 psi while circuit 2 idles at 500 psi — neither affects the other's flow.

Cartridge Serviceability

One of the T6 family's most respected features among maintenance professionals is the field-replaceable cartridge kit. The rotor, vanes, cam ring, and port plates are all contained in a standardized cartridge that drops into the pump body. When wear occurs — typically at the cam ring surface or vane tips — a technician replaces only the cartridge, not the entire pump. This dramatically reduces parts cost and downtime, particularly on high-cycle production equipment.

Common Application Scenarios

Industrial Machine Tools

CNC machining centers and transfer machines frequently use the T6EDC to power two separate circuits simultaneously: a high-flow, lower-pressure circuit for rapid axis motion and a lower-flow, higher-pressure circuit for clamping or tooling functions. Using a double pump eliminates the cost and complexity of a second power unit while keeping the circuits fully independent — the clamping pressure doesn't fluctuate when the rapid traverse system is operating.

Injection Molding Machines

Injection molding presses are particularly well-suited to double vane pump configurations. The mold clamping circuit and the injection/plasticizing circuit have very different pressure and flow demands that shift through each machine cycle. The T6EDC allows each circuit to be independently pressure-compensated with its own relief valve, preventing cross-circuit interference that would otherwise cause positional errors or pressure spikes during clamp-up.

Mobile Equipment (On-Highway and Off-Road)

While the T6EDC is primarily positioned as an industrial pump, its cartridge design and robust pressure rating have made it a practical choice for specialty mobile applications — aerial work platforms, industrial sweepers, and truck-mounted crane circuits among them. The contamination tolerance of vane pumps, though generally not as high as piston pumps, is well-managed by the T6's inlet filtration requirements (typically 10 micron absolute or better).

Plastics and Rubber Processing Equipment

Extruders, blow molding machines, and rubber injection presses often require multiple hydraulic functions simultaneously: die adjust, screw drive, and screen changer, for instance. The T6EDC's ability to serve two circuits from one shaft makes it ideal for these multi-function machine architectures.

For more information on the T6EDC hydraulic vane pump, please visit https://www.baolilaihydraulic.com/pro3-2/.

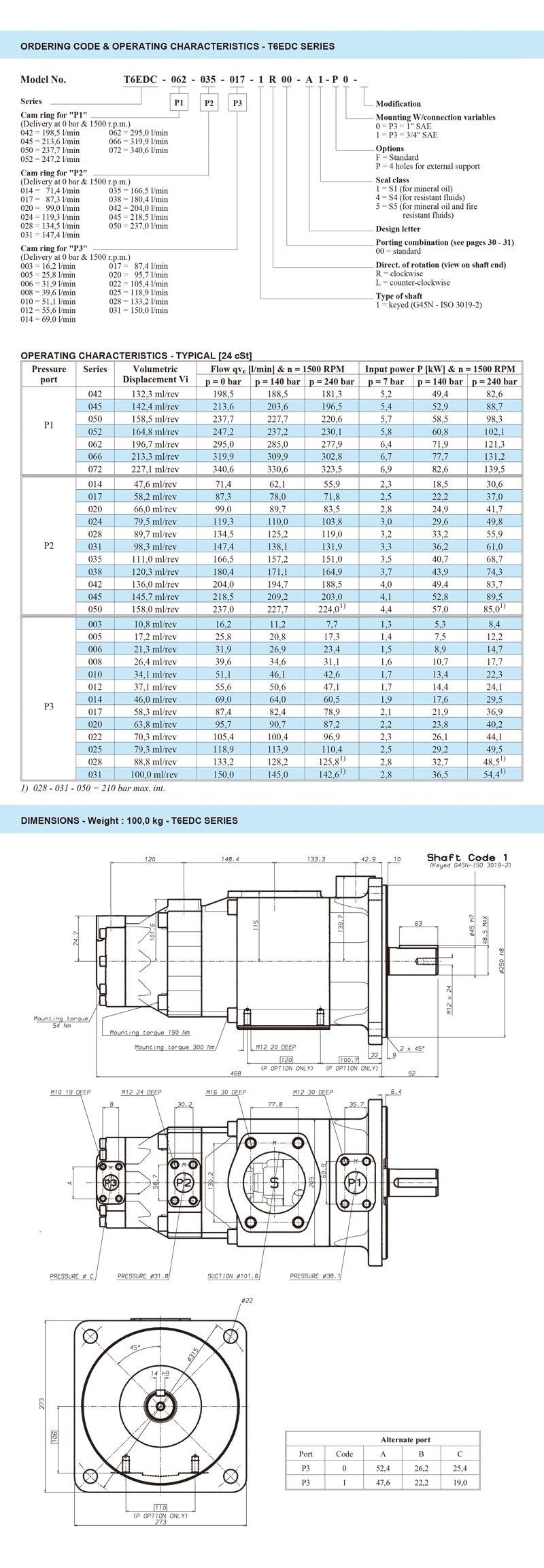

Selection Table

Q1: Can the two sections of the T6EDC operate at different pressures simultaneously?

A1: Yes. Each section has its own outlet port and is hydraulically isolated from the other. Each circuit should have its own independently set relief valve. One section can be deadheaded (unloaded) while the other operates at full pressure with no adverse interaction.

Q2: What causes the vanes to wear prematurely?

A2: The three most common causes are: (1) fluid contamination above ISO 4406 17/15/12, (2) operating below the minimum speed threshold where centrifugal force is insufficient to keep vane tips in contact with the cam ring, and (3) cavitation damage from inadequate inlet conditions. All three are preventable through proper system design and maintenance discipline.

Q3:How to purchase a T6EDC hydraulic pump?

A3:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.

Q4:What is the price and delivery time of the T6EDC hydraulic pump?

A4: The specific price and delivery time will be provided based on the model you specify.
