Rexroth A2FE A2FM fixed hydraulic motors for Aebi Schmidt Sweeper 0236502-1 0286961-8 1047928-9 12-97601598

Both the A2FE and A2FM are fixed-displacement, bent-axis piston motors from Bosch Rexroth's A2 series. "Fixed displacement" means the motor delivers a constant torque and speed ratio for a given flow and pressure — there's no internal swashplate adjustment, which keeps the design simple, compact, and mechanically robust. That simplicity is a big part of why these units are favored for auxiliary drives like sweeper brooms, hydraulic fans, and gearbox-driven wheel motors, where predictable output matters more than variable control.

A2FE: The Compact, High-Speed Workhorse

The A2FE is a bent-axis design optimized for high speeds and a compact envelope. It's typically found where space is tight, but rotational speed needs to stay high — think auxiliary drives, cooling fan motors, and smaller broom or brush drives on compact sweepers.

A2FM: Built for Higher Torque and Continuous Duty

The A2FM shares the same bent-axis architecture but is generally specified where higher torque density and continuous-duty performance are the priority — such as main travel drives, gearbox drives, and heavier broom assemblies on larger sweeper chassis. Both series share Rexroth's reputation for tight manufacturing tolerances, which translates into lower internal leakage, better volumetric efficiency, and longer service life under repeated start-stop cycles.

Why These Motors Matter on Aebi Schmidt Sweepers

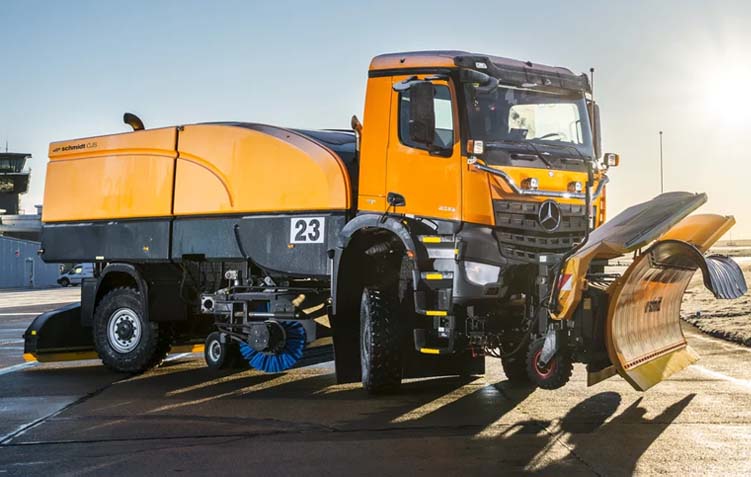

Aebi Schmidt sweepers — whether municipal road sweepers, airport sweepers, or compact multi-purpose units — rely on hydraulics to run several independent functions simultaneously: side brooms, the main broom, suction fans, conveyors, and sometimes the drive train itself. A motor failure on any one of these circuits can take the whole machine out of service.

That's where fixed-displacement piston motors earn their keep:

Consistent broom speed under load — as debris density changes (wet leaves vs. dry dust vs. gravel), the motor needs to hold speed without lurching or stalling.

Compact mounting — sweeper chassis are crowded with fans, ducting, and hoppers, so a motor's physical footprint matters as much as its output.

Contamination tolerance — sweeper hydraulic circuits are notoriously exposed to fine particulate that can find its way past seals over time; Rexroth's piston-and-cylinder-block tolerances hold up better than gear motors in this environment.

Long duty cycles — many sweepers run 6–10 hours a day, and a motor that's marginal on efficiency shows up quickly as heat, noise, and premature wear.

Key Specifications to Check Before Replacing a Motor

Swapping in a fixed motor isn't a "close enough" job — a mismatch in displacement or pressure rating will either starve the function of torque or overload the seals. Before ordering, confirm:

1. Displacement (cm³/rev) — this sets the torque and speed relationship for a given flow rate. Too small and the broom will spin too fast with too little torque; too large and you'll starve other circuits sharing the same pump flow.

2. Shaft configuration — splined, straight, or keyed shafts are not interchangeable, and sweeper gearboxes are usually built around one specific shaft profile.

3. Mounting flange (SAE or ISO) — a mismatched flange means new adapter plates or a full bracket rework.

4. Port configuration and orientation — determines hose routing and whether you'll need new fittings.

5. Case drain requirements — piston motors typically need a case drain line; skipping or undersizing it is one of the most common causes of premature seal failure.

6. Pressure rating — nominal and peak pressure ratings must match or exceed system relief settings, especially on circuits with shock loading from debris impact.

For more brand and equipment models, please visit https://www.baolilaihydraulic.com/brand/

Q1: What's the typical sign that a fixed hydraulic motor needs replacing rather than repairing?

A1: Rising case drain flow at normal operating pressure, external shaft seal leakage, and a noticeable drop in speed or torque under load are the most common indicators. Once cylinder block or piston wear reaches a certain point, a rebuild often costs close to a replacement without fully restoring original efficiency.

Q2: Can I use a Rexroth A2FE/A2FM motor on any Aebi Schmidt sweeper model?

A2: Only if the displacement, pressure rating, shaft, and flange match your machine's original specification. Sweeper models and production years vary, so confirm against your machine's hydraulic schematic or nameplate data rather than assuming compatibility across the model range.

Q3:What is the price and delivery time of the A2FM hydraulic motor for the Aebi Schmidt Sweeper？

A3: The specific price and delivery time will depend on the equipment model or specific product model you provide.

Q4:How to purchase an A2FM hydraulic motor for an Aebi Schmidt Sweeper?

A4:You can visit https://www.baolilaihydraulic.com/contact/ to contact us and purchase our products through various methods.
