In the unforgiving environment of a clear-cut or a thinning site, hydraulic failure isn't an inconvenience—it's a shutdown. For forestry professionals running John Deere feller bunchers, forwarders, and harvesters, the heart of the machine's brute force is the closed-loop hydrostatic system. And at the center of that system, you'll often find a familiar name: Rexroth (Bosch Rexroth) AA4VG series axial piston pump.

Why John Deere Forestry Relies on the AA4VG Platform

John Deere doesn't randomly spec pumps for their 900-series feller bunchers or 400-series forwarders. The AA4VG is chosen for its closed-loop design, which offers superior efficiency and response time compared to open-loop systems.

High Pressure for High-Stress Cuts

Forestry applications routinely see pressure spikes when a saw head binds or a grapple closes on wet, heavy hardwood. The AA4VG is rated for pressures up to 5,000 psi (350 bar) continuous, with peak capabilities near 5,800 psi (400 bar). This margin prevents catastrophic failure when your operator hits a hidden rock or twists a stem.

Built to Handle Viscosity Extremes

From -20°F winter thinnings to 100°F summer clear-cuts, forestry pumps see massive oil viscosity swings. The AA4VG's heavy-duty bearings and honed cylinder block tolerate cold starts better than most, while its iron housing dissipates heat during sustained high-load cycles.

Key Features That Save You Money in the Woods

When you're two miles deep on a logging road, reliability is profitability. Here are the specific engineering choices that make the AA4VG a forestry-grade component.

Through-Drive Capability (The Multi-Pump Advantage)

Most John Deere forestry machines run auxiliaries—cooling fans, saw motors, grapple rotators. The AA4VG typically includes a through-drive (SAE A, B, or C pads), allowing you to mount secondary gear pumps directly behind it.

Variable Displacement with Precise Control

The AA4VG uses an electro-hydraulic proportional (EP) control or hydraulic (HD) control, depending on the machine year. In a John Deere harvester, the pump swashplate angle adjusts in milliseconds to match engine torque. This prevents stalling when the saw hits a compression fork.

Real-World Applications in John Deere Forestry Equipment

Let's anchor this to specific machinery you're likely running.

John Deere Feller Buncher

Function: Powers left and right track drives (closed loop).

Common failure mode: Contaminated oil scoring the valve plate (usually due to a breached cooler).

Solution: The AA4VG's replaceable valve plate and bronze slippers allow a rebuild rather than a full $8K+ pump replacement.

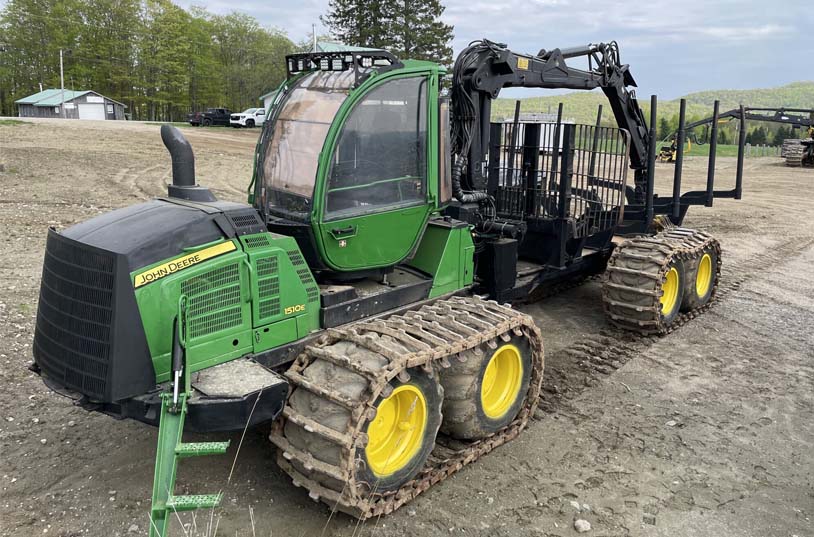

John Deere 1210E Forwarder

Function: Hydrostatic traction drive.

Observation: Operators report smoother directional shifts compared to competitive pumps, thanks to the AA4VG's tapered piston design and pre-compression relief valve.

John Deere Harvester

Function: Combined traction and auxiliary flow via through-drive.

Expert tip: If your harvester head rotation stalls under load, test the AA4VG's pressure cut-off setting before condemning the head motor.

For more brand and equipment models, please visit https://www.baolilaihydraulic.com/brand/

Q1: How often should I rebuild the AA4VG?

A1: Proactive rebuild at 8,000–10,000 hours in forestry service. Let case drain flow be your guide; when it doubles from baseline, schedule a rebuild.

Q2: What kills these pumps fastest?

A2: Water contamination (emulsified oil) and stuck pressure compensators. Test your oil quarterly; replace desiccant breathers monthly.
