The Bosch Rexroth APA4VSO (Axial Piston Variable, Series SO-open circuit) is a high-pressure, variable displacement pump designed for demanding mobile and industrial hydraulic systems. It belongs to Rexroth's A4V family, which includes variants for closed-circuit (A4VG), open-circuit (A4VSO), and servo applications.

Key Design Features

Variable Displacement via Swashplate Angle

The APA4VSO uses a bent-axis or swashplate design (depending on variant) where pistons reciprocate within a rotating cylinder block. Displacement varies by changing the swashplate angle, from near-zero to maximum, allowing the pump to deliver precisely the flow the system demands at any given moment. This is fundamental to Liebherr's load-sensing hydraulic architecture.

Pressure and Flow Ratings

Depending on the frame size, the A4VSO handles:

Displacement range: 40 cc/rev to 1000 cc/rev (common Liebherr sizes: 180, 250, 355, 500 cc/rev)

Maximum operating pressure: 350–450 bar (5,076–6,527 psi)

Speed range: typically 500–2,200 RPM (matched to Liebherr diesel engine output shafts)

Control Options

Rexroth offers the A4VSO with multiple control configurations that Liebherr specifies based on machine class:

LR (Load sensing with pressure/flow control)-most common in Liebherr excavators

DR (Pressure control only)

ER (Electrohydraulic control)

HD (Hydraulic servo control)

The LR control variant is particularly significant in Liebherr machines because it communicates with the machine's electronic control unit (ECU) to optimise fuel consumption and hydraulic power delivery dynamically.

Liebherr Excavator Applications: Where the APA4VSO Fits

Liebherr integrates the Rexroth APA4VSO across a broad range of crawler and crawler mining excavators. The pump is typically mounted in a tandem or dual-pump arrangement, driven directly off the engine power take-off (PTO) or through a gear-type pump drive.

Liebherr R 9XX Series (Large Mining Excavators)

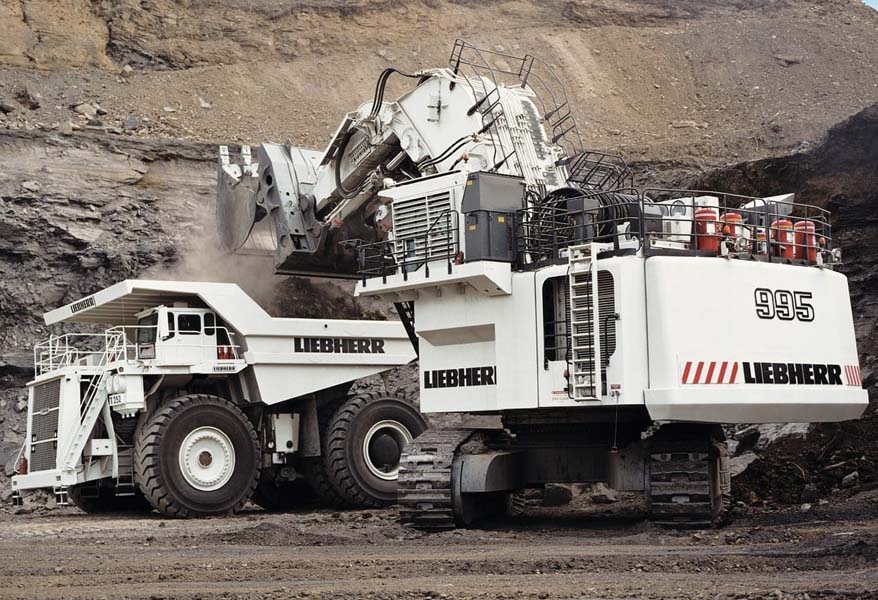

The Liebherr R 9100, R 9150, R 9200, R 9250, R 9350, R 9400, and R 9800 are purpose-built mining machines where hydraulic power output is paramount. These machines commonly run tandem A4VSO configurations-two large-displacement pumps driven simultaneously-to supply the massive hydraulic flow required for boom, arm, bucket, and travel circuits simultaneously.

Liebherr R 9XX Backhoe Series (Construction and Infrastructure)

Mid-range Liebherr models such as the R 926, R 936, R 945, R 950, and R 960 also employ A4VSO pumps, typically in smaller displacements (180–250 cc/rev). Here, the load-sensing LR control variant allows the machine to modulate between fine grading work, where flows are minimal, and mass excavation, where maximum pump displacement is needed continuously.

Liebherr LH Series (Material Handlers)

Liebherr's LH 22 through LH 150 material handlers, commonly deployed in scrap yards, ports, and timber operations, use A4VSO pumps configured for high-cycle, intermittent-duty performance. The grapple, magnet, and clamshell functions require rapid pressure build and release. The A4VSO's fast-acting proportional controls and broad speed range are well-suited to this pattern.

Common Failure Modes: Diagnosing a Failing APA4VSO in a Liebherr Excavator

Even the best hydraulic hardware eventually wears. The APA4VSO in a Liebherr excavator faces demanding duty cycles, high-temperature environments (particularly in mining applications), and often runs on maintenance schedules that don't always prioritise hydraulic oil analysis. Here's what goes wrong and how to identify it before it becomes catastrophic.

Loss of Flow or Pressure

Symptoms: Sluggish boom, arm, or bucket response; inability to reach maximum digging force; travel speed reduction.

Likely Causes:

Worn cylinder block/valve plate interface (internal leakage)

Failed or stuck swashplate control piston

Worn pistons and slipper pads (the slipper rides on the swashplate; wear here equals leakage)

Diagnosis: Perform a case drain flow test. Case drain flow on a healthy A4VSO should not exceed 3–5% of rated displacement at operating temperature. Elevated case drain flow (e.g., 15–20 L/min on a 250 cc/rev pump at rated speed) is a definitive indicator of internal wear requiring rebuild or replacement.

Excessive Heat Generation

Symptoms: Hydraulic oil temperature climbing above 90°C during moderate-duty cycles; heat exchanger unable to maintain temperature.

Likely Causes:

Internal bypassing due to worn components (lost efficiency converted to heat)

LS system instability (pump hunting between displacement settings, generating oscillating pressure losses)

Contaminated hydraulic oil increases internal friction

Diagnosis: Compare hydraulic oil inlet temperature vs. return temperature across the heat exchanger. Also check for system oscillation: a pressure gauge on the pump outlet that shows rapid, rhythmic pressure fluctuation (hunting) indicates a control system or LS signal issue rather than pure mechanical wear.

Noise and Vibration

Symptoms: Knocking or rattling from the pump; high-frequency whine; vibration transmitted through the machine frame.

Likely Causes:

Cavitation (air or vapour formation at the pump inlet, often from a clogged suction strainer or low reservoir level)

Worn or spalled bearings (particularly the shaft bearing under side-load conditions)

Broken or fatigued piston retainer plate

Diagnosis: Cavitation produces a distinctive high-pitched "gravel in a can" noise and typically worsens at cold start or high altitude. Bearing failure produces a rumble or knock that correlates with shaft RPM. Oil sampling for metal particle analysis (particularly copper from slippers and brass from valve plates) can confirm internal mechanical damage before external symptoms become obvious.

Swashplate Control Failure

Symptoms: Pump stuck at maximum displacement (machine "heavy" with poor throttle response); pump stuck at minimum (no hydraulic power); erratic, non-proportional response.

Likely Causes:

Failed proportional solenoid (EH control variants)

Contaminated or sticking servo piston

Broken feedback spring or linkage within the regulator

Diagnosis: With an EH-controlled APA4VSO in a Liebherr, the ECU will typically log a fault code for out-of-range pump response. Manually command the pump via LICCON diagnostics and observe whether the displacement responds proportionally to the command signal. No response often points to the solenoid; sluggish response to the servo piston.
