The PV360 is a high-pressure fixed-displacement piston hydraulic pump designed for demanding industrial and mobile applications. It typically operates at continuous pressures up to 350-420 bar, with peaks higher. Its axial piston design, with pistons arranged in a cylinder block, provides high efficiency, smooth flow, and long service life. Key features include excellent volumetric efficiency, robust construction for harsh environments, and quiet operation. It is commonly used in systems requiring reliable, high-power hydraulic energy, such as construction machinery, presses, and industrial manufacturing equipment. The pump requires clean, adequately filtered hydraulic fluid for maximum performance and durability.
Specifications
| PV016 | PV020 | PV023 | PV028 | PV032 | PV040 | PV046 | PV063 | PV080 | PV092 | PV140 | PV180 | PV270 | PV360 | ||
| Frame size | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 5 | 5 | |
| Max. Displacement | [cm³/rev.] | 16 | 20 | 23 | 28 | 32 | 40 | 46 | 63 | 80 | 92 | 140 | 180 | 270 | 360 |
| Output flow at 1500 rpm | [l/min] | 24 | 30 | 34.5 | 42 | 48 | 60 | 69 | 94.5 | 120 | 138 | 270 | 405 | 405 | 540 |
| Nominal pressure pN | [bar] | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| Max. pressure pmax at 20% working cycle | [bar] | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 |
| Case drain pressure, continuous | [bar] | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.55 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Case drain pressure, max. peak | [bar] | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Min. Inlet pressure, abs. | [bar] | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Max. Inlet pressure | [bar] | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Input power at 1500 rpm and 350 bar | [kW] | 15.5 | 19.5 | 22.5 | 27.5 | 31 | 39 | 45 | 61.5 | 78 | 89.5 | 136 | 175 | 263 | 350 |
| Max speed at 1 bar, abs, inlet pressure | [rpm] | 3000 | 3000 | 3000 | 3000 | 2800 | 2800 | 2800 | 2800 | 2500 | 2300 | 2400 | 2200 | 1800 | 1750 |
| Moment of inertia | [kgm²] | 0.0017 | 0.0017 | 0.0017 | 0.0017 | 0.0043 | 0.0043 | 0.0043 | 0.018 | 0.018 | 0.018 | 0.030 | 0.030 | 0.098 | 0.103 |
| Weight | [kg] | 19 | 19 | 19 | 19 | 30 | 30 | 30 | 59 | 59 | 59 | 90 | 90 | 172 | 180 |

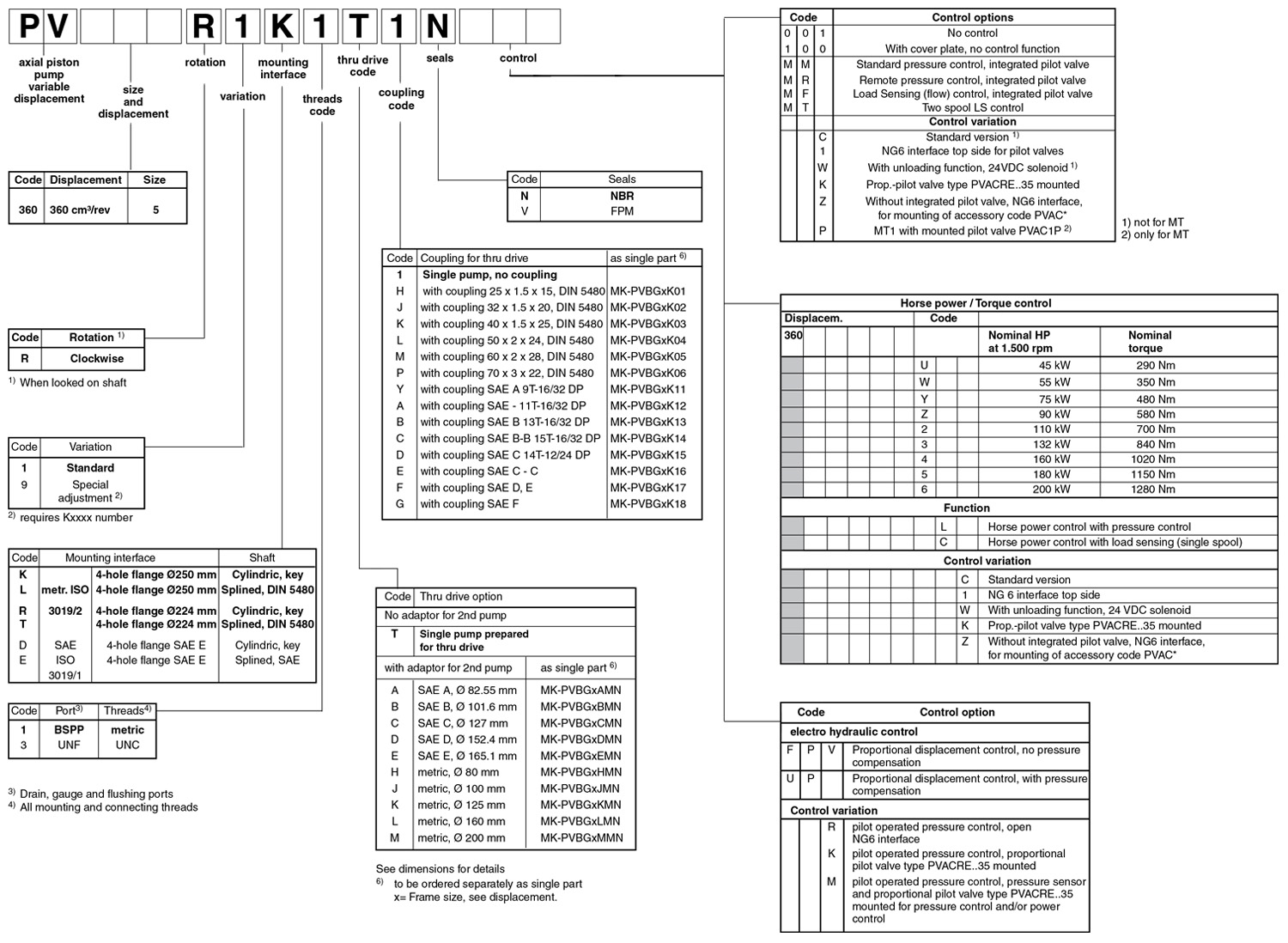

Selection Table
| PV360 hydraulic pump |
| Model Code |
| PV360L1K1T1NMMC |
| PV360L1K1T1NMMC4747 |
| PV360R1D3BCVMMC |
| PV360R1D3BCVMMC4747 |
| PV360R1D3T1N001 |
| PV360R1D3T1N3LC |
| PV360R1D3T1N3LK |
| PV360R1D3T1NMF1 |
| PV360R1D3T1NMMC |
| PV360R1D3T1NMMW |
| PV360R1D3T1NUPF |
| PV360R1D3T1NYLC |
| PV360R1E1T1NMMC |
| PV360R1E1T1NUPM |
| PV360R1E1T1NZL1 |
| PV360R1E1T1NZL14747 |
| PV360R1E3T1NMMC |
| PV360R1E3T1NMMC4747 |
| PV360R1K1MMN6LC |
| PV360R1K1MMN6LC4747 |
| PV360R1K1T1N2CC |
| PV360R1K1T1N4CC |
| PV360R1K1T1N6L1 |
| PV360R1K1T1N6L14747 |
| PV360R1K1T1NMFC |
| PV360R1K1T1NMFC4747 |
| PV360R1K1T1NMM1 |
| PV360R1K1T1NMM14747 |
| PV360R1K1T1NMMC |
| PV360R1K1T1NMMC4747 |
| PV360R1K1T1NMRC |
| PV360R1K1T1NMRC4747 |
| PV360R1K1T1NWCC |
| PV360R1K1T1NZCC |
| PV360R1K1T1NZLC |
| PV360R1K1T1V6C1 |
| PV360R1K1T1V6C14747 |
| PV360R1L1EPNUPM |
| PV360R1L1T1NMFC |
| PV360R1L1T1NMFC4747 |
| PV360R1T1EPNUPM |
| PV360R4E1T1NUDM |
| PV360R4E1T1NUDM4747 |
| PV360R4K1T1NFDV |
| PV360R4K1T1NFDV4747 |
| PV360R4K1T1NUDM |
| PV360R4K1T1NUDM4747 |
| PV360R4K1T1VMTZ |
| PV360R4K1T1VMTZ4747 |
| PV360R4L1T1NUDK |
| PV360R4L1T1NUDK4747 |
| PV360R9K1T1N6CCK |
| PV360R9K1T1NMMCK |
| PV360R9T1T1NMMCK |
Q1:In what types of applications is the PV360 hydraulic pump commonly used?
A1:The PV360 hydraulic pump is commonly used in heavy-duty applications that require reliable hydraulic power, such as construction machinery, industrial presses, and various manufacturing equipment.
Q2:What is an important maintenance requirement for the PV360 hydraulic pump to ensure durability?
A2:An important maintenance requirement for the PV360 hydraulic pump is the use of clean, properly filtered hydraulic fluid to prevent internal wear and ensure maximum performance and service life.
Q3:How to purchase a PV360 hydraulic pump?
A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
Q4:What is the price and delivery time of the PV360 hydraulic pump?
A4:The specific price and delivery time will be provided based on the specific model you provide.
