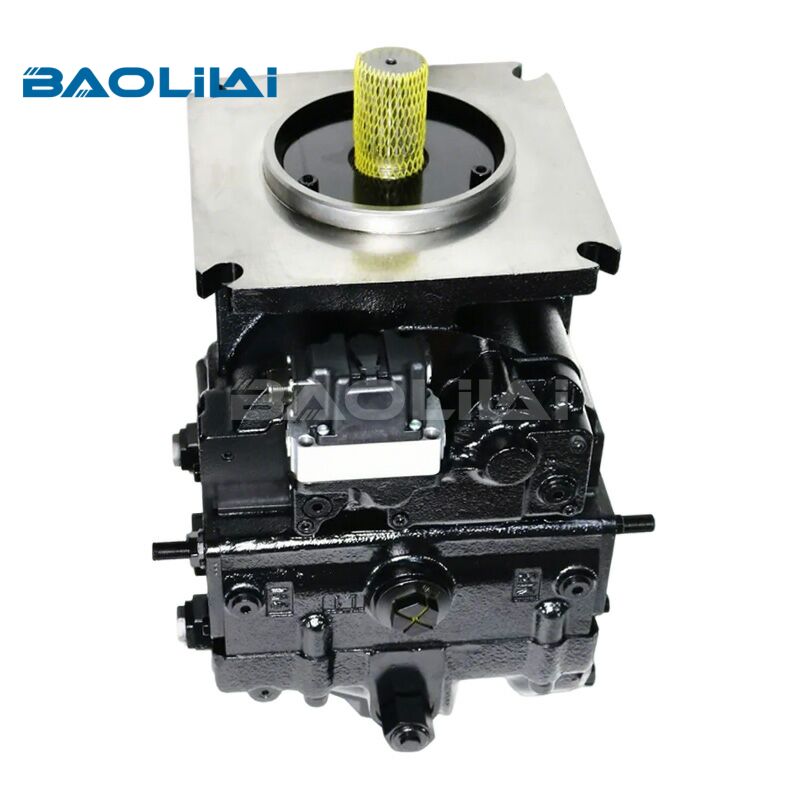

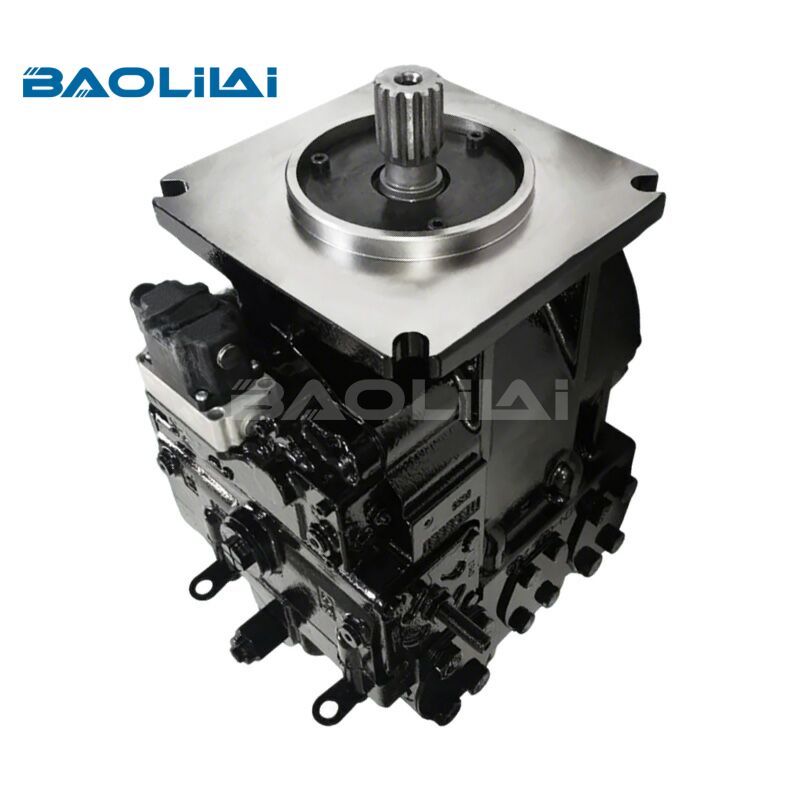

For Sauer danfoss 90L180 High-pressure plunger hydraulic pump
SERIES : 90
BRAND : For Sauer Danfoss
Model Size :90L180
Displacement : 180cm3/rev
Speed : 2600rpm
Maximum Pressure : 480bar
Nominal Pressure : 450bar
Download PDF
- Product Details
- Product Model
- FAQ
The Sauer Danfoss 90L180 is a high-performance axial piston pump designed for heavy-duty mobile hydraulic applications. It features a variable displacement design, with a maximum displacement of 180 cm³/rev, achieved through a swashplate mechanism that controls piston stroke length. The pump is engineered to operate reliably at high continuous pressures, typically up to 420 bar, delivering high power density and excellent overall efficiency. A key characteristic is its integrated control capability, such as pressure and flow compensation, which allows for precise and energy-efficient operation by automatically adjusting output to meet system demands. The 90L180 pump is built for durability in demanding environments, making it a core component in construction equipment, agricultural machinery, and material handling vehicles.
Specifications
| Feature | Unit | Frame | ||||||
| 042 | 055 | 075 | 100 | 130 | 180 | 250 | ||
| Displacement | cm3/rev. [in3]/rev. |
42 [2.56] |
55 [3.35] |
75 [4.59] |
100 [6.10] |
130 [7.93] |
180 [10.98] |
250 [15.25] |
| Flow at rated speed(theoretical) | l/min. [US gal/min.] |
176 [46] |
215 [57] |
270 [71] |
330 [87] |
403 [106] |
468 [124] |
575 [160] |
| Torque at maximum displacement (theoretical) |
N·m/bar [lbf·in/1000 psi] |
0.67 [410] |
0.88 [530] |
1.19 [730] |
1.59 [970] |
2.07 [1260] |
2.87 [1750] |
3.97 [2433] |
| Mass moment of inertia of rotating components |
kg·m2 [slug·ft2] |
0.0023 [0.0017] |
0.0060 [0.0044] |
0.0096 [0.0071] |
0.0150 [0.0111] |
0.023 [0.0170] |
0.0380 [0.0280] |
0.0650 [0.0479] |
| Minimum Input speed | Min-1(rpm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Rated Input speed | 4200 | 3900 | 3600 | 3300 | 3100 | 2600 | 2300 | |
| Maximum Input speed | 4600 | 4250 | 3950 | 3650 | 3400 | 2850 | 2500 | |
| Weight(with control opt.MA) | kg[lb] | 34[75] | 40[88] | 49[108] | 68[150] | 88[195] | 136[300] | 154[340] |
| Mounting(per ISO 3019-1) | Flange 102-2(SAE B) |
Flange 127-4(SAE C) |
Flange 152-4(SAE D) |
Flange 165-4(SAE E) |
||||
| Rotation | Right hand or Left hand rotation | |||||||
| Main ports: 4-bolt split-flange (per SAE J518 code 62) |
mm [in] |
19.05 [0.75] |
25.4 [1.0] |
25.4 [1.0] |
25.4 [1.0] |
31.75 [1.25] |
31.75 [1.25] |
38.1 [1.5] |
| Main port configuration | Twin port | Twin or side port | Twin port | |||||
| Case drain ports(SAE O-ring boss) | UNF thread (in.) |
0.875-14 | 1.0625-12 | 1.0625-12 | 1.0625-12 | 1.3125-12 | 1.625-12 | 1.625-12 |
| Other ports | SAE O-ring boss | |||||||
| Shafts | Splined, and tapered shafts available | |||||||
| Auxiliary mounting | SAE-A,B,C | SAE-A,B,C,D | SAE-A,B,C,D,E | |||||
| System pressure | Maximum working pressure | bar | [psi] | 450 | [6525] |
| Maximum pressure | 480 | [6960] | |||
| Maximum low loop | 45 | [650] | |||
| Minimum low loop pressure | 10 | [145] | |||
| Charge pressure | Minimum | bar | [psi] | 18 | [261] |
| Maximum | 34 | [493] | |||
| Control pressure | Minimum (at corner power for EDC and FNR) | bar | [psi] | 14 | [203] |
| Minimum (at corner power for NFPE) | 22 | [319] | |||
| Maximum | 40 | [580] | |||
| Charge pump inlet pressure | Rated | bar (absolute) | [in Hg vacuum] | 0.7 | [9] |
| Minimum (cold start) | 0.2 | [24] | |||
| Maximum | bar | [psi] | 4.0 | [58] | |
| Case pressure | Rated | bar | [psi] | 3.0 | [44] |
| Maximum | 5.0 | [73] | |||
| Lip seal external pressure | Maximum | bar | [psi] | 0.4 | [5.8] |
Selection Table
| 90L180 axial piston hydraulic pump | ||
| Model No. | Model Code | Model Code |
| 80003169 | 90L180-CA-5-AB-80-S-7-C8-J-00-NNN-35-35-30 | 90L180CA5AB80S7C8J00NNN353530 |
| 83049611 | 90L180-CB-1-NN-80-SC-F1-J-00-FAC-42-42-28-P000 | 90L180CB1NN80SCF1J00FAC424228P000 |
| 83053792 | 90L180-CB-1-NN-80-TM-C8-J-00-NNN-35-35-24 | 90L180CB1NN80TMC8J00NNN353524 |
| 83057544 | 90L180-CB-1-NN-80-TM-C8-J-00-NNN-35-35-24-P000 | 90L180CB1NN80TMC8J00NNN353524P000 |
| 508361 | 90L180-CB-5-NN-80-S-3-C8-J-00-NNN-42-42-24-G005 | 90L180CB5NN80S3C8J00NNN424224G005 |
| 521038 | 90L180-CB-5-NN-80-SC-C8-J-00-NNN-42-42-24-G005 | 90L180CB5NN80SCC8J00NNN424224G005 |
| 83012069 | 90L180-CB-5-NN-80-SC-F1-H-00-FAC-42-42-28-P000 | 90L180CB5NN80SCF1H00FAC424228P000 |
| 83031864 | 90L180-DC-5-BC-80-T-M-F1-J-GB-FAC-14-32-24 | 90L180DC5BC80TMF1JGBFAC143224 |
| 83018370 | 90L180-DC-5-BC-80-T-M-F1-J-GB-FAC-14-32-28 | 90L180DC5BC80TMF1JGBFAC143228 |
| 83036673 | 90L180-DC-5-BC-80-TM-F5-J-GB-FAC-14-32-24 | 90L180DC5BC80TMF5JGBFAC143224 |
| 80001306 | 90L180-DC-5-NN-80-S-C-C8-H-G1-NNN-42-42-24 | 90L180DC5NN80SCC8HG1NNN424224 |
| 83014386 | 90L180-DD-5-CD-80-S-C-F1-H-GB-FAC-42-42-24 | 90L180DD5CD80SCF1HGBFAC424224 |
| 702049 | 90L180-DD-5-NN-80-S-C-C8-J-GB-NNN-42-42-24 | 90L180DD5NN80SCC8JGBNNN424224 |
| 83035449 | 90L180-DD-5-NN-80-T-C-C8-J-GB-NNN-42-42-22 | 90L180DD5NN80TCC8JGBNNN424222 |
| 80005737 | 90L180-FG-5-CD-80-S-7-C8-H-B1-EFI-40-40-32 | 90L180FG5CD80S7C8HB1EFI404032 |
| 80006018 | 90L180-FG-5-CD-80-S-7-C8-H-B1-GLA-40-40-32 | 90L180FG5CD80S7C8HB1GLA404032 |
| 80003168 | 90L180-FH-5-AB-80-S-7-C8-J-B1-NNN-35-35-30 | 90L180FH5AB80S7C8JB1NNN353530 |
| 83036487 | 90L180-FH-5-NN-80-S-7-C8-J-B2-FAC-26-26-24 | 90L180FH5NN80S7C8JB2FAC262624 |
| 83018703 | 90L180-HF-1-BC-80-S-M-C8-J-02-NNN-40-40-22 | 90L180HF1BC80SMC8J02NNN404022 |
| 83014470 | 90L180-HF-1-BC-80-S-M-C8-J-03-NNN-32-32-24 | 90L180HF1BC80SMC8J03NNN323224 |
| 83055711 | 90L180-HF-1-BC-80-S-M-F1-J-03-NNN-32-32-24 | 90L180HF1BC80SMF1J03NNN323224 |
| 83014434 | 90L180-HF-1-BC-80-T-C-F1-H-03-FAC-29-29-24 | 90L180HF1BC80TCF1H03FAC292924 |
| 83056041 | 90L180-HF-1-BC-80-T-C-F1-H-03-NNN-42-42-24 | 90L180HF1BC80TCF1H03NNN424224 |
| 83033401 | 90L180-HF-1-BC-80-T-C-F1-J-03-FAC-35-35-26 | 90L180HF1BC80TCF1J03FAC353526 |
| 83016633 | 90L180-HF-1-BC-80-T-M-F1-H-03-FAC-26-26-24 | 90L180HF1BC80TMF1H03FAC262624 |
| 83013820 | 90L180-HF-1-BC-80-T-M-F1-J-00-NNN-42-42-24 | 90L180HF1BC80TMF1J00NNN424224 |
| 83068548 | 90L180-HF-1-BC-80-TM-F1-J-03-FAC-42-14-24 | 90L180HF1BC80TMF1J03FAC421424 |
| 83061436 | 90L180-HF-1-BC-80-T-M-F1-J-03-NNN-42-42-24 | 90L180HF1BC80TMF1J03NNN424224 |
| 83013225 | 90L180-HF-1-CD-80-S-M-F1-H-03-NNN-26-26-22 | 90L180HF1CD80SMF1H03NNN262622 |
| 83077557 | 90L180-HF-1-CD-80-TC-F1-H-03-FAC-35-35-24 | 90L180HF1CD80TCF1H03FAC353524 |
| 83074489 | 90L180-HF-1-CD-80-TM-C8-H-03-NNN-35-35-24 | 90L180HF1CD80TMC8H03NNN353524 |
| 83056018 | 90L180-HF-1-CD-80-T-M-C8-J-00-NNN-35-35-24 | 90L180HF1CD80TMC8J00NNN353524 |
| 83074103 | 90L180-HF-1-CD-80-TM-F1-J-03-NNN-35-35-24 | 90L180HF1CD80TMF1J03NNN353524 |
| 9820156 | 90-L-180-HF-1-NN-80-S-C-F1-J-03-FAC-35-35-24 | 90L180HF1NN80SCF1J03FAC353524 |
| 9820141 | 90-L-180-HF-1-NN-80-S-C-F1-J-03-NNN-35-35-24 | 90L180HF1NN80SCF1J03NNN353524 |
| 83068155 | 90L180-HF-1-NN-80-SM-F1-J-03-NNN-42-42-24 | 90L180HF1NN80SMF1J03NNN424224 |
| 83037072 | 90L180-HF-1-NN-80-T-C-C8-H-03-NNN-35-35-24 | 90L180HF1NN80TCC8H03NNN353524 |
| 83019158 | 90L180-HF-1-NN-80-T-C-F1-H-03-NNN-35-35-24 | 90L180HF1NN80TCF1H03NNN353524 |
| 83068636 | 90L180-HF-1-NN-80-TC-F1-H-03-NNN-42-42-24 | 90L180HF1NN80TCF1H03NNN424224 |
| 83053357 | 90L180-HF-1-NN-80-T-M-F1-H-03-FAC-35-35-24 | 90L180HF1NN80TMF1H03FAC353524 |
| 83052451 | 90L180-HF-1-NN-80-T-M-F1-H-03-NNN-35-35-24 | 90L180HF1NN80TMF1H03NNN353524 |
| 83025150 | 90L180-HF-1-NN-80-T-M-F1-J-00-NNN-35-35-24 | 90L180HF1NN80TMF1J00NNN353524 |
| 83012050 | 90L180-HF-1-NN-80-T-M-F1-J-00-NNN-42-42-24 | 90L180HF1NN80TMF1J00NNN424224 |
| 83024964 | 90L180-HF-1-NN-80-T-M-F1-J-03-NNN-42-42-24 | 90L180HF1NN80TMF1J03NNN424224 |
| 80001492 | 90L180-HF-2-BC-80-T-C-F1-J-03-FAC-32-32-24 | 90L180HF2BC80TCF1J03FAC323224 |
| 83094053 | 90L180-HF-2-BC-80-TM-F1-J-00-NNN-32-32-26 | 90L180HF2BC80TMF1J00NNN323226 |
| 80004210 | 90L180-HF-2-NN-80-TC-C8-L-00-FAC-35-35-24 | 90L180HF2NN80TCC8L00FAC353524 |
| 83017334 | 90L180-HF-5-AB-80-S-C-C8-J-03-NNN-35-35-28 | 90L180HF5AB80SCC8J03NNN353528 |
| 83048763 | 90L180-HF-5-AB-80-S-M-C8-J-05-NNN-32-32-26 | 90L180HF5AB80SMC8J05NNN323226 |
| 83005442 | 90L180-HF-5-AB-80-T-C-C8-H-03-FAC-35-35-24 | 90L180HF5AB80TCC8H03FAC353524 |
| 83046372 | 90L180-HF-5-AB-80-T-C-C8-J-03-NNN-35-35-28 | 90L180HF5AB80TCC8J03NNN353528 |
| 83079955 | 90L180-HF-5-BB-80-TM-C8-H-03-NNN-35-35-24 | 90L180HF5BB80TMC8H03NNN353524 |
| 83003767 | 90-L-180-HF-5-BC-80-D-C-F1-L-03-FAC-35-35-24 | 90L180HF5BC80DCF1L03FAC353524 |
| 83022325 | 90L180-HF-5-BC-80-S-C-C8-H-03-NNN-32-32-24 | 90L180HF5BC80SCC8H03NNN323224 |
| 83028590 | 90L180-HF-5-BC-80-S-C-C8-J-03-NNN-29-29-28 | 90L180HF5BC80SCC8J03NNN292928 |
| 83010103 | 90L180-HF-5-BC-80-S-C-C8-J-03-NNN-32-32-24 | 90L180HF5BC80SCC8J03NNN323224 |
| 83012333 | 90L180-HF-5-BC-80-S-C-C8-J-03-NNN-32-32-28 | 90L180HF5BC80SCC8J03NNN323228 |
| 83021794 | 90L180-HF-5-BC-80-S-M-C8-H-03-NNN-32-14-30 | 90L180HF5BC80SMC8H03NNN321430 |
| 83031006 | 90L180-HF-5-BC-80-S-M-C8-J-03-NNN-32-32-24 | 90L180HF5BC80SMC8J03NNN323224 |
| 83089254 | 90L180-HF-5-BC-80-TC-C8-H-03-NNN-32-32-24 | 90L180HF5BC80TCC8H03NNN323224 |
| 80006588 | 90L180-HF-5-BC-80-T-C-C8-H-03-NNN-32-32-24 | 90L180HF5BC80TCC8H03NNN323224 |
| 83006059 | 90L180-HF-5-BC-80-T-C-C8-J-03-NNN-32-32-24 | 90L180HF5BC80TCC8J03NNN323224 |
| 83013187 | 90L180-HF-5-BC-80-T-M-F1-H-03-FAC-23-23-24 | 90L180HF5BC80TMF1H03FAC232324 |
| 83057020 | 90L180-HF-5-CD-80-S-C-C8-H-03-NNN-30-30-28 | 90L180HF5CD80SCC8H03NNN303028 |
| 83020058 | 90L180-HF-5-CD-80-S-C-C8-H-03-NNN-35-35-28 | 90L180HF5CD80SCC8H03NNN353528 |
| 83016839 | 90L180-HF-5-CD-80-S-C-C8-J-03-NNN-35-35-28 | 90L180HF5CD80SCC8J03NNN353528 |
| 83011250 | 90L180-HF-5-CD-80-S-M-F1-H-03-FAC-14-14-22 | 90L180HF5CD80SMF1H03FAC141422 |
| 83046373 | 90L180-HF-5-CD-80-T-C-C8-J-03-NNN-35-35-28 | 90L180HF5CD80TCC8J03NNN353528 |
| 80002561 | 90L180-HF-5-CD-80-T-C-F1-H-03-FAC-35-35-24 | 90L180HF5CD80TCF1H03FAC353524 |
| 80005812 | 90L180-HF-5-CD-80-T-C-F1-J-03-EBA-42-42-24 | 90L180HF5CD80TCF1J03EBA424224 |
| 83085114 | 90L180-HF-5-CD-80-TM-C8-J-03-NNN-35-35-24 | 90L180HF5CD80TMC8J03NNN353524 |
| 83016926 | 90L180-HF-5-CD-80-T-M-C8-J-03-NNN-38-38-28 | 90L180HF5CD80TMC8J03NNN383828 |
| 83017304 | 90L180-HF-5-CD-80-T-M-C8-J-03-NNN-42-42-28 | 90L180HF5CD80TMC8J03NNN424228 |
| 80004160 | 90L180-HF-5-CD-80-T-M-F1-H-03-FAC-35-35-24 | 90L180HF5CD80TMF1H03FAC353524 |
| 83018809 | 90L180-HF-5-DE-80-S-C-C8-J-03-NNN-32-32-28 | 90L180HF5DE80SCC8J03NNN323228 |
| 83036429 | 90L180-HF-5-DE-80-S-C-F1-J-03-NNN-32-32-28 | 90L180HF5DE80SCF1J03NNN323228 |
| 83031103 | 90L180-HF-5-DE-80-T-C-C8-J-03-NNN-35-35-24 | 90L180HF5DE80TCC8J03NNN353524 |
| 83020009 | 90L180-HF-5-DE-80-T-C-F1-J-03-FAC-23-23-28 | 90L180HF5DE80TCF1J03FAC232328 |
| 80004161 | 90L180-HF-5-EF-80-T-M-F1-H-03-EBA-38-38-24 | 90L180HF5EF80TMF1H03EBA383824 |
| 83020057 | 90L180-HF-5-EG-80-S-C-C8-H-03-NNN-35-35-28 | 90L180HF5EG80SCC8H03NNN353528 |
| 83058086 | 90L180-HF-5-NN-80-SC-C8-H-03-GLA-32-32-28 | 90L180HF5NN80SCC8H03GLA323228 |
| 80000912 | 90L180-HF-5-NN-80-S-C-C8-J-03-NNN-38-38-24 | 90L180HF5NN80SCC8J03NNN383824 |
| 83016181 | 90L180-HF-5-NN-80-S-C-C8-J-05-NNN-42-42-30 | 90L180HF5NN80SCC8J05NNN424230 |
| 83035600 | 90L180-HF-5-NN-80-S-C-F1-H-04-NNN-40-40-24 | 90L180HF5NN80SCF1H04NNN404024 |
| 83036303 | 90L180-HF-5-NN-80-S-C-F1-J-03-NNN-42-42-24 | 90L180HF5NN80SCF1J03NNN424224 |
| 83003131 | 90L180-HF-5-NN-80-S-M-F1-H-03-FAC-32-14-30 | 90L180HF5NN80SMF1H03FAC321430 |
| 80001429 | 90L180-HF-5-NN-80-T-C-F1-J-03-FAC-35-35-24 | 90L180HF5NN80TCF1J03FAC353524 |
| 80001748 | 90L180-HF-5-NN-80-T-C-F1-J-03-NNN-38-38-24 | 90L180HF5NN80TCF1J03NNN383824 |
| 83032533 | 90L180-HF-5-NN-80-T-C-F1-J-03-NNN-42-42-24 | 90L180HF5NN80TCF1J03NNN424224 |
| 83023050 | 90L180-HM-5-CD-80-SM-F1-H-05-FAC-35-35-24 | 90L180HM5CD80SMF1H05FAC353524 |
| 83060734 | 90L180-HS-1-AB-80-S-M-C8-J-03-NNN-35-35-28 | 90L180HS1AB80SMC8J03NNN353528 |
| 83007106 | 90L180-HS-1-BC-80-T-C-F1-H-03-FAC-35-35-24 | 90L180HS1BC80TCF1H03FAC353524 |
| 11168311 | 90-L-180-HS-1-BC-80-T-M-F1-J-02-FAC-38-38-28 | 90L180HS1BC80TMF1J02FAC383828 |
| 83089276 | 90L180-HS-5-AB-80-SM-F1-H-03-NNN-42-42-24 | 90L180HS5AB80SMF1H03NNN424224 |
| 83078101 | 90L180-HS-5-BC-80-SC-C8-J-03-NNN-26-26-28 | 90L180HS5BC80SCC8J03NNN262628 |
| 83073289 | 90L180-HS-5-BC-80-SC-C8-J-03-NNN-29-29-28 | 90L180HS5BC80SCC8J03NNN292928 |
| 83018113 | 90L180-HS-5-BC-80-T-C-F1-J-03-FAC-42-42-28 | 90L180HS5BC80TCF1J03FAC424228 |
| 83071747 | 90L180-HS-5-BC-80-TM-C8-H-03-NNN-38-38-28 | 90L180HS5BC80TMC8H03NNN383828 |
| 83002849 | 90L180-HS-5-BC-80-T-M-F1-J-05-FAC-35-35-24 | 90L180HS5BC80TMF1J05FAC353524 |
| 83082403 | 90L180-HS-5-CD-80-DM-C8-L-03-NNN-42-16-34 | 90L180HS5CD80DMC8L03NNN421634 |
| 83062080 | 90L180-HS-5-CD-80-S-C-C8-J-04-NNN-38-38-28 | 90L180HS5CD80SCC8J04NNN383828 |
| 83062669 | 90L180-HS-5-CD-80-T-C-F1-H-03-FAC-32-32-24 | 90L180HS5CD80TCF1H03FAC323224 |
| 83015894 | 90L180-HS-5-CD-80-T-C-F1-H-03-FAC-35-35-24 | 90L180HS5CD80TCF1H03FAC353524 |
| 83067701 | 90L180-HS-5-CD-80-TC-F1-J-03-FAC-24-24-28 | 90L180HS5CD80TCF1J03FAC242428 |
| 83017453 | 90L180-HS-5-CD-80-T-M-C8-H-03-NNN-26-26-24 | 90L180HS5CD80TMC8H03NNN262624 |
| 83017452 | 90L180-HS-5-CD-80-T-M-C8-H-03-NNN-42-42-24 | 90L180HS5CD80TMC8H03NNN424224 |
| 83071748 | 90L180-HS-5-EG-80-TM-C8-H-03-NNN-32-32-28 | 90L180HS5EG80TMC8H03NNN323228 |
| 83002119 | 90-L-180-HS-5-NN-80-T-C-F1-J-03-FAC-42-42-32 | 90L180HS5NN80TCF1J03FAC424232 |
| 83001428 | 90L180-HS-5-NN-80-T-M-F1-J-05-FAC-35-35-24 | 90L180HS5NN80TMF1J05FAC353524 |
| 83018410 | 90L180-KA-1-AB-80-S-M-F1-H-03-FAC-26-26-24 | 90L180KA1AB80SMF1H03FAC262624 |
| 83018467 | 90L180-KA-1-AB-80-S-M-F1-H-03-FAC-42-42-24 | 90L180KA1AB80SMF1H03FAC424224 |
| 9820169 | 90-L-180-KA-1-AB-80-T-C-F1-J-03-FAC-42-42-24 | 90L180KA1AB80TCF1J03FAC424224 |
| 83070832 | 90L180-KA-1-BB-80-S-7-C8-J-00-NNN-35-35-32 | 90L180KA1BB80S7C8J00NNN353532 |
| 83034995 | 90L180-KA-1-BC-80-S-C-F1-J-03-NNN-23-23-24 | 90L180KA1BC80SCF1J03NNN232324 |
| 83061845 | 90L180-KA-1-BC-80-SP-C8-J-00-NNN-35-35-24 | 90L180KA1BC80SPC8J00NNN353524 |
| 83065592 | 90L180-KA-1-BC-80-T-C-C8-J-00-FAC-40-40-24 | 90L180KA1BC80TCC8J00FAC404024 |
| 83065590 | 90L180-KA-1-BC-80-T-C-F1-J-00-FAC-40-40-24 | 90L180KA1BC80TCF1J00FAC404024 |
| 83016883 | 90L180-KA-1-BC-80-T-M-C8-J-03-NNN-35-35-30 | 90L180KA1BC80TMC8J03NNN353530 |
| 83022701 | 90L180-KA-1-CD-80-S-M-F1-H-03-NNN-35-35-22 | 90L180KA1CD80SMF1H03NNN353522 |
| 83083699 | 90L180-KA-1-CD-80-TC-C8-J-00-NNN-42-42-24 | 90L180KA1CD80TCC8J00NNN424224 |
| 83033910 | 90L180-KA-1-CD-80-T-C-F1-H-03-FAC-32-32-24 | 90L180KA1CD80TCF1H03FAC323224 |
| 9820160 | 90-L-180-KA-1-CD-80-T-C-F1-J-03-FAC-29-29-24 | 90L180KA1CD80TCF1J03FAC292924 |
| 9820144 | 90-L-180-KA-1-CD-80-T-C-F1-J-03-NNN-26-26-20 | 90L180KA1CD80TCF1J03NNN262620 |
| 9820147 | 90-L-180-KA-1-CD-80-T-C-F1-J-03-NNN-29-29-24 | 90L180KA1CD80TCF1J03NNN292924 |
| 9820145 | 90-L-180-KA-1-CD-80-T-C-F1-J-03-NNN-35-35-24 | 90L180KA1CD80TCF1J03NNN353524 |
| 510576 | 90L180-KA-1-CD-XX-S-3-C8-H-03-GBX-38-38-28 | 90L180KA1CDXXS3C8H03GBX383828 |
| 83018153 | 90L180-KA-1-DE-80-D-M-C8-L-03-NNN-35-35-30 | 90L180KA1DE80DMC8L03NNN353530 |
| 83065591 | 90L180-KA-1-EF-80-T-C-C8-J-00-FAC-40-40-24 | 90L180KA1EF80TCC8J00FAC404024 |
| 83073266 | 90L180-KA-1-NN-80-SC-C8-H-05-NNN-42-42-28 | 90L180KA1NN80SCC8H05NNN424228 |
| 83074864 | 90L180-KA-1-NN-80-SC-C8-J-03-NNN-38-38-24 | 90L180KA1NN80SCC8J03NNN383824 |
| 83007521 | 90-L-180-KA-1-NN-80-S-C-F1-H-00-FAC-42-42-24-G005 | 90L180KA1NN80SCF1H00FAC424224G005 |
| 83007595 | 90-L-180-KA-1-NN-80-S-C-F1-H-00-NNN-42-42-28 | 90L180KA1NN80SCF1H00NNN424228 |
| 9820154 | 90-L-180-KA-1-NN-80-S-C-F1-H-05-FAC-35-35-24 | 90L180KA1NN80SCF1H05FAC353524 |
| 9820155 | 90-L-180-KA-1-NN-80-S-C-F1-J-03-FAC-35-35-24 | 90L180KA1NN80SCF1J03FAC353524 |
| 83015724 | 90L180-KA-1-NN-80-T-C-C8-J-03-FAC-32-32-24 | 90L180KA1NN80TCC8J03FAC323224 |
| 83014797 | 90L180-KA-1-NN-80-T-C-F1-J-03-FAC-20-20-22 | 90L180KA1NN80TCF1J03FAC202022 |
| 9820159 | 90L180-KA-1-NN-80-T-C-F1-J-03-FAC-29-29-24 | 90L180KA1NN80TCF1J03FAC292924 |
| 9820146 | 90L180-KA-1-NN-80-T-C-F1-J-03-NNN-29-29-24 | 90L180KA1NN80TCF1J03NNN292924 |
| 83008024 | 90L180-KA-1-NN-80-T-M-F1-H-03-FAC-26-26-24 | 90L180KA1NN80TMF1H03FAC262624 |
| 83018665 | 90L180-KA-1-NN-80-T-M-F1-H-03-FAC-42-42-24 | 90L180KA1NN80TMF1H03FAC424224 |
| 700123 | 90L180-KA-2-AB-80-T-3-F1-J-03-NNN-42-42-24 | 90L180KA2AB80T3F1J03NNN424224 |
| 83024943 | 90L180-KA-2-BC-80-T-C-C8-J-03-NNN-42-42-28 | 90L180KA2BC80TCC8J03NNN424228 |
| 80005588 | 90L180-KA-2-BC-80-T-C-F1-J-03-NNN-42-42-24 | 90L180KA2BC80TCF1J03NNN424224 |
| 83006701 | 90-L-180-KA-2-NN-80-S-C-F1-J-00-NNN-45-45-28 | 90L180KA2NN80SCF1J00NNN454528 |
| 700494 | 90L180-KA-5-AB-80-S-3-C8-J-04-NNN-42-42-24 | 90L180KA5AB80S3C8J04NNN424224 |
| 80003404 | 90L180-KA-5-AB-80-S-C-C8-H-03-NNN-38-38-30 | 90L180KA5AB80SCC8H03NNN383830 |
| 83022105 | 90L180-KA-5-AB-80-SC-C8-J-03-EFI-42-42-24 | 90L180KA5AB80SCC8J03EFI424224 |
| 80002856 | 90L180-KA-5-AB-80-S-C-C8-J-03-NNN-38-38-30 | 90L180KA5AB80SCC8J03NNN383830 |
| 80000064 | 90L180-KA-5-AB-80-S-C-C8-J-05-NNN-45-45-24 | 90L180KA5AB80SCC8J05NNN454524 |
| 83059580 | 90L180-KA-5-AB-80-S-C-F1-H-03-NNN-35-35-24 | 90L180KA5AB80SCF1H03NNN353524 |
| 83032786 | 90L180-KA-5-AB-80-S-M-C8-J-03-NNN-38-38-24 | 90L180KA5AB80SMC8J03NNN383824 |
| 83007419 | 90L180-KA-5-AB-80-S-M-F1-H-03-FAC-26-26-24 | 90L180KA5AB80SMF1H03FAC262624 |
| 83019884 | 90L180-KA-5-AB-80-T-M-C8-H-03-NNN-26-26-24 | 90L180KA5AB80TMC8H03NNN262624 |
| 700565 | 90L180-KA-5-BB-80-S-4-C8-J-03-NNN-35-35-24 | 90L180KA5BB80S4C8J03NNN353524 |
| 80000406 | 90L180-KA-5-BB-80-S-C-C8-H-03-NNN-42-42-24 | 90L180KA5BB80SCC8H03NNN424224 |
| 601261 | 90L180-KA-5-BB-80-S-C-C8-H-05-NNN-38-38-20 | 90L180KA5BB80SCC8H05NNN383820 |
| 702358 | 90L180-KA-5-BB-80-S-C-C8-J-03-NNN-42-42-24 | 90L180KA5BB80SCC8J03NNN424224 |
| 80000322 | 90L180-KA-5-BB-80-T-M-F1-J-03-EBA-38-38-24 | 90L180KA5BB80TMF1J03EBA383824 |
| 83006316 | 90L180-KA-5-BB-80-T-M-F1-J-03-NNN-38-38-24 | 90L180KA5BB80TMF1J03NNN383824 |
| 83015139 | 90L180-KA-5-BC-80-D-C-C8-L-03-NNN-30-30-24 | 90L180KA5BC80DCC8L03NNN303024 |
| 83003798 | 90L180-KA-5-BC-80-D-C-F1-L-03-FAC-35-35-24 | 90L180KA5BC80DCF1L03FAC353524 |
| 83074641 | 90L180-KA-5-BC-80-DM-C8-L-03-NNN-30-30-24 | 90L180KA5BC80DMC8L03NNN303024 |
| 516099 | 90L180-KA-5-BC-80-S-3-C8-J-05-NNN-42-42-24 | 90L180KA5BC80S3C8J05NNN424224 |
| 700566 | 90L180-KA-5-BC-80-S-4-C8-J-03-NNN-42-42-24 | 90L180KA5BC80S4C8J03NNN424224 |
| 702210 | 90L180-KA-5-BC-80-S-C-C8-J-00-NNN-38-23-30 | 90L180KA5BC80SCC8J00NNN382330 |
| 83035444 | 90L180-KA-5-BC-80-SC-C8-J-03-EFI-42-42-24 | 90L180KA5BC80SCC8J03EFI424224 |
| 80002857 | 90L180-KA-5-BC-80-S-C-C8-J-03-NNN-38-38-30 | 90L180KA5BC80SCC8J03NNN383830 |
| 83051833 | 90L180-KA-5-BC-80-S-C-C8-J-03-NNN-42-42-24 | 90L180KA5BC80SCC8J03NNN424224 |
| 80001452 | 90L180-KA-5-BC-80-S-C-F1-J-00-NNN-35-14-30 | 90L180KA5BC80SCF1J00NNN351430 |
| 83038482 | 90L180-KA-5-BC-80-S-M-C8-J-00-NNN-35-35-30 | 90L180KA5BC80SMC8J00NNN353530 |
| 83041506 | 90L180-KA-5-BC-80-S-M-C8-J-03-NNN-29-29-24 | 90L180KA5BC80SMC8J03NNN292924 |
| 83002844 | 90L180-KA-5-BC-80-S-M-C8-J-03-NNN-35-35-24 | 90L180KA5BC80SMC8J03NNN353524 |
| 83034374 | 90L180-KA-5-BC-80-SM-D8-H-03-NNN-42-42-24 | 90L180KA5BC80SMD8H03NNN424224 |
| 80002908 | 90L180-KA-5-BC-80-T-C-C8-J-03-NNN-42-42-28 | 90L180KA5BC80TCC8J03NNN424228 |
| 701015 | 90L180-KA-5-BC-80-T-C-F1-J-00-NNN-35-14-30 | 90L180KA5BC80TCF1J00NNN351430 |
| 83056662 | 90L180-KA-5-BC-80-T-C-F1-J-05-NNN-42-42-24 | 90L180KA5BC80TCF1J05NNN424224 |
| 701224 | 90L180-KA-5-BC-80-T-M-F1-H-03-EBA-38-38-24 | 90L180KA5BC80TMF1H03EBA383824 |
| 83005651 | 90L180-KA-5-BC-80-T-M-F1-J-03-EBA-42-42-24 | 90L180KA5BC80TMF1J03EBA424224 |
| 83015679 | 90L180-KA-5-BC-80-T-M-F1-J-03-NNN-42-42-24 | 90L180KA5BC80TMF1J03NNN424224 |
| 83020792 | 90L180-KA-5-CD-80-D-C-C8-L-03-NNN-30-30-28 | 90L180KA5CD80DCC8L03NNN303028 |
| 11099083 | 90-L-180-KA-5-CD-80-S-3-C8-J-03-FAC-32-32-24 | 90L180KA5CD80S3C8J03FAC323224 |
| 700282 | 90L180-KA-5-CD-80-S-3-C8-J-03-NNN-35-35-24 | 90L180KA5CD80S3C8J03NNN353524 |
| 601365 | 90L180-KA-5-CD-80-S-C-C8-H-05-NNN-38-38-20 | 90L180KA5CD80SCC8H05NNN383820 |
| 83038385 | 90L180-KA-5-CD-80-S-C-C8-J-03-NNN-23-23-28 | 90L180KA5CD80SCC8J03NNN232328 |
| 83021760 | 90L180-KA-5-CD-80-S-C-C8-J-03-NNN-29-29-24 | 90L180KA5CD80SCC8J03NNN292924 |
| 702698 | 90-L-180-KA-5-CD-80-S-C-C8-J-03-NNN-29-29-24 | 90L180KA5CD80SCC8J03NNN292924 |
| 83041076 | 90L180-KA-5-CD-80-S-M-C8-J-03-NNN-26-26-28 | 90L180KA5CD80SMC8J03NNN262628 |
| 80002935 | 90L180-KA-5-CD-80-T-C-C8-J-03-NNN-14-14-24 | 90L180KA5CD80TCC8J03NNN141424 |
| 700342 | 90L180-KA-5-CD-80-T-C-C8-J-03-NNN-26-26-24 | 90L180KA5CD80TCC8J03NNN262624 |
| 83006851 | 90L180-KA-5-CD-80-T-C-C8-J-03-NNN-35-35-24 | 90L180KA5CD80TCC8J03NNN353524 |
| 80006462 | 90L180-KA-5-CD-80-T-C-C8-J-03-NNN-42-42-24 | 90L180KA5CD80TCC8J03NNN424224 |
| 83029710 | 90L180-KA-5-CD-80-T-C-C8-J-05-NNN-42-42-24 | 90L180KA5CD80TCC8J05NNN424224 |
| 83021079 | 90L180-KA-5-CD-80-T-C-C8-J-06-NNN-35-35-24 | 90L180KA5CD80TCC8J06NNN353524 |
| 701014 | 90L180-KA-5-CD-80-T-C-F1-J-00-NNN-35-14-30 | 90L180KA5CD80TCF1J00NNN351430 |
| 83002449 | 90L180-KA-5-CD-80-T-C-F1-J-05-NNN-42-42-24 | 90L180KA5CD80TCF1J05NNN424224 |
| 83006531 | 90L180-KA-5-CD-80-TM-C8-J-03-NNN-35-16-34 | 90L180KA5CD80TMC8J03NNN351634 |
| 702113 | 90L180-KA-5-DE-80-S-C-C8-J-00-NNN-38-23-30 | 90L180KA5DE80SCC8J00NNN382330 |
| 83010274 | 90L180-KA-5-DE-80-T-C-C8-J-03-NNN-35-35-24 | 90L180KA5DE80TCC8J03NNN353524 |
| 83005951 | 90L180-KA-5-DE-80-T-C-C8-J-03-NNN-42-42-24 | 90L180KA5DE80TCC8J03NNN424224 |
| 83017234 | 90L180-KA-5-EF-80-D-C-C8-L-03-NNN-20-20-28 | 90L180KA5EF80DCC8L03NNN202028 |
| 83021302 | 90L180-KA-5-EF-80-D-C-C8-L-03-NNN-30-30-28 | 90L180KA5EF80DCC8L03NNN303028 |
| 83017384 | 90L180-KA-5-EF-80-D-C-C8-L-03-NNN-38-38-28 | 90L180KA5EF80DCC8L03NNN383828 |
| 83017228 | 90L180-KA-5-EF-80-D-C-C8-L-03-NNN-40-40-28 | 90L180KA5EF80DCC8L03NNN404028 |
| 83021367 | 90L180-KA-5-EF-80-S-M-F1-J-03-NNN-32-32-28 | 90L180KA5EF80SMF1J03NNN323228 |
| 83058425 | 90L180-KA-5-EF-80-T-C-F1-H-03-FAC-29-29-28 | 90L180KA5EF80TCF1H03FAC292928 |
| 702208 | 90L180-KA-5-EG-80-S-C-C8-J-00-NNN-38-23-30 | 90L180KA5EG80SCC8J00NNN382330 |
| 83049865 | 90L180-KA-5-EG-80-T-C-C8-J-03-FAC-35-35-24 | 90L180KA5EG80TCC8J03FAC353524 |
| 83004061 | 90L180-KA-5-EG-80-T-C-C8-J-03-FAC-42-42-24 | 90L180KA5EG80TCC8J03FAC424224 |
| 83010840 | 90L180-KA-5-EG-80-T-M-C8-H-03-FAC-35-35-24 | 90L180KA5EG80TMC8H03FAC353524 |
| 83055167 | 90L180-KA-5-EG-80-T-M-C8-J-03-NNN-17-35-30 | 90L180KA5EG80TMC8J03NNN173530 |
| 83049928 | 90L180-KA-5-NN-80-LM-C8-J-04-NNN-42-42-24 | 90L180KA5NN80LMC8J04NNN424224 |
| 80000054 | 90L180-KA-5-NN-80-S-C-C8-H-03-NNN-38-38-30 | 90L180KA5NN80SCC8H03NNN383830 |
| 80001067 | 90L180-KA-5-NN-80-S-C-C8-H-05-NNN-38-38-24 | 90L180KA5NN80SCC8H05NNN383824 |
| 80003104 | 90L180-KA-5-NN-80-SC-C8-J-00-GCA-32-32-28 | 90L180KA5NN80SCC8J00GCA323228 |
| 510856 | 90L180-KA-5-NN-80-SC-C8-J-00-GCP-32-32-28-E042 | 90L180KA5NN80SCC8J00GCP323228E042 |
| 80001172 | 90L180-KA-5-NN-80-S-C-C8-J-00-NNN-42-42-28 | 90L180KA5NN80SCC8J00NNN424228 |
| 83011293 | 90L180-KA-5-NN-80-SC-C8-J-03-GCG-45-45-24 | 90L180KA5NN80SCC8J03GCG454524 |
| 83013965 | 90L180-KA-5-NN-80-S-C-C8-J-03-NNN-32-32-24 | 90L180KA5NN80SCC8J03NNN323224 |
| 83009777 | 90L180-KA-5-NN-80-S-C-C8-J-03-NNN-42-42-24 | 90L180KA5NN80SCC8J03NNN424224 |
| 80001159 | 90L180-KA-5-NN-80-S-C-C8-J-03-NNN-42-42-28 | 90L180KA5NN80SCC8J03NNN424228 |
| 80002363 | 90L180-KA-5-NN-80-S-C-C8-J-03-NNN-45-45-24 | 90L180KA5NN80SCC8J03NNN454524 |
| 702160 | 90L180-KA-5-NN-80-S-C-C8-J-05-NNN-45-45-30 | 90L180KA5NN80SCC8J05NNN454530 |
| 83059579 | 90L180-KA-5-NN-80-S-C-F1-H-03-NNN-35-35-24 | 90L180KA5NN80SCF1H03NNN353524 |
| 11140372 | 90-L-180-KA-5-NN-80-S-C-F1-J-03-FAC-32-32-24 | 90L180KA5NN80SCF1J03FAC323224 |
| 83009193 | 90L180-KA-5-NN-80-S-M-C8-H-03-NNN-42-42-24 | 90L180KA5NN80SMC8H03NNN424224 |
| 702240 | 90L180-KA-5-NN-80-S-M-C8-J-03-NNN-35-35-24 | 90L180KA5NN80SMC8J03NNN353524 |
| 702624 | 90L180-KA-5-NN-80-S-M-C8-J-03-NNN-42-42-24 | 90L180KA5NN80SMC8J03NNN424224 |
| 83084699 | 90L180-KA-5-NN-80-SM-F1-H-03-EFI-35-35-24 | 90L180KA5NN80SMF1H03EFI353524 |
| 83010363 | 90L180-KA-5-NN-80-S-M-F1-H-03-FAC-32-14-30 | 90L180KA5NN80SMF1H03FAC321430 |
| 83021368 | 90L180-KA-5-NN-80-S-M-F1-J-03-NNN-32-32-28 | 90L180KA5NN80SMF1J03NNN323228 |
| 518362 | 90L180-KA-5-NN-80-T-3-C8-J-03-NNN-42-42-28 | 90L180KA5NN80T3C8J03NNN424228 |
| 507929 | 90L180-KA-5-NN-80-T-3-C8-J-04-NNN-42-42-24 | 90L180KA5NN80T3C8J04NNN424224 |
| 83003210 | 90L180-KA-5-NN-80-T-C-C8-J-03-NNN-26-26-24 | 90L180KA5NN80TCC8J03NNN262624 |
| 83043777 | 90L180-KA-5-NN-80-T-C-C8-J-03-NNN-36-36-24 | 90L180KA5NN80TCC8J03NNN363624 |
| 83029711 | 90L180-KA-5-NN-80-T-C-C8-J-05-NNN-42-42-24 | 90L180KA5NN80TCC8J05NNN424224 |
| 83008141 | 90L180-KA-5-NN-80-TC-F1-H-03-JCE-42-42-24 | 90L180KA5NN80TCF1H03JCE424224 |
| 519738 | 90L180-KA-5-NN-80-T-C-F1-H-03-NNN-42-42-24 | 90L180KA5NN80TCF1H03NNN424224 |
| 80002913 | 90L180-KA-5-NN-80-T-C-F1-J-03-FAC-20-20-22 | 90L180KA5NN80TCF1J03FAC202022 |
| 83034595 | 90L180-KA-5-NN-80-T-M-C8-J-03-NNN-26-26-24 | 90L180KA5NN80TMC8J03NNN262624 |
| 83002948 | 90L180-KA-5-NN-80-T-M-C8-J-03-NNN-32-32-24 | 90L180KA5NN80TMC8J03NNN323224 |
| 83012104 | 90L180-KA-5-NN-80-T-M-C8-J-03-NNN-42-42-24 | 90L180KA5NN80TMC8J03NNN424224 |
| 83091961 | 90L180-KA-5-NN-80-TM-C8-J-04-NNN-42-42-24 | 90L180KA5NN80TMC8J04NNN424224 |
| 83058426 | 90L180-KA-5-NN-80-T-M-F1-H-03-FAC-29-29-28 | 90L180KA5NN80TMF1H03FAC292928 |
| 83030830 | 90L180-KA-5-NN-80-T-M-F1-J-03-FAC-20-20-22 | 90L180KA5NN80TMF1J03FAC202022 |
| 83061749 | 90L180-KA-P-CD-80-SC-C8-J-03-GCA-45-45-24 | 90L180KAPCD80SCC8J03GCA454524 |
| 9820170 | 90L180-KN-1-AB-80-T-C-F1-J-03-FAC-42-42-24 | 90L180KN1AB80TCF1J03FAC424224 |
| 83036845 | 90L180-KN-1-AB-80-T-M-F1-H-03-NNN-35-35-22 | 90L180KN1AB80TMF1H03NNN353522 |
| 83036099 | 90L180-KN-1-AB-80-T-M-F1-H-03-NNN-35-35-24 | 90L180KN1AB80TMF1H03NNN353524 |
| 83016202 | 90L180-KN-1-BC-80-S-M-F1-H-03-FAC-35-35-24 | 90L180KN1BC80SMF1H03FAC353524 |
| 83018470 | 90L180-KN-1-BC-80-T-C-F1-H-03-FAC-32-32-24 | 90L180KN1BC80TCF1H03FAC323224 |
| 83045371 | 90L180-KN-1-BC-80-T-C-F1-J-03-FAC-38-38-24 | 90L180KN1BC80TCF1J03FAC383824 |
| 83076589 | 90L180-KN-1-CD-80-SM-F1-H-03-FAC-35-35-24 | 90L180KN1CD80SMF1H03FAC353524 |
| 83023472 | 90L180-KN-1-CD-80-T-C-F1-H-03-FAC-35-35-24 | 90L180KN1CD80TCF1H03FAC353524 |
| 83014435 | 90L180-KN-1-CD-80-T-C-F1-H-03-FAC-42-42-24 | 90L180KN1CD80TCF1H03FAC424224 |
| 83031979 | 90L180-KN-1-CD-80-T-C-F1-J-03-FAC-32-32-26 | 90L180KN1CD80TCF1J03FAC323226 |
| 83018515 | 90L180-KN-1-CD-80-T-M-F1-H-03-FAC-40-40-30 | 90L180KN1CD80TMF1H03FAC404030 |
| 83036796 | 90L180-KN-1-CD-80-T-M-F1-H-03-FAC-42-42-24 | 90L180KN1CD80TMF1H03FAC424224 |
| 83058498 | 90L180-KN-1-CD-80-T-M-F1-H-03-NNN-35-35-24 | 90L180KN1CD80TMF1H03NNN353524 |
| 83036098 | 90L180-KN-1-CD-80-T-M-F1-H-03-NNN-42-42-24 | 90L180KN1CD80TMF1H03NNN424224 |
| 83057949 | 90L180-KN-1-CD-80-T-M-F1-J-03-NNN-42-14-24 | 90L180KN1CD80TMF1J03NNN421424 |
| 83039176 | 90L180-KN-1-NN-80-D-M-F1-L-00-FAC-35-35-24 | 90L180KN1NN80DMF1L00FAC353524 |
| 83011711 | 90L180-KN-1-NN-80-D-M-F1-L-03-FAC-35-35-24 | 90L180KN1NN80DMF1L03FAC353524 |
| 83014682 | 90L180-KN-1-NN-80-S-M-F1-H-03-FAC-35-35-24 | 90L180KN1NN80SMF1H03FAC353524 |
| 83025799 | 90L180-KN-1-NN-80-S-M-F1-H-03-FAC-42-42-24 | 90L180KN1NN80SMF1H03FAC424224 |
| 83011002 | 90L180-KN-1-NN-80-SM-F1-L-03-FAC-35-35-24 | 90L180KN1NN80SMF1L03FAC353524 |
| 83013504 | 90L180-KN-1-NN-80-T-C-F1-H-03-FAC-35-35-24 | 90L180KN1NN80TCF1H03FAC353524 |
| 83032310 | 90L180-KN-1-NN-80-T-C-F1-H-03-NNN-35-35-24 | 90L180KN1NN80TCF1H03NNN353524 |
| 83015006 | 90L180-KN-1-NN-80-T-C-F1-J-03-FAC-42-42-24 | 90L180KN1NN80TCF1J03FAC424224 |
| 83075520 | 90L180-KN-1-NN-80-TC-F1-J-03-NNN-35-35-24 | 90L180KN1NN80TCF1J03NNN353524 |
| 83024409 | 90L180-KN-1-NN-80-T-M-F1-H-03-FAC-42-42-24 | 90L180KN1NN80TMF1H03FAC424224 |
| 83061571 | 90L180-KN-1-NN-80-T-M-F1-H-03-NNN-35-35-24 | 90L180KN1NN80TMF1H03NNN353524 |
| 83053244 | 90L180-KN-1-NN-80-T-M-F1-J-00-NNN-35-35-24 | 90L180KN1NN80TMF1J00NNN353524 |
| 83051500 | 90L180-KN-1-NN-80-T-M-F1-J-03-FAC-35-35-24 | 90L180KN1NN80TMF1J03FAC353524 |
| 83017756 | 90L180-KN-5-CD-80-D-M-F1-L-05-FAC-35-35-28 | 90L180KN5CD80DMF1L05FAC353528 |
| 83001447 | 90L180-KN-5-CD-80-S-C-C8-H-03-NNN-40-40-26 | 90L180KN5CD80SCC8H03NNN404026 |
| 80004139 | 90L180-KN-5-CD-80-S-M-F1-J-05-FAC-42-42-24 | 90L180KN5CD80SMF1J05FAC424224 |
| 83001967 | 90L180-KN-5-CD-80-T-M-F1-H-03-FAC-35-35-24 | 90L180KN5CD80TMF1H03FAC353524 |
| 83036419 | 90L180-KN-5-CD-80-T-M-F1-H-03-FAC-42-14-24 | 90L180KN5CD80TMF1H03FAC421424 |
| 80004315 | 90L180-KN-5-CD-80-T-M-F1-J-05-FAC-42-42-24 | 90L180KN5CD80TMF1J05FAC424224 |
| 80006167 | 90L180-KN-5-EF-80-T-M-F1-H-03-FAC-26-26-24 | 90L180KN5EF80TMF1H03FAC262624 |
| 80006249 | 90L180-KN-5-EF-80-T-M-F1-H-03-FAC-35-35-24 | 90L180KN5EF80TMF1H03FAC353524 |
| 83028190 | 90L180-KN-5-EG-80-T-C-C8-J-03-NNN-32-32-24 | 90L180KN5EG80TCC8J03NNN323224 |
| 700825 | 90L180-KN-5-NN-80-S-C-C8-J-03-NNN-42-42-24 | 90L180KN5NN80SCC8J03NNN424224 |
| 83076763 | 90L180-KN-5-NN-80-SC-F1-H-03-NNN-35-35-24 | 90L180KN5NN80SCF1H03NNN353524 |
| 80001043 | 90L180-KN-5-NN-80-T-C-F1-J-03-FAC-35-35-24 | 90L180KN5NN80TCF1J03FAC353524 |
| 83005137 | 90L180-KN-5-NN-80-T-C-F1-J-03-FAC-38-38-24 | 90L180KN5NN80TCF1J03FAC383824 |
| 80000693 | 90L180-KN-5-NN-80-T-C-F1-J-03-FAC-42-42-24 | 90L180KN5NN80TCF1J03FAC424224 |
| 83028860 | 90L180-KN-5-NN-80-T-M-F1-H-03-FAC-35-35-24 | 90L180KN5NN80TMF1H03FAC353524 |
| 83030064 | 90L180-KP-1-BC-80-T-C-F1-H-03-FAC-42-42-24 | 90L180KP1BC80TCF1H03FAC424224 |
| 83022418 | 90L180-KP-1-CD-80-T-C-C8-H-03-FAC-42-42-24 | 90L180KP1CD80TCC8H03FAC424224 |
| 9820161 | 90L180-KP-1-CD-80-T-C-C8-J-03-FAC-42-42-24 | 90L180KP1CD80TCC8J03FAC424224 |
| 9820148 | 90-L-180-KP-1-CD-80-T-C-C8-J-03-NNN-42-42-24 | 90L180KP1CD80TCC8J03NNN424224 |
| 83012675 | 90L180-KP-1-CD-80-T-C-F1-H-03-FAC-29-29-24 | 90L180KP1CD80TCF1H03FAC292924 |
| 83029138 | 90L180-KP-1-CD-80-T-C-F1-H-03-FAC-35-35-24 | 90L180KP1CD80TCF1H03FAC353524 |
| 83050408 | 90L180-KP-1-CD-80-T-C-F1-J-03-FAC-35-38-24 | 90L180KP1CD80TCF1J03FAC353824 |
| 9820172 | 90-L-180-KP-1-CD-80-T-M-C8-H-03-FAC-38-38-24 | 90L180KP1CD80TMC8H03FAC383824 |
| 9820164 | 90L180-KP-1-CD-80-T-M-F1-J-03-FAC-23-23-24 | 90L180KP1CD80TMF1J03FAC232324 |
| 83052710 | 90L180-KP-1-DE-80-T-C-C8-H-00-FAC-36-36-24 | 90L180KP1DE80TCC8H00FAC363624 |
| 83021979 | 90L180-KP-1-DE-80-T-C-C8-H-03-FAC-36-36-24 | 90L180KP1DE80TCC8H03FAC363624 |
| 9820168 | 90-L-180-KP-1-DE-80-T-C-C8-J-05-FAC-35-35-24 | 90L180KP1DE80TCC8J05FAC353524 |
| 83032732 | 90L180-KP-1-DE-80-T-C-F1-J-00-FAC-42-42-24 | 90L180KP1DE80TCF1J00FAC424224 |
| 80001237 | 90L180-KP-1-EF-80-S-C-C8-J-00-FAC-42-42-24 | 90L180KP1EF80SCC8J00FAC424224 |
| 80001236 | 90L180-KP-1-EG-80-S-C-F1-J-00-FAC-42-42-24 | 90L180KP1EG80SCF1J00FAC424224 |
| 9820171 | 90L180-KP-1-NN-80-S-C-F1-H-03-FAC-26-26-24 | 90L180KP1NN80SCF1H03FAC262624 |
| 83028234 | 90L180-KP-1-NN-80-T-C-F1-H-03-NNN-32-32-24 | 90L180KP1NN80TCF1H03NNN323224 |
| 83003089 | 90-L-180-KP-2-BC-80-D-M-C8-L-05-FAC-32-32-32 | 90L180KP2BC80DMC8L05FAC323232 |
| 83028359 | 90L180-KP-2-BC-80-T-C-F1-J-02-FAC-45-45-24 | 90L180KP2BC80TCF1J02FAC454524 |
| 80002169 | 90L180-KP-2-BC-80-T-C-F1-J-03-FAC-42-14-24 | 90L180KP2BC80TCF1J03FAC421424 |
| 83023658 | 90L180-KP-2-CD-80-T-C-C8-J-00-FAC-42-42-24 | 90L180KP2CD80TCC8J00FAC424224 |
| 80002138 | 90L180-KP-2-CD-80-T-C-F1-H-03-FAC-35-35-24 | 90L180KP2CD80TCF1H03FAC353524 |
| 83014832 | 90L180-KP-2-CD-80-T-C-F1-J-03-FAC-42-14-24 | 90L180KP2CD80TCF1J03FAC421424 |
| 83003090 | 90-L-180-KP-2-EF-80-D-M-C8-L-05-FAC-32-14-32 | 90L180KP2EF80DMC8L05FAC321432 |
| 83023659 | 90L180-KP-2-EG-80-T-C-C8-J-00-FAC-42-42-24 | 90L180KP2EG80TCC8J00FAC424224 |
| 83003091 | 90-L-180-KP-2-NN-80-D-M-F1-L-05-FAC-32-32-32 | 90L180KP2NN80DMF1L05FAC323232 |
| 80001675 | 90L180-KP-2-NN-80-T-C-F1-H-03-FAC-35-35-24 | 90L180KP2NN80TCF1H03FAC353524 |
| 80001674 | 90L180-KP-2-NN-80-T-M-F1-H-03-FAC-35-35-24 | 90L180KP2NN80TMF1H03FAC353524 |
| 80000841 | 90L180-KP-5-AB-80-T-C-C8-J-03-FAC-35-35-24 | 90L180KP5AB80TCC8J03FAC353524 |
| 80005368 | 90L180-KP-5-AB-80-T-C-F1-H-03-FAC-35-35-24 | 90L180KP5AB80TCF1H03FAC353524 |
| 83029302 | 90L180-KP-5-AB-80-T-M-C8-J-03-FAC-35-35-24 | 90L180KP5AB80TMC8J03FAC353524 |
| 83035681 | 90L180-KP-5-AB-80-T-M-F1-J-03-FAC-38-38-24 | 90L180KP5AB80TMF1J03FAC383824 |
| 83001635 | 90L180-KP-5-BB-80-T-C-C8-H-03-FAC-35-35-24 | 90L180KP5BB80TCC8H03FAC353524 |
| 83002644 | 90L180-KP-5-BC-80-S-C-C8-H-03-FAC-32-32-24 | 90L180KP5BC80SCC8H03FAC323224 |
| 83001057 | 90L180-KP-5-BC-80-S-M-F1-J-03-FAC-32-32-24 | 90L180KP5BC80SMF1J03FAC323224 |
| 83002202 | 90L180-KP-5-BC-80-T-C-C8-J-03-FAC-35-35-24 | 90L180KP5BC80TCC8J03FAC353524 |
| 83027923 | 90L180-KP-5-BC-80-T-C-F1-H-03-FAC-21-21-24 | 90L180KP5BC80TCF1H03FAC212124 |
| 83012895 | 90L180-KP-5-BC-80-T-C-F1-H-03-FAC-45-45-24 | 90L180KP5BC80TCF1H03FAC454524 |
| 80001554 | 90L180-KP-5-BC-80-T-M-F1-J-03-FAC-32-32-24 | 90L180KP5BC80TMF1J03FAC323224 |
| 83016032 | 90L180-KP-5-CD-80-S-C-C8-J-03-FAC-42-42-24 | 90L180KP5CD80SCC8J03FAC424224 |
| 83020125 | 90L180-KP-5-CD-80-S-C-C8-J-09-FAC-35-35-24 | 90L180KP5CD80SCC8J09FAC353524 |
| 80003678 | 90L180-KP-5-CD-80-S-C-F1-H-03-FAC-42-42-24 | 90L180KP5CD80SCF1H03FAC424224 |
| 80004524 | 90L180-KP-5-CD-80-S-M-F1-J-03-FAC-32-32-24 | 90L180KP5CD80SMF1J03FAC323224 |
| 80004029 | 90L180-KP-5-CD-80-TC-C8-J-03-EHA-35-35-24 | 90L180KP5CD80TCC8J03EHA353524 |
| 83002203 | 90L180-KP-5-CD-80-T-C-C8-J-03-FAC-35-35-24 | 90L180KP5CD80TCC8J03FAC353524 |
| 9820190 | 90L180-KP-5-CD-80-T-C-C8-J-05-FAC-32-32-30 | 90L180KP5CD80TCC8J05FAC323230 |
| 9820174 | 90L180-KP-5-CD-80-T-C-C8-J-05-FAC-42-42-24 | 90L180KP5CD80TCC8J05FAC424224 |
| 83023623 | 90L180-KP-5-CD-80-T-C-F1-H-03-FAC-45-45-24 | 90L180KP5CD80TCF1H03FAC454524 |
| 83001497 | 90L180-KP-5-CD-80-T-C-F1-H-05-FAC-20-38-24 | 90L180KP5CD80TCF1H05FAC203824 |
| 80006261 | 90-L-180-KP-5-CD-80-T-C-F1-J-03-FAC-23-23-28 | 90L180KP5CD80TCF1J03FAC232328 |
| 83038787 | 90L180-KP-5-CD-80-TC-F1-J-03-FAC-24-24-28 | 90L180KP5CD80TCF1J03FAC242428 |
| 702371 | 90L180-KP-5-CD-80-T-M-C8-H-03-FAC-38-38-24 | 90L180KP5CD80TMC8H03FAC383824 |
| 80006277 | 90L180-KP-5-CD-80-T-M-C8-H-06-FAC-38-38-24 | 90L180KP5CD80TMC8H06FAC383824 |
| 83032613 | 90L180-KP-5-CD-80-TM-C8-H-06-FTA-38-38-24 | 90L180KP5CD80TMC8H06FTA383824 |
| 83003702 | 90L180-KP-5-CD-80-T-M-C8-J-00-EBA-42-42-24 | 90L180KP5CD80TMC8J00EBA424224 |
| 80001643 | 90L180-KP-5-CD-80-T-M-C8-J-03-FAC-32-32-24 | 90L180KP5CD80TMC8J03FAC323224 |
| 83021080 | 90L180-KP-5-CD-80-T-M-C8-J-06-FAC-32-32-24 | 90L180KP5CD80TMC8J06FAC323224 |
| 83010667 | 90L180-KP-5-CD-80-T-M-F1-H-03-FAC-35-35-24 | 90L180KP5CD80TMF1H03FAC353524 |
| 83002597 | 90L180-KP-5-CD-80-T-M-F1-J-00-EBA-42-42-24 | 90L180KP5CD80TMF1J00EBA424224 |
| 80004596 | 90L180-KP-5-CD-80-T-M-F1-J-03-FAC-26-26-24 | 90L180KP5CD80TMF1J03FAC262624 |
| 83002645 | 90L180-KP-5-DE-80-S-C-C8-H-03-FAC-32-32-24 | 90L180KP5DE80SCC8H03FAC323224 |
| 83002604 | 90L180-KP-5-DE-80-T-C-C8-H-03-FAC-36-36-24 | 90L180KP5DE80TCC8H03FAC363624 |
| 83002190 | 90L180-KP-5-EF-80-T-C-C8-J-03-FAC-35-35-24 | 90L180KP5EF80TCC8J03FAC353524 |
| 83015173 | 90L180-KP-5-NN-80-S-C-F1-J-03-FAC-21-21-24 | 90L180KP5NN80SCF1J03FAC212124 |
| 80000228 | 90L180-KP-5-NN-80-S-M-F1-J-03-FAC-32-32-24 | 90L180KP5NN80SMF1J03FAC323224 |
| 83016596 | 90L180-KP-5-NN-80-T-C-F1-H-03-EBA-42-42-24 | 90L180KP5NN80TCF1H03EBA424224 |
| 80003622 | 90L180-KP-5-NN-80-T-C-F1-H-03-FAC-35-35-24 | 90L180KP5NN80TCF1H03FAC353524 |
| 9820152 | 90L180-KP-5-NN-80-T-C-F1-J-03-FAC-42-42-24 | 90L180KP5NN80TCF1J03FAC424224 |
| 518652 | 90L180-KP-5-NN-80-TC-F5-H-03-FAC-32-32-24 | 90L180KP5NN80TCF5H03FAC323224 |
| 80001873 | 90L180-KP-5-NN-80-TC-F5-J-03-FAC-32-32-28 | 90L180KP5NN80TCF5J03FAC323228 |
| 83029046 | 90L180-KP-5-NN-80-T-M-C8-J-03-NNN-42-42-24 | 90L180KP5NN80TMC8J03NNN424224 |
| 83015469 | 90L180-KP-5-NN-80-T-M-F1-H-00-FAC-23-23-24 | 90L180KP5NN80TMF1H00FAC232324 |
| 83047670 | 90L180-KP-5-NN-80-T-M-F1-J-03-NNN-38-38-24 | 90L180KP5NN80TMF1J03NNN383824 |
| 80000168 | 90L180-KP-5-NN-80-T-M-F1-J-05-FAC-35-35-24 | 90L180KP5NN80TMF1J05FAC353524 |
| 83018537 | 90L180-KT-1-NN-80-T-C-F1-J-04-FAC-42-20-26 | 90L180KT1NN80TCF1J04FAC422026 |
| 83019199 | 90L180-KT-1-NN-80-T-M-C8-H-03-FAC-42-42-24 | 90L180KT1NN80TMC8H03FAC424224 |
| 83061682 | 90L180-KT-5-BC-80-T-C-F1-J-03-FAC-29-29-26 | 90L180KT5BC80TCF1J03FAC292926 |
| 83028050 | 90L180-KT-5-BC-80-T-C-F1-J-03-FAC-35-35-24 | 90L180KT5BC80TCF1J03FAC353524 |
| 83091004 | 90L180-KT-5-BC-80-TC-F1-J-03-FAC-38-38-24 | 90L180KT5BC80TCF1J03FAC383824 |
| 83072136 | 90L180-KT-5-CD-80-TC-F1-J-03-FAC-26-26-26 | 90L180KT5CD80TCF1J03FAC262626 |
| 83028396 | 90L180-KT-5-CD-80-T-C-F1-J-03-FAC-35-35-24 | 90L180KT5CD80TCF1J03FAC353524 |
| 83090975 | 90L180-KT-5-CD-80-TC-F1-J-03-FAC-38-38-24 | 90L180KT5CD80TCF1J03FAC383824 |
| 83090976 | 90L180-KT-5-DE-80-TC-F1-J-03-FAC-38-38-24 | 90L180KT5DE80TCF1J03FAC383824 |
| 83061681 | 90L180-KT-5-EF-80-T-C-F1-J-03-FAC-29-29-26 | 90L180KT5EF80TCF1J03FAC292926 |
| 9820158 | 90-L-180-MA-1-AB-80-T-C-F1-J-05-FAC-20-20-24 | 90L180MA1AB80TCF1J05FAC202024 |
| 9820188 | 90L180-MA-1-BC-80-T-C-F1-H-03-FAC-42-42-24 | 90L180MA1BC80TCF1H03FAC424224 |
| 83063813 | 90L180-MA-1-CD-80-T-M-C8-H-04-NNN-42-42-32 | 90L180MA1CD80TMC8H04NNN424232 |
| 9820189 | 90L180-MA-1-EF-80-T-C-F1-H-03-FAC-42-42-24 | 90L180MA1EF80TCF1H03FAC424224 |
| 83038494 | 90L180-MA-1-NN-80-S-C-F1-H-03-FAC-38-38-24 | 90L180MA1NN80SCF1H03FAC383824 |
| 83033227 | 90L180-MA-1-NN-80-S-C-F1-H-03-FAC-42-42-24 | 90L180MA1NN80SCF1H03FAC424224 |
| 83023527 | 90L180-MA-1-NN-80-T-M-F1-J-03-FAC-35-35-24 | 90L180MA1NN80TMF1J03FAC353524 |
| 80002435 | 90L180-MA-2-BB-80-S-M-C8-J-C5-NNN-35-35-24 | 90L180MA2BB80SMC8JC5NNN353524 |
| 83031058 | 90L180-MA-2-BC-80-S-C-C8-H-C5-NNN-26-26-24 | 90L180MA2BC80SCC8HC5NNN262624 |
| 702013 | 90L180-MA-5-AB-80-S-C-C8-J-C5-NNN-42-42-24 | 90L180MA5AB80SCC8JC5NNN424224 |
| 701775 | 90L180-MA-5-AB-80-S-M-C8-J-C5-NNN-35-35-20 | 90L180MA5AB80SMC8JC5NNN353520 |
| 83014948 | 90L180-MA-5-AB-80-S-M-F1-H-C5-FAC-32-14-30 | 90L180MA5AB80SMF1HC5FAC321430 |
| 83006878 | 90L180-MA-5-AB-80-T-M-F1-J-C5-FAC-35-35-24 | 90L180MA5AB80TMF1JC5FAC353524 |
| 83007035 | 90L180-MA-5-BB-80-S-M-C8-J-C5-NNN-35-35-24 | 90L180MA5BB80SMC8JC5NNN353524 |
| 700162 | 90L180-MA-5-BC-80-S-4-C8-J-C5-NNN-35-35-24 | 90L180MA5BC80S4C8JC5NNN353524 |
| 520384 | 90L180-MA-5-BC-80-T-C-C8-J-C5-NNN-42-42-24 | 90L180MA5BC80TCC8JC5NNN424224 |
| 83058291 | 90L180-MA-5-EF-80-T-C-F1-H-C5-FAC-29-29-28 | 90L180MA5EF80TCF1HC5FAC292928 |
| 700255 | 90L180-MA-5-NN-80-S-3-C8-J-C5-NNN-42-42-24 | 90L180MA5NN80S3C8JC5NNN424224 |
| 83018616 | 90L180-MA-5-NN-80-S-C-F1-J-C5-NNN-42-42-24 | 90L180MA5NN80SCF1JC5NNN424224 |
| 83018617 | 90L180-MA-5-NN-80-S-M-C8-J-C5-FAC-32-32-24 | 90L180MA5NN80SMC8JC5FAC323224 |
| 700303 | 90L180-MA-5-NN-80-T-3-C8-J-03-NNN-42-42-24 | 90L180MA5NN80T3C8J03NNN424224 |
| 83022284 | 90L180-MA-5-NN-80-T-C-C8-J-C5-FAC-32-32-24 | 90L180MA5NN80TCC8JC5FAC323224 |
| 80003109 | 90L180-MA-5-NN-80-T-C-F1-H-C5-FAC-29-29-24 | 90L180MA5NN80TCF1HC5FAC292924 |
| 83058317 | 90L180-MA-5-NN-80-T-C-F1-H-C5-FAC-29-29-28 | 90L180MA5NN80TCF1HC5FAC292928 |
| 80003378 | 90L180-MA-5-NN-80-T-C-F1-J-C5-FAC-35-35-24 | 90L180MA5NN80TCF1JC5FAC353524 |
| 80005199 | 90L180-MB-5-NN-80-TC-F1-J-C5-FAC-38-38-28 | 90L180MB5NN80TCF1JC5FAC383828 |
| 83056590 | 90L180-MS-1-BC-80-T-C-F1-J-05-NNN-42-42-24 | 90L180MS1BC80TCF1J05NNN424224 |
| 83059489 | 90L180-MS-1-NN-80-S-C-F1-H-03-NNN-42-42-24 | 90L180MS1NN80SCF1H03NNN424224 |
| 83053897 | 90-L-180-MS-1-NN-80-S-C-F1-J-03-FAC-42-42-24 | 90L180MS1NN80SCF1J03FAC424224 |
| 83072912 | 90L180-MS-5-NN-80-SC-F1-J-C5-NNN-42-42-24 | 90L180MS5NN80SCF1JC5NNN424224 |
| 83093868 | 90L180-PB-1-BC-80-TC-C8-J-03-NNN-35-35-24 | 90L180PB1BC80TCC8J03NNN353524 |
| 83067127 | 90L180-PB-1-NN-80-SM-C8-H-03-NNN-35-35-24 | 90L180PB1NN80SMC8H03NNN353524 |
| 83091204 | 90L180-PB-5-CD-80-SM-F1-J-03-NNN-38-38-24 | 90L180PB5CD80SMF1J03NNN383824 |
| 83028360 | 90L180-PB-5-NN-80-DM-C8-L-03-NNN-38-38-30 | 90L180PB5NN80DMC8L03NNN383830 |
| 83007794 | 90L180-PB-5-NN-80-TM-F1-H-03-NNN-35-35-24 | 90L180PB5NN80TMF1H03NNN353524 |
Q1: How is variable displacement achieved in the 90L180 hydraulic pump?
A1:Variable displacement in the 90L180 hydraulic pump is achieved through a swashplate mechanism, which alters the angle to control the stroke length of the pistons, thereby changing the pump's output flow.
Q2:In what types of applications is the 90L180 hydraulic pump typically used?
A2: The 90L180 hydraulic pump is typically used in demanding mobile applications, including construction machinery (e.g., excavators), agricultural equipment, and material handling vehicles.
Q3:How to purchase a 90L180 hydraulic pump?
A3:You can click on the right sidebar or the contact information in the top bar to contact us to purchase. You can do so via email, form, WeChat, WhatsApp, or other methods.
Q4:What is the price and delivery time of the 90L180 hydraulic pump?
A4:The specific price and delivery time will be provided based on the specific model you provide.
